Livestock Evaporative Cooler Filter Pads , 10cm 15cm Air Cooler Side Pads
Place of Origin | China |
---|---|
Brand Name | Silver Star |
Certification | ISO9001, SONCAP |
Model Number | YXF-1380 |
Minimum Order Quantity | 2 Set |
Price | 80-352USD/ Set |
Packaging Details | Carton box packaging |
Delivery Time | 7-10 working days after advanced payment |
Payment Terms | T/T, Western Union, D/A, D/P, L/C |
Supply Ability | 200000sets/ month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | Livestock Farm Evaporative Water Cooling Pad Wall With Aluminum Frame | Outer Frame | Hot Galvanized, Aluminum-alloy, Or Stainless Steel |
---|---|---|---|
Cooling Pad Thickness | 10cm, 15cm, 20cm, 30cm | Cooling Pad Width | 300mm, 600mm |
Raw Material | Corrugated Fiber Paper | Cooling Pad Height | 1500, 1800, 2000, 2500mm |
Performance | High Structural Strength, Corrosion Resistance And Long Service Life. | Apply For | Animal Livestock, Greenhouse, Industrial Plants |
Function | Ventilation And Cooling | ||
High Light | 10cm evaporative cooler filter pads,15cm evaporative cooler filter pads,evaporative air cooler side pads |

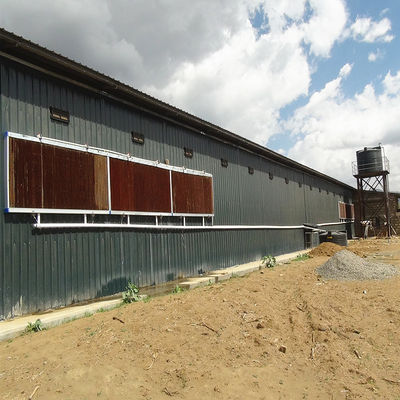

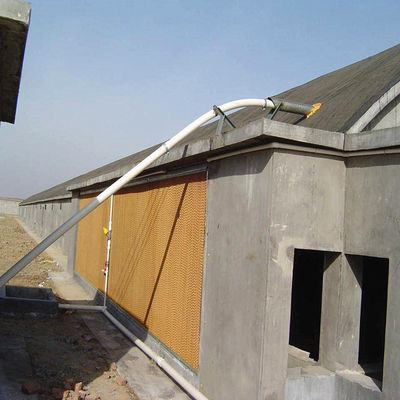

Livestock Farm Evaporative Water Cooling Pad Wall With Aluminum Frame
Evaporative Water Cooling Pad Working Principle
Cooling pad is a special paper honeycomb structure material. Its working principle is the natural physical phenomenon of "water evaporates and absorbs heat", that is, water flows from top to bottom under the action of gravity, forming water on the fiber surface of the water curtain. Membrane, when the flowing air passes through the water curtain, the water in the film will evaporate and absorb the heat in the air to take away a large amount of latent heat, so that the humidity of the air passing through the water curtain is reduced to achieve the purpose of cooling down.
Evaporative Water Cooling Pad Wall Techinical Paramete
Size(mm) | 7090Model | 7060 Model |
Height | 1500,1800,2000, 2500 | 1500,1800,2000, 2500 |
Width | 900,600,300 | 900,600 |
Thickness | 100,150,200,300 | 100,150,200,300 |
Height of flute | 7 | 5 |
5090Model also can be provided according to order.
Evaporative Water Cooling Pad Performance Characteristics:
1. Adopting new materials and spatial cross-linking technology, high water absorption, high water resistance, mildew resistance, corrosion resistance and long service life.
2. The evaporation of the product is larger than the surface, and the cooling efficiency is over 80%.
3. The product contains surfactants, naturally absorbs water, spreads quickly, and has long-lasting performance. A drop of water can be diffused in 4~5 seconds, and the natural water absorption height is 60~70mm/5 minutes; at 200mm/1.5, it reaches the international industry standard;
4. The product does not contain chemical substances such as phenol that are easy to cause skin allergies, and is non-toxic and harmless to the human body when installed and used, safe, energy-saving, environmentally friendly, and economical;
5. Multiple outer frame sizes: galvanized sheet, stainless steel, aluminum alloy and other materials, which are effective and convenient for customers to choose.
