36000m3/H 1250mm Poultry Environmental Control System Chicken House Butterfly Cone Fan

Place of Origin China
Brand Name Silver Star
Certification ISO9001, SONCAP
Model Number YXFC36", YXFC54"
Minimum Order Quantity 2 Set
Price 200-380USD/ Set
Packaging Details Carton box packaging
Delivery Time 7-10 working days after advanced payment
Payment Terms T/T, Western Union, D/A, D/P, L/C
Supply Ability 200000sets/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Features Energy Saving, Low Noise, Long Service Life Product Name Butterfly Cone Fan Poultry Farm Climated Control For Chicken House
Outer Frame Galvanized Steel Sheet Cone Fan Diameter 1000mm, 1250mm
Cone Fan Size 36":1100x1100x1150mm; 54": 1380x1380x1300mm Air Flow Volume 36000m3/h, 51020m3/h
Fans Motor 380v, 3phase, 50hz Or Can Be Customized Input Power 0.75kw, 1.1kw
Blade Material Stainless Steel Apply For Animal Livestock, Greenhouse, Industrial Plants
High Light

1250mm Poultry Environmental Control System


Chicken House butterfly cone fan


36000m3/h butterfly cone fan

Leave a Message
Product Description

         Butterfly Cone Fan Poultry Farm Climated Control For Chicken House



Poultry Farm Climated Control Butterfly Cone Fan Information


Compared with normal box fans, as one type of poultry farm climated control, butterly cone fan has a bigger air volume, its shutters are made of high strength hot galvanized steel sheet, anti-tioxidant, light weight and no distortions. Novel and reasonable cone design can gather air volume and concentrated wind direction, more energy-saving and noise-reducing; Outer frame material is galvanized sheet processed with advanced automated equipment, and the thickness of the galvanized layer per square meter is 180 grams; Fans are composed of 6 stainless steel 430BA blades. Through strict dynamic balance test, the gap between the blades is less than 1g.



Techinical Parameter Of Butterfly Cone Fans For Chicken House


Model Blades Diameter (mm) Blades Rotation Speed(rpm) Motor Rotation Speed(rpm) Air flow(m3/h) Total Pressure(Pa) Input Power(W) Rated voltage(V) Height (mm) Width(mm) Thickness(mm)
YXFC36" 1000 600 1400 36000 70 750 380 1100 1100 1150
YXFC54" 1250 439 1400 51020 80 1100 380 1380 1380 1300



Poultry Farm Climated Control Butterfly Cone Fan Features


1. Reasonable cone design, low noise, large air volume, strong pumping budget, low functional cost;

2. Imported bearings, high strength, low noise, durable;

3. Synthetic pvc shutters or aluminum shutters using the principle of air downstream, anti-oxidation and weight

4. Light, invariable, open, anti-air backflow;

5. Aluminum-magnesium alloy pulley with high and multiple ribs, light weight, high strength and good strength;

6. The 6-piece stainless steel fan is not deformed, durable, beautiful and durable;

7. There are two methods, vertical and inclined, to effectively meet the needs of different occasions;

8. Equipped with energy-saving motor, passed 3C certification, protection level: IP55, waterproof level: F level.

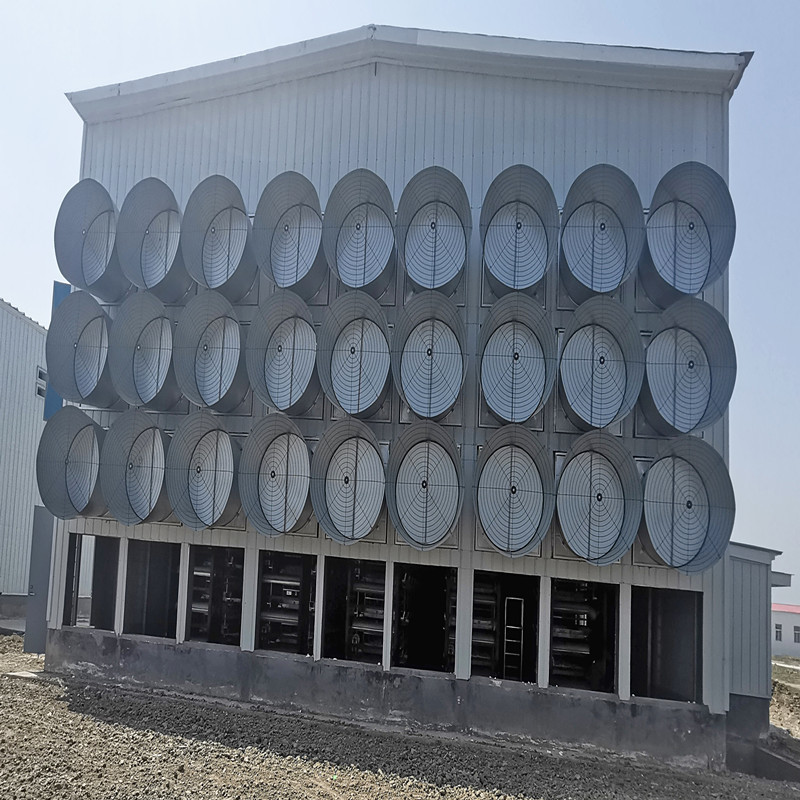

36000m3/H 1250mm Poultry Environmental Control System Chicken House Butterfly Cone Fan 0
