H Type 4 Tiers 0.75kW HDG Automatic Poultry Feeding System for Layer Cage Chicken Farms

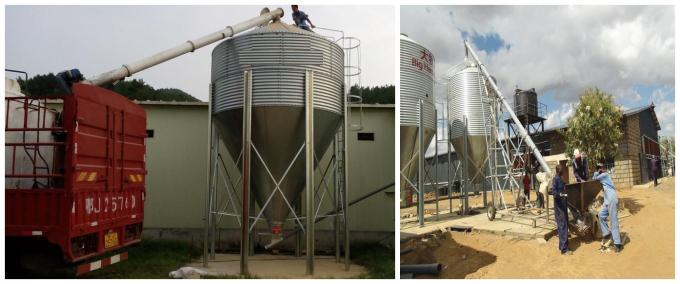

The H-Type 4-Tier Automated Feeding System is purpose-built for layer cage poultry farms. It transports feed from storage silos through pipe-mounted spiral augers to mobile feed carts, enabling fully automatic material distribution across every tier.

• Product Name: H Type 4 Tiers Automatic Poultry Feeding System for Layer Chicken Farms
• Main Material: Hot-Dip Galvanized Steel
• Motor Power: 0.75 kW
• Application: Layer chicken cage farms
• Core Advantages: Stable running, uniform feed distribution
• Product Type: New Generation Poultry Equipment
• Service: 24/7 Online Technical Support
• Service Life: 15–20 Years
• HS Code: 8462900
• Local Service Coverage: Ecuador, Kenya, Algeria, Indonesia, Panama, Nigeria, Ghana, Philippines, Uzbekistan, Bangladesh

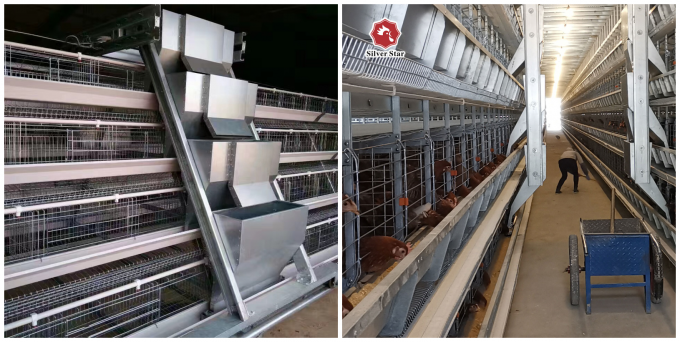

This automated feeding system is engineered for layer cage operations. Feed flows automatically from the silo into mobile feed carts through spiral augers installed inside 90–150mm diameter delivery pipes. Steel cables drive the feed carts along the cage rows. Custom-shaped feed troughs ensure consistent feed delivery to every tier while minimizing feed spillage outside the trough.

1. Feeding Hoppers — Two hoppers are equipped for each tier. Fabricated from 1.2mm thick hot-dip galvanized steel for long-term corrosion resistance.
2. Traction Assembly — 0.75kW drive motor; 14mm PP traction rope; travelling speed: 8.67 m/min.
3. Trolley Guide Rail — Hot-dip galvanized steel, dimension 48×2.75 mm.
4. Head & End Support Frames — Hot-dip galvanized steel, specification 40×60×3 mm.
5. Independent Row Control — Each feeding machine along every cage row can be operated separately for flexible scheduling.
6. Cross Auger Conveyor — A transverse auger links the feed silo to travelling feed trolleys to realize continuous feed transfer.
7. Wide Compatibility — Compatible with both A-type and H-type layer cages, broiler cages and pullet rearing cages.

1. The vertical stacked H-type cage design supports flexible tier selection up to 10 tiers. It achieves high stocking density per unit area and boosts farm output for significantly improved economic returns.
2. Automated feeding and drinking cut manpower demand, raise work efficiency and optimize feed conversion ratio.
3. Automatic egg collection reduces labor expenditure and delivers reliable long-term performance.
4. Conveyor-based automatic manure removal keeps the house dry and sanitary. Multiple daily manure removal cycles greatly lower the incidence of poultry respiratory illnesses.
5. Centralized feeding reduces farmers' movement and contact inside the chicken house, supporting effective biosecurity and disease prevention.
6. Each laying hen is allocated 450 cm² living space. Custom layout planning is available based on your chicken house dimensions.
