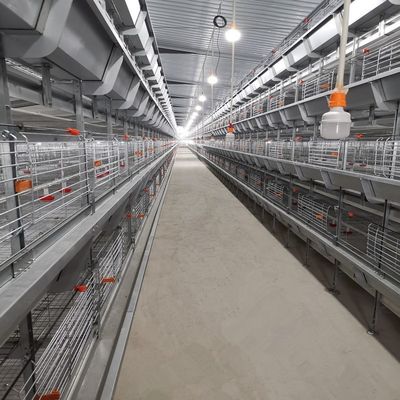

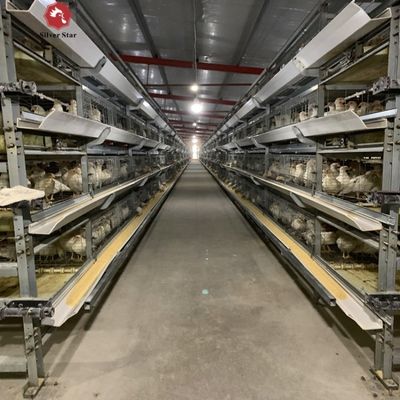

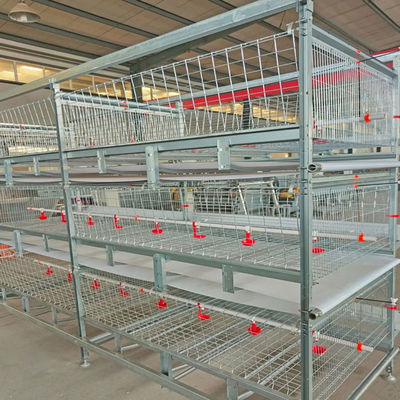

5-Tier Hot-Dip Galvanized H-Type Broiler Chicken Cage with 170 Birds Capacity
Basic Properties
Place of Origin:
China
Brand Name:
sliver star
Certification:
ISO9001,SGS
Model Number:
H Type Broiler Raising Cage
Trading Properties
Minimum Order Quantity:
10
Price:
100-120
Standard Packaging:
container,wooden case
Delivery Time:
20-40days
Payment Terms:
L/C,D/A,D/P,T/T
Supply Ability:
100 set 30 days
Product Summary
5-Tier Hot-Dip Galvanized H-Type Chick Brooder Cage 170 Birds Capacity H-Type Hot-Dip Galvanized Broiler & Pullet Rearing Cages Our engineering team delivers custom, no-cost layout plans tailored to your poultry house dimensions or targeted bird quantity. Layout Design Overview 4-tier H-type pullet...
Product Details
Highlight:
Hot-Dip Galvanized Broiler Chicken Cage
,5-Tier H-Type Broiler Cage
,170 Birds Capacity Poultry Farming Equipment
Material:
Hot Galvanized Steel Wire Mesh
Size:
85*62.5*50 Cm
Capacity:
17 Chicks/cell
Lifespan:
More Than 20 Years
Cell Size:
85*62.5*50 Cm
Whole Size:
85*220*390 Cm
Capacity/Set:
170 Birds(1.5 Kgs)
Average Area/Bird:
312.5 Cm2
Support Leg Load:
350kg
Feed Trough Load:
100kg
Product Description
5-Tier Hot-Dip Galvanized H-Type Chick Brooder Cage 170 Birds Capacity
H-Type Hot-Dip Galvanized Broiler & Pullet Rearing Cages
Our engineering team delivers custom, no-cost layout plans tailored to your poultry house dimensions or targeted bird quantity.
Layout Design Overview
4-tier H-type pullet/broiler cage equipped with full automation package:
- Cage Model: 4-tier H-type cage for pullets & broilers
- Poultry House Dimension: 99m × 13.5m × 4m
- Single Set Cage Dimension: 0.85m × 2.18m × 3.3m
- Stocking Density: 136 birds (1.5kg live weight) per set
- Quantity per Row: 107 sets
- Rows per House: 4 rows
- Total Cage Sets: 4 × 107 = 428 sets
- Total Bird Capacity: 428 × 136 = 58,208 birds per house
For optimal performance, we recommend poultry house dimensions not exceed 120m in length and 20m in width.
Benefits of Cage Rearing System
- Precise poultry house environmental control to match chickens' physiological needs and support stable growth performance.
- Integrated automatic drinking, feeding and manure removal systems cut labor expenditure and lower breeding costs. Multi-tier stacked design greatly improves land utilization compared with floor rearing, saving investment on land and chicken house construction.
- The enclosed cage structure creates effective isolation from external surroundings. It significantly lowers risks of cross-contamination, simplifies disease prevention & biosecurity management and reduces veterinary expenses.
Main Components & Accessories
White PVC Feed Trough
Made of upgraded PVC material, featuring compression resistance, heat resistance and anti-crack performance. Service life over 15 years, maximum load capacity up to 100kg.
3mm U-shaped Galvanized Steel Support Leg
Fabricated from national standard 3mm steel plate with U-shaped structure. Double hot-dip galvanized treatment. Load capacity reaches 350kg, service life exceeding 15 years.
Automatic Nipple Drinker
360° rotatable design, available in ball style or spring style. Constructed from stainless steel and high-grade plastic.
White PVC Water Pipeline
Premium raw PVC material, resistant to high temperature and deformation, anti-breakage. No chemical reaction with water impurities to guarantee clean, safe drinking water for chickens. Service life over 15 years.

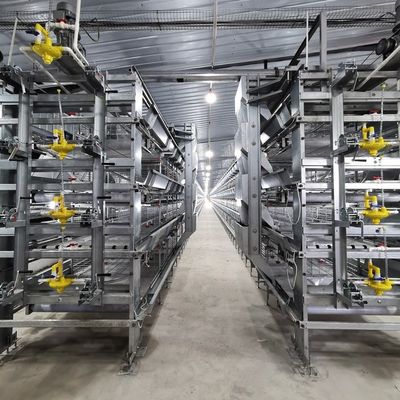

Water Pressure Regulator
Fully enclosed structure, built-in pressure stabilizer and water filter.
Technical Specifications
| Tier | Cell Size | Whole Size | Capacity/Set | Average Area/Bird |
|---|---|---|---|---|
| 3-tiers | 85×62.5×50 cm | 85×220×260 cm | 102 birds (1.5 kgs) | 312.5 cm² |
| 4-tiers | 85×62.5×50 cm | 85×220×325 cm | 136 birds (1.5 kgs) | 312.5 cm² |
| 5-tiers | 85×62.5×50 cm | 85×220×390 cm | 170 birds (1.5 kgs) | 312.5 cm² |
| 6-tiers | 85×62.5×50 cm | 85×220×455 cm | 204 birds (1.5 kgs) | 312.5 cm² |
| 8-tiers | 85×62.5×50 cm | 85×220×585 cm | 272 birds (1.5 kgs) | 312.5 cm² |
Product Images
