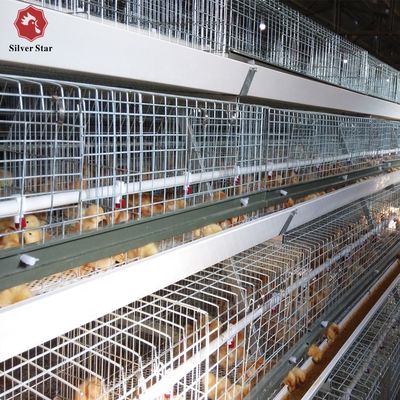

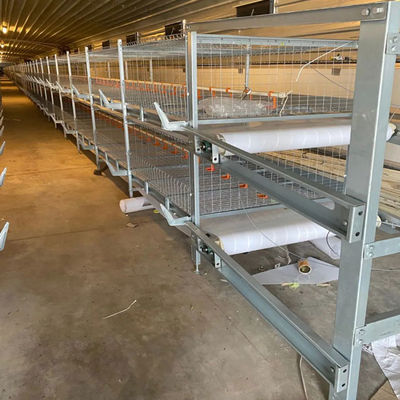

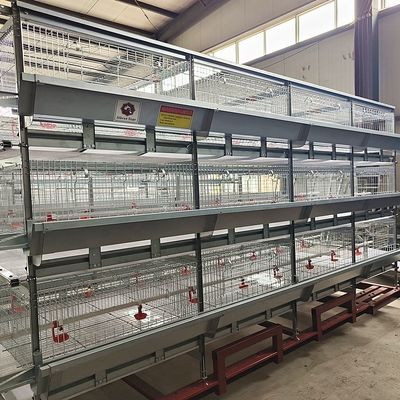

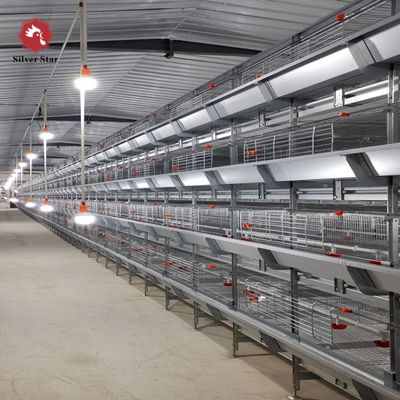

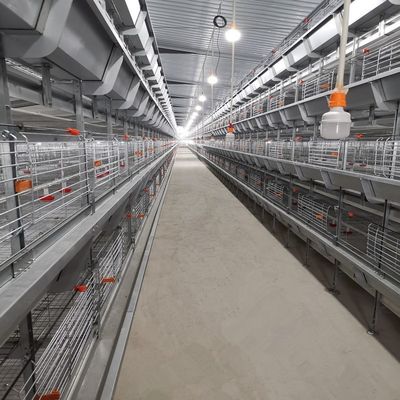

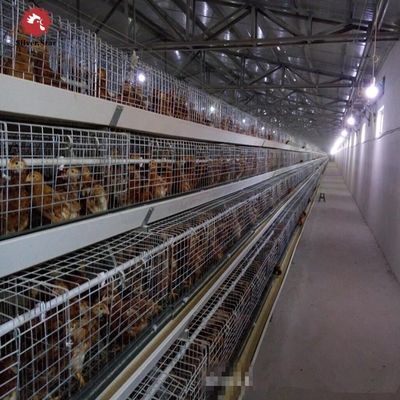

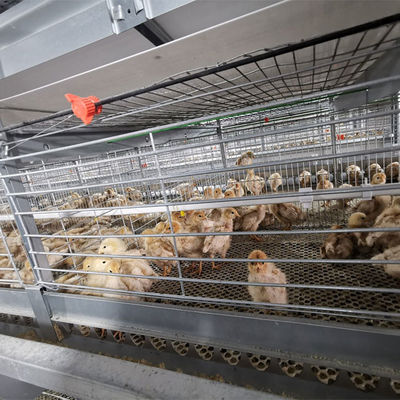

Automated H-Type Broiler Chicken Cage System with Hot-dip Galvanized Steel for High-Density Farming
Basic Properties
Place of Origin:
China
Brand Name:
sliver star
Certification:
ISO9001,SGS
Model Number:
H Type Broiler Raising Cage
Trading Properties
Minimum Order Quantity:
10
Price:
100-115
Standard Packaging:
container,wooden case
Delivery Time:
20-40days
Payment Terms:
L/C,D/A,D/P,T/T
Supply Ability:
100 set 30 days
Product Summary
Complete Automatic H-Type Broiler Chicken Cage System High-Efficiency Automatic Broiler Battery Cage System Boost meat output while reducing labor expenses with our industrial-grade automatic broiler battery cage system. Designed for modern commercial poultry farms, it delivers up to 3 times higher ...
Product Details
Highlight:
Hot-dip Galvanized Broiler Chicken Cage
,Full Automation H-Type Broiler Cage System
,High-Density Farming Commercial Poultry Equipment
Capacity:
100-300 Chickens/set
Life Time:
15-20years
Cage Material:
Q235 National Bridge Steel Wire
Cage Size:
1000x1250x2900mm
Surface Process:
Hot Dip Galvanizing
Voltage:
380V
Cell Size:
150*100*47cm
Birds Qty/Set:
102-170
Each Bird Area:
428.57cm²
Zinc Coating:
275g/m²
Product Description
Complete Automatic H-Type Broiler Chicken Cage System
High-Efficiency Automatic Broiler Battery Cage System
Boost meat output while reducing labor expenses with our industrial-grade automatic broiler battery cage system. Designed for modern commercial poultry farms, it delivers up to 3 times higher stocking density, supports faster bird growth, and integrates full-process automation seamlessly.
This system pairs perfectly with supporting automated equipment including feeding, drinking, manure removal and ventilation units. Multiple tier configurations are available to match different poultry shed designs.
H-Type Broiler Cage Technical Specifications
| Model | Cell Size | Cage Size/Set | Birds Qty/Set | Each Bird Area |
|---|---|---|---|---|
| 3 Tiers | 150*100*47cm | 150*145*225 | 102 | 428.57cm² |
| 4 Tiers | 150*100*47cm | 150*145*290 | 140 | 428.57cm² |
| 5 Tiers | 150*100*47cm | 150*145*355 | 170 | 428.57cm² |
WhatsApp: ＋86 151 3623 4718
Product Overview
Our automatic broiler battery cage system adopts cutting-edge industrial poultry equipment design, exclusively developed for commercial meat chicken farming. It creates a controlled, hygienic breeding environment that accelerates weight gain, lowers mortality and optimizes feed conversion ratio (FCR).
Constructed from robust Q235 steel with hot-dip galvanized coating, our broiler cages come in 3-tier, 4-tier and 5-tier options. The whole unit integrates automatic feeding, nipple drinking, manure cleaning, environmental control and automated bird harvesting belts.
Key Product Features
- Heavy-Duty Hot-Dip Galvanized Frame: 275g/m² zinc coating delivers outstanding anti-corrosion performance with over 20-year lifespan
- Special Plastic-Coated / Galvanized Bottom Mesh: Engineered with proper elasticity to prevent breast blisters and leg deformities
- Flexible Sliding Cage Doors: Push-in or fully open front doors for easy chick placement and stress-free harvesting
- Modular Space-Saving Layout: Increases stocking capacity by 200%–300% versus conventional floor rearing
- Full Automation Compatibility: Works seamlessly with motorized feeding trolleys, water regulators, PP manure belts and climate controllers
Core Farm Benefits Comparison
| Parameter | Traditional Floor Rearing | Broiler Battery Cage System |
|---|---|---|
| Stocking Density | Low (10–12 birds/m²) | High (30–40 birds/m²) |
| Feed Conversion Ratio | Higher (feed waste & extra energy spent on movement) | Lower (feed nutrition prioritized for meat growth) |
| Disease Risk | High coccidiosis risk from direct contact with manure | No direct manure contact; significantly reduced mortality |
| Labor Requirement | Heavy manual workload | One operator can manage over 30,000 birds with automated systems |
Automatic Feeding System
Features
- Silo & Trolley Feed Distribution: Motorized feeding carts deliver feed evenly across every tier
- Anti-Spill Feed Troughs: Curved inner edges and adjustable feed stoppers prevent feed waste
- Auger & Hopper Auto Refill: Automatic feed flow from external silos to individual hoppers
Advantages
- Reduce Feed Waste: 8%–10% reduction in feed loss
- Uniform Bird Growth: Consistent body weight at slaughter
- Labor Reduction: Complete elimination of manual feeding work
Automatic PP Belt Manure Removal System
Features
- PP Manure Belts Under Each Tier: High tensile strength, acid-resistant and non-stick surface
- Cross & Inclined Conveyors: Transport manure straight out of the poultry house
- Precision Scraping Blades: Fully clean residual manure in every working cycle
Advantages
- Better Hygiene & Air Quality: Reduces ammonia and hydrogen sulfide levels
- Drier Manure Output: Low moisture content for easy transportation and storage
- Stable Low-Maintenance Operation: Heavy-duty drive rollers and automatic belt tracking
Client Testimonials
"We upgraded our 50,000-head broiler farm in Southeast Asia from floor rearing to this automated cage system. Stocking density tripled, FCR fell from 1.65 to 1.48, and labor costs dropped by 60%. The hot-dip galvanizing quality is impressive." — Mr. K. Hidayat, Farm Director, Indonesia
"The automatic feeding and manure removal systems run reliably. Ammonia concentration inside the shed decreased sharply, and mortality stayed below 2%. The supplier's installation team is highly professional." — Mr. Tariq Al-Mansoor, Commercial Poultry Producer, Saudi Arabia
After-Sales Support & FAQ
Our Turnkey Service Package
- Free 3D Farm Layout CAD Design: Custom drawings based on your land size and local climate
- Overseas On-Site Installation Supervision: Experienced engineers guide assembly and commissioning
- Free Operator Training: On-site training for farm managers and technical staff
- 15-Year Structural Frame Warranty: Coverage against corrosion defects
Frequently Asked Questions
Q1: How many broilers can be raised in a 12m * 120m poultry house?
A: With a 4-tier automatic broiler cage setup, a 12m * 120m shed can hold 30,000–40,000 broilers. In comparison, floor rearing can only accommodate 12,000–14,000 birds within the same building.
Q2: Will the cage mesh injure broilers' feet or breasts?
A: No. Our bottom mesh adopts high-density PVC coating or flexible galvanized wire design. It offers soft support and effectively prevents breast blisters and leg injuries.
Q3: How long does installation take?
A: For a standard automated farm housing 30,000 broilers, installation generally takes 20–25 days with our engineer supervision and your local workforce.
Q4: What about packaging and shipment?
A: All cage frames, feed troughs and automation components are packed in seaworthy steel bundles and wooden crates to avoid scratches and damage during ocean transport.
Overall Rating
5 star
33%
4 star
67%
3 star
0
2 star
0
1 star
0
All Reviews
-
AWe compared several suppliers before ordering. Silver Star provided a good balance between quality and cost. The cage system works well for our layer farm.
-
MThe cages arrived well packed. Installation was easy with the drawings provided by the company.
-
WVery good quality and easy to install. The automatic system saves labor and improves efficiency. Worth the investment.
