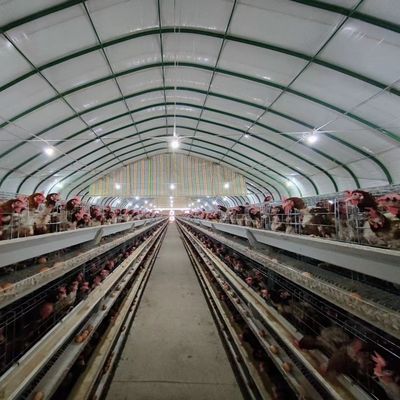

H-Type Automatic Layer Battery Cage System 15-20 Year Service Life Fully Automated Hot-Dip Galvanized for Poultry Farming
Product Details
| Cage Configuration | H-Type, 3 / 4 / 5 / 8 Tiers | Cage Unit Dimension | 1000 Mm × 1250 Mm × 430 Mm |
|---|---|---|---|
| Capacity Per Cell | 6-8 Laying Hens | Galvanizing Treatment | Full Hot-dip Galvanizing / Zinc-aluminum Alloy Coating (275g/m²) |
| Egg Breakage Rate | ≤ 0.5% | Design Lifespan | 15-20 Years |
| Highlight | 15–20 Year Service Life Battery Chicken Cage,Fully Automated Poultry Farming Equipment,Hot-Dip Galvanized H-Type Automatic Layer Battery Cage System |
||
Product Description
H-Type Automatic Layer Battery Cage System | 15–20 Year Service Life for Commercial Poultry Farming, Fully Automated & Hot-Dip Galvanized
Our H-Type Automatic Layer Battery Cage System is engineered for modern commercial chicken farms. Built with robust hot-dip galvanized materials and full-line automation, this high-density poultry equipment package can be supplied as a complete turnkey farm solution.
Why Upgrade to Our H-Type Automatic Layer Cage Systems?
- Higher Stocking Density: Featuring a multi-tier vertical design ranging from 3 to 8 tiers. Compared with conventional floor rearing and A-type battery cages, this design boosts bird holding capacity per square meter by 200%-300%.
- Full Automation to Cut Labor: All core functions run in sync: automatic feeding, nipple drinking, egg collection, PP belt manure removal and house climate control. The integrated setup can slash your labor expenses by up to 80%.
- Long Service Life of 15-20 Years: Fabricated from international-grade Q235 steel mesh with a 275g/m² hot-dip galvanized coating. The heavy zinc layer delivers strong corrosion resistance against ammonia and humid environments inside chicken houses.

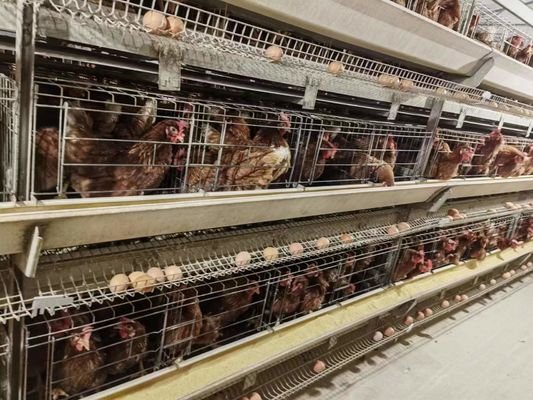

- Minimized Egg Breakage: Carefully calibrated mesh slope paired with soft polypropylene egg conveyor belts keeps egg breakage rate below 0.5% under normal operation.
Integrated Automatic Systems & Technical Breakdown

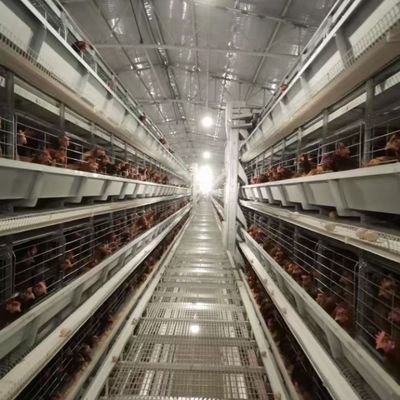

Heavy-Duty Cage Frame & Structure

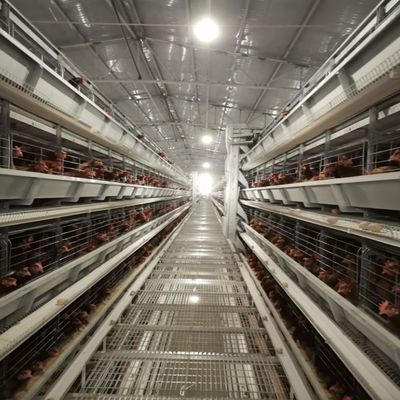

Adopted rigid vertical H-frame construction, capable of supporting 4 to 8 tiers with stable load performance. Hot-dip galvanized wire mesh and frame components stand up to humidity, salt spray and manure corrosion. Galvanized steel walkways are installed between cage rows, enabling safe access for daily inspection and routine maintenance.

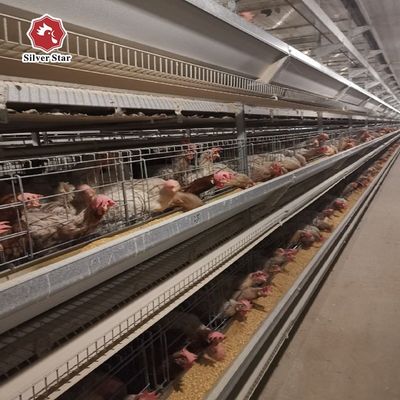

Automatic Trolley Feeding System
Motorized feeding trolleys distribute feed evenly across every tier, eliminating feed competition among hens. Feed trough options include heavy-duty PVC or hot-dip galvanized steel, with inward curved edges to avoid feed spillage and prevent bird injuries.

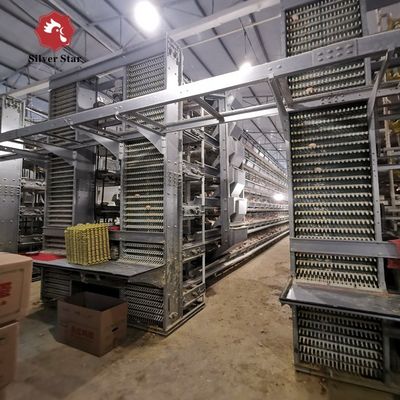

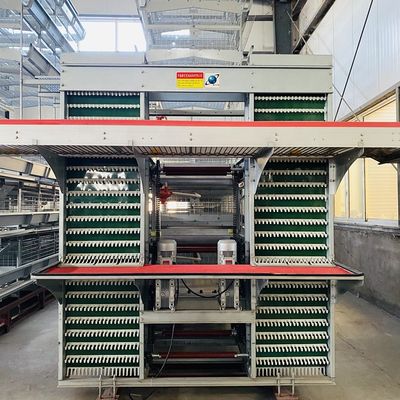

Automatic Soft Egg Conveying & Collection
High-tenacity polypropylene egg belts transport eggs gently to the front collection tower to avoid cracking. The central conveyor system directly moves eggs from the poultry house to the sorting and packing room, saving massive manual work.

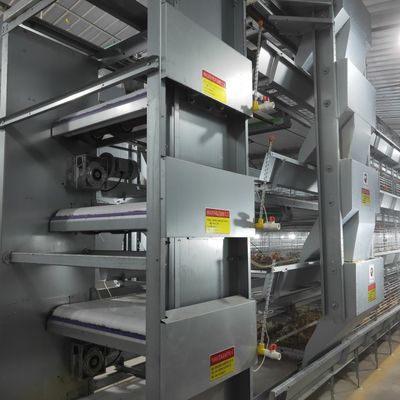

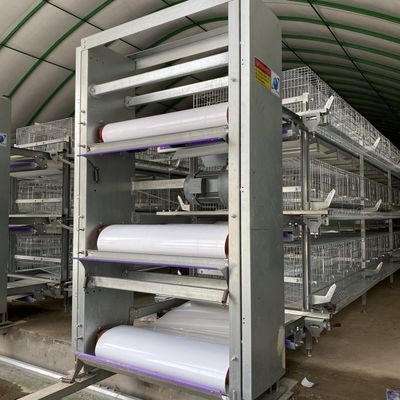

Automated PP Belt Manure Removal
PP manure belts are fitted underneath each tier, removing manure out of the shed on a daily basis. This effectively lowers indoor ammonia concentration, protects laying hens' respiratory health and improves overall farm biosecurity.
Automatic Stainless Steel Nipple Drinking Line
Leak-proof stainless steel nipple drinkers with dual water lines ensure 360° access to clean drinking water. The complete set includes pressure regulators, water filters, water meters and medicator units for precise water management.
Technical Specifications Summary
| Parameter / Feature | Specification Details |
|---|---|
| Cage Configuration | H-Type, 3 / 4 / 5 / 8 tiers, customizable based on shed height |
| Cage Unit Dimension (L * W * H) | 1000 mm * 1250 mm * 430 mm (standard commercial size) |
| Capacity Per Cell | 6-8 laying hens per cell, adjustable to match local animal welfare regulations |
| Galvanizing Treatment | Full hot-dip galvanizing / Zinc-aluminum alloy coating (275g/m²) |
| Egg Breakage Rate | ≤ 0.5% (verified through field operation) |
| Design Lifespan | 15-20 years |
| Recommended Use | Commercial layer pullet & egg production farms, scale: 10,000 to over 200,000 birds |
Comprehensive After-Sales Support & Warranty
Henan Silver Star Poultry Equipment Co., Ltd. views every poultry project as a long-term partnership. Our global engineering team provides end-to-end technical support to guarantee smooth project commissioning.
- Overseas On-site Installation Guidance: We send senior electrical and mechanical engineers to guide local workers, calibrate equipment and supervise wiring work.
- 15-Year Frame Corrosion Warranty: All hot-dip galvanized steel cage frames carry a 15-year warranty against rust under normal operating conditions.
- 24/7 Technical Assistance & Spare Parts Supply: Our support team replies via WhatsApp and email within 2 hours. Key spare parts including drinker nipples, motors and conveyor belts are stocked for fast international air shipment.
- On-site & Remote Technician Training: We train your farm operators on daily maintenance, system troubleshooting and environmental control setup.
Global Client Testimonials
"We upgraded our Luzon farm to Silver Star's 4-tier H-type layer cages for a 50,000-bird project. The automatic egg collection reduced manual work by 75%, and egg breakage fell below 0.3%. Their engineers stayed on site in the Philippines until installation was fully finished." -- Mr. Eduardo M. | Managing Director, Commercial Egg Farm, Philippines
"In Saudi Arabia's extreme heat, reliable ventilation and anti-rust galvanizing are critical. Silver Star's hot-dip galvanized cages have remained rust-free after years of exposure to ammonia. Their closed-house climate control maintains a stable shed temperature at 24°C consistently." -- Eng. Tariq Al-Hassan | Operations Manager, Poultry Project, Saudi Arabia
Frequently Asked Questions (FAQ)
Q1: What is the core difference between H-type and A-type layer cages?
A: H-type cages adopt vertical stacked design up to 8 tiers, with independent PP manure belts under every tier. A-type cages use stepped ladder-style layout, normally limited to 3-4 tiers. H-type systems achieve 2-3 times higher stocking density. Daily automatic manure removal also delivers better indoor air quality.
Q2: How long is the service life of Henan Silver Star's H-type layer cages?
A: Our H-type cage systems are designed for 15-20+ years of service. We use Q235 steel with a 275g/m² high zinc coating, which resists ammonia and high humidity to prevent rust.
Q3: Can you provide customized CAD chicken house layout drawings?
A: Absolutely. We offer free 2D and 3D CAD layout designs tailored to your land size, target bird capacity (10,000 up to 200,000+ birds), and local climate characteristics.
Q4: What is the lead time for a full poultry farm project?
A: Standard production lead time is 20-30 days after deposit receipt. The exact timeline depends on order volume and customization requirements.
Direct Manufacturer Advantage & Turnkey Engineering
Henan Silver Star Poultry Equipment Co., Ltd. delivers full-cycle commercial poultry solutions for growing farms across Africa, Southeast Asia and the Middle East.
- Free 2D / 3D farm layout CAD design, customized according to your land area, local climate and ventilation requirements
- Factory direct supply under ISO 9001 certification, helping you cut extra costs from middlemen
