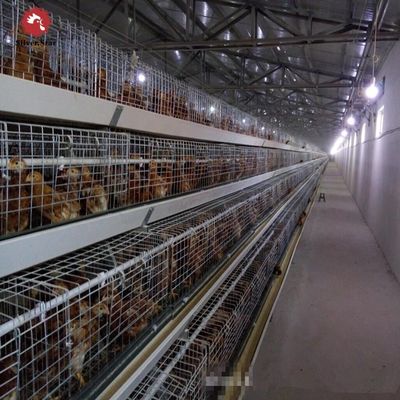

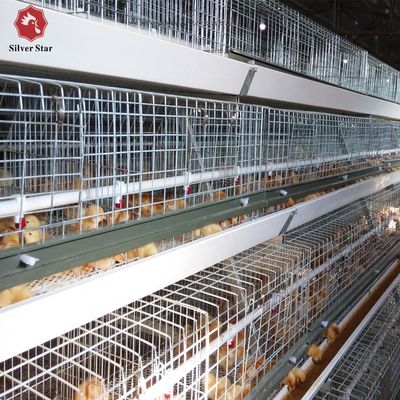

Automated H-Type Broiler Battery Cage System with Hot-Dip Galvanized Steel for High-Density Poultry Farming
Basic Properties
Place of Origin:
China
Brand Name:
sliver star
Certification:
ISO9001,SGS
Model Number:
H Type Broiler Raising Cage
Trading Properties
Minimum Order Quantity:
10
Price:
100-120
Standard Packaging:
container,wooden case
Delivery Time:
20-40days
Payment Terms:
L/C,D/A,D/P,T/T
Supply Ability:
100 set 30 days
Product Summary
Best Selling H Type Automatic Broiler Battery Cage High Productivity Steel Construction Poultry Equipment H-Type Automatic Battery Cage System for Layers & Broilers Revamp your poultry farming efficiency with our heavy-duty H-Type Automatic Battery Cage System, engineered for modern commercial layer ...
Product Details
Highlight:
Hot-Dip Galvanized H-Type Broiler Battery Cage
,High-Density Farming Automatic Poultry Equipment
,Full Automation Commercial Chicken Cage
Number Of Drinker:
1-2
Cage Floor:
3/4/5/6/8/9 Floors
Design Type:
3, 4, 5, 6, 8, 9, 10 Tiers
Surface Treatment:
Hot Dip Galvanizing
Cell Size:
39*38*38cm, 43*41*41cm
Service Life:
20+ Year Anti-corrosion
Steel Coating:
275g/m² Hot-dip Galvanized
Bottom Mesh Slope:
7-8° For Layers
Manure Belt Material:
Polypropylene (PP)
Stocking Density:
35,000 To 45,000 Birds
Product Description
Best Selling H Type Automatic Broiler Battery Cage High Productivity Steel Construction Poultry Equipment
H-Type Automatic Battery Cage System for Layers & Broilers
Revamp your poultry farming efficiency with our heavy-duty H-Type Automatic Battery Cage System, engineered for modern commercial layer and broiler operations. Made of hot-dip galvanized steel, it boosts stocking density by up to 300%, delivers precise feeding, minimizes feed waste and helps you achieve a faster ROI.
WhatsApp: ＋86 151 3623 4718
Product Overview

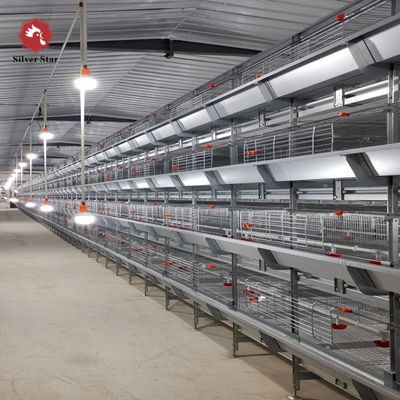

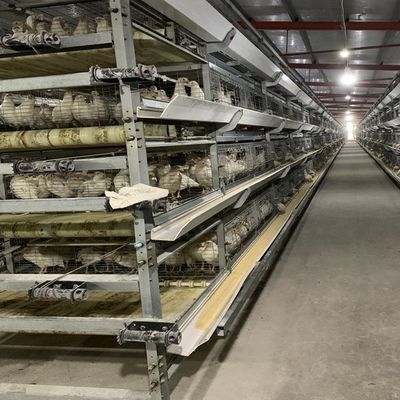

The H-Type automatic stacked cage system is a top choice for large-scale commercial poultry farms. Compared with conventional A-type cages or floor rearing, its vertical stacked frame maximizes overhead space, improves biosecurity and reduces bird mortality.

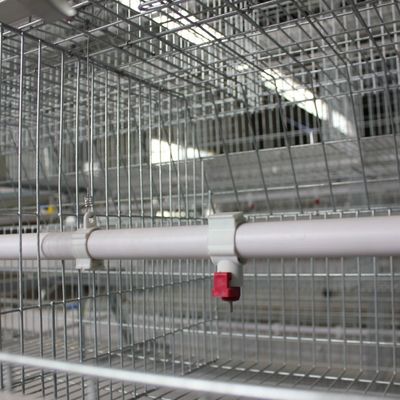

Customizable for layer egg production or broiler meat production, this automated system integrates automatic feeding trolleys, height-adjustable nipple drinker lines, PP manure belts and intelligent environmental controls into one complete turnkey solution.
Key Features & Specifications
- 20+ Year Anti-corrosion Service Life: Constructed from robust Q235 steel with a 275g/m² hot-dip galvanized coating, resistant to uric acid corrosion in harsh poultry house environments.

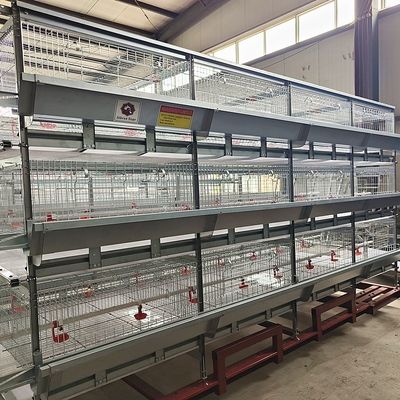

- Flexible Tier Options: Available in 3-tier, 4-tier, 5-tier and 6-tier vertical stacked configurations to match your house size and production goals.

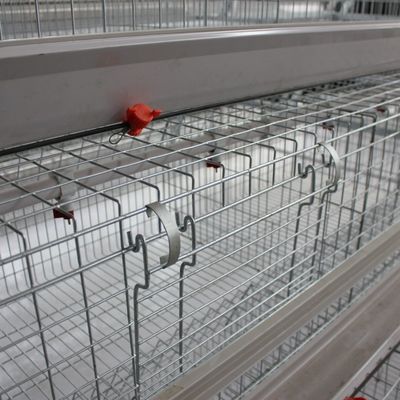

- Dual-purpose Customization: Specialized bottom mesh designs for either layers or broilers.
- Full Automation Compatibility: Works seamlessly with automatic feeding trolleys, climate control computers and automated bird harvesting equipment.
Automatic Feeding System
Feed accounts for over 60% of total farm operating costs. Our automatic feeding setup ensures balanced nutrition for every bird with less feed loss.
- Trolley Feeding Distribution: Motor-driven heavy-duty feeding trolleys travel smoothly along each tier to dispense consistent feed evenly.
- Anti-spill Feed Troughs: Inward-curved aluminum or PVC edges prevent birds from flicking feed out, cutting feed waste by 8%–10%.

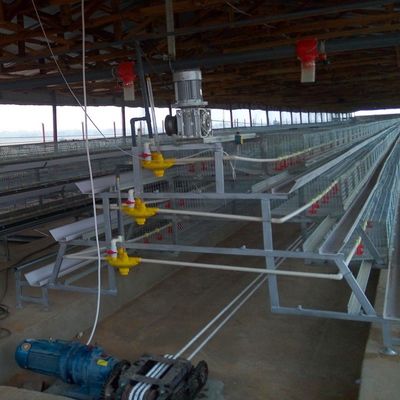

- Automatic Silo Feed Supply: Cross augers transfer feed directly from external silos into individual hoppers on each tier.
- Uniform Flock Performance: Eliminates feed competition among birds. Layers reach stable peak egg production, while broilers achieve consistent slaughter weights.
System Comparison: H-Type Layer Cage vs H-Type Broiler Cage
| Feature / Metric | H-Type Layer Cage System | H-Type Broiler Cage System |
|---|---|---|
| Primary Goal | High egg production & low break rate | Rapid weight gain & low FCR |

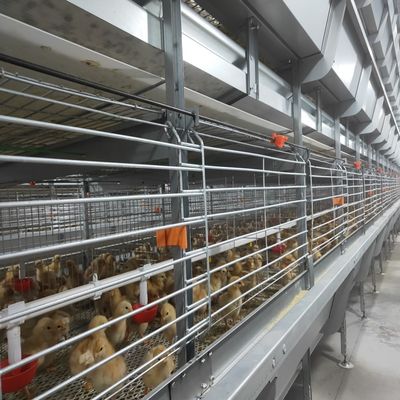

| Bottom Mesh | Sloped (7-8°) for auto egg rolling | Flat with elastic plastic coating (anti-injury) |
| Core Automation | Auto Egg Collection + Feeding + Manure | Auto Feeding + Manure + Auto Harvesting Belt |
| Density (per House) | Maximize eggs per square meter | 30-40 kg meat capacity per square meter |
Automatic Manure Removal System

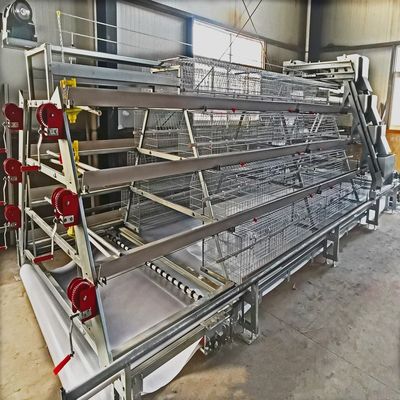

- PP Manure Belts: Non-stick, acid-resistant polypropylene belts fitted under every cage tier.
- Ammonia Reduction: Frequent manure removal keeps ammonia levels nearly zero and greatly lowers the risk of poultry respiratory diseases.
- Valuable By-product: The dry manure collected can be directly processed and sold as high-grade organic fertilizer.
Turnkey Solutions & After-sales Support
- Free 3D Farm Layout Design: Custom CAD drawings based on your land dimensions and target bird quantity.
- On-site Installation Supervision: Senior technical engineers guide assembly, wiring and system commissioning.
- Free Operator Training: On-site training for your farm staff on equipment operation and routine maintenance.
- 15-year Structural Warranty: Coverage against manufacturing defects and corrosion issues.
Frequently Asked Questions
Q: How many birds can fit in a standard 12m * 120m poultry house with H-type cages?
A: A 4-tier H-type setup holds 35,000 to 45,000 layers or broilers in a 12m * 120m house. Traditional floor rearing only accommodates 12,000 to 14,000 birds in the same space.
Q: What makes H-type cages better than A-type cages?
A: H-type cages deliver far higher vertical stocking density (up to 6 tiers). Each tier is fitted with independent PP manure belts for superior hygiene, and the system supports full automation including feeding and climate control.
Q: Can one system raise both layers and broilers?
A: The main H-frame, feeding trolley and manure removal parts are similar. But the inner cage mesh and bottom structure have to be customized: sloped mesh for egg collection in layer houses, or protective mesh plus harvesting belts for broilers. We tailor internal components to match your farming target.
