H Type Layer Chicken Cage 6 Tiers 144 Birds Automatic Feeding Hot Dip Galvanized for Poultry Farm
Basic Properties
Place of Origin:
China
Brand Name:
Silver Star
Certification:
ISO 9001
Model Number:
H Type Layer Cage
Trading Properties
Minimum Order Quantity:
10 Sets
Price:
USD 100-500 / Set
Standard Packaging:
Container, Wooden Case
Delivery Time:
20-40 Days
Payment Terms:
T/T
Supply Ability:
100 Sets per Month
Product Summary
H Type Layer Chicken Cage - 6 Tiers 144 Birds The H Type Layer Chicken Cage is a European-standard, large-size battery system built for modern commercial layer houses. With 6 tiers and a 144 bird capacity per set, it maximises the utilization of poultry house space while keeping excellent ventilatio...
Product Details
Highlight:
Hot Dip Galvanized Layer Cage
,Automatic Feeding Chicken Cage
,Multi Tier Poultry Battery Cage
Cage Type:
H Type Layer Cage
Tiers:
3-10 Tiers
Cage Size:
65x62.5x50cm
Material:
Hot Dip Galvanized Steel
Wire Material:
Q235A Bridge Steel
Capacity:
54-180 Birds Per Set
Feed Trough:
Zn-Al, 1.0mm Thickness
Application:
Commercial Poultry Layer Farm
Product Description

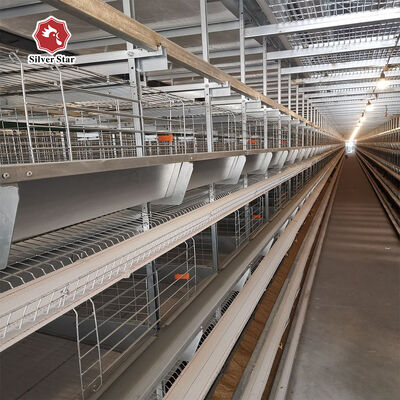

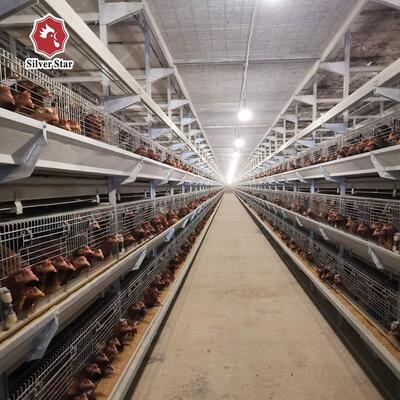

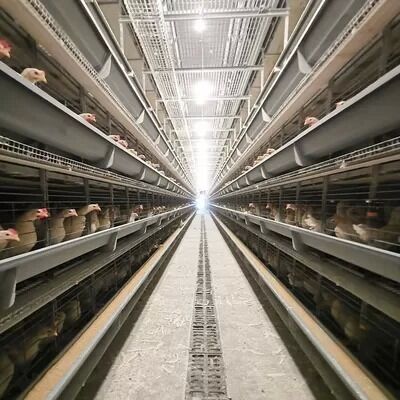

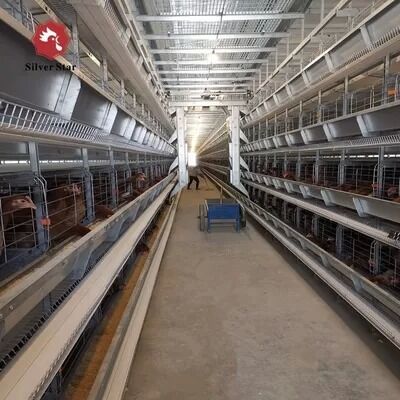

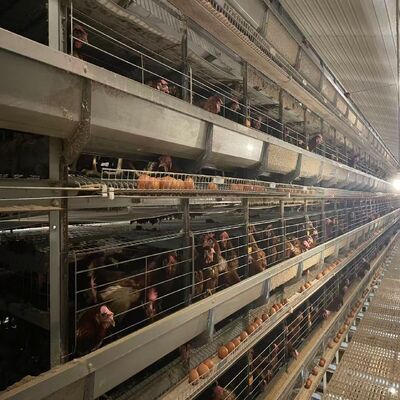

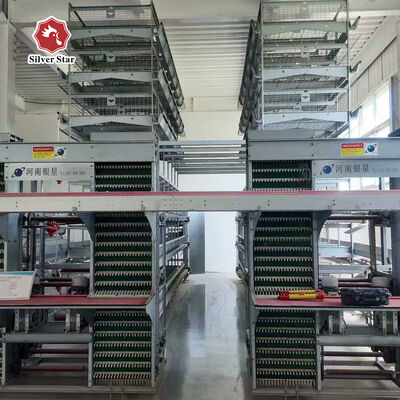

H Type Layer Chicken Cage - 6 Tiers 144 Birds
The H Type Layer Chicken Cage is a European-standard, large-size battery system built for modern commercial layer houses. With 6 tiers and a 144 bird capacity per set, it maximises the utilization of poultry house space while keeping excellent ventilation and egg hygiene.
Cage Body
- Cage size: 65 x 62.5 x 50 cm per cell
- Material: Q235A bridge steel wire with hot dip galvanizing
- Frame: 275g hot galvanized steel sheet, deformation resistant
- Configurable in 3, 4, 5, 6, 8, 9, 10 tiers; capacity 54-180 birds per set
- Short distance between cage frames reduces deformation, rearing density adjustable on request
Automatic Hopper Feeding Machine
- Two hoppers per tier, 1.2mm hot dip galvanized steel
- Traction motor power 0.75kW, PP tow rope 14mm, speed 8.67 m/min
- Trolley track: hot dip galvanized steel 48 x 2.75mm
- Head and end frame: hot dip galvanized steel 40 x 60 x 3mm
- Feed silo and feed uploading machine included
Automatic Drinking System
- Nipple drinkers and water pipes
- Water pressure regulator, filter and medical pump
Automatic Egg Collecting Machine
- Hot dip galvanized 1.5mm side plate, speed 4 m/min
- Egg guider: hot dip galvanized 1mm with stretching device
- Egg belt: 100mm width, with crosswise egg conveyor
Why choose this H Type Layer Cage?
The 65 cm layer depth and increased height improve ventilation and cooling, while the hot dip galvanized surface delivers long anti-rust service life. The modular design supports future large-scale expansion.
Overall Rating
5 star
67%
4 star
33%
3 star
0
2 star
0
1 star
0
All Reviews
-
MThe cage system meets our requirements. The company provided detailed drawings and technical documents before production.
-
EThe galvanized cages are good quality. After installation, the workers found them easy to operate. We are planning another project in the future.
-
CThe cage system is suitable for commercial egg production. The team provided useful suggestions
