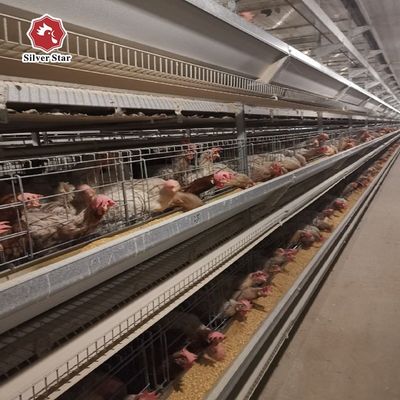

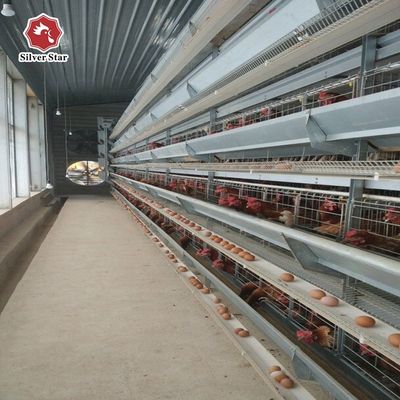

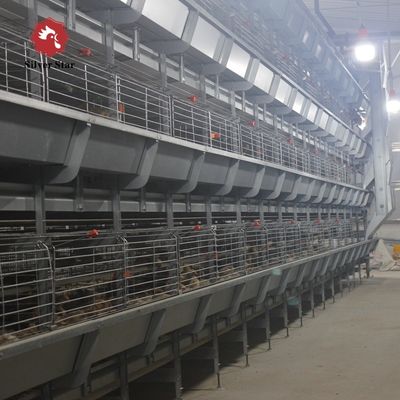

Commercial H-Type Automated Battery Cage System for Layer Egg Production
Next-Generation High-Density Layer Housing & Modernized Smart Poultry Farm Solutions
Engineered Advantages of Modern H-Type Layer Housing
- Optimized Land Efficiency: Vertical multi-tier layout (scalable from 3 to 8 levels) maximizes vertical space, allowing up to 300% more bird capacity compared to floor housing or A-frame cages.
- Seamless Operational Automation: Fully integrated feeding, watering, egg gathering, manure removal, and climate monitoring reduce daily farm management labor by up to 80%.
- Heavy-Duty Anti-Corrosion Build: Premium Q235 structural steel with Hot-Dip Galvanized treatment (275g/m² zinc layer) delivers outstanding resistance against harsh shed humidity and aggressive ammonia.
- Gentle Egg Handling Technology: Specially inclined cage floors coupled with durable woven polypropylene belts limit total egg loss and breakage to under 0.5%.
Automated Subsystems & Engineering Specifications
1. Robust Structural Cage Architecture
- Frame Stability: Engineered vertical H-frame geometry designed for exceptional weight distribution and long-term structural integrity up to 8 tiers high.
- Corrosion Protection: Fully hot-dip galvanized wire meshes and support legs prevent rust formation in high-moisture environments.
- Service Walkways: Rigid galvanized steel catwalks positioned between cage lines allow safe, comfortable access for routine inspection.
2. Precision Traveling Hopper Feeding System
- Controlled Rationing: Automated feed carts distribute uniform, adjustable feed quantities down every line, eliminating flock competition and feed sorting.
- Spill-Resistant Feed Troughs: Heavy-gauge PVC or hot-dip galvanized troughs featured with smooth, inward-rolled edges to eliminate feed wastage and protect hen beaks.
3. Automated Soft-Touch Egg Conveyance
- High-Tenacity Belts: Smooth polypropylene egg belts roll eggs safely toward the front collection tower with zero shock or impact.
- Central Transfer Integration: Directly connects to main farm cross-conveyors, smoothly delivering eggs directly to packing or grading facilities.
4. Continuous PP Belt Manure Cleaning
- Frequent Waste Clearing: Tear-resistant polypropylene belts running beneath each tier transport droppings completely out of the shed on demand.
- Enhanced Biosecurity: Keeps internal ammonia concentrations low, dramatically improving air quality, respiratory wellness, and flock health.
5. Leak-Free Nipple Drinking Installation
- Omnidirectional Nipple Valves: Precision stainless steel nipples supply clean, fresh water continuously without dripping or wet litter.
- Water Management Panel: Outfitted with dual water lines, pressure regulation units, inline filters, flow meters, and precise medicators.
Product Specifications & Attribute Summary
| Technical Specification | Parameter & Field Details |
|---|---|
| Product Category | Automatic H-Type Layer Battery Cage System |
| Tier Scalability | 3 Tiers, 4 Tiers, 5 Tiers, up to 8 Tiers (Configured for shed height) |
| Standard Cell Dimension (L×W×H) | 1950 mm × 500 mm × 430 mm |
| Cell Capacity | 6 to 8 Hens / Cell (Customized according to stocking standards) |
| Steel Grade & Finish | International Q235 Steel Mesh with 100% Hot-Dip Galvanizing (275g/m²) |
| Shell Protection & Egg Breakage | ≤ 0.5% (Proven on commercial sites) |
| Expected Structural Life | 15 – 20+ Years |
| Recommended Farm Scope | Commercial Egg Production Units (10,000 to 200,000+ Laying Hens) |
Global Field Support & Service Commitments
Henan Silver Star Poultry Equipment Co., Ltd. stands behind every farm installation with dedicated technical backup, engineering supervision, and lifetime maintenance support.
- On-Site Overseas Supervision: Experienced mechanical and electrical technicians are deployed to manage site assembly, system calibration, and electrical wiring.
- 15-Year Frame Guarantee: Structural hot-dip galvanized cage components are covered by a 15-year anti-corrosion warranty under standard operating conditions.
- Rapid Response Technical Assistance: Direct technical assistance via WhatsApp and Email within 2 hours. Key replacement parts remain in stock for fast air freight shipment.
- Staff Operational Training: Comprehensive on-site or virtual training programs covering daily operation, preventative maintenance, and climate system calibration.
Global Project Experience & Client Feedback
"We deployed Silver Star's 4-tier H-type automated cage system for our 50,000-layer facility in Luzon. Labor requirement was slashed significantly, egg collecting became virtually effortless, and damage rates dropped below 0.3%. Their engineering team guided our local installation crew every step of the way."
— Mr. Eduardo M. | Operations Director, Commercial Layer Farm (Philippines)
"Operating in extreme desert temperatures makes durability and climate control crucial. After years of continuous operation, Silver Star's hot-dip galvanized cages show zero rust from ammonia exposure, and internal shed temperatures stay perfectly regulated year-round."
— Eng. Tariq Al-Hassan | General Manager, Poultry Project (Saudi Arabia)
Frequently Asked Questions (FAQ)
Q1: What are the primary operational advantages of H-type over A-type cages?
A: H-type cages stack vertically in multi-tier towers and use automatic PP manure belts under every single tier. This configuration enables up to 3 times higher stocking density per square meter and maintains significantly cleaner house air quality through frequent automated manure removal.
Q2: What is the expected durability of Henan Silver Star H-type cages?
A: Our hot-dip galvanized systems offer an operational lifespan of 15 to 20+ years. Manufactured with high-strength Q235 steel and heavy zinc coatings (275g/m²), they effectively resist high humidity and corrosive farm atmospheres.
Q3: Can you provide customized shed layouts and 2D/3D CAD drawings?
A: Yes, we offer complimentary 2D and 3D CAD farm layouts tailored to your exact land measurements, flock target (from 10,000 to 200,000+ birds), and regional climate requirements.
Q4: What is the average manufacturing and delivery timeline?
A: Standard production lead time is 20 to 30 days following deposit confirmation, depending on order scale and customized features.
Direct Manufacturer Engineering Advantage
"Henan Silver Star Poultry Equipment Co., Ltd. delivers end-to-end commercial poultry solutions for expanding farms across Africa, Southeast Asia, and the Middle East."
- Custom Structural CAD Layouts: Tailored engineering plans configured to your farm size, local weather conditions, and ventilation goals.
- Direct Factory Supply: ISO 9001-certified manufacturing ensuring stringent quality assurance and direct manufacturer pricing.
