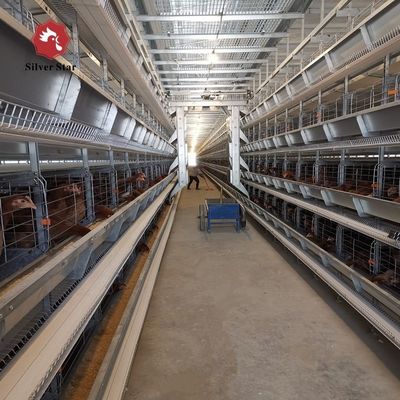

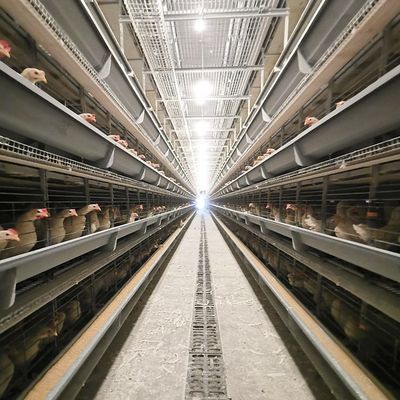

H-Type Automatic Layer Battery Cage System for Commercial Chicken Farms
High-Density Galvanized Poultry Equipment & Complete Turnkey Farm Solutions
Why Upgrade to H-Type Automatic Layer Cage Systems?
- Maximized Stocking Density: Multi-tier vertical design (3 to 8 tiers) increases bird capacity by 200% to 300% per square meter compared to traditional floor-rearing or A-type battery cages.
- Fully Automated Farm Operation: Synchronized integration of automatic feeding, nipple drinking, egg collection, PP belt manure clearing, and climate control reduces labor costs by up to 80%.
- 15-20 Years Service Life: Constructed with international standard Q235 steel mesh featuring Hot-Dip Galvanizing (275g/m² zinc coating) for maximum corrosion resistance against harsh ammonia gases.
- Substantially Lower Egg Breakage: Precision-engineered mesh slope and soft woven polypropylene egg conveyor belts maintain egg breakage rates below 0.5%.
Integrated Automatic Systems & Technical Specifications

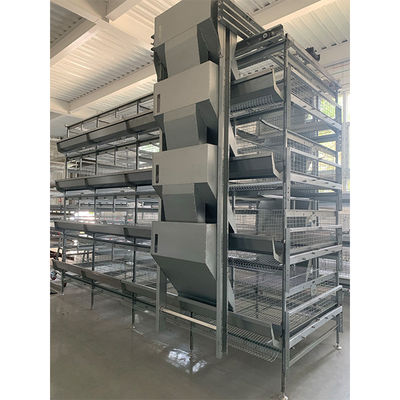

1. Heavy-Duty Cage Frame & Structure
- Structure: Rigid vertical H-frame engineering ensuring high load-bearing stability for 4 to 8 tiers.
- Material Integrity: Hot-dip galvanized wire mesh and structural frames resist humidity, salt spray, and manure corrosion.
- Catwalk System: Galvanized steel walkways between cage rows provide safe access for daily inspection and maintenance.
2. Automatic Trolley Feeding System
- Uniform Distribution: Motorized feeding cars ensure precise, adjustable feed delivery across all tiers to eliminate feed competition.
- Anti-Waste Feed Troughs: Heavy-duty PVC or hot-dip galvanized steel troughs with inward-curved edges prevent feed spillage and bird injury.
3. Automatic Soft-Conveying Egg Collection
- Polypropylene Egg Belts: High-tenacity belts carry eggs smoothly to the front-end collection tower without cracking.
- Central Conveyor Integration: Directly transfers eggs from chicken sheds to the central sorting and packing room, saving hundreds of labor hours.
4. Automated PP Belt Manure Removal
- Daily Cleaning Capability: High-strength polypropylene belts under each tier remove manure completely outside the shed.
- Disease Control: Drastically reduces in-house ammonia levels, improving respiratory health and biosecurity for laying hens.
5. Automatic Stainless Steel Nipple Drinking Line
- 360° Water Access: Leak-proof stainless steel nipple drinkers with double water lines ensure fresh water availability.
- Pressure Control Assembly: Includes water pressure regulators, filtration units, water meters, and medicators.
Technical Specifications Summary
| Parameter / Feature | Specification Details |
|---|---|
| Cage Configuration | H-Type 3 Tiers, 4 Tiers, 5 Tiers, 8 Tiers (Customized for shed height) |
| Cage Unit Dimension (L×W×H) | 1950 mm × 500 mm × 430 mm (Standard commercial size) |
| Capacity Per Cell | 6 to 8 Layer Hens per cell (According to local animal welfare standards) |
| Galvanizing Process | 100% Hot-Dip Galvanized / Zinc-Aluminum Alloy Coating (275g/m²) |
| Egg Breakage Rate | ≤ 0.5% (Field tested) |
| Lifespan Guarantee | 15 – 20 Years |
| Recommended Application | Commercial Layer Pullets, Egg Production Farms (10,000 to 200,000+ birds) |
Comprehensive After-Sales Support & Warranty Guarantee
At Henan Silver Star Poultry Equipment Co., Ltd., we treat every farm project as a long-term partnership. Our dedicated global service engineering team provides end-to-end technical backup to guarantee smooth operational startup.
- On-Site Overseas Installation Guidance: We dispatch senior mechanical and electrical engineers to guide your local labor, handle equipment alignment, and oversee electrical wiring.
- 15-Year Structural Frame Warranty: All hot-dip galvanized steel cage frames come with a 15-year warranty against corrosion under normal operating conditions.
- 24/7 Technical Response & Spare Parts Supply: Dedicated online customer support via WhatsApp and Email within 2 hours. Spare parts (nipples, motors, belts) are stocked for rapid international air dispatch.
- Technician & Worker Operational Training: On-site or remote video training for your farm technicians covering daily maintenance, system troubleshooting, and environmental control setup.
Global Client Success Stories & Feedback
"We upgraded our farm in Luzon to Silver Star's 4-tier H-type layer cages for 50,000 birds. The automatic egg collection system reduced our manual labor by 75%, and egg breakage dropped below 0.3%. Their engineers stayed on-site in the Philippines until installation was 100% complete."
— Mr. Eduardo M. | Managing Director, Commercial Egg Farm (Philippines)
"In the harsh heat of Saudi Arabia, ventilation and durable galvanizing are key. Silver Star's hot-dip galvanized cages have shown zero rust after years of ammonia exposure, and their closed-house climate control system keeps shed temperatures perfectly stable at 24°C."
— Eng. Tariq Al-Hassan | Operations Manager, Poultry Project (Saudi Arabia)
Frequently Asked Questions (FAQ)
Q1: What is the main difference between H-type and A-type layer cages?
A: H-type cages stack vertically directly on top of each other (up to 8 tiers) and use automatic PP manure belts under each tier. A-type cages are arranged in a stepped ladder structure (usually 3–4 tiers). H-type systems allow much higher stocking density (2–3 times more chickens per house) and better air quality through daily automated manure removal.
Q2: How many years can Henan Silver Star's H-type layer cages last?
A: Our hot-dip galvanized cage systems have a designed service life of 15 to 20+ years. We use Q235 international steel with a high zinc coating (275g/m²), which withstands severe ammonia gas and high humidity without rusting.
Q3: Do you provide customized chicken house CAD layout designs?
A: Yes! We provide 100% free 2D and 3D CAD chicken house design drawings tailored to your land dimensions, capacity target (e.g., 10,000 to 200,000 birds), and local climatic conditions.
Q4: How long is the delivery lead time for a complete poultry project?
A: Standard manufacturing delivery time is 20 to 30 days after deposit confirmation, depending on order size and customization level.
Direct Manufacturer Advantage & Turnkey Engineering
"Henan Silver Star Poultry Equipment Co., Ltd. delivers end-to-end commercial poultry solutions for expanding farms across Africa, Southeast Asia, and the Middle East."
- Free 2D/3D Farm Layout Design: Custom CAD layout engineering tailored to your land area, local climate, and ventilation needs.
- Factory Direct Supply: ISO 9001 certified manufacturing facility guaranteeing competitive pricing without middleman markups.
