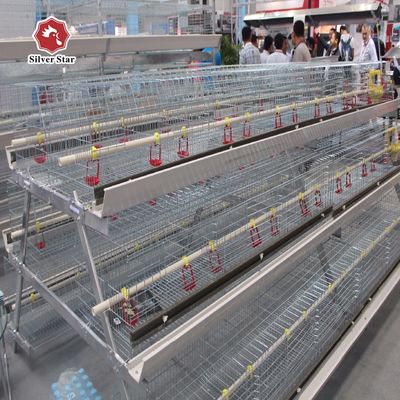

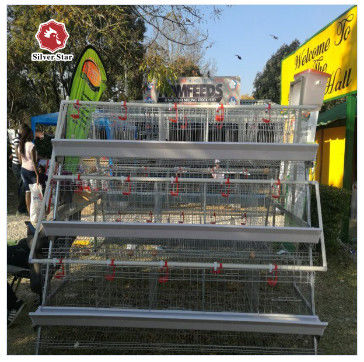

A-Type Broiler Battery Cage System for Poultry Farm Hot-Dip Galvanized A-Type Broiler Cage Manufacturer
Product Details
| Birds Capacity | 90-240 Birds | Operation Type | Automatic Manure Removal System |
|---|---|---|---|
| Surface | Hot Galvanized | Weight | 15 Kg |
| Ventilation System | Yes | Capacity | 3-5 Broiler Chickens Per Cage |
| Other Accessories | Provided | Floor | Three Floors.-Eight Floors |
| Durability | Corrosion Resistant And Long-lasting | Types | A Type, H Type (Battery Cage) |
| Suitable For | Chickens, Ducks, Geese | Number Of Nests | 3-4 |
| Cage Type | Layer Battery Cage System | Standards Compliant | European Standard & American Standard |
| Material | Cold Galvanized / Hot-dip Galvanized Q235 Steel | Dimension / Set | 1840mm X 2150mm X 1580mm |
| Cell Size | 650mm X 600mm X 450mm | Lifespan | 15 - 20 Years |
| Applicable Feeding | Manual Or Automatic System |
Product Description
A-Type Broiler Battery Cage System for Poultry Farm
Premium Hot-Galvanized A-Type Broiler Chicken Cage System
Our A-Type Broiler Chicken Cage is specifically designed for open or closed poultry houses to optimize space utilization and improve broiler growth rates. Manufactured with advanced hot-dip galvanization technology, it guarantees a service life of over 15-20 years, resisting corrosion in harsh farm environments.
Why Choose A-Type Cage?
- High Density: Increases rearing capacity by 3-4 times compared to floor raising
- Labor Saving: Highly compatible with automatic feeding, drinking, and manure removal systems
- Better Ventilation: A-type structure ensures optimal airflow, reducing disease risks
Product Specifications
| Parameter | 3-Tier A-Type Broiler Cage | 4-Tier A-Type Broiler Cage |
|---|---|---|
| Material | Cold Galvanized / Hot-dip Galvanized Q235 Steel | Hot-dip Galvanized Q235 Steel |
| Dimension / Set | 1840mm x 2150mm x 1580mm | 1840mm x 2665mm x 2260mm |
| Capacity / Set | 90 - 180 broilers (depending on weight) | 120 - 240 broilers (depending on weight) |
| Cell Size | 650mm x 600mm x 450mm | 613mm x 500mm x 370mm |
| Lifespan | 15 - 20 Years | 15 - 20 Years |
| Applicable Feeding | Manual or Automatic System | Automatic System Recommended |
Advantages
- Ultimate Durability: Made of high-tensile Q235 steel wire with a 275g/m² zinc coating, providing superior corrosion resistance
- Injury Prevention: Smooth cage mesh and scientific bottom slope design drastically reduce breast blisters and wing injuries in broilers
- Perfect Ventilation: The stepped design avoids top-tier droppings falling on lower tiers and ensures every chicken gets fresh air
Fully Integrated Automated Sub-Systems

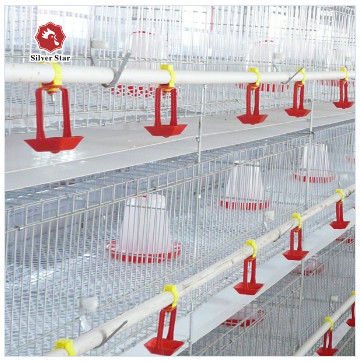

1. Smart Broiler Feeding System
Specialized round feed pans or longitudinal feeding hoppers designed to prevent feed spillage and wastage. The feeding line height is easily adjustable to accommodate the rapid growth of chicks from Day 1 to market day.
2. Hygienic Nipple Drinking System
360° stainless steel nipple drinkers equipped with double-sealing water valves and water drip cups to keep the manure dry. Includes a precise water medication medicator and pressure regulator for uniform flock hydration.

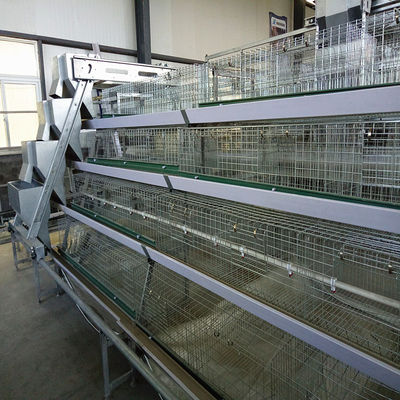

3. Automatic Manure Removal System
Thick, heavy-duty Polypropylene (PP) conveyor belts under each tier guarantee continuous waste removal, keeping the indoor air fresh and clean 24/7.
4. Smart Climate & Ventilation System
Connects negative-pressure exhaust fans, cooling pads, and air inlets to an intelligent environmental controller, strictly maintaining the optimum temperature and humidity needed for maximum growth weight.
Frequently Asked Questions
Q: How many broilers can a 4-tier H-type cage system hold?
A: The capacity depends on the specific cage dimensions and your target market weight (e.g., 1.5kg vs 2.5kg). Generally, an H-type system can increase your farm's housing capacity by over 200% compared to deep litter systems. Contact our engineers for a precise capacity calculation.
Q: Do you provide poultry house layout designs?
A: Yes! We provide free designs tailored to your land size and local climate conditions.
