Product Description
Product Description

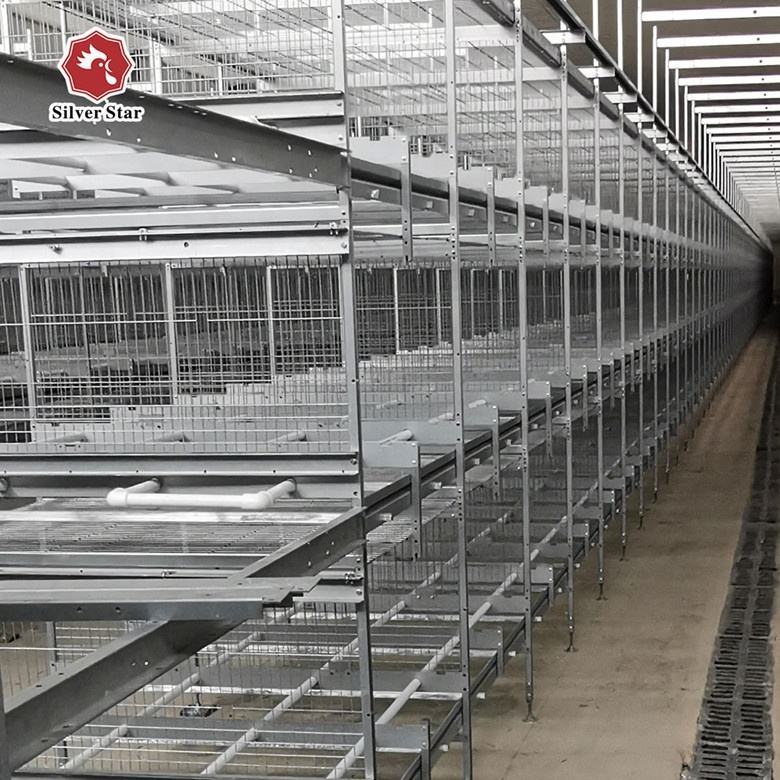

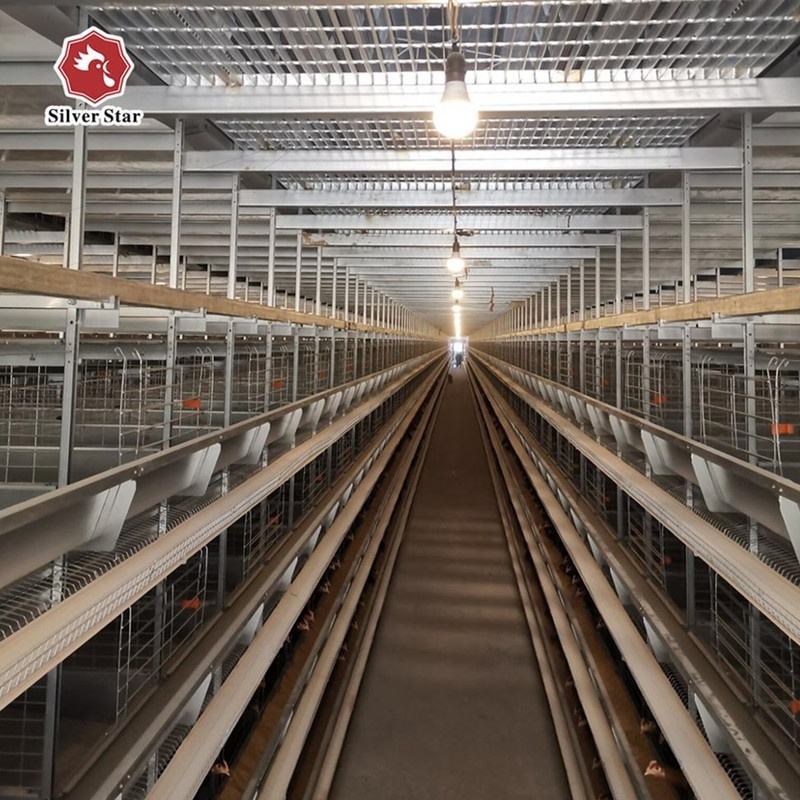

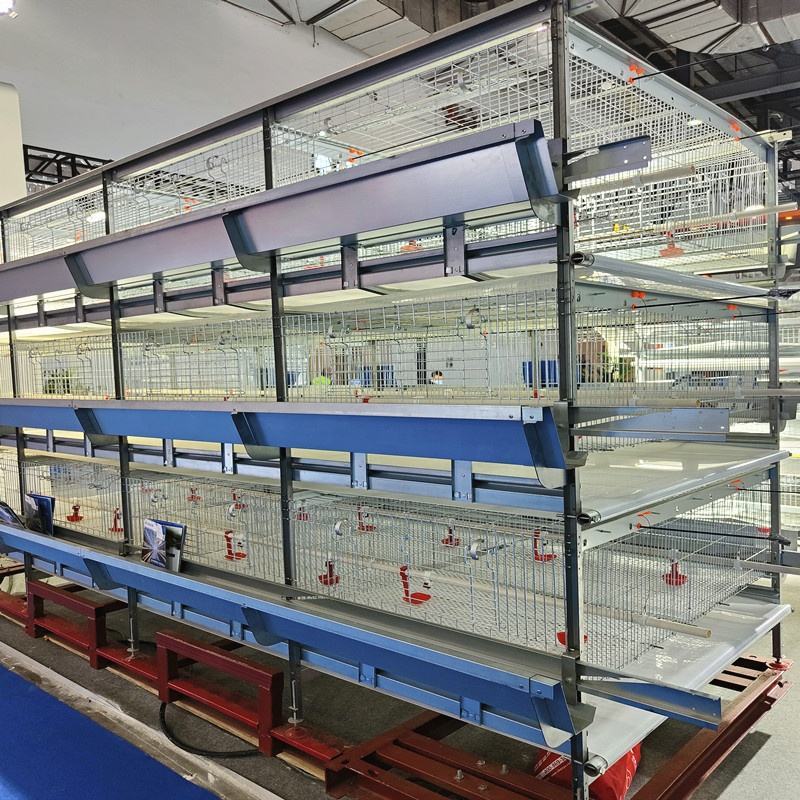

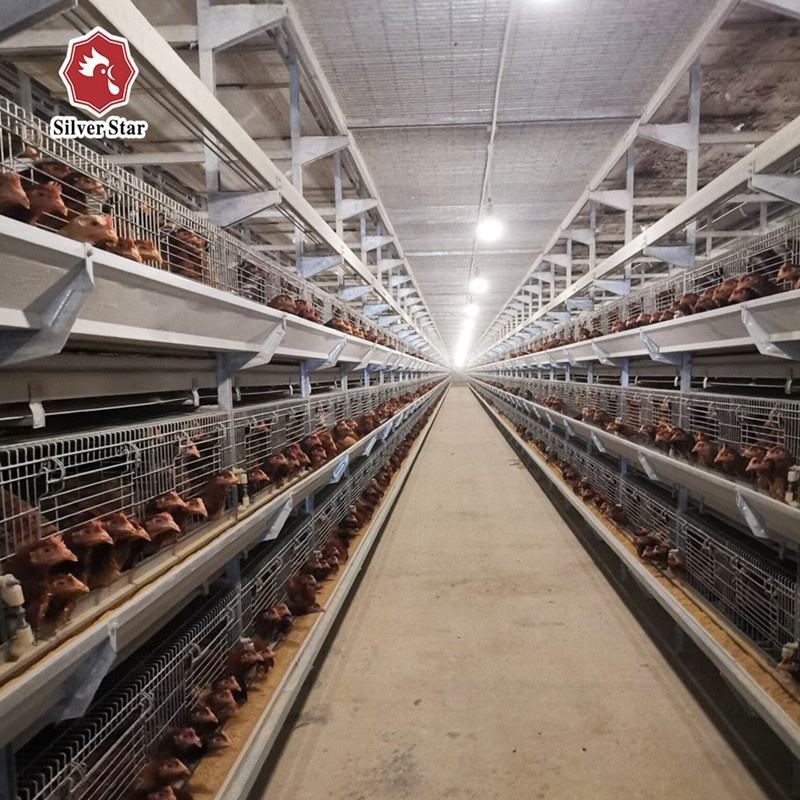

Poultry Cage/cages for Laying Hens Used/chicken Breeding Equipment 0
Chicken cage h type price of poultry cage/cages for laying hens used/chicken breeding equipment
(1)Tiers:3,4,5,6,8 leves/floors
(2)Material:Q235 Hot-Dipped Galvanized,Zinc thickness: 275g/㎡
(3)Frame:Material of leg of frame is hot-dip galvanized steel with thickness: 2mm
(4)Feed trough:Material: hot-dip galvanized steel. Thickness: 1.0mm.
(5)Design:Fully Automatic Poultry Breeding Layer Chicken Cage Equipment
(6)Fully Automatic System Including Egg Chicken Farm Layer Cage Body,Layer Cage Frame,Feeders,automatic drinking system,on-rail hopper feeding system,manure removal stystem,egg collection system,Ventilation System etc
Poultry Cage/cages for Laying Hens Used/chicken Breeding Equipment 1
Automatic On-Rail Hopper Feeding Machine Equipments
1.Hopper:Each tier with two hoppers, thickness is 1.2mm, material is hot-dip galvanized steel
2.Traction Device :Power of motor:0.75kw,tow rope: pp rope with 14mm,speed:8.67m/minute.
3.Track of Trolley:Hot-dip galvanized steel with 48mm*2.75mm.
4.Head and end frame:Hot-dip galvanized steel with 40mm*60mm*3mm.
Poultry Cage/cages for Laying Hens Used/chicken Breeding Equipment 2
Silo&Feed Uploading Machine Equipments
1.Capacity:4tons,8tons,10tons,13tons,15tons,20tons,33tons
2.Thickness:3mm thickness hot galvanized steel
3.Feed density0.65ton/m3.Material of silo is galvanized steel (275g) ,which is anti-erosive and ensures the long service life
4.Feed weighing device can be installed if required to control the feed amount consumed by layers
5.Auger Feed Uploading Device:Hot-Dipped Galvanized

Poultry Cage/cages for Laying Hens Used/chicken Breeding Equipment 3
Egg Collection Machine Equipments
1.Hot-dip galvanized 1.5mm side plate,speed 2.95m/min.
2.Egg guider:Hot-dip galvanized with thickness 1mm,configuration with stretching device.
Poultry Cage/cages for Laying Hens Used/chicken Breeding Equipment 4
Egg Belt
1.Material is PP woven belt,thickness 2mm,Width 100mm.
2.Clip for egg collection belt:Material is PVC, for one unit, each tier with 4pc.
Poultry Cage/cages for Laying Hens Used/chicken Breeding Equipment 5
Crossewise Egg Conveyor
Directly transfered to egg collection house,cheap price&cost saved
Poultry Cage/cages for Laying Hens Used/chicken Breeding Equipment 6
Front Drinking Lines
1.Nipple Drinkers
2.Water Pipes
3.Water Pressure regulator
4.Filter
5.Medical pump
Poultry Cage/cages for Laying Hens Used/chicken Breeding Equipment 7
Nipple Drinkers&Water Pipes
1.Water flow: 30-40ml
2.No water splashing or leaking, the bird house is dry and clean.
3.25mm*2mm PVC round pipe,resistance 90°bending with seven times.
Poultry Cage/cages for Laying Hens Used/chicken Breeding Equipment 8
Reducing Valve
1.With double back-flushing system
2.Working pressure:0.1-0.4Mpa.
3.Water flow at working mode is 20kg/min.
Poultry Cage/cages for Laying Hens Used/chicken Breeding Equipment 9
Automatic Manure/Waste Cleaning Machine Equipments
1.Belt type manure cleaning machine:Hot-dip galvanized 3mm side plate,chain safety door with 1mm hot-dip galvanized steel, running speed 3m/min.1.5KW
2.Manure cleaning belt:Material is PP, which has high tensile strength to ensure a long service life.Thickness is 1.2mm.Width is 1.2m.
3.Bracket for manure cleaning belt:Material is hot-dip galvanized steel, thickness is1.5mm.
Poultry Cage/cages for Laying Hens Used/chicken Breeding Equipment 10
Crosswise Manure/Waste Conveyor
Transverse manure conveying :
Each house is with 1 set, transverse and slope conveying is separate, the material is 5mm angle steel welded. Manure belt: rubber belt with 8mm thickness. The transverse manure conveying system adopts rubber conveying belt. There is no leak of manure during the transportation.
Poultry Cage/cages for Laying Hens Used/chicken Breeding Equipment 11
Ventilation Fans
1.Fan frame: Hot-dip galvanized steel with Zinc thickness 275g/m2.
2.Blade: 430BA stainless steel with 1.2mm thickness sheet.
3.50"Fans
Size:1380x1380x450mm
Airflow:44000m3/h
380V/ 50HZ /1.1KW

Poultry Cage/cages for Laying Hens Used/chicken Breeding Equipment 12
Cooling Pad
1.Thickness:150,200mm
2.Length:1500,1800,2000,2500mm or as customers' request
3.Frame:Galvanized Or Aluminimum
4.Water Recycling System Included
Poultry Cage/cages for Laying Hens Used/chicken Breeding Equipment 13
Environmental Controller
EC-1211 Environmental Controller
1.Box Size:305x228x120mm
waterproof box
2.Multi-functions
3.High quality and application
Poultry Cage/cages for Laying Hens Used/chicken Breeding Equipment 14
Roof Fans
1.Diameter:80cm
2.Material:Stainless Steel
3.Application:Poultry House
4.No electricity need,no noise,can work in the long way.
Poultry Cage/cages for Laying Hens Used/chicken Breeding Equipment 15
Heaters
Heaters can be used in electricity or fuels,as customers' request
Apply for poultry brooding broiler house
Poultry Cage/cages for Laying Hens Used/chicken Breeding Equipment 16

Title goes here.

1.Size:560x270mm
2.With anti-bird mesh,during minimum ventilation mode, fresh air comes into the house through air inlets
3.Can be controlled automatically or manually
Poultry Cage/cages for Laying Hens Used/chicken Breeding Equipment 17
Fogging Machines Equipments
1.Pressure:4.0mpa/㎡
2.Water flow:80L/min
3.Motor Power:4KW,380V
4.Water Volume:160L

Specification
Poultry Cage/cages for Laying Hens Used/chicken Breeding Equipment 18
 H Type 4-Tier,4 Lines Egg Chicken Farm Layer Cage Drawing
Free Poultry House Design will be provided.
Tiers
Cell Size/mm
Unit Size/mm
Birds Qty
3-Tier
650x600x500
650x2100x2700
54
4-Tier
650x600x500
650x2100x3200
72
5-Tier
650x600x500
650x2100x3900
90
6-Tier
650x600x500
650x2100x4600
108
8-Tier
650x600x500
650x2100x5300
144
3-Tier
430x600x410
1800x2100x2700
144
4-Tier
430x600x410
1800x2100x3200
192
5-Tier
430x600x410
1800x2100x3900
240
6-Tier
430x600x410
1800x2100x4600
288
8-Tier
430x600x410
1800x2100x5300
384
