Hot-Dipped Galvanized Steel Fully Automatic Broiler Cage System with 3 or 4 Tiers for Poultry Farming
Product Summary
Hot-Dipped Galvanized Steel Fully Automatic Broiler Cage System Professional broiler chicken farming equipment designed for maximum efficiency and bird welfare in meat production operations. System Configuration Tiers: 3 or 4 levels/floors Frame Material: Q235 Hot-Dipped Galvanized Steel, 2mm ...
Product Details
Highlight:
Hot-Dipped Galvanized Steel Broiler Cage System
,Fully Automatic Broiler Cage System
,3 or 4 Tiers Broiler Cage System
Cage Material:
Q235 National Bridge Steel Wire
Automatic Feeding System:
Yes
Material:
Galvanized Steel
Designtype:
Stackable
Installation:
Easy Assembly With Bolts
Item:
Battery Cage Hens
Cleaningmethod:
Removable Droppings Tray
Cage Levels:
3 Or 4 Tiers
Ventilation:
Good Airflow Design
Weight:
25 Kg
Egg Collecting System:

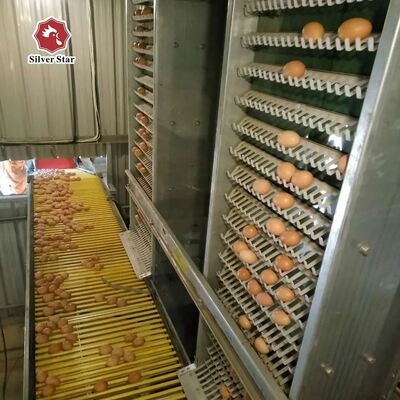

Automatic Egg Collecting System
Usage:
Commercial Poultry Farming
Feedingsystem:
Automatic Feeding Trough
Feature:
Durable
Condition:
New
Product Description

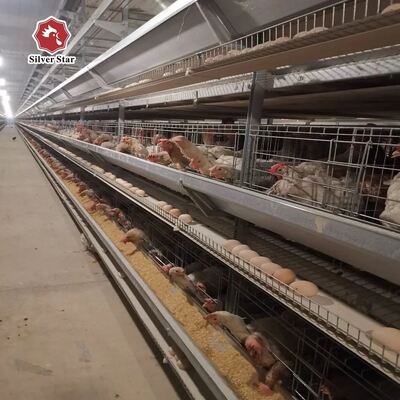

Hot-Dipped Galvanized Steel Fully Automatic Broiler Cage System
Professional broiler chicken farming equipment designed for maximum efficiency and bird welfare in meat production operations.
System Configuration
- Tiers: 3 or 4 levels/floors
- Frame Material: Q235 Hot-Dipped Galvanized Steel, 2mm thickness legs
- Feed Trough: Hot-dip galvanized steel, 1.0mm thickness
- Zinc Coating: 275g/㎡ thickness for superior corrosion resistance
Complete Automated System Includes
Broiler chicken cages, frame structure, automatic feeders, drinking system, on-rail hopper feeding, manure removal system, chicken harvesting system, and ventilation system.
Automatic On-Rail Hopper Feeding System
- Hopper: Two hoppers per tier, 1.2mm hot-dip galvanized steel
- Traction Device: 0.75kw motor, 14mm PP rope, 8.67m/minute speed
- Track: 48mm*2.75mm hot-dip galvanized steel
- Frame: 40mm*60mm*3mm hot-dip galvanized steel head and end frames
Silo & Feed Uploading Equipment
- Capacity: 4, 8, 10, 13, 15, 20, or 33 tons
- Construction: 3mm thick hot galvanized steel
- Feed Density: 0.65 ton/m³
- Optional: Feed weighing device for consumption control
- Auger System: Hot-dipped galvanized feed uploading device
Plastic Slat Flooring
- Material: Flexible polypropylene
- Feature: Removable floors for easy chicken harvesting
Large Living Space & Access Doors
Spacious design facilitates manual bird catching and promotes comfortable, healthy growth conditions.
Inter-Level Spacing
- Spacing: 650mm or 800mm between cage levels
- Benefit: Enhanced air circulation reduces disease risk
Front Drinking System
- Nipple drinkers
- Water pipes
- Water pressure regulator
- Filter system
- Medical pump
Nipple Drinkers & Water Pipes
- Water Flow: 30-40ml
- Feature: No splashing or leaking, maintains dry environment
- Pipe: 25mm*2mm PVC round pipe with 90° bending resistance
Pressure Reducing Valve
- Feature: Double back-flushing system
- Working Pressure: 0.1-0.4Mpa
- Water Flow: 20kg/min at working mode
Automatic Manure Cleaning System
- Belt Type: 3mm hot-dip galvanized side plates, 1mm safety doors
- Operation: 3m/min speed, 1.5KW power
- Belt Material: High-tensile PP, 1.2mm thickness, 1.2m width
- Bracket: 1.5mm hot-dip galvanized steel
Crosswise Manure Conveyor
Separate transverse and slope conveying with 5mm angle steel welded construction. 8mm thick rubber belt ensures leak-proof manure transportation.
Ventilation System
- Fan Frame: Hot-dip galvanized steel, 275g/m² zinc coating
- Blade: 430BA stainless steel, 1.2mm thickness
- 50" Fans: 1380*1380*450mm size, 44000m³/h airflow
- Power: 380V/50HZ/1.1KW
Cooling Pad System
- Thickness: 150mm or 200mm
- Length: 1500, 1800, 2000, 2500mm or custom sizes
- Frame: Galvanized steel or aluminum
- Included: Water recycling system
Environmental Controller
- Model: EC-1211 Environmental Controller
- Enclosure: 305*228*120mm waterproof box
- Features: Multi-functional, high quality application
Roof Ventilation Fans
- Diameter: 80cm
- Material: Stainless steel construction
- Operation: No electricity required, silent operation
- Durability: Long-lasting performance
Heating Systems
Electric or fuel-powered heaters available for poultry brooding and broiler house applications, customized to customer requirements.
Air Inlet System
- Size: 560*270mm
- Feature: Anti-bird mesh for minimum ventilation mode
- Control: Automatic or manual operation
Fogging Machine Equipment
- Pressure: 4.0mpa/㎡
- Water Flow: 80L/min
- Motor: 4KW, 380V power
- Capacity: 160L water volume
System Specifications
| Automatic Chicken Harvesting | Manual Chicken Harvesting | ||
|---|---|---|---|
| Material | Hot Dip Galvanized Steel | Material | Hot Dip Galvanized Steel |
| Tiers | 3 or 4 Tiers | Tiers | 3 or 4 Tiers |
| Capacity | 156 birds or 208 birds | Capacity | 96 birds or 128 birds |
| Size | 1480mm*1750mm*440mm | Size | 1300mm*1250mm*430mm |
| Area per Chicken | 498cm² | Area per Chicken | 508cm² |
