4-Tier Fully Automated Layer H-Type Fully Automatic Layer Cage: Revolutionizing Poultry Farming Efficiency
Product Details
Poultry Farming Efficiency Layer Cage
Fully automatic A-type H-type laying cage
Product Description:
H-type chicken coop, also known as multi-layer laminated chicken coop, has many advantages such as large breeding amount per unit area, high land utilization rate, low labor cost, low staff dynamic intensity, low risk of disease transmission, simple fecal treatment, cleanliness and hygiene. At the same time, the H-type chicken cage can also be well combined with the modern Internet and intelligent technology, and more intelligent information technology can be applied to the preparation of livestock breeding, improve the level of chicken intensification and automation, and promote the technological upgrading of the chicken industry
Cage size:
| A Type Battery Cages Layer Poultry Farming Equipment | |||||
| Model | Length(mm) | Width(mm) | Heigh(mm) | Door Qty | Birds Qty/Set |
| 3 Tiers | 1950 | 2300 | 1500 | 5 | 90 |
| 4 Tiers | 1950 | 2300 | 1900 | 5 | 120 |
| 3 Tiers | 1950 | 2300 | 1600 | 4 | 96 |
| 4 Tiers | 1950 | 2300 | 2000 | 4 | 128 |
| 3 Tiers | 2150 | 2300 | 1600 | 5 | 120 |
| 4Tiers | 2150 | 2300 | 2000 | 5 | 160 |
| 3Tiers | 2150 | 2360 | 1600 | 5 | 120 |
| 4 Tiers | 2150 | 2360 | 2000 | 5 | 160 |
| 3 Tiers | 1720 | 2360 | 1600 | 4 | 96 |
| 4 Tiers | 1720 | 2360 | 2000 | 4 | 128 |
| H Frame Layer Poultry Farming Equipment | |||||||
| Cage size | Door No. /cage | Chicken No. /door | No. of tiers | Birds qty/set | Area per bird (cm2/bird) | Each door Size(mm) | Unit Cage Size(mm) |
| 1800*600*430 | 4 | 6 | 3 | 144 | 450 | 450x600x430 | 1800x1200x2140 |
| 1800*600*430 | 4 | 6 | 4 | 192 | 450 | 450x600x430 | 1800x1200x2790 |
| 1800*600*430 | 4 | 6 | 5 | 240 | 450 | 450x600x430 | 1800x1200x3440 |
| 1800*600*430 | 4 | 6 | 6 | 288 | 450 | 450x600x430 | 1800x1200x4090 |
| 1800*600*430 | 4 | 6 | 8 | 384 | 450 | 450x600x430 | 1800x1200x5390 |
| 650*625*500 | 1 | 9 | 3 | 54 | 450 | 650x625x500 | 650x1250x2220 |
| 650*625*500 | 1 | 9 | 4 | 72 | 450 | 650x625x500 | 650x1250x2870 |
| 650*625*500 | 1 | 9 | 5 | 90 | 450 | 650x625x500 | 650x1250x3520 |
| 650*625*500 | 1 | 9 | 6 | 108 | 450 | 650x625x500 | 650x1250x4170 |
| 650*625*500 | 1 | 9 | 8 | 144 | 450 | 650x625x500 | 650x1250x5470 |
Chicken coop type

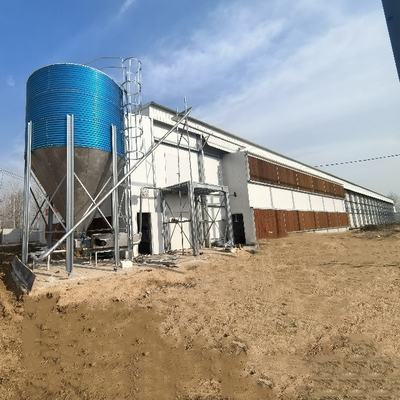

Modern large-scale breeding farms generally use enclosed windowless chicken coops, which are completely enclosed and have no windows (to save electricity, windows are also added). The microclimate inside the chicken coop can be controlled and regulated using various facilities to meet the most suitable physiological requirements of the chicken body to the maximum extent. The chicken coop adopts artificial ventilation and lighting. By adjusting the size and speed of ventilation, the temperature and relative humidity inside the chicken coop can be controlled within a certain range. During the hot summer, cooling can be achieved through increased ventilation or other measures; During the cold season, heating is generally not provided specifically, but rather relies on the heat generated by the chicken body to maintain the temperature inside the house within a suitable range.
-
