H Type Battery Poultry Chicken Cage Automatic Layer And Broiler 3 Tiers 4 Tiers

Basic Properties
Place of Origin: China
Brand Name: Silver Star
Certification: ISO9001, SGS
Model Number: A4L160, A3L120, H4L192, H5L240
Trading Properties
Minimum Order Quantity: 40set
Price: 110-160usd/set
Standard Packaging: FCL: Standard exporting packaging; LCL: Wooden box, carton packaging
Delivery Time: in 30 working days after deposit
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 20000sets/week
Product Summary
Fully automatic A-type H-type laying cage Product description: Chicken coop structure and basic requirements 1. Chicken coop length: The length of a chicken coop depends on the number of chickens transferred to the coop, the level of mechanization, and the quality of equipment, generally ranging ...

Product Details

Highlight:

3 Tiers Poultry Chicken Cage

,

Automatic Layer Poultry Chicken Cage

,

4 Tiers Poultry Chicken Cage

Product Name: Fully Automatic Poultry Egg And Chicken Cage
Cage Wire Meterial: Q235 Bridge Steel, 3-6mm Thickness
Wire Mesh Surface: Hot Or Cold Galvanization
Cage Type: A、H Type Chicken Cage
Egg Collecting System: Automatic Egg Collecting System
Life Time: 15-20years
Use: Egg Layer Chicken,laying Hens Chicken Cage
Service: 24 Hours Online
Core Components: Feed Trough, Water Tank, Cage Mesh, Nipple Drinker, Screw, Connecting Pipe Fittings
Product Description

Fully automatic A-type H-type laying cage



Product description:

Chicken coop structure and basic requirements

1. Chicken coop length: The length of a chicken coop depends on the number of chickens transferred to the coop, the level of mechanization, and the quality of equipment, generally ranging from 40 to 100 meters.

2. Chicken coop span: The span of a standardized chicken coop depends on the number of columns in the coop, usually 8 meters (2 columns), 11 meters (3 columns), and 14 meters (4 columns).

3. Chicken coop height: The height of a chicken coop should be determined based on the feeding method, fecal cleaning method, span, and climate conditions, and is generally recommended to have a eaves height of 2.5-3 meters.

4. Rooftop of chicken coop: The roof of the chicken coop should have strong waterproof, thermal insulation, and load-bearing capacity.

5. Chicken House Wall: The wall is the enclosure structure of the chicken house, which is required to be protected from external wind and rain, with good thermal insulation. The inner and outer walls are painted with cement to facilitate moisture-proof and flushing.

6. Chicken coop floor: The chicken coop floor should be higher than the outside surface and flat, with a certain slope at the bottom of the septic tank for flushing and disinfection.

7. Chicken coop doors and windows: The width of the chicken coop door is subject to the smooth entry and exit of all facilities and work vehicles. Generally, a single door is 2 meters high and 1.6 meters wide, and a double door is 2 meters high and 1.4 meters wide. For an open chicken coop, the size of the windows should take into account the lighting coefficient and ventilation of the coop. Generally, the window area should not be less than 1/8 of the coop area.

8. Chicken coop passage: The passage in the chicken coop is a place where breeders work and observe the chicken flock every day, with a recommended distance of 0.9-1.1 meters.

9. The distance between chicken coops should be at least 10 meters.




Cage size:

A Type Battery Cages Layer Poultry Farming Equipment
Model Length(mm) Width(mm) Heigh(mm) Door Qty Birds Qty/Set
3 Tiers 1950 2300 1500 5 90
4 Tiers 1950 2300 1900 5 120
3 Tiers 1950 2300 1600 4 96
4 Tiers 1950 2300 2000 4 128
3 Tiers 2150 2300 1600 5 120
4Tiers 2150 2300 2000 5 160
3Tiers 2150 2360 1600 5 120
4 Tiers 2150 2360 2000 5 160
3 Tiers 1720 2360 1600 4 96
4 Tiers 1720 2360 2000 4 128




H Frame Layer Poultry Farming Equipment
Cage size Door No. /cage Chicken No. /door No. of tiers Birds qty/set Area per bird (cm2/bird) Each door Size(mm) Unit Cage Size(mm)
1800*600*430 4 6 3 144 450 450x600x430 1800x1200x2140
1800*600*430 4 6 4 192 450 450x600x430 1800x1200x2790
1800*600*430 4 6 5 240 450 450x600x430 1800x1200x3440
1800*600*430 4 6 6 288 450 450x600x430 1800x1200x4090
1800*600*430 4 6 8 384 450 450x600x430 1800x1200x5390
650*625*500 1 9 3 54 450 650x625x500 650x1250x2220
650*625*500 1 9 4 72 450 650x625x500 650x1250x2870
650*625*500 1 9 5 90 450 650x625x500 650x1250x3520
650*625*500 1 9 6 108 450 650x625x500 650x1250x4170
650*625*500 1 9 8 144 450 650x625x500 650x1250x5470

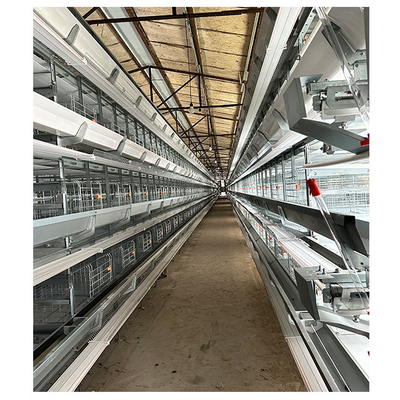

H Type Battery Poultry Chicken Cage Automatic Layer And Broiler 3 Tiers 4 Tiers

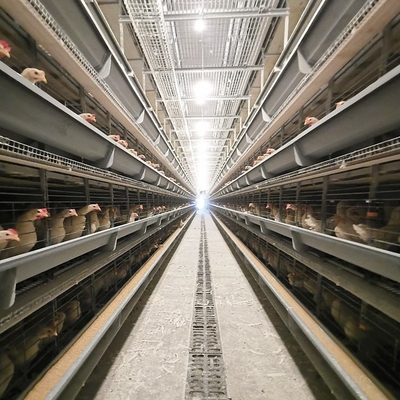

H Type Battery Poultry Chicken Cage Automatic Layer And Broiler 3 Tiers 4 Tiers

Precautions of battery chicken cage system

If the stocking density exceeds the number of chicken cages, it will restrict the activities of the chickens and affect the growth and development. Moreover, too many numbers will also affect the air quality of the chicken coops and the service life of the chicken coops, and may also cause the chickens to become stronger. Bullying, pecking and other phenomena occur, so farmers should make reasonable adjustments in time according to the growth stage of the flock.

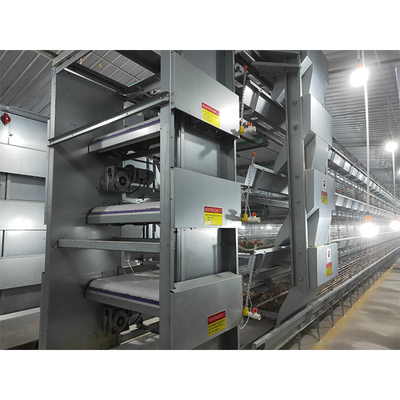

H Type Battery Poultry Chicken Cage Automatic Layer And Broiler 3 Tiers 4 Tiers

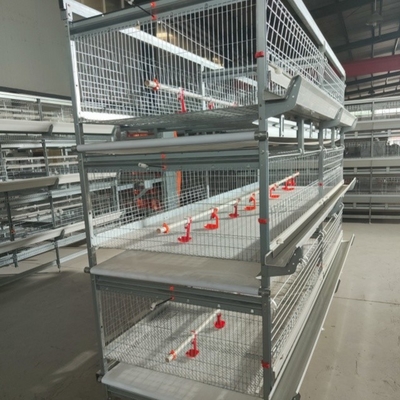

H Type Battery Poultry Chicken Cage Automatic Layer And Broiler 3 Tiers 4 Tiers

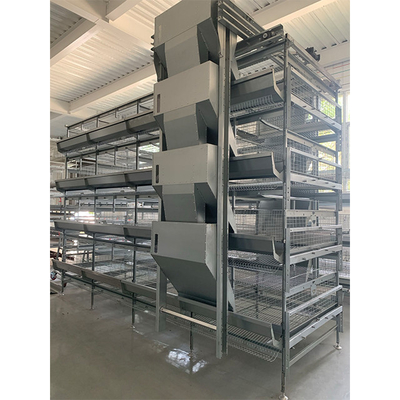

H Type Battery Poultry Chicken Cage Automatic Layer And Broiler 3 Tiers 4 Tiers
