Q235 A Type 4 Tiers 160 Birds Hens Auto System Egg Laying Design Chicken Layers Battery Cages
| Place of Origin | China |
|---|---|
| Brand Name | Silver Star |
| Certification | ISO9001, SGS |
| Model Number | A4L160, A3L120, H4L192, H5L240 |
| Minimum Order Quantity | 40set |
| Price | 110-160usd/set |
| Packaging Details | FCL: Standard exporting packaging; LCL: Wooden box, carton packaging |
| Delivery Time | in 30 working days after deposit |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability | 20000sets/week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Fully Automatic Poultry Egg And Broiler Chicken Cage | Cage Wire Meterial | Q235 Bridge Steel, 3-6mm Thickness |
|---|---|---|---|
| Wire Mesh Surface | Hot Or Cold Galvanization | Cage Type | A、H Type Chicken Cage |

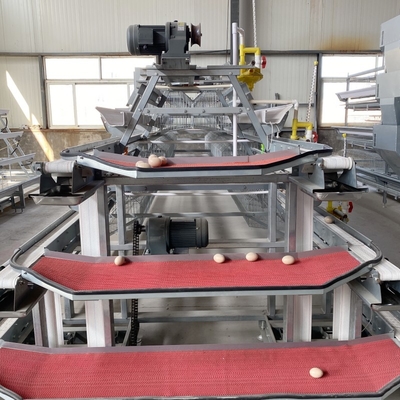

| Egg Collecting System | Automatic Egg Collecting System | Life Time | 15-20years |
| Use | Egg Layer Chicken，laying Hens Chicken Cage | Service | 24 Hours Online |
| Core Components | Feed Trough, Water Tank, Cage Mesh, Nipple Drinker, Screw, Connecting Pipe Fittings | ||
| Highlight | Q235 chicken layers battery cages,4 Tiers chicken layers battery cages,160 Birds chicken layers battery cages |
||
Product Description

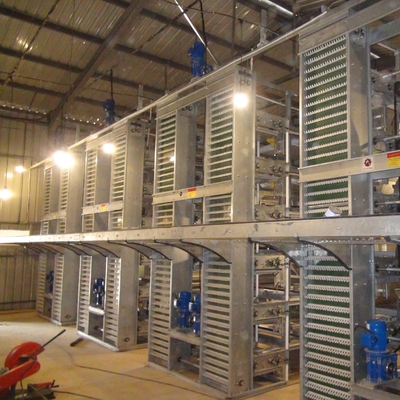

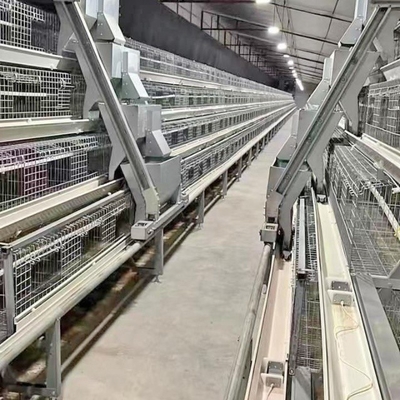

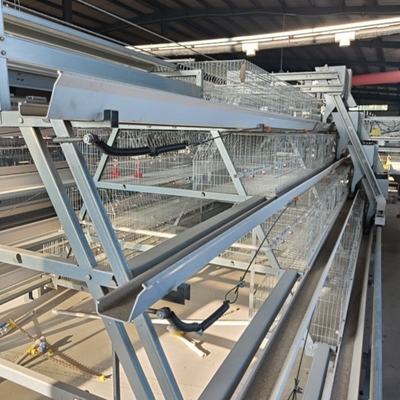

Fully automatic A-type H-type laying cage
Product Description:
Reference data for laying hens farms:
1. Set up a disinfection pool at the entrance of the site, which is the same width as the door, with a length of 4 meters and a depth of more than 0.3 meters.
2. The management area and production area are isolated, and the brooding and breeding houses are separated from the adult chicken houses. The clean and dirty roads are separated.
3. All kinds of chicken coops are arranged neatly to transport feed, fresh eggs, feces, etc. back and forth in a straight line, in order to reduce labor intensity.
4. On the premise of meeting production requirements, all types of buildings should have their spacing as short as possible (preferably 3 hours) and be arranged compactly to save land and reduce investment in roads and pipelines.
Cage size:
| A Type Battery Cages Layer Poultry Farming Equipment | |||||
| Model | Length(mm) | Width(mm) | Heigh(mm) | Door Qty | Birds Qty/Set |
| 3 Tiers | 1950 | 2300 | 1500 | 5 | 90 |
| 4 Tiers | 1950 | 2300 | 1900 | 5 | 120 |
| 3 Tiers | 1950 | 2300 | 1600 | 4 | 96 |
| 4 Tiers | 1950 | 2300 | 2000 | 4 | 128 |
| 3 Tiers | 2150 | 2300 | 1600 | 5 | 120 |
| 4Tiers | 2150 | 2300 | 2000 | 5 | 160 |
| 3Tiers | 2150 | 2360 | 1600 | 5 | 120 |
| 4 Tiers | 2150 | 2360 | 2000 | 5 | 160 |
| 3 Tiers | 1720 | 2360 | 1600 | 4 | 96 |
| 4 Tiers | 1720 | 2360 | 2000 | 4 | 128 |
| H Frame Layer Poultry Farming Equipment | |||||||
| Cage size | Door No. /cage | Chicken No. /door | No. of tiers | Birds qty/set | Area per bird (cm2/bird) | Each door Size(mm) | Unit Cage Size(mm) |
| 1800*600*430 | 4 | 6 | 3 | 144 | 450 | 450x600x430 | 1800x1200x2140 |
| 1800*600*430 | 4 | 6 | 4 | 192 | 450 | 450x600x430 | 1800x1200x2790 |
| 1800*600*430 | 4 | 6 | 5 | 240 | 450 | 450x600x430 | 1800x1200x3440 |
| 1800*600*430 | 4 | 6 | 6 | 288 | 450 | 450x600x430 | 1800x1200x4090 |
| 1800*600*430 | 4 | 6 | 8 | 384 | 450 | 450x600x430 | 1800x1200x5390 |
| 650*625*500 | 1 | 9 | 3 | 54 | 450 | 650x625x500 | 650x1250x2220 |
| 650*625*500 | 1 | 9 | 4 | 72 | 450 | 650x625x500 | 650x1250x2870 |
| 650*625*500 | 1 | 9 | 5 | 90 | 450 | 650x625x500 | 650x1250x3520 |
| 650*625*500 | 1 | 9 | 6 | 108 | 450 | 650x625x500 | 650x1250x4170 |
| 650*625*500 | 1 | 9 | 8 | 144 | 450 | 650x625x500 | 650x1250x5470 |
FAQ
Q: How many chickens can the cage hold? How many layers?
A: Can hold 96, 120, 128, 160 chickens, three or four layers.
2.Q: Are you a manufacturer?
A: Yes, we have been providing professional products in this field.
3.Q: Can you design the drawings of the chicken coop for my farm?
A: Yes, You need to provide us with the size of the farm and your design concept.
4.Q: How many days does it take to complete the sample? How about mass production?
A: Generally, if the goods are in stock, the samples will be sent immediately by air
express with in 3-5 days. Usually within 30 days or according to your order.
5.Q: How do you package the products?
A: Usually as export standard packaging or according to your requirements
Precautions of battery chicken cage system
If the stocking density exceeds the number of chicken cages, it will restrict the activities of the chickens and affect the growth and development. Moreover, too many numbers will also affect the air quality of the chicken coops and the service life of the chicken coops, and may also cause the chickens to become stronger. Bullying, pecking and other phenomena occur, so farmers should make reasonable adjustments in time according to the growth stage of the flock.
