1950×2300×2000 Automatic Layer Battery Poultry Chicken Cage Chicken Layer Farming Equipment

Place of Origin China
Brand Name Silver Star
Certification ISO9001, SGS
Model Number A4L160, A3L120, H4L192, H5L240
Minimum Order Quantity 40set
Price 110-160usd/set
Packaging Details FCL: Standard exporting packaging; LCL: Wooden box, carton packaging
Delivery Time in 30 working days after deposit
Payment Terms L/C, D/A, D/P, T/T, Western Union
Supply Ability 20000sets/week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Fully Automatic Poultry Egg And Broiler Chicken Cage Cage Wire Meterial Q235 Bridge Steel, 3-6mm Thickness
Wire Mesh Surface Hot Or Cold Galvanization Cage Type A、H Type Chicken Cage
Egg Collecting System Automatic Egg Collecting System Life Time 15-20years
Use Egg Layer Chicken,laying Hens Chicken Cage Service 24 Hours Online
Core Components Feed Trough, Water Tank, Cage Mesh, Nipple Drinker, Screw, Connecting Pipe Fittings
Leave a Message
Product Description

Fully automatic H-type Broile cage



Product Description:

Site selection for laying hens

(1) Climate conditions:

Detailed understanding of the local meteorological department's average temperature, absolute maximum temperature and absolute minimum temperature, soil freezing depth, average rainfall, maximum wind speed, perennial main wind direction, and monthly sunshine hours in the past 5-10 years.

(2) Location:

The site should be located in an area with convenient transportation and flat roads, with a quiet environment around the chicken farm, away from residential areas and noisy factories, and away from slaughterhouses and hospitals. More than 500 meters away from the main road and animal breeding areas, more than 200 meters away from animal clinics, and more than 100 meters away from secondary roads.

(3) Terrain and topography:

Require a high and dry terrain, facing south or southeast, with a certain slope to facilitate lighting, ventilation, and drainage. If building a site on a hillside or hilly area, it can be built on a sunny slope, but the slope should not be too steep. Chicken farms should not be built in low-lying and humid areas, nor should they be built on mountain tops and high slopes. Strive for a square area to minimize the use of lines and pipelines, and minimize or minimize the occupation of arable land.

(4) Soil:

The soil should be sandy loam with good drainage and poor thermal conductivity, and the groundwater level in the external site should be low.

(5) Water source:

The water source in the site is sufficient, and the water quality should meet the hygiene standards for drinking water. It is best to drill deep wells to obtain water. Untreated river and pond water cannot be used for direct drinking by chickens.

(6) Power supply:

The power supply must be stable, reliable, and sufficient. It is best to use dual power supply, otherwise you need to provide your own power generation equipment.



Cage size:

A Type Battery Cages Layer Poultry Farming Equipment

Model Length(mm) Width(mm) Heigth(mm) Door Qty Birds Qty/Set
3 Tiers 1950 2300 1500 5 90
4 Tiers 1950 2300 1900 5 120
3 Tiers 1950 2300 1600 4 96
4 Tiers 1950 2300 2000 4 128
3 Tiers 2150 2300 1600 5 120
4Tiers 2150 2300 2000 5 160
3Tiers 2150 2360 1600 5 120
4 Tiers 2150 2360 2000 5 160
3 Tiers 1720 2360 1600 4 96
4 Tiers 1720 2360 2000 4 128



H Frame Layer Poultry Farming Equipment

Cage size Door No. /cage Chicken No. /door No. of tiers Birds qty/set Area per bird (cm2/bird) Each door Size(mm) Unit Cage Size(mm)
1800*600*430 4 6 3 144 450 450x600x430 1800x1200x2140
1800*600*430 4 6 4 192 450 450x600x430 1800x1200x2790
1800*600*430 4 6 5 240 450 450x600x430 1800x1200x3440
1800*600*430 4 6 6 288 450 450x600x430 1800x1200x4090
1800*600*430 4 6 8 384 450 450x600x430 1800x1200x5390
650*625*500 1 9 3 54 450 650x625x500 650x1250x2220
650*625*500 1 9 4 72 450 650x625x500 650x1250x2870
650*625*500 1 9 5 90 450 650x625x500 650x1250x3520
650*625*500 1 9 6 108 450 650x625x500 650x1250x4170
650*625*500 1 9 8 144 450 650x625x500 650x1250x5470

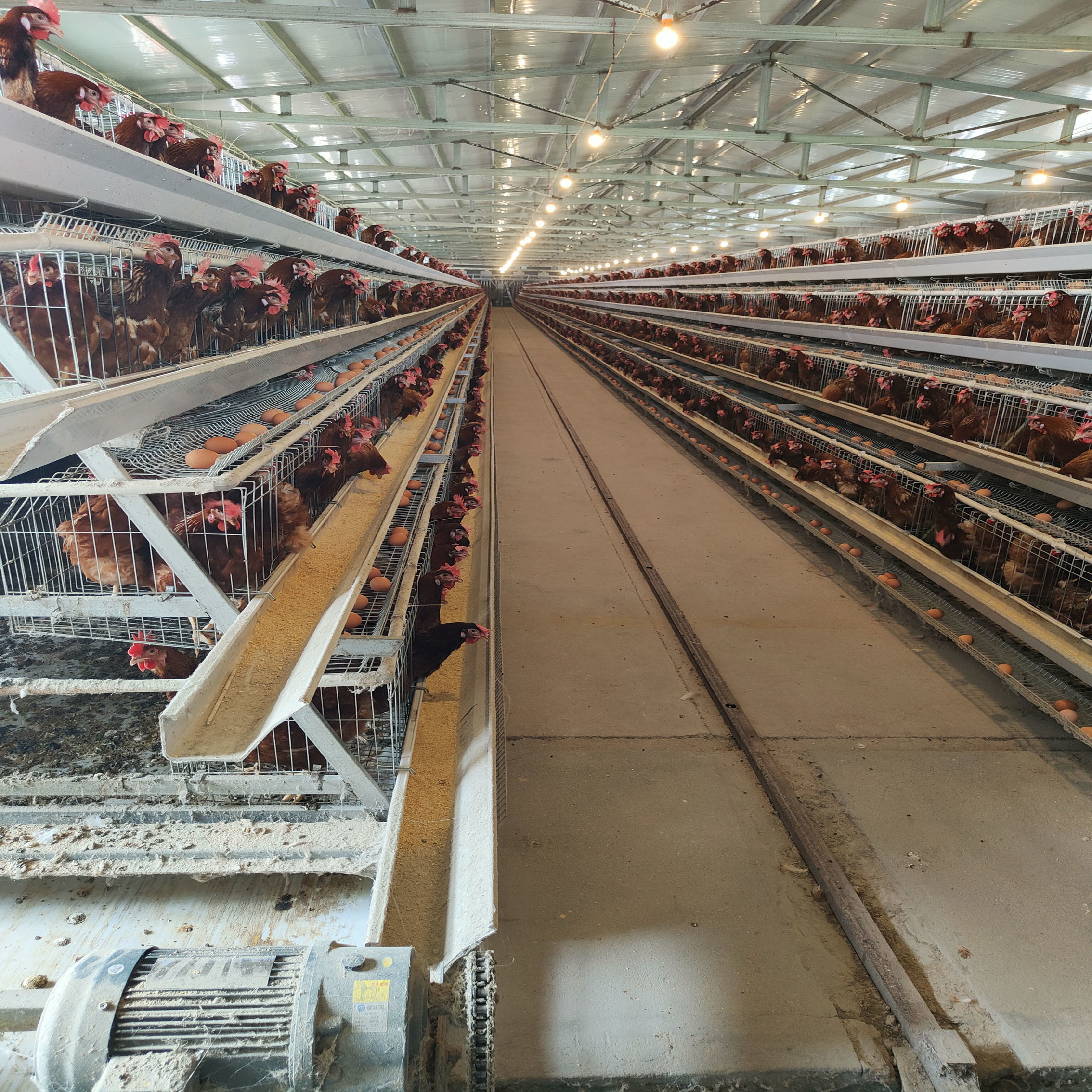

1950×2300×2000 Automatic Layer Battery Poultry Chicken Cage Chicken Layer Farming Equipment 0

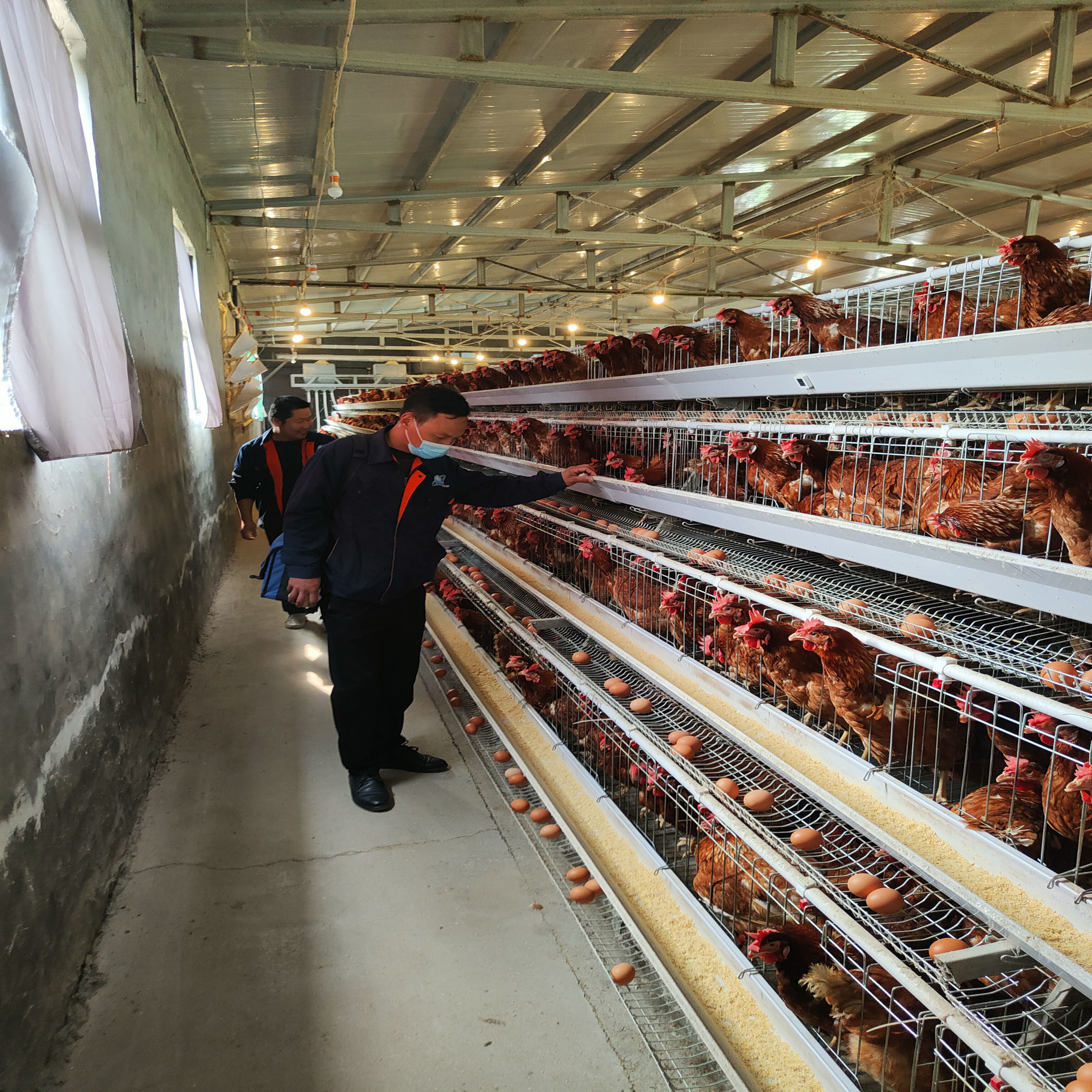

1950×2300×2000 Automatic Layer Battery Poultry Chicken Cage Chicken Layer Farming Equipment 1

Precautions of battery chicken cage system

If the stocking density exceeds the number of chicken cages, it will restrict the activities of the chickens and affect the growth and development. Moreover, too many numbers will also affect the air quality of the chicken coops and the service life of the chicken coops, and may also cause the chickens to become stronger. Bullying, pecking and other phenomena occur, so farmers should make reasonable adjustments in time according to the growth stage of the flock.

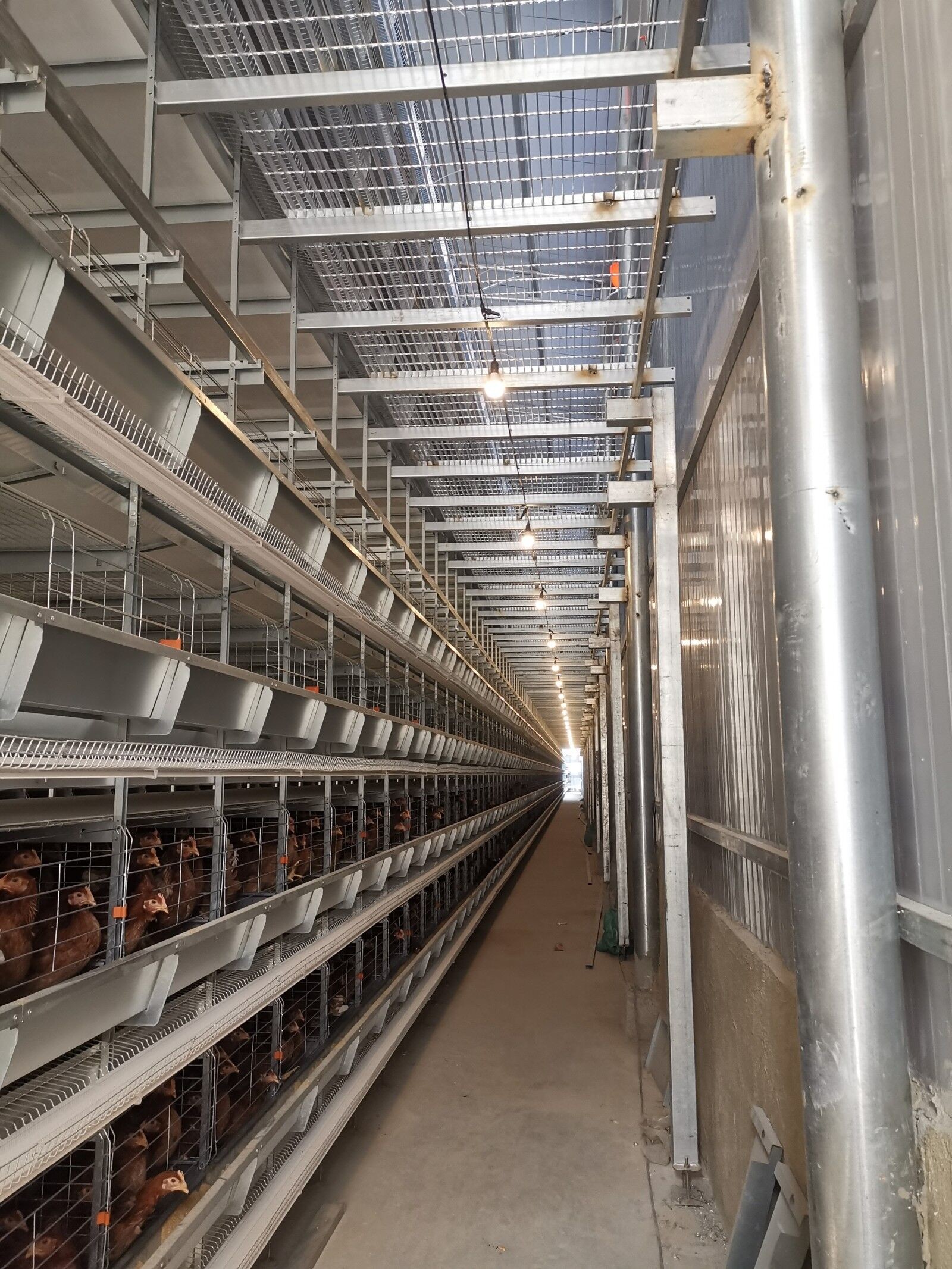

1950×2300×2000 Automatic Layer Battery Poultry Chicken Cage Chicken Layer Farming Equipment 2

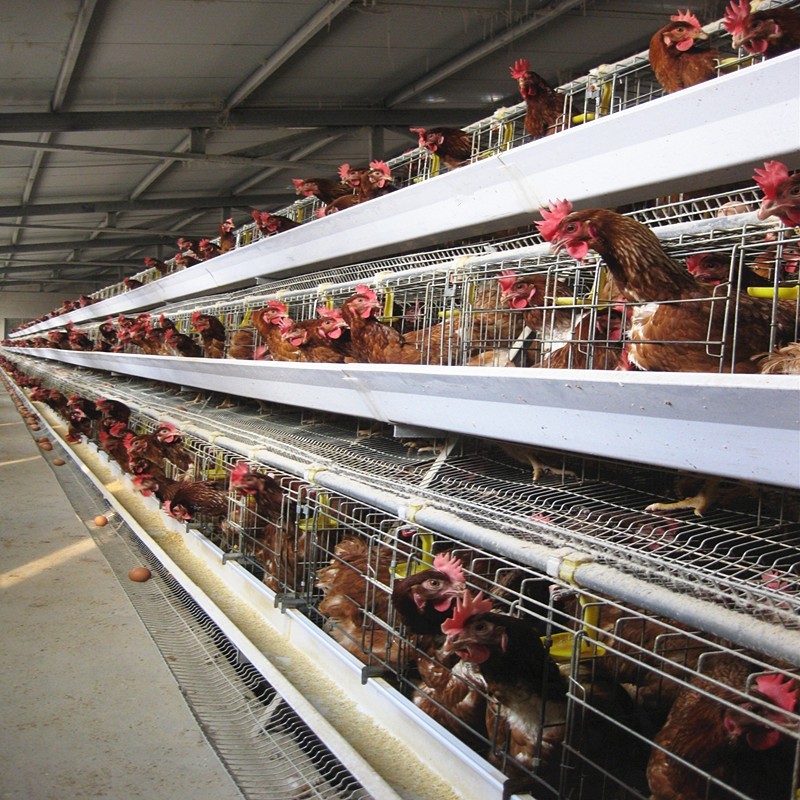

1950×2300×2000 Automatic Layer Battery Poultry Chicken Cage Chicken Layer Farming Equipment 3

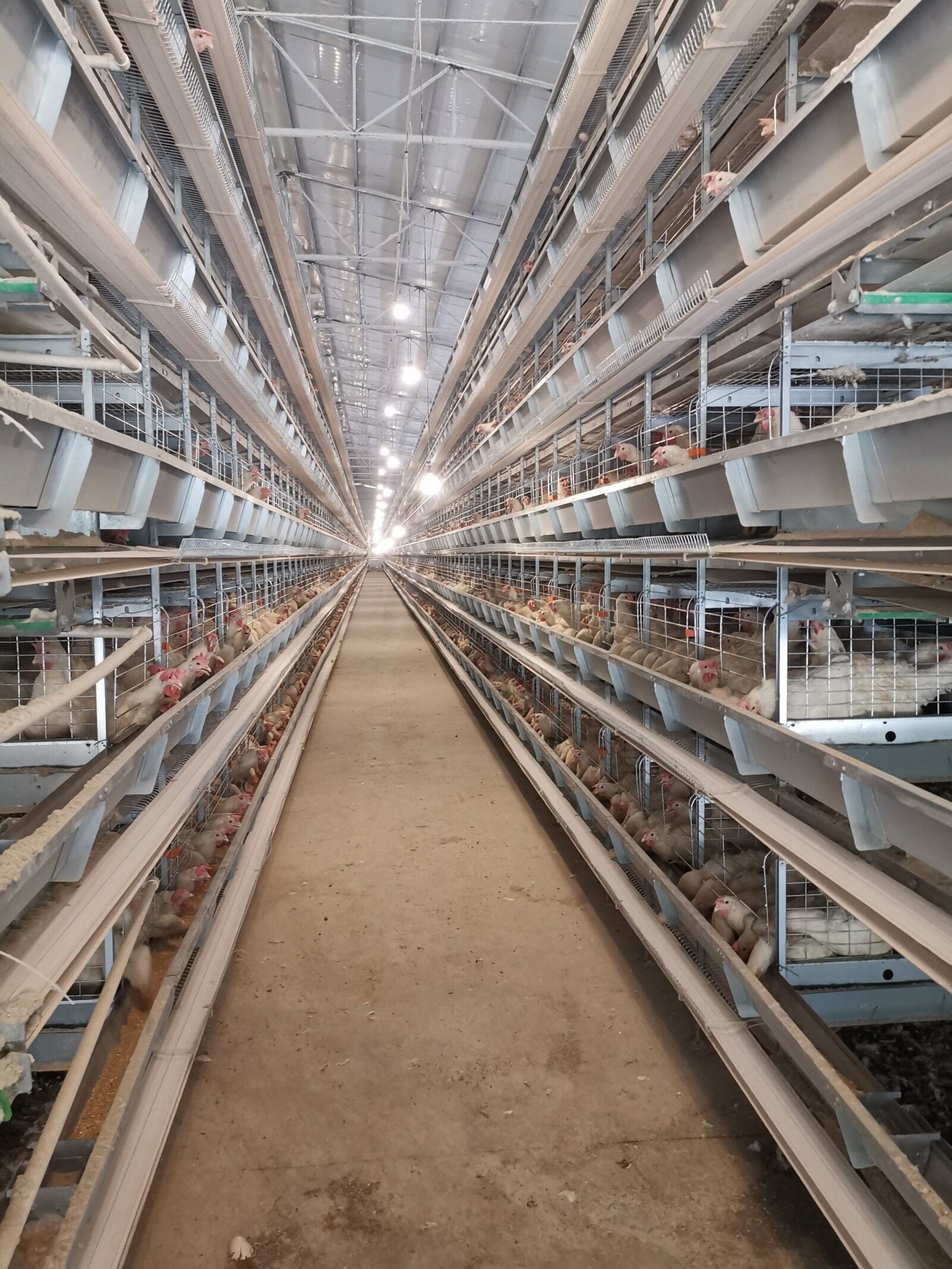

1950×2300×2000 Automatic Layer Battery Poultry Chicken Cage Chicken Layer Farming Equipment 4
