2024 Galvanized A-Type Laying Hens H-Type Battery Cage And Automatic Breeding System

Place of Origin China
Brand Name Silver Star
Certification ISO9001, SGS
Model Number A4L160, A3L120, H4L192, H5L240
Minimum Order Quantity 40set
Price 110-160usd/set
Packaging Details FCL: Standard exporting packaging; LCL: Wooden box, carton packaging
Delivery Time in 30 working days after deposit
Payment Terms L/C, D/A, D/P, T/T, Western Union
Supply Ability 20000sets/week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Fully Automatic Poultry Egg And Broiler Chicken Cage Cage Wire Meterial Q235 Bridge Steel, 3-6mm Thickness
Wire Mesh Surface Hot Or Cold Galvanization Cage Type A、H Type Chicken Cage
Egg Collecting System Automatic Egg Collecting System Life Time 15-20years
Use Egg Layer Chicken,laying Hens Chicken Cage Service 24 Hours Online
Core Components Feed Trough, Water Tank, Cage Mesh, Nipple Drinker, Screw, Connecting Pipe Fittings
Highlight

H-Type Battery Cage

,

Automatic Breeding Battery Cage

,

120 Birds H-Type Battery Cage

Leave a Message
Product Description

Fully automatic A-type H-type laying cage



Product Description:

With over 30 years’ continuous improvement of poultry equipment and 20 years’ chicken raising experience, Silver Star not only has been the supplier of each cooperative partner, but also their farming consultant. Our experienced team can offer one-site serice, including project design, quality control, installation, after-sales service and farming guidance.





Cage size:

A Type Battery Cages Layer Poultry Farming Equipment
Model Length(mm) Width(mm) Heigh(mm) Door Qty Birds Qty/Set
3 Tiers 1950 2300 1500 5 90
4 Tiers 1950 2300 1900 5 120
3 Tiers 1950 2300 1600 4 96
4 Tiers 1950 2300 2000 4 128
3 Tiers 2150 2300 1600 5 120
4Tiers 2150 2300 2000 5 160
3Tiers 2150 2360 1600 5 120
4 Tiers 2150 2360 2000 5 160
3 Tiers 1720 2360 1600 4 96
4 Tiers 1720 2360 2000 4 128




H Frame Layer Poultry Farming Equipment
Cage size Door No. /cage Chicken No. /door No. of tiers Birds qty/set Area per bird (cm2/bird) Each door Size(mm) Unit Cage Size(mm)
1800*600*430 4 6 3 144 450 450x600x430 1800x1200x2140
1800*600*430 4 6 4 192 450 450x600x430 1800x1200x2790
1800*600*430 4 6 5 240 450 450x600x430 1800x1200x3440
1800*600*430 4 6 6 288 450 450x600x430 1800x1200x4090
1800*600*430 4 6 8 384 450 450x600x430 1800x1200x5390
650*625*500 1 9 3 54 450 650x625x500 650x1250x2220
650*625*500 1 9 4 72 450 650x625x500 650x1250x2870
650*625*500 1 9 5 90 450 650x625x500 650x1250x3520
650*625*500 1 9 6 108 450 650x625x500 650x1250x4170
650*625*500 1 9 8 144 450 650x625x500 650x1250x5470



A Frame Layer Chicken Cage Advantages:

(1) Number of chicken each unit area far exceeds the flating breeding way,it can increase 50% to 100%;

(2) Chicken manure and chicken are completely isolated.Manure can be directly down to the ground,house dust greatly reduced,less chance of disease through infected feces,greatly reduced the morality of chicken;

(3) Chicken limited to the minimum amount of exercise,energy consumption,save feed;

(4) Easy to observe birds,clustering or choose amoy easily;

(5) Have sufficient feed,water position and health uniformity are better for chicken

(6) Can be avoided raising the required level of expenditure litter

(7) Egg breakage rate,high cleanliness

(8) Disability is reduced significantly

(9) Low labor intensity

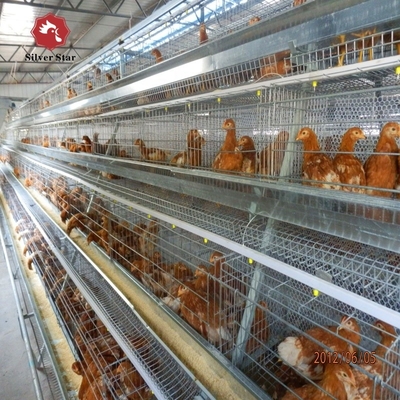

2024 Galvanized A-Type Laying Hens H-Type Battery Cage And Automatic Breeding System 0

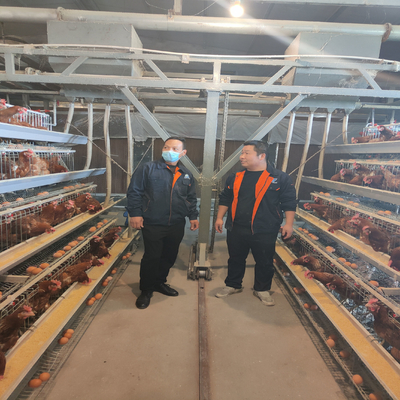

2024 Galvanized A-Type Laying Hens H-Type Battery Cage And Automatic Breeding System 1

Precautions of battery chicken cage system

If the stocking density exceeds the number of chicken cages, it will restrict the activities of the chickens and affect the growth and development. Moreover, too many numbers will also affect the air quality of the chicken coops and the service life of the chicken coops, and may also cause the chickens to become stronger. Bullying, pecking and other phenomena occur, so farmers should make reasonable adjustments in time according to the growth stage of the flock.

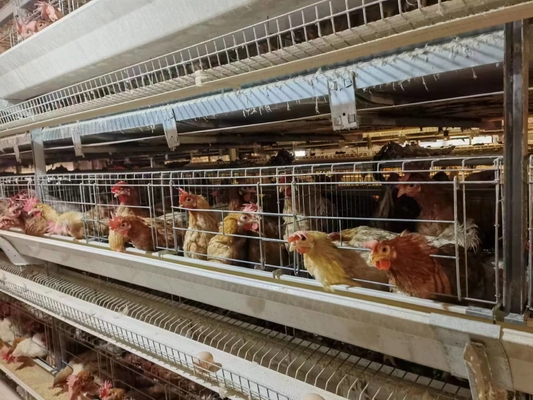

2024 Galvanized A-Type Laying Hens H-Type Battery Cage And Automatic Breeding System 2

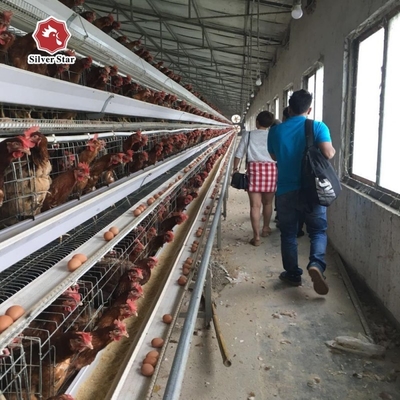

2024 Galvanized A-Type Laying Hens H-Type Battery Cage And Automatic Breeding System 3

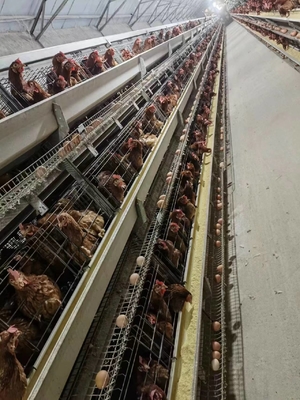

2024 Galvanized A-Type Laying Hens H-Type Battery Cage And Automatic Breeding System 4
