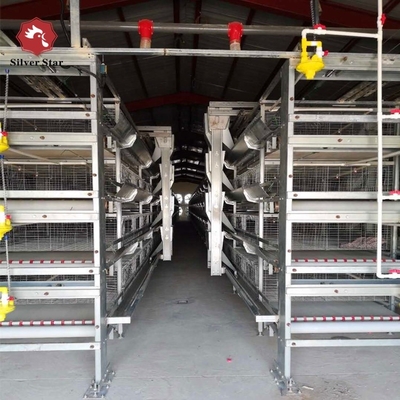

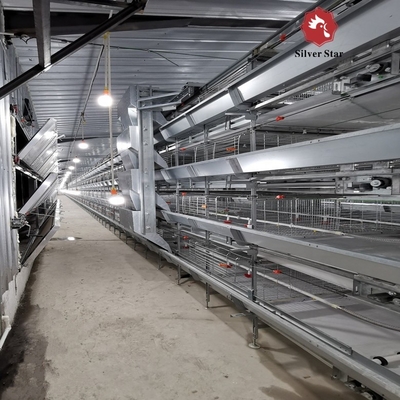

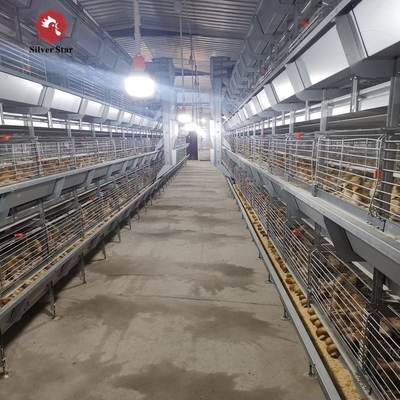

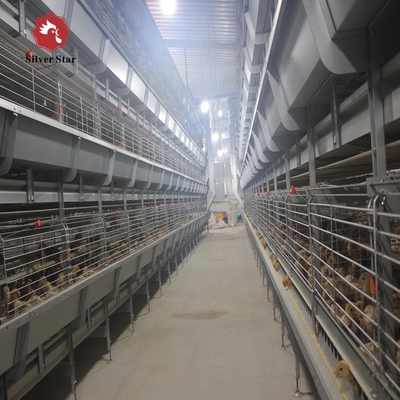

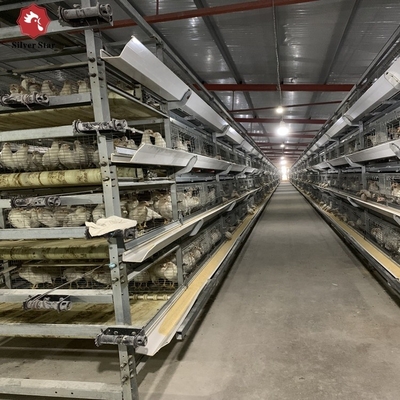

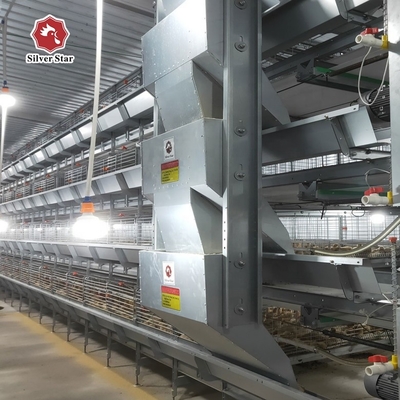

H-type Automatic Cages Intended For Raising Baby Poultry And Broiler Chickens
Product Details
H-type Automatic Cages
,Broiler Chicken Automatic Cages
,Baby Poultry Automatic Cages
H Type Baby Chick Cages Poultry Broiler Chicken Cage
Why to choose cage raising chicken ?
2:By implementing automatic drinking, feeding, manure cleaning, and egg collecting systems, labor is saved and raising costs are reduced, while multi-layer cages provide better space efficiency than floor raising, improving land utilization and reducing costs.
3: The good isolation of the enclosed chicken house from the outside significantly decreases the chances of cross-contamination among chickens, benefiting epidemic disease prevention and control and reducing the costs associated with epidemic prevention.
Full automatic system of battery chicken cage:
Accessories of broiler chicken cage :
1). Constructed from new white PVC, the trough withstands compression, heat, and deformation without breaking. It lasts over 15 years and supports up to 100kg.
2). This 3MM U-type galvanized steel frame leg, made from a national standard 3MM thick steel plate, can bear 350kg. It is double-DIP galvanized for a lifespan of more than 15 years.
3). The automatic water nipple drinker, with a 360-degree rotating design, comes in ball or spring types and is made of stainless steel and plastic.
4). Made from new PVC material, the white PVC water pipe is resistant to deformation and high temperatures, ensuring durability. It avoids chemical reactions with impurities, guaranteeing clean and healthy water for chickens, and has a lifespan of more than 15 years.
5). Regulator: Fully enclosed design, voltage regulator and with filter.
Broiler chicken cage specification :
|
Tier
|
Cell size
|
Whole size
|
Capacity/set
|
Average area/bird
|
|
3-tiers
|
85*62.5*50 cm
|
85*220*260 cm
|
102 birds(1.5 kgs)
|
312.5 cm2
|
|
4-tiers
|
85*62.5*50 cm
|
85*220*325 cm
|
136 birds(1.5 kgs)
|
312.5 cm2
|
|
5-tiers
|
85*62.5*50 cm
|
85*220*390 cm
|
170 birds(1.5 kgs)
|
312.5 cm2
|
|
6-tiers
|
85*62.5*50 cm
|
85*220*455 cm
|
204 birds(1.5 kgs)
|
312.5 cm2
|
|
8-tiers
|
85*62.5*50 cm
|
85*220*585 cm
|
272 birds(1.5 kgs)
|
312.5 cm2
|
-
