380V 50HZ Automatic Broiler Equipment For Chicken Houses Has Received SONCAP Approval.
| Place of Origin | China |
|---|---|
| Brand Name | Silver Star |
| Certification | ISO9001, SONCAP |
| Model Number | YXPB8 |
| Minimum Order Quantity | 1 Set |
| Price | 150USD-260USD |
| Packaging Details | Standard Exporting Packaging Or As Client's Request |
| Delivery Time | 10-20 working days after deposit |
| Payment Terms | T/T, Western Union, D/A, D/P, L/C |
| Supply Ability | 60000sets/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Broiler Equipments Poultry Farming | Type | Broiler Chicken Cage System, Broiler Floor System |
|---|---|---|---|
| Material | Hot Galvanized Steel | Motor | 380V, 3Phase, 50HZ Or As Clients' Request |
| Feature | Automatic Feeding System, Automatic Drinking System, Automatic Manure Removal System | Warranty | One Year After Installation |
| Application | Poultry Broiler Chicken Farm Equipments | Local Service | Indonesia, Philippines, Ecuador, Panama, Chile, Paraguay, Nigeria, Ghana, Kenya, Senegal, Uzbekistan |
| Techinical Support | Online Or On Site Guidance | HS Code | 84362900 |
| Highlight | 380V automatic broiler equipment,50HZ automatic broiler equipment,SONCAP automatic broiler equipment |
||
Product Description
Complete Controlled Poultry Farm Broiler Equipments For Chicken House
Poultry Farm Broiler Equipments Introduction

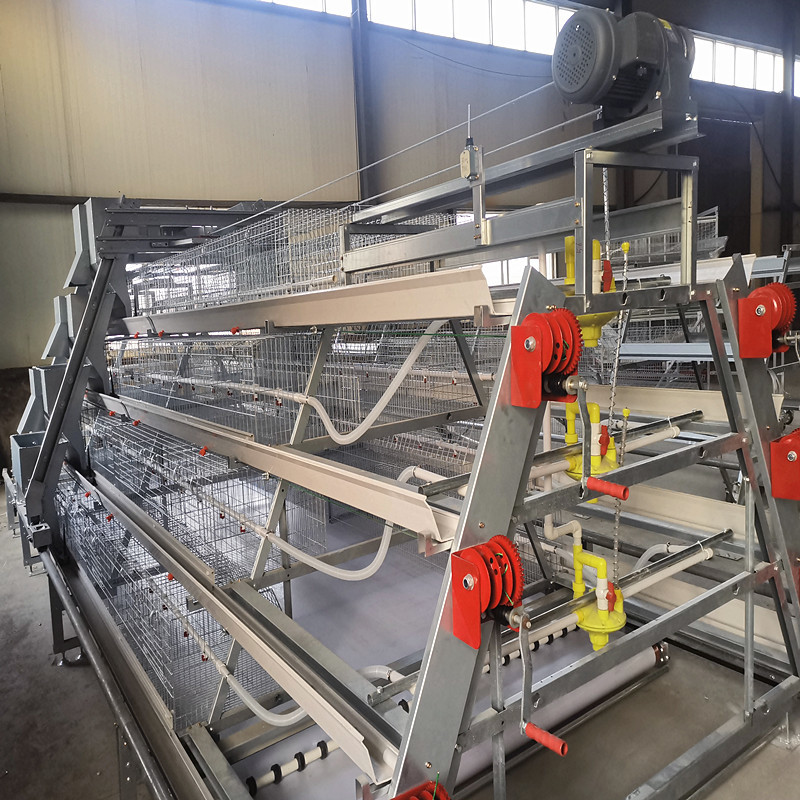

Silver Star Poultry Farm Broiler Equipments Include broiler chicken cage system and broiler floor system. Broiler chicken cage system contains H and A frame two types, both use Q235 wire mesh material, doulbe cold or hot dipped galvanized surface treatment. floor system is more suitable for low cost invesment.
1. When compared to floor system rearing, the chicken cage system allows for an increase in feeding amount by more than 50% per unit area.
2. By keeping chicken manure completely separate from the chickens, their cleanliness and tidiness are maintained, thereby decreasing disease incidence and enhancing the chickens' survival rate.
3. Broilers typically have a restricted range of movement, low energy requirements, and are efficient in feed usage.
4. This system allows for convenient observation, grouping, selection, and isolation of broiler birds.
5. Enough space for chickens to eat and drink results in improved cleanliness and health of the birds.
6. Simple operation, stable structure, and the whole is made of corrosion-resistant materials, which are corrosion-resistant, wear-resistant and have a long service life specialty.
7.The scientific and rational design of chicken cage broiler equipment, coupled with a stable cage system and user-friendly operation, makes it the preferred choice for large-scale farms. With land prices rising and labor costs increasing, advanced automated cascading aquaculture has emerged as the current trend in the aquaculture industry.
Broiler Equipments Chicken Cage System Size
| Type H Broiler Equipments Chicken Cage | |||||||
| Model | Door No. /cage | Chicken No. /door | No. of layers | Capacity of one set of cage | Area per bird (cm2/bird) | Each door size(mm) | Cage size/set (mm) |
| H3B60 | 1 | 20 | 3 | 60 | 500 | 1000x1000x440 | 1000x1000x2200 |
| H4B80 | 1 | 20 | 4 | 80 | 500 | 1000x1000x440 | 1000x1000x2850 |
| H3B90 | 1 | 30 | 3 | 90 | 500 | 1500x1000x440 | 1500x1000x2200 |
| H4B120 | 1 | 30 | 4 | 120 | 500 | 1500x1000x440 | 1500x1000x2850 |
| H3B156 | 4 | 13 | 3 | 156 | 500 | 740X850X440 | 1480X1750X2800 |
| H4B208 | 4 | 13 | 4 | 208 | 500 | 740X850X440 | 1480X1750X3600 |
| Full equipment | H Type Chicken Cages Broiler Equipment, Automatic feeding system, automatic drinking system, automatic manure removal system, automatic birds harvesting system, ventilation system, light steel structure poultry house | ||||||
How to increase the growth rate of broilers through chicken cage system?
1.Fully automated equipment involves placing multiple birds in each broiler chicken cage, followed by the installation of feeding troughs and water pipes in designated positions. By employing automatic feeding machines and water drinking systems, poultry receive sufficient food and water, alongside essential growth nutrients, throughout the breeding cycle.
2. Broiler chicken cages are crafted from high-quality, smooth galvanized materials, which significantly reduce the occurrence of foot injuries and infections among poultry during movement. Additionally, the design enables feces to conveniently enter the collection device from the cage bottom, streamlining chicken manure management and ensuring a sanitary breeding environment.
3. Broiler chicken cages are employed in breeding to provide effective isolation of birds, preventing the transmission of disease throughout the entire breeding area when individual broilers become infected. This approach ensures the overall cleanliness of the poultry and significantly enhances production efficiency.
