Automatic Poultry Broiler Chicken Cages For Baby Chicks H Type Design
Product Details
Automatic poultry broiler chicken cages
,H type poultry broiler chicken cages
,baby chicks poultry broiler chicken cages

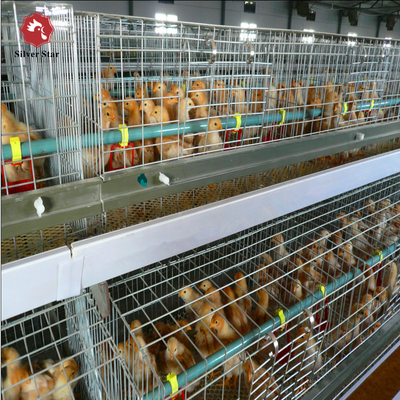

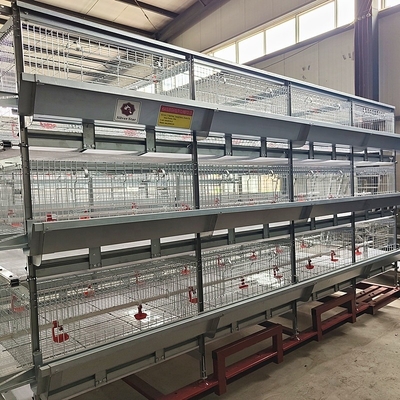

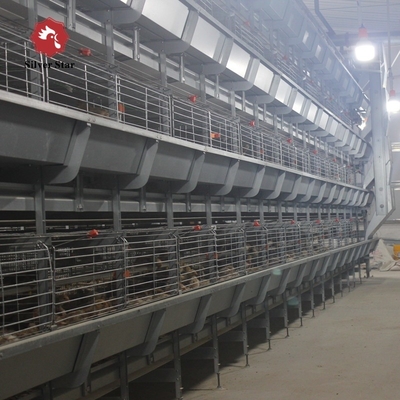

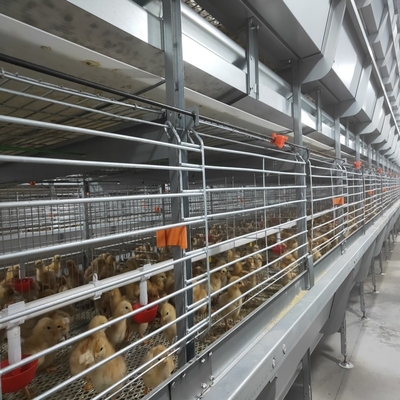

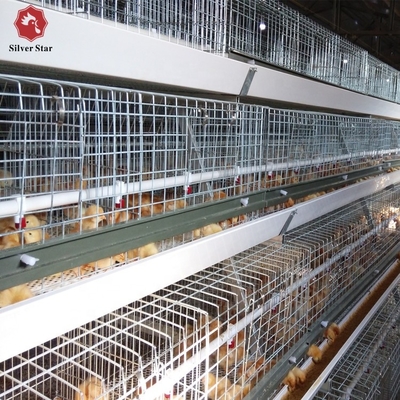

H Type Baby Chick Cages Poultry Broiler Chicken Cage
Why to choose cage raising chicken ?
2:Automated systems for drinking, feeding, manure cleaning, and egg collecting help save labor, lower raising costs, and multi-layer cages optimize space better than floor raising, maximizing land use and reducing construction and land expenses.
3: The effective isolation between the enclosed chicken house and the external environment greatly reduces the risk of cross-contamination among chickens, aiding in epidemic prevention and control and lowering epidemic prevention costs.

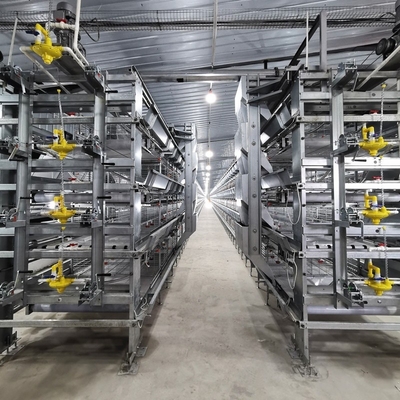

Full automatic system of battery chicken cage:
Accessories of broiler chicken cage :
1). The new white PVC trough is resistant to compression, heat, and deformation without breaking. It has a lifespan exceeding 15 years and a load-bearing capacity of 100kg.
2). The 3MM U-type galvanized steel frame leg is made from a national standard 3MM thick steel plate with a U shape design, capable of bearing 350kg. It features double-DIP galvanizing and lasts over 15 years.
3). The automatic water nipple drinker has a 360-degree rotating design and comes in either ball type or spring type, made from stainless steel and plastic.
4). The white PVC water pipe, made from new PVC material, resists deformation and high temperatures, making it difficult to damage. It prevents chemical reactions with impurities in the water, ensuring clean, healthy water for chickens, with a lifespan of over 15 years.
5). The regulator features a fully enclosed design, incorporating a voltage regulator and filter.
Broiler chicken cage specification :
|
Tier
|
Cell size
|
Whole size
|
Capacity/set
|
Average area/bird
|
|
3-tiers
|
85*62.5*50 cm
|
85*220*260 cm
|
102 birds(1.5 kgs)
|
312.5 cm2
|
|
4-tiers
|
85*62.5*50 cm
|
85*220*325 cm
|
136 birds(1.5 kgs)
|
312.5 cm2
|
|
5-tiers
|
85*62.5*50 cm
|
85*220*390 cm
|
170 birds(1.5 kgs)
|
312.5 cm2
|
|
6-tiers
|
85*62.5*50 cm
|
85*220*455 cm
|
204 birds(1.5 kgs)
|
312.5 cm2
|
|
8-tiers
|
85*62.5*50 cm
|
85*220*585 cm
|
272 birds(1.5 kgs)
|
312.5 cm2
|
-
