H Frame Battery Broiler Chicken Cage Hot Galvanized Steel Wire Mesh
Product Details
Battery Broiler Chicken Cage
,Broiler Chicken Cage H Frame
H Frame Battery Broiler Chicken Cage Hot Galvanized Steel Wire Mesh
H Frame Hot Galvanized Battery Broiler Chicken Cage
Broiler chicken cage Automatic Feeding System
1. Feeding trolley.
1).Material is hot dip galvanized steel
2. Feed conveying and dispensing device:
1) Delivery auger pipe: material: PPR, Diameter: Ф90mm
2) Auger: import from South Africa
3. Feed silo: 5t to 30t can be choosing

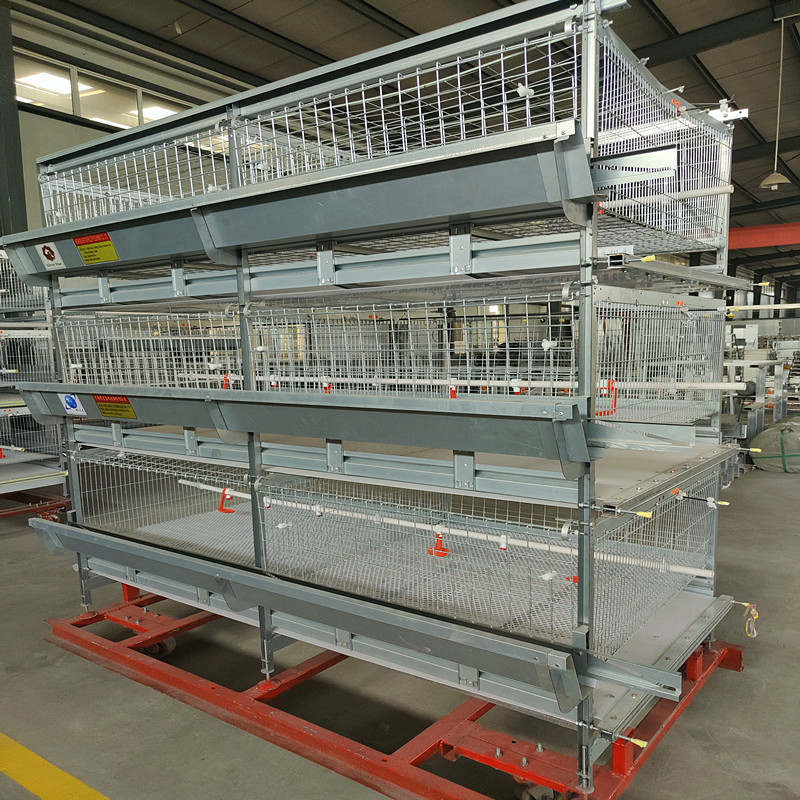

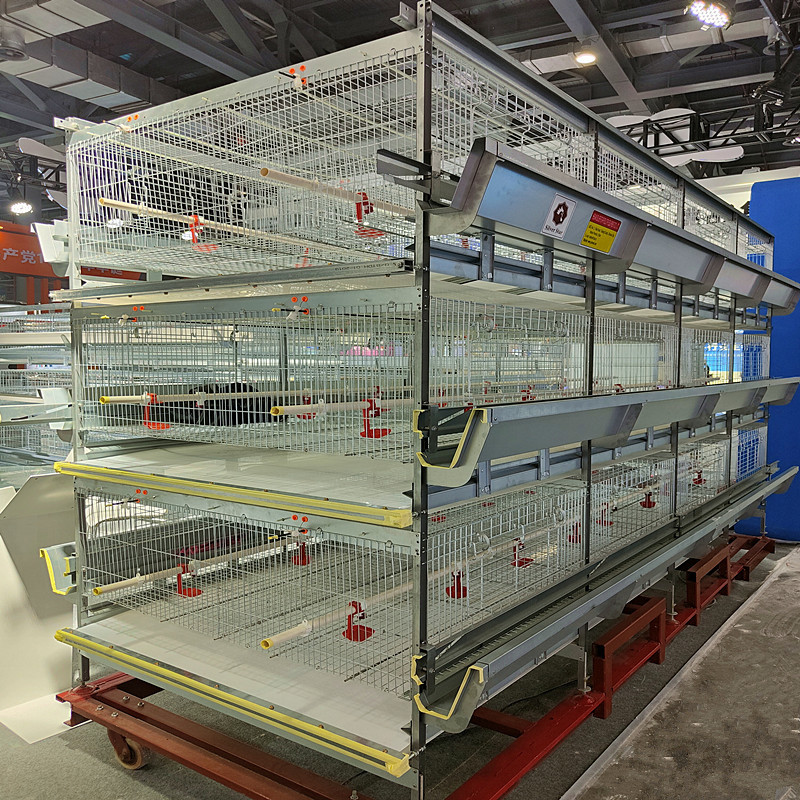

H type broiler cage:
1: The broiler cage system is mainly used for rearing broilers, one day old broiler chcks can be direcetly put into the cage and raised to 45 days old,cage us unnecessarily changed during their growing.
2: Material of cage and frame is hot dip galvanized steel.
3: Easy to control and manage.
4: Suitable for a large number farming with high profit.
5: High efficiency, less labor.
Accessories of broiler chicken cage :
1). The new white PVC material trough, compression, heat, deformation, not broken. Life span 15 years more. 100kg load-bearing.
2). 3MM U-type galvanized steel frame leg: National standard 3MM thick steel plate, U shape design.
350kg load-bearing. With double-DIP galvanizing, life span 15 years more.
3). Automatic water nipple drinker: 360-degree rotating design, ball type or spring type. Stainless steel and plastic.
4). White PVC water pipe: New PVC material, deformation, high temperature, difficult to damage. Impurities in the water will not produce a chemical reaction, thus ensuring the chickens can drink clean and healthy water. Useful life of 15 years more.
5). Regulator: Fully enclosed design, voltage regulator and with filter.
Broiler chicken cage specification :
Tier | Cell size | Whole size | Capacity/set | Average area/bird |
3-tiers | 85*62.5*50 cm | 85*220*260 cm | 102 birds(1.5 kgs) | 312.5 cm2 |
4-tiers | 85*62.5*50 cm | 85*220*325 cm | 136 birds(1.5 kgs) | 312.5 cm2 |
5-tiers | 85*62.5*50 cm | 85*220*390 cm | 170 birds(1.5 kgs) | 312.5 cm2 |
6-tiers | 85*62.5*50 cm | 85*220*455 cm | 204 birds(1.5 kgs) | 312.5 cm2 |
8-tiers | 85*62.5*50 cm | 85*220*585 cm | 272 birds(1.5 kgs) | 312.5 cm2 |
-
