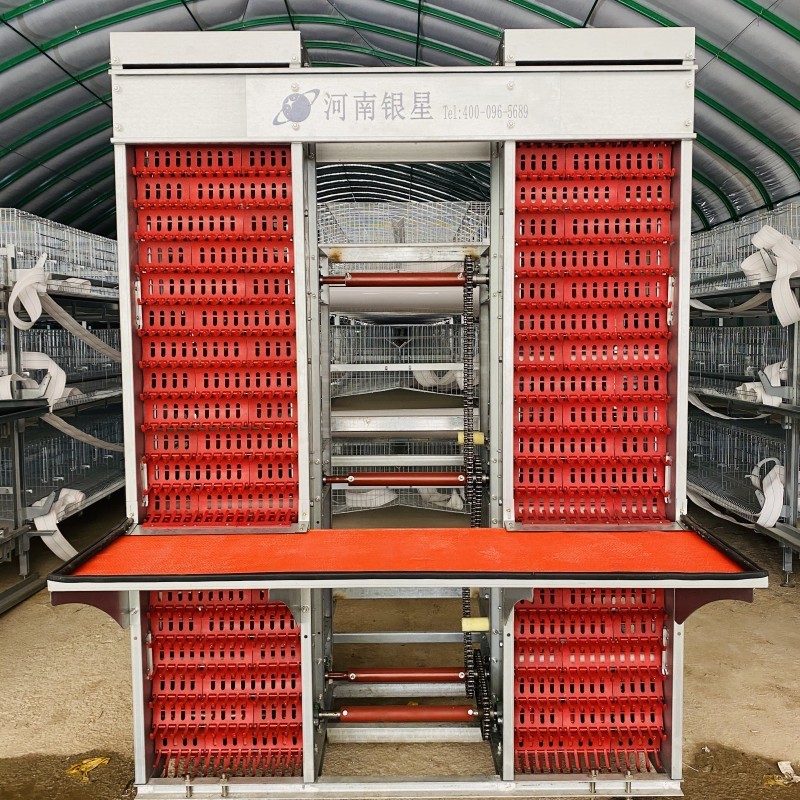

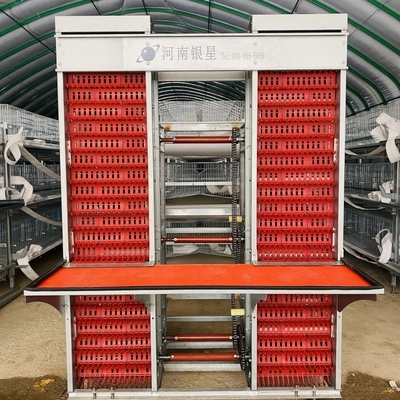

9 Layers / Cell 380V Battery Chicken Cage Provide Free Design

Place of Origin China
Brand Name Silver star
Certification ISO9001,SGS
Model Number H3L54/H4L72/H5L90/H6L108/H7L126/H8L144
Minimum Order Quantity 100 sets
Price 108-135$/ set
Packaging Details FCL: Standard exporting packaging type; LCL: In wooden cage packaging
Delivery Time 10-20 days
Payment Terms T/T, Western Union
Supply Ability 2000 sets/week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Product Name Battery Chicken Cage Color Silver
Material Hot/cold Galvanized Steel Wire Mesh Size 65*62.5*50cm
Capacity 9 Layers/cell Lifespan More Than 20 Years
Model H Type Poultry Cage Automatic Yes
Use Chicken Farm Keywords Battery Chicken Cage
Design Provide Freely Voltage 380V
High Light

380V Battery Chicken Cage


9 Layers / Cell Battery Chicken Cage


Battery Type Breeding Cage

Leave a Message
Product Description

Provide Free Design For Battery Chicken Cage

9 Layers / Cell 380V Battery Chicken Cage Provide Free Design

What can we do for you ?


Q:How many chickens can the cage hold? How many layers?
A:90,96,120 chickens in 3 layers,and 120,128,160 chickens in 4 layers.
Q:which one is suitable to my chickens farm?
A:Once you want to start your chicken farm,you can tell us your chicken coop size,We will provide free chicken farm layout design,We have a team to do research the poultry industry for 30 years,they will help you to start a modern and scientific farm.
Q:what is the MOQ of chicken cage?How many sets can fit in one container?
A:MQQ is 20 sets,one 20 ft container can fit in 64-85 sets chicken cage,One 40 ft container can be 160-215 sets chicken cage.
Q:How many years it can use?
A:15-25years(based on different material)
Q:How to installa the cage?
A:We provide installation service in two ways!

1.We provide manual book or DVD to guide you that how to install the cage

2.Send our engineer to your farm !
Q:How is your payment term?
A:Generally,our payment term is T/T 30% in advance and the balance 70% before shipment.Other payment term we can also discuss.
Q:How is your delivery time?
A:we always prepare enough stock material for your urgent requirement,the delivery time is 15-20 days for all the stock material.We’ll check with our production department for the non-stock items to offer you the exact delivery time and producing schedule.

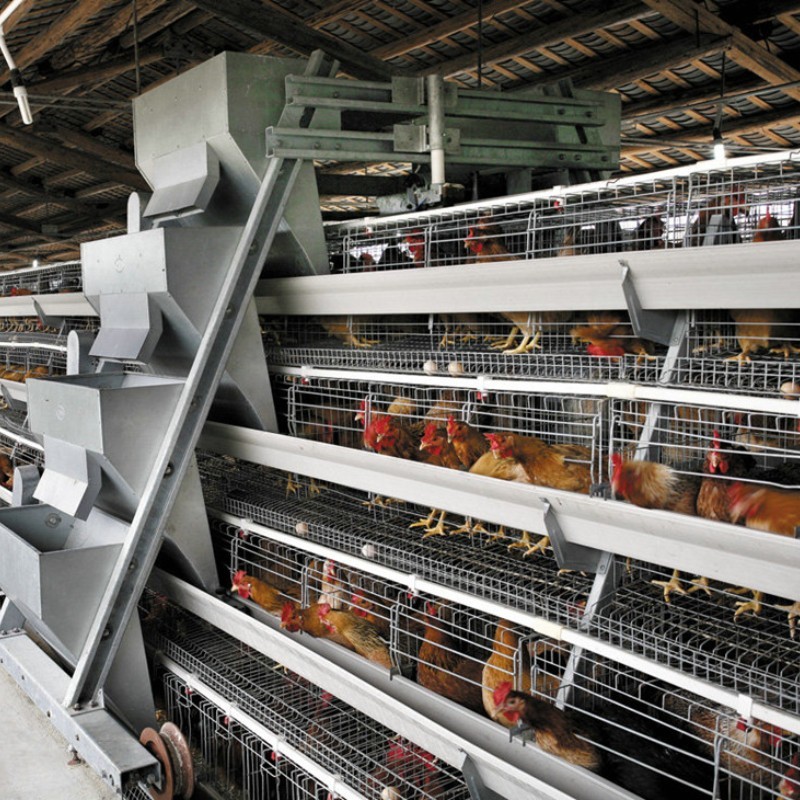

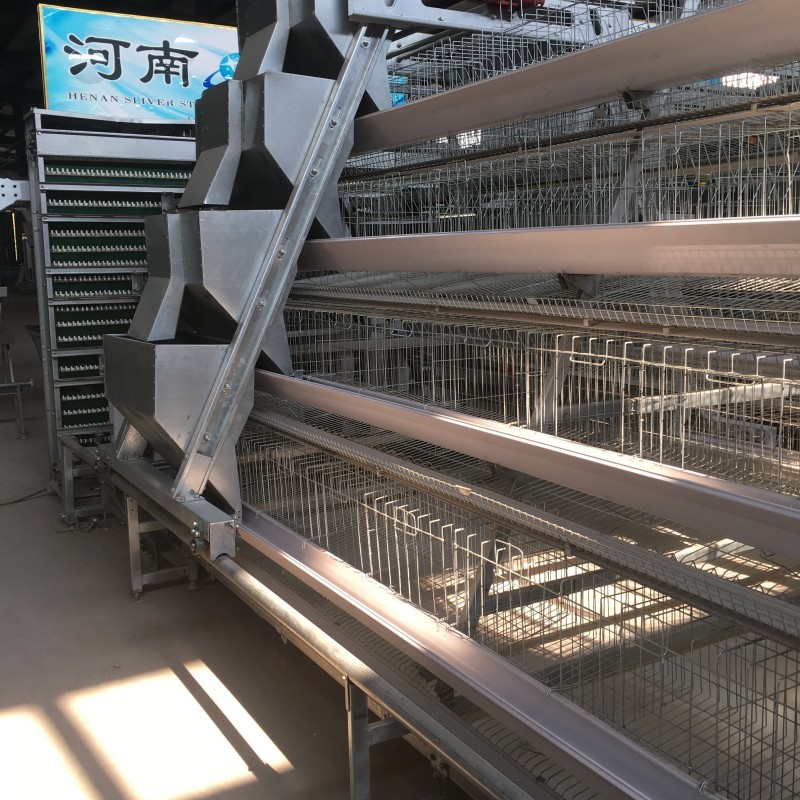

H type automatic battery chicken cage include:


1: The main construction of battery chicken cage : 650*625*500mm hot dip galvanized cage mesh and cage frame
2: The Driking system: there are 2 to 3 nipple drinkers for each two cage sections on the PVC pipes which
are located between two cage sections. the “V” shape leakage gutter underneath the water pipes,
holds the water drops and prevent the drops to the manure belt, therefore a drier manure is obtained.

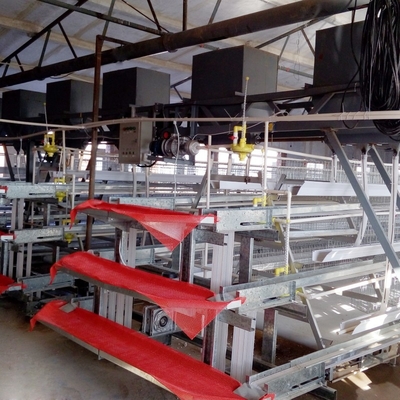

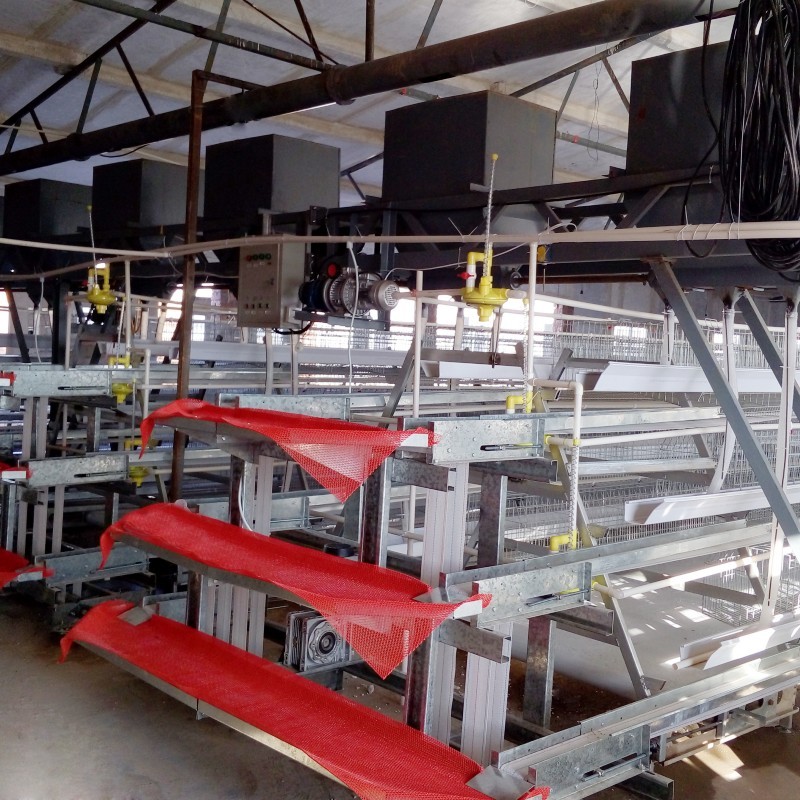

3: The automatic feeding system :
1).It is the feeding system with feed carts. Our feeding system with feed carts which enable adjust to make feed distributed
hygienically, homogeneous, mixed and equally.
2). In this system, feed is distributed automatically to the feed carts from the feed silos by the spiral augers located in a pipe
with90-150 mm diameter.
3). Feed carts are moved by steel cables and 0,751.50 HP(according to the chicken house length and hopper) electric gear motorsover the rails that are located on the top of the cages.

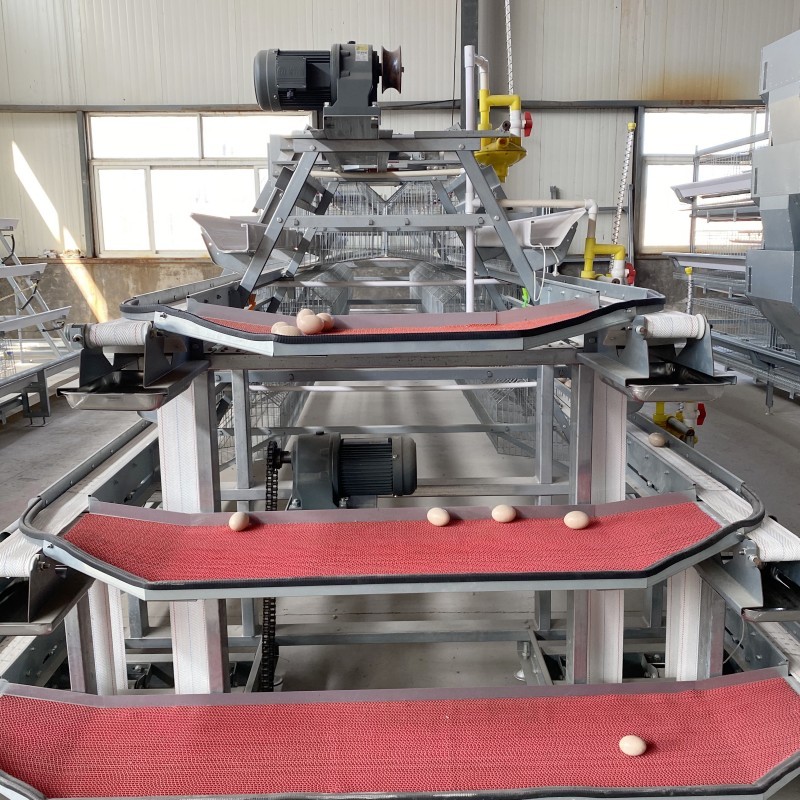

4: Automatic egg collecting system:
1). Automatic egg collection unit made of galvanized sheet and apparatus produced by our advanced own production machines,the egg
bands and lift engine powers are 0.75 -1.50 HP.
2). The egg bands made of import cloth and the joint components made of plastic sheet
5: Automatic manure cleaning system: manure is cleaned and discharged by the Polypropylene (PP) manure belts of 1.10 mm thickness.
These PP belts are locatedunderneath every tier and row of the cages and towed by drive reducer
engines to clean the manure in a flawless way.
6: Automatic ventilation cooling system: cooling the chicken house through the fan and wet curtain. the wind opportunity will pump out the hot air in the chicken house, and the cooling pads will suck the fresh cold air outside into the chicken house. When the temperature is higher than 26 ℃, the wind opportunity will open automatically, and when the temperature is lower than 26 ℃, the wind opportunity will close automatically.


Detailed information of Chicken battery chicken cage:

Material: Q235 national standard bridge steel cages, white PVC trough, Ball-type automatic water equipment, white PVC pipe, 3MM U-type galvanized Steel shelves, closed-end regulator.

The nipple drinker: Automatic water valve device: 360-degree rotating design, traffic, water Enough. Watertight. Chicken is easy to meet drinking water needs. Imports of stainless steel Sphere. Useful life of 15-20 years. 3 years of damage or leakage, free replacement. (Except Artificial damage)

Trough: The new white PVC trough, compression heat and deformation, not broken.
Service life of 15 -20 years. Ability to withstand compression: Any adult can walk on it.

The pipe: White PVC pipe: New PVC material, deformation, high temperature, difficult To damage. Impurities in the water will not produce a chemical reaction, thus ensuring The chickens can drink clean and healthy water. Useful life of 15 years.

The pressure reducer: Closed regulator: Fully enclosed design, voltage regulator and Filter with one, you can adjust the length of the sheds any water pressure. Every chicken Cage line need three pressure reducers. If you have two lines, you need six Leg support: 3MM U-type galvanized steel shelf, national standard 3MM thick steel Plate, U shape design. Can withstand pressure of 350 kg. With double-dip galvanizing, The age of 15 -20 years.


Layer chicken cage specification :


H type 3/4tiers layer chicken cage
Model Type Capacity Cage size Cell size Cell capacity Door Avergae area
1 H type 3 tiers 54 birds/set 65*218*265cm 65*62.5*50cm 9birds/cell 1door 451.38cm2
2 H type 4 tiers 72 birds/set 65*218*330cm 65*62.5*50cm 9birds/cell 1door 451.38cm2
3 H type 5 tiers 90 birds/set 65*218*395cm 65*62.5*50cm 9birds/cell 1door 451.38cm2
4 H type 6 tiers 108 birds/set 65*218*460cm 65*62.5*50cm 9birds/cell 1door 451.38cm2
5 H type 7 tiers 126 birds/set 65*218*595cm 65*62.5*50cm 9birds/cell 1door 451.38cm2
6 H type 8 tiers 144 birds/set 65*218*660cm 65*62.5*50cm 9birds/cell 1door 451.38cm2
