Silver Star Breeding Baby Chick Cage H Type Customized Chicken Coop

Silver Star breeding equipment H-type r can be customized chicken coop

management

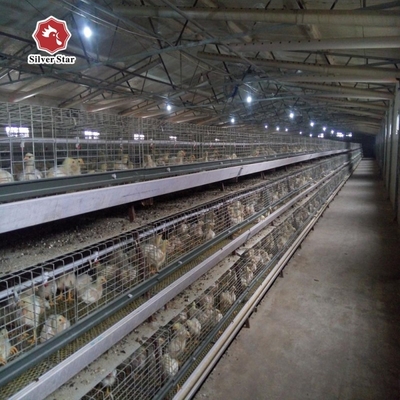

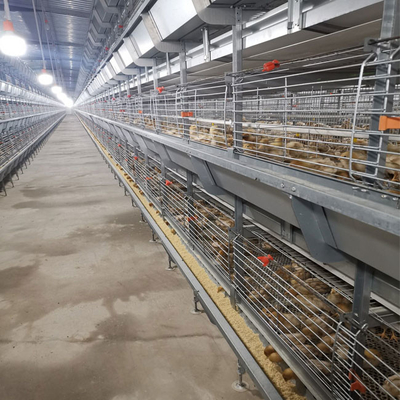

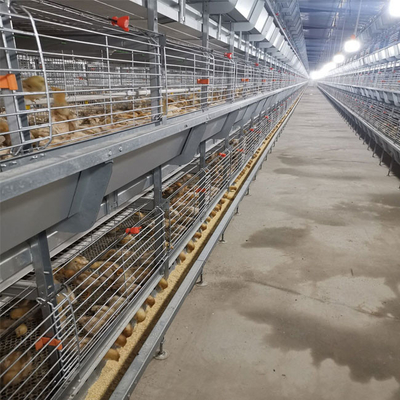

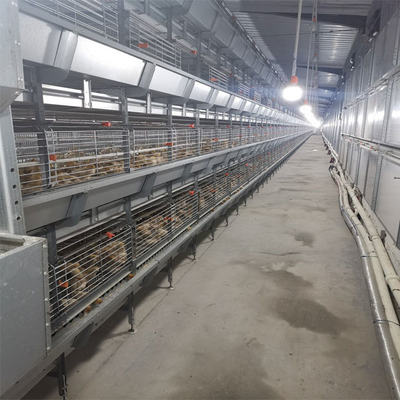

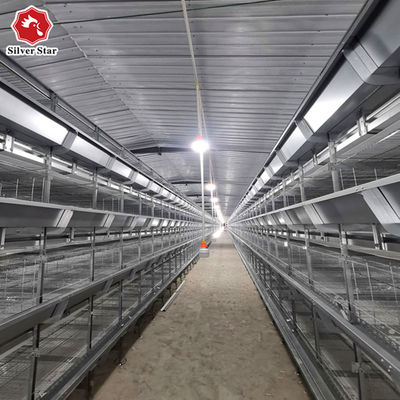

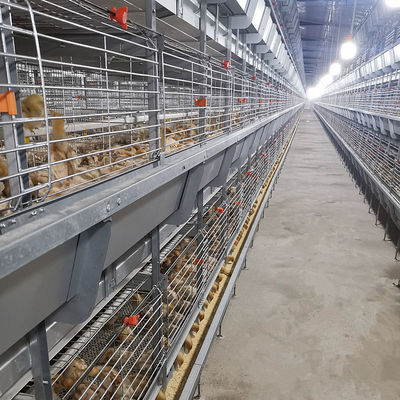

The baby chicken cage

Lighting control equipment
Lighting equipment is mainly lighting controller and light source, lighting controller can turn on and off the light on time. The light controller has two kinds of quartz clock mechanical control and electronic control. The electronic light control equipment is generally composed of a light shield and a programmable controller. The use of a light shield can reduce the entry of external light, and has little impact on the air flow. It can be arbitrarily set switching time, light intensity and when insufficient light automatically supplement light.

2.8.2 Ventilation equipment
The function of ventilation equipment is to discharge the dirty air, moisture and excess heat in the poultry house and supplement the fresh air. At present poultry house uses the axial flow fan with big radius, low rotational speed commonly, the axial flow fan that its rotational speed can adjust automatically has been widely used in home, and save electric energy, have extremely high efficiency inside. The positive pressure ventilation system adopted by the large-scale chicken farm ensures that there is enough pressure in the chicken farm to purify, heat and cool the air entering, and the air pressure will be appropriately higher than the outside in the chicken house, which can prevent the external air from entering from the fine crack, thus preventing the invasion of dirt and pathogens.

2.8.3 Wet curtain evaporation and cooling equipment
The main function of the wet curtain fan cooling system is to make the air enter the poultry house through the wet pad in summer, and play the role of reducing the poultry house temperature and controlling humidity. Since the American researchers invented the wet curtain - fan cooling system in the 1950s, the technology has been basically mature and widely used. At the beginning of China's reform and opening up, the wet curtain cooling device introduced from the United States, and according to China's material development, environmental climate, livestock and poultry house structure developed in line with China's national conditions of the wet curtain fan device.

2.8.4 Heating equipment
Heating equipment is mainly used in newborn chickens and winter chickens, heating generally with bulbs or hot stove. Bulb heating is mainly in the form of canopy; The heating of hot blast stove is mainly composed of hot blast stove, blower, perforated pipe and adjusting air door and other equipment. The hot blast stove uses coal as fuel and air as medium to provide clean and pollution-free hot air for the poultry house. The equipment has high thermal efficiency, simple structure and low cost.

Product introduction

Henan silver star cage net introduction, 1250 type frame laminated brood cage, scope of application: commodity generation brood from 1 to 110 days of age. Each cage net 1300 mm long, 1250 mm wide, each cage net around a door, each door 1300 mm long, 625 mm deep, 500 mm high. Large open space, maximum comfort, each breeding capacity of 27.

The chicken has an area of 301 square centimeters. Each cage net feeding capacity of 54. There are 162 animals in each of the three layers. The feed capacity of each enclosure is 216. There are 270 animals in each enclosure of five floors. There are 324 animals in each enclosure of six floors. Four layers are the most common. Duplex multilayer structure is generally taken 3 plus 3 six layers to reduce the cost of building a house. Improve the overall value

The breeding capacity of each compartment of three layers is 54. The breeding capacity of each enclosure is 72. The breeding capacity of each enclosure is 90. There are 108 birds in each enclosure of six floors. Four layers are the most common. Multilayer partition structure optional, duplex multilayer structure generally to take 4 plus 4 eight layers, or 3 plus 3 plus 3 nine layers. Reduce housing costs. Improve the overall value. To learn more about related products, matching related automatic equipment welcome to inquire
