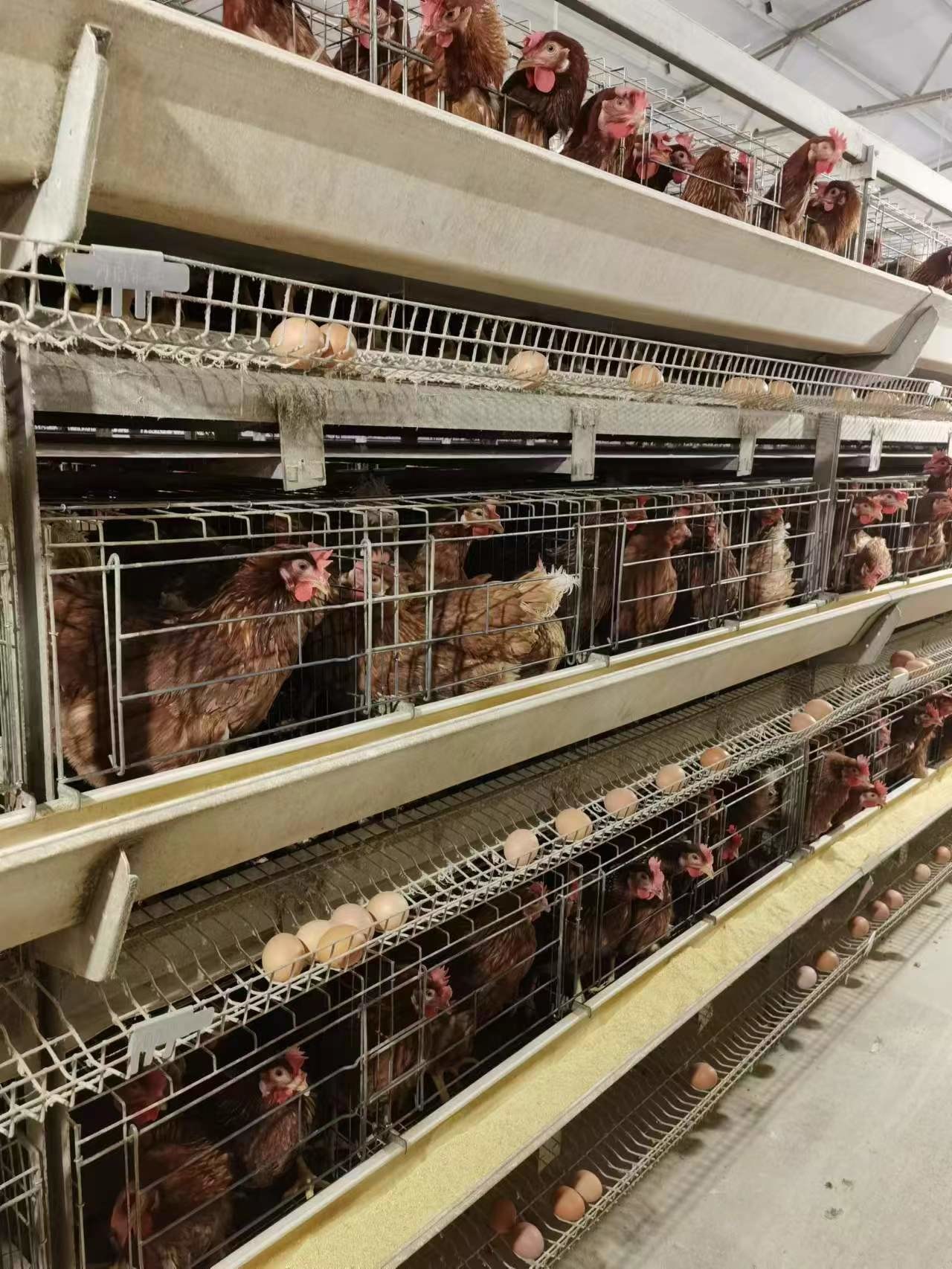

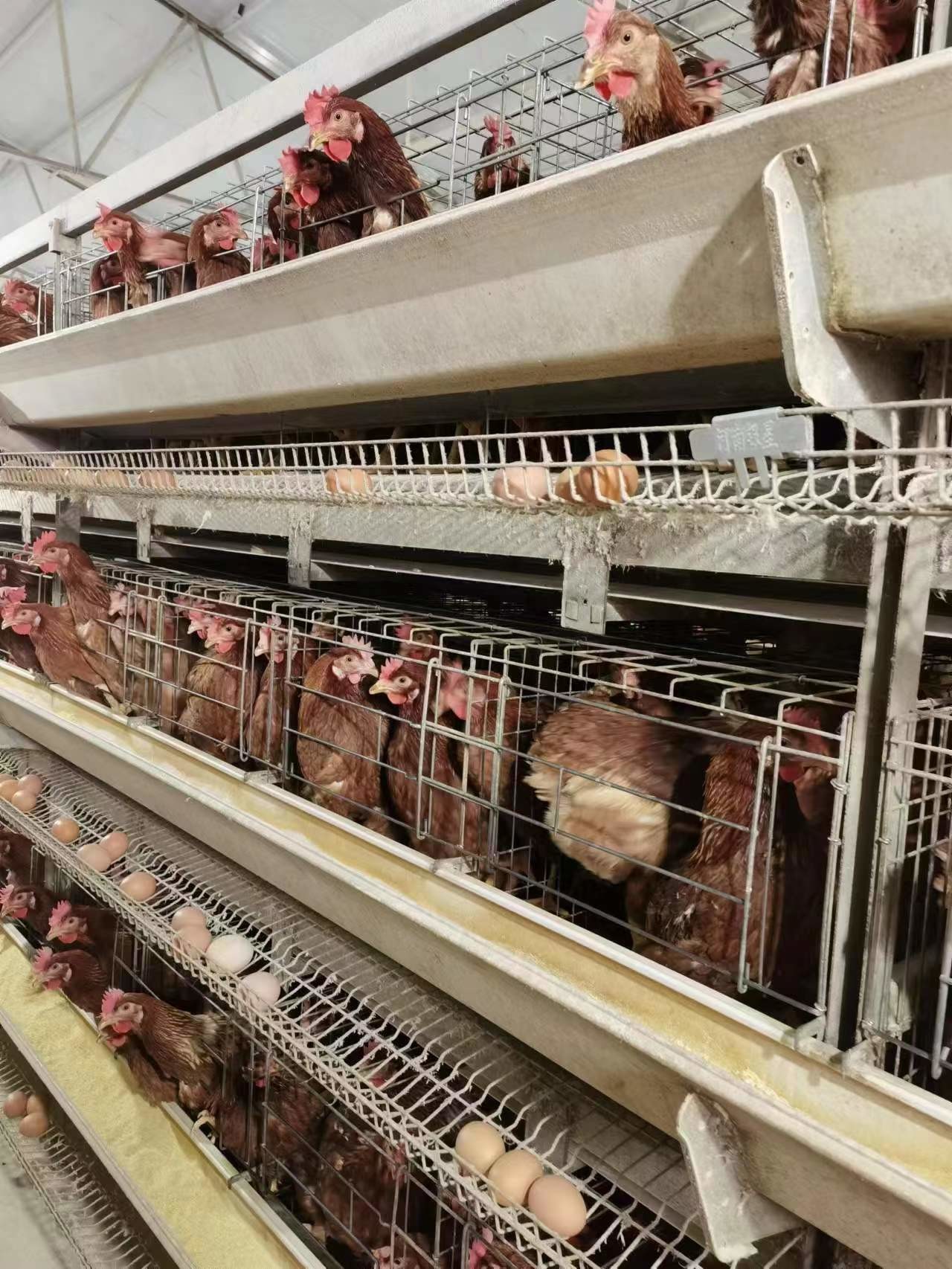

380V 3phase Farm Layer Chicken Cage For Laying Hens SGS Approval
| Place of Origin | China |
|---|---|
| Brand Name | Silver Star |
| Certification | SGS, ISO9001 |
| Model Number | YXH4L-192 |
| Minimum Order Quantity | 50 Sets |
| Price | 130-245USD/SET |
| Packaging Details | FCL: Exporting standard packaging; LCL: In wooden box packages |
| Delivery Time | 18-35 working days after advanced payment |
| Payment Terms | T/T, Western Union, , L/C |
| Supply Ability | 30000sets/week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Other Names | Layer Cages, Cages Battery Laying Hens | Material | Hot Galvanizing After Welding |
|---|---|---|---|
| Shape | H Type Layer Cage | Each Door Size | 1800x600x410, 650x625x500mm |
| Local Service | Ecuador, Indonesia, Philippines, Panama, Chile, Thailand, Uzbekistan, Nigeria, Algeria, Ghana, Kenya, Thailand Etc | Power | 380v, 3phase, 50hz Or As Clinet's Request |
| Characteristic | Automatic Layer Chicken Cage | Warranty | 12 Months After Installation |
| Apply For | Poultry Laying Hens Chicken Farm Cage |
Product Description
Layer Cages Automatic Poultry Battery Laying Hens Chicken Farm
What is the difference between cold galvanized and hot galvanizing?
Cold galvanized: smooth and bright surface, galvanized layer: 20-30g/m2.
In a humid condition, it is easy to be rusted, but it will not affect the use after rust. Life service : 15 years
Hot-dip galvanizing: The surface zinc thickness can reach about 500g/m2, with high strength and corrosion resistance. Lifespan: Over 25 years
Layer Cages Feature:
1. Silver Star h type layer cage structure is designed as a single cage laying hens, the size of each cage is 650*625*500 mm, short distance between two cage frames make the cages not easy to be deformed, also available to adjust the rearing density according to customer's request;
2. The layer space is 650mm, and the increase in height is in favour of ventilation and cooling. The maximum layers/floors of equipment can be up to 10 tiers, to provide strong support for future large-scaled breeding;
3. All cage meshes are Q235 bridge steel wire, the surface adopt hot-dip galvanizing treatment, strong anti-rust;
4. The material of cage frame is 275g hot galvanized steel sheet, more durable and not easy to deformation.
Layer Cage Parameter:
| Layer Cage Body |
1. Size: 65x62.5x50cm, 183x60x41mm; 2. Material: Hot dipped galvanized; 3. Feed trough:Zn-Al material. Thickness: 1.0mm. 4. Can be designed into 3, 4, 5, 6, 8, 9, 10 Tiers; 5. Capacity:54-384 birds/set |
| Automatic Hopper Feeding Machine Equipment |
1. Hopper:Each tier with two hoppers, thickness is 1.2mm, material is hot-dip galvanized steel 2. Traction Device :Power of motor:0.75kw,tow rope: pp rope with 14mm,speed:8.67m/minute. 3. Track of Trolley:Hot-dip galvanized steel with 48mm*2.75mm. 4. Head and end frame:Hot-dip galvanized steel with 40mm*60mm*3mm. 5. Silos |
| Automatic Drinking System |
1. Nipple Drinkers 2. Water Pipes 3. Water Pressure regulator 4. Filter 5. Medical pump
|
| Automatic Egg Collecting Machine |
1. Hot-dip galvanized 1.5mm side plate,speed 4m/min. 2. Egg guider:Hot-dip galvanized with thickness 1mm,configuration with stretching device. 3. Egg belt:100mm width 4. Crosswise egg conveyor |
| Automatic Poultry Manure Removal Machine |
1. Belt type manure cleaning machine:Hot-dip galvanized 2. Manure cleaning belt:Material is PP, Thickness is 1.2mm.Width is 1.2m/ 1.25m. 3. Bracket for manure cleaning belt:hot-dip galvanized steel, 1.5mm thickness. 4. Transverse manure conveying
|
| Environmental Controller | Fans, cooling pad, air inlets, intelligent controller |
Our Service
1. Professional poultry house design. You just inform of us the raising quantity for one house, our design team will provide you one suitable plan and design poultry house for you. If you already built the house, we can offer you according to your current house size.
2. After-sale service and farming guidance.
3. Offering one-site service, including project design, quality control, installation, after-sale service and farming guidance.
4. Provide installation instructions, drawings and videos.
