Q235 Chicken Farming Equipment , 54-384 Birds/Set H / A Type Layer Cage

Basic Properties
Place of Origin: China
Brand Name: Silver Star
Certification: SGS, ISO9001
Model Number: YXH4L-192, YHA4L-160
Trading Properties
Minimum Order Quantity: 50 Sets
Price: 135-265USD/SET
Standard Packaging: FCL: Exporting standard packaging; LCL: In wooden box packages
Delivery Time: 18-40 working days after advanced payment
Payment Terms: T/T, Western Union, , L/C, D/A
Supply Ability: 35000sets/week
Product Summary
Big Size Of A And H Type Poultry Layer Cage Professional Plan Chicken Farming Equipment Why Choose Chicken Cages In Poultry Production: 1. Reduce feed wastage and maximize productivity in layer production; 2. Increased production; 3. Better overall management of flock; 4. Save on labour costs; 5. ...

Product Details

Highlight:

Q235 Layer Cage

,

H Type Layer Cage

Keyword: Chicken Layer Cage Plan, Poultry Layer Cage
Birds Capacity: 160, 192 Birds
Shape: A&H Type Layer Cage
Layer Cage Size: 650x625x500mm, 450x600x430mm
Local Service: Ecuador, Indonesia, Philippines, Panama, Chile, Thailand, Uzbekistan, Nigeria, Algeria, Ghana, Kenya, Thailand, Segenal
Power: 380v, 3phase, 50hz Or As Clinet's Request
Function: Automatic Layer Chicken Cage
Warranty: 12 Months After Installation
Apply For: Poultry Layer Farming Equipment
Product Description

 Big Size Of A And H Type Poultry Layer Cage Professional Plan Chicken Farming Equipment





Why Choose Chicken Cages In Poultry Production:



1. Reduce feed wastage and maximize productivity in layer production;
2. Increased production;
3. Better overall management of flock;
4. Save on labour costs;
5. Reduce accidental mortalities;
6. More effective management of poultry waste;
7. The cages are reusable.

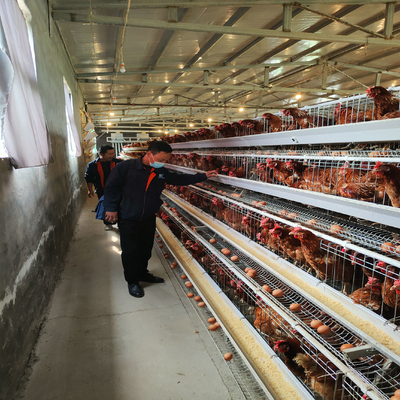

H Type Poultry Layer Cages Information:



1. Silver Star h type poultry layer cage structure is designed as a single cage chicken system, the size of each cage is 650*625*500 mm, short distance between two cage frames make the cages not easy to be deformed, also available to adjust the rearing density according to customer's request;

2. The layer space is 650mm, and the increase in height is in favour of ventilation and cooling. The maximum layers/floors of equipment can be up to 10 tiers, to provide strong support for future large-scaled breeding;

3. All cage meshes are Q235 bridge steel wire, the surface adopt hot-dip galvanizing treatment, strong anti-rust;
4. The material of cage frame is 275g hot galvanized steel sheet, more durable and not easy to deformation.





Layer Cage Parameter:



Layer Cage Body

1. Size: 65x62.5x50cm, 183x60x41mm;

2. Material: Hot dipped galvanized;

3. Feed trough:Zn-Al material. Thickness: 1.0mm.

4. Can be designed into 3, 4, 5, 6, 8, 9, 10 Tiers;

5. Capacity:54-384 birds/set

Automatic Hopper Feeding Machine Equipment

1. Hopper:Each tier with two hoppers, thickness is 1.2mm, material is hot-dip galvanized steel

2. Traction Device :Power of motor:0.75kw,tow rope: pp rope with 14mm,speed:8.67m/minute.

3. Track of Trolley:Hot-dip galvanized steel with 48mm*2.75mm.

4. Head and end frame:Hot-dip galvanized steel with 40mm*60mm*3mm.

5. Silos

Automatic Drinking System

1. Nipple Drinkers

2. Water Pipes

3. Water Pressure regulator

4. Filter

5. Medical pump



Automatic Egg Collecting Machine

1. Hot-dip galvanized 1.5mm side plate,speed 4m/min.

2. Egg guider:Hot-dip galvanized with thickness 1mm,configuration with stretching device.

3. Egg belt:100mm width

4. Crosswise egg conveyor

Automatic Poultry Manure Removal Machine

1. Belt type manure cleaning machine:Hot-dip galvanized

2. Manure cleaning belt:Material is PP, Thickness is 1.2mm.Width is 1.2m/ 1.25m.

3. Bracket for manure cleaning belt:hot-dip galvanized steel, 1.5mm thickness.

4. Transverse manure conveying



Environmental Controller Fans, cooling pad, air inlets, intelligent controller





Customer Service:


Pre-Sales Service:
1. Most reasonable solution will be served according to clinets' budget and land size;
2. Good advice will be offered about " How to manage a chicken farm";
3. Online technical service in 24 hours by WhatsApp,e-mail and phone calls;

Sales Service:
1. Payment receipt with our company seals and boss's signature;
2. Supervision and information of production progress;

After-Sales Service:
1. Container loading report;
2. Spared parts will be provided for free when delivery;
3. Onsite installation guidance and training for your workers;
4. One year warranty after chicken cage equipments running;
5. The lifespan of H type chicken layer cages system is more than 25 years.
