Ventilational Automatic Layer Cage System , 4 Tier 120 Birds Chicken Battery Cages
Product Details

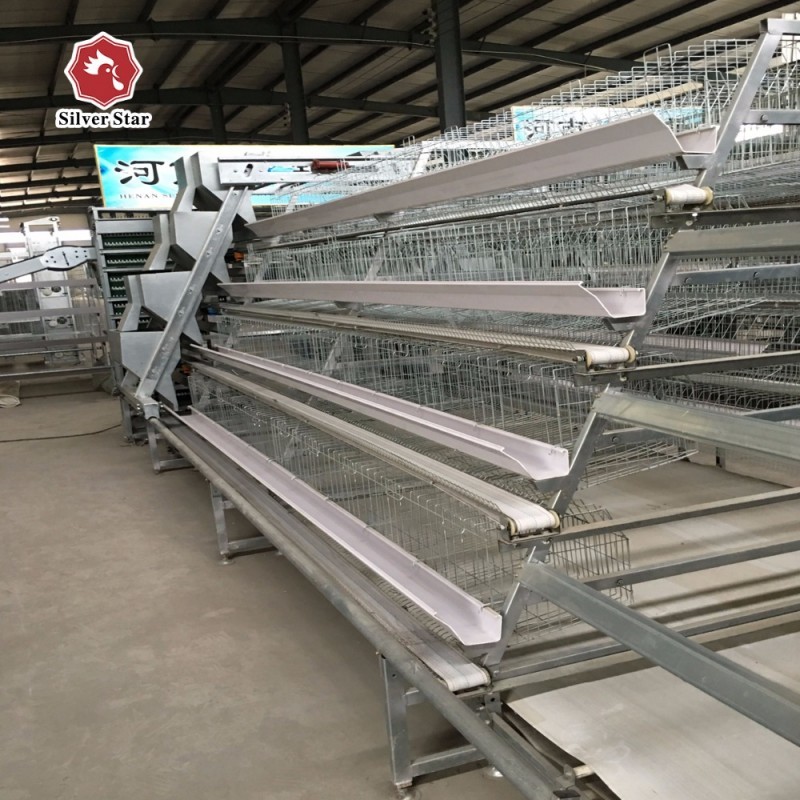

4 Tier Automatic Layer Cage System
,Ventilational Automatic Layer Cage System
,120 Birds Automatic Layer Cage System
Europe Standard Battery Chicken Cage For Poultry Layers And Broilers, Good Ventilation
Introduction Of Battery Chicken Cage For Poultry Layers And Broilers:
European standard battery chickn cage sytsem is one of Silver Star's big size designs to assure good ventilation for chickens.
Poultry layers battery chicken cage european size: Each door size is 650mm length, 625mm depth, 440mm height, 9birds/door, 450cm2/bird.
Poultry broilers battery chicken cage europe size: Each door size is 1000mm length, 1000mm depth, 440mm height, 20birds/door, 500cm2/bird.
Advantages Of Battery Chicken Cage For Poultry Layers And Broilers:
1. Poultry layers and broilers battery chicken cage use q235 bridge wire, not easy to bend in the future.
2. Large size of battery chicken cage systems keep good ventilation, providing a good breeding environmenr for layers and broilers chicken.
3. High-density breeding, saving land and investment. Battery chicken cage for poultry layers and broilers is easier to observe the birds, easy to gather or weak in selection.
4. Full sets of battery chicken cage equipment is made of hot-dip galvanized processing, which is corrosion-resistant and ensures over 25 years lifespan.
5. With sufficient feed, good water level and healthy uniformity limit the minimum amount of exercise, energy consumption of chickens and save feed.
6. Chicken manure is completely separated from the chicken, and the manure can fall directly to the belt. The dust in the chicken house is greatly reduced, less chance of disease infection from the manure, and greatly reduce the mortality rate of birds
7. Suitable for closed and open chicken houses. Automatically control ventilation and temperature help solve hot weather’s problem

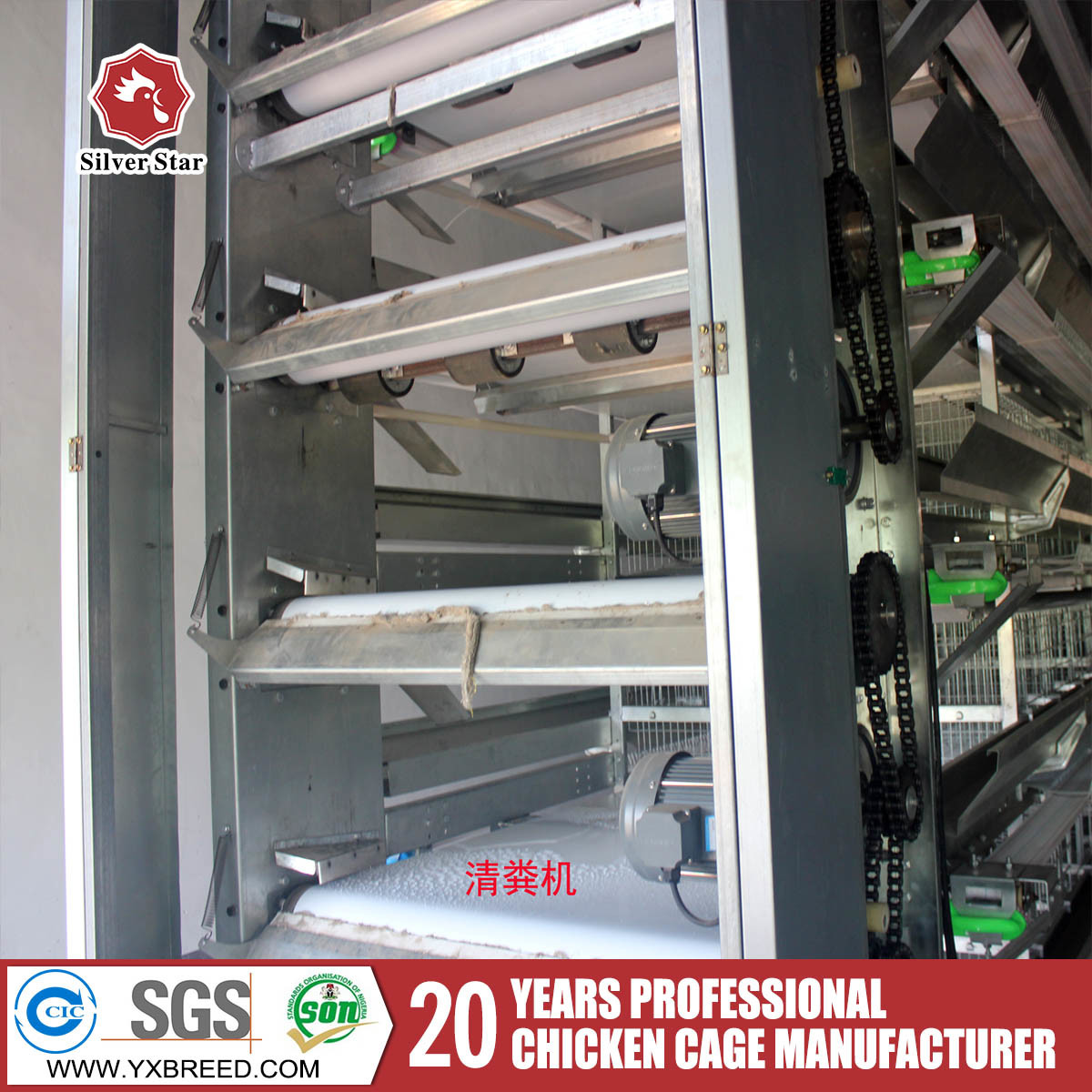

8. Belt cleaning method greatly improves the air quality in the chicken house, relatively reduces the occurrence of some diseases, and has high safety.
9. Egg breakage rate,high cleanliness.
Specification Of European Standard Poultry Layers And Broilers Battery Chicken Cage:
| Type H Poultry Layers Battery Chicken Cage | |||||||
| Model | Door No. /cage | Chicken No. /door | No. of layers | Capacity of one set of cage | Area per bird (cm2/bird) | Each door size(mm) | Cage size/set (mm) |
| H3L54 | 1 | 9 | 3 | 54 | 450 | 650x625x440 | 650x1250x2220 |
| H4L72 | 1 | 9 | 4 | 72 | 450 | 650x625x440 | 650x1250x2870 |
| H5L90 | 1 | 9 | 5 | 90 | 450 | 650x625x440 | 650x1250x3520 |
| H6L108 | 1 | 9 | 6 | 108 | 450 | 650x625x440 | 650x1250x4170 |
| H8L144 | 1 | 9 | 8 | 144 | 450 | 650x625x440 | 650x1250x5470 |
| Full equipment | H Frame Battery Chicken Cage For Poultry Layers, Automatic feeding machine, automatic drinking system, automatic egg collection and automatic manure cleaning system, ventilation system | ||||||
| Type H Poultry Broilers Battery Chicken Cage | |||||||
| Model | Door No. /cage | Chicken No. /door | No. of layers | Capacity of one set of cage | Area per bird (cm2/bird) | Each door size(mm) | Cage size/set (mm) |
| H3B60 | 1 | 20 | 3 | 60 | 500 | 1000x1000x440 | 1000x1000x2200 |
| H4B80 | 1 | 20 | 4 | 80 | 500 | 1000x1000x440 | 1000x1000x2850 |
| H3B90 | 1 | 30 | 3 | 90 | 500 | 1500x1000x440 | 1500x1000x2200 |
| H4B120 | 1 | 30 | 4 | 120 | 500 | 1500x1000x440 | 1500x1000x2850 |
| H3B156 | 4 | 13 | 3 | 156 | 500 | 740X850X440 | 1480X1750X2800 |
| H4B208 | 4 | 13 | 4 | 208 | 500 | 740X850X440 | 1480X1750X3600 |
| Full equipment | H Frame Battery Chicken Cage For Poultry Broilers, Automatic feeding system, automatic drinking system, automatic manure removal system, automatic birds harvesting system, ventilation system | ||||||
Why Use Battery Chicken Cage In Poultry Production?
1. Reduce feed wastage and maximize productivity in layer production
2. Increased production
3. Better overall management of flock
4. Save on labour costs
5. Zero accidental mortalities
6. More effective management of poultry waste
7. The cages systems are reusable
-
MThe cage system meets our requirements. The company provided detailed drawings and technical documents before production.
-
CThe cage system is suitable for commercial egg production. The team provided useful suggestions
-
BWe are satisfied with the layer cages. The structure is stable, easy to manage, and suitable for our farm conditions. Thank you for your technical support.
-
