Multi Tier Poultry House Cleanout Equipment , 1.2mm 220v Battery Cage System
| Place of Origin | China |
|---|---|
| Brand Name | Silver Star |
| Certification | ISO9001, SGS |
| Model Number | YXPM5 |
| Minimum Order Quantity | 1 Set |
| Price | 1200-2500usd/set |
| Packaging Details | Standard Exporting Packaging Or As Customers' Request |
| Delivery Time | 7-15 working days after advanced payment |
| Payment Terms | T/T, Western Union, D/A, D/P |
| Supply Ability | 50000sets/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Multi-Tier Automatic Layer Poultry Equipment For Poultry Dung Manure Cleaning | Marketing Type | New Product 2021 |
|---|---|---|---|
| Dung Collector Machine | Zn-Al Or 275g Hot Galvanized Steet | Dung Belt | White PP Belt, 1.2mm Thickness |
| Driving Motor | Siemens, 380/220v Or Be Customized | Horizontal Conveyor | Rubber Belt, Green Color, 6mm Thickness |
| Apply For | Type H Layer Chicken Cage, H Frame Broiler Cages | Characteristics | Fully Automatic Transfer The Manure Onto Truck |
| Local Service | Indonesia, Philippines, Thailand, Ecuador, Algeria, Ghana, Kenya, Nigeria, Panama | HS Code | 84362900 |
Product Description
Multi-Tier Automatic Layer Poultry Equipment
For Poultry Dung Manure Cleaning
Poultry Dung Manure Cleaning Equipment Information
Poultry dung manure cleaning equipment is used for H type layer raising chicken cage, H frame broiler battery chicken cages etc. The conveyor belt type manure collector uses the most advanced national standard cycloidal pinwheel reducer to ensure the rationality of the output transmission ratio. The overall surface of the drive roller of manure collector is covered with rubber, which increases the friction and can effectively solve the manure removal. With the problem of deviation, and at the same time extend the use time of the manure belt, manure cleaner will install an inclined scraper at the tail of each manure belt, and install two secondary scrapers under the response of the manure belt rotation. Makes the feces cleaned more thoroughly.
Poultry Dung Manure Cleaning Machine Advantages

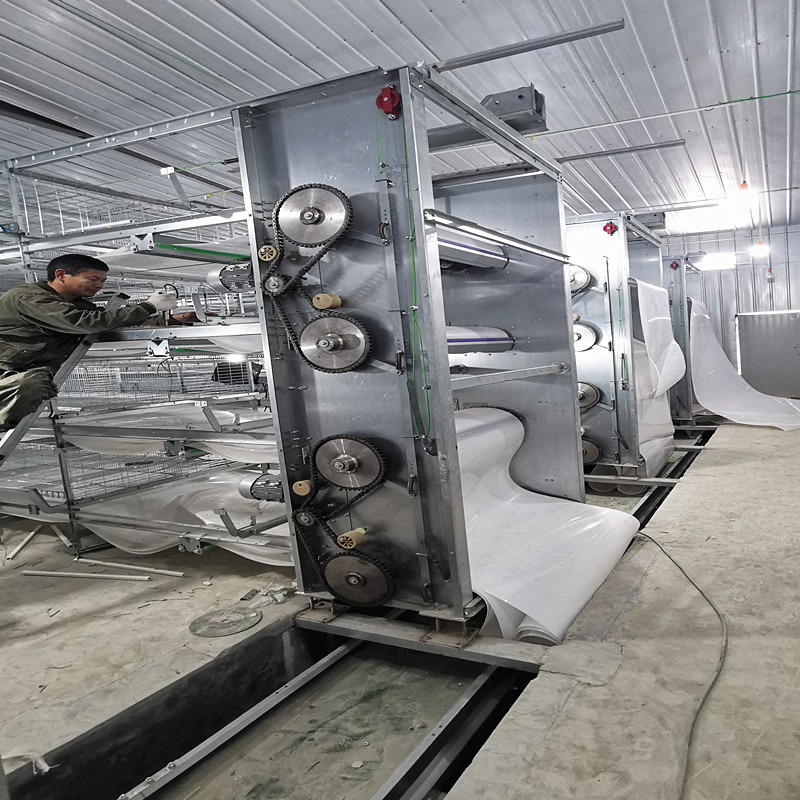

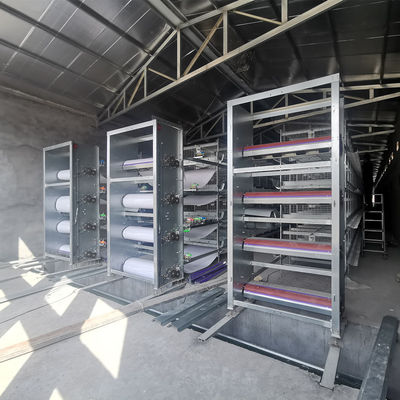

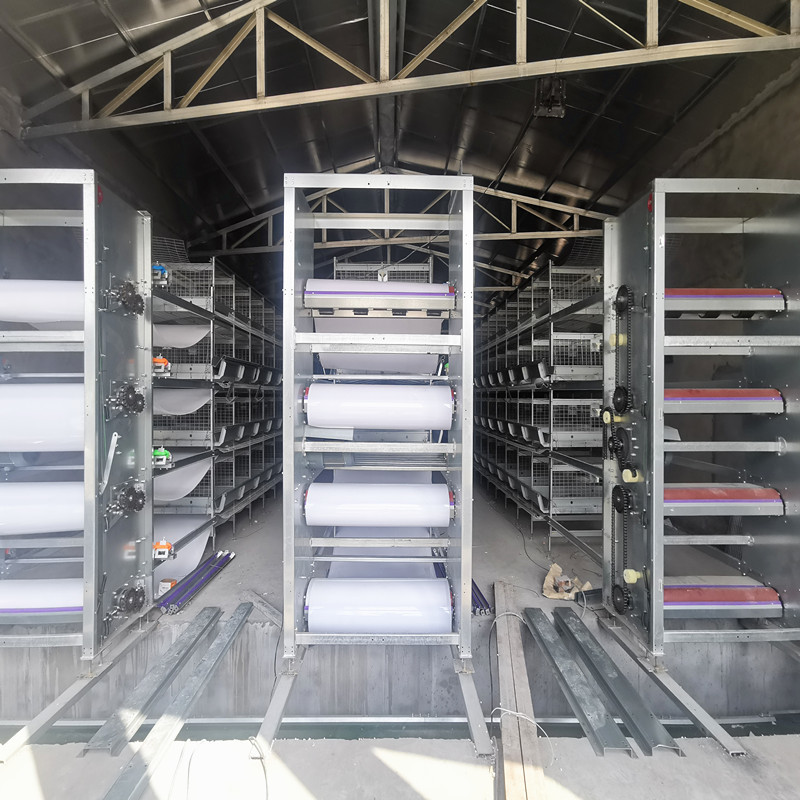

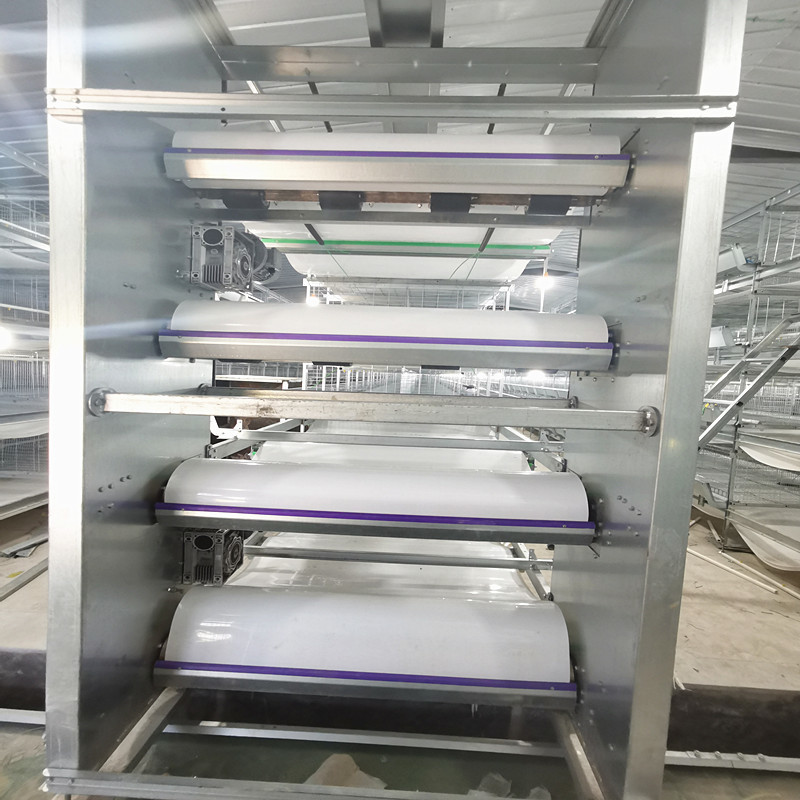

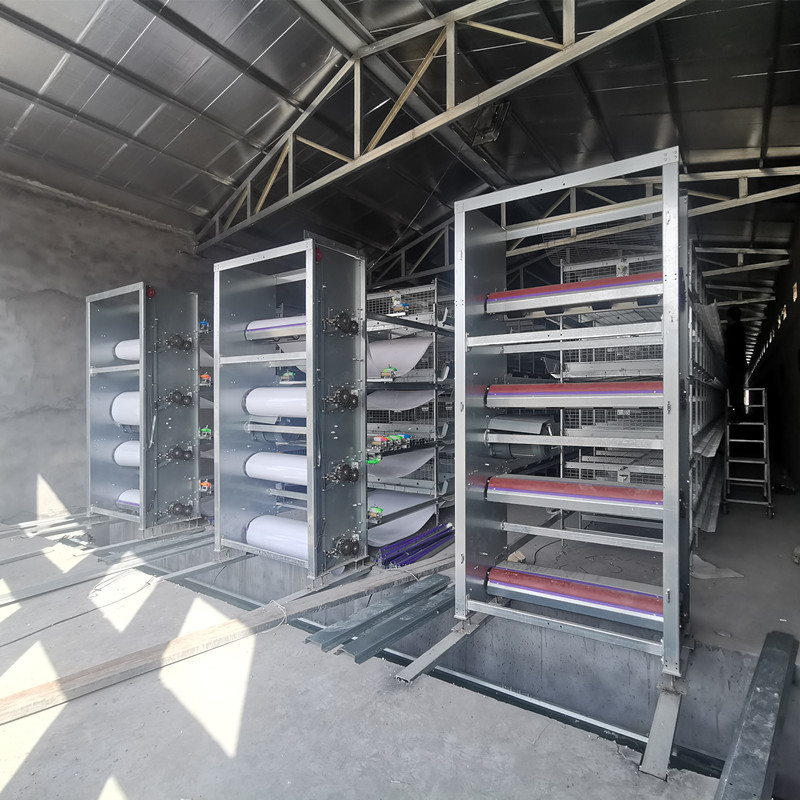

The structure of the conveyor belt type manure cleaning equipment is composed of: motor deceleration equipment, chain drive, main and forced rollers, and manure bearing belts. It is used on the stacked chicken cage equipment. The conveyor belt manure cleaner is installed on each layer of chicken cages.
When the manure collecting machine starts, the manure removal machine is operated by the motor and reducer through the automatic rollers of each layer of the chain. The friction force is generated under the forced roller and the automatic roller, and the manure-bearing belt moves along the cage group. Moving in the length direction, the chicken manure is transported to end part, and it is scraped off by the manure scraper set at the end, and then the manure cleaning work is completed.
Belt Type Poultry Dung Manure Cleaning Equipment Specification
| Belt Type Poultry Dung Manure Cleaning Machine | Hot-dip galvanized 3mm side sheet, chain safety door with 1mm hot-dip galvanized steel or zinc-aluminum, running speed 3m/min.Motor:1.5kw |

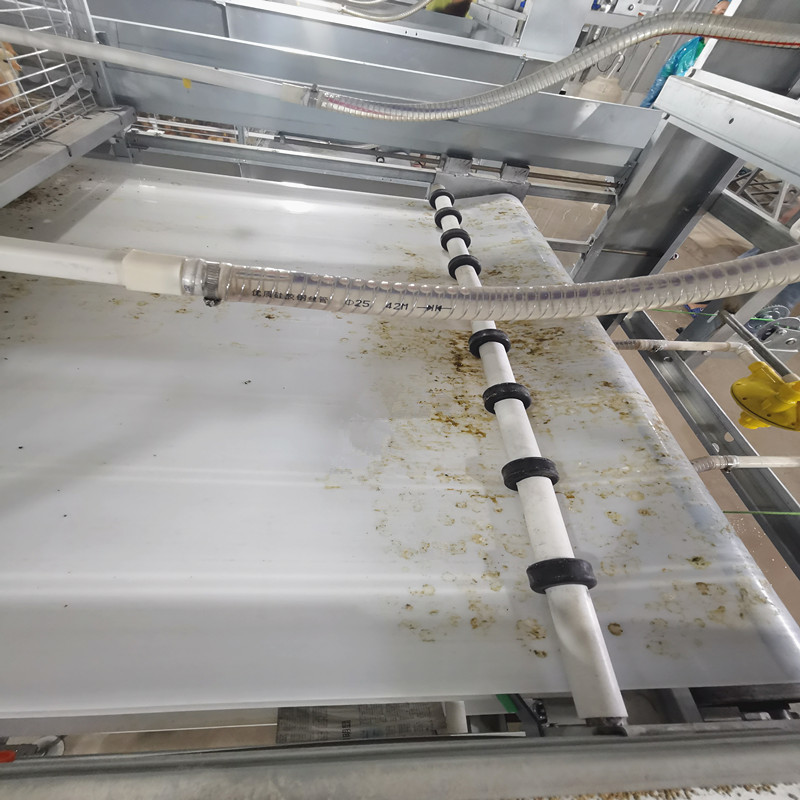

| Poultry Manure Collecting Belt | PP manure belt, which has high tensile strength to ensure a long service life.Thickness is 1.2mm. Width:1m,1.2m ,1.25m, 1.4m, 1.5m, 1.75m, 1.8m, 2.1m |
| Bracket For Poultry Dung Cleaning Belt | Hot dipped galvanized, 1.5mm thickness |

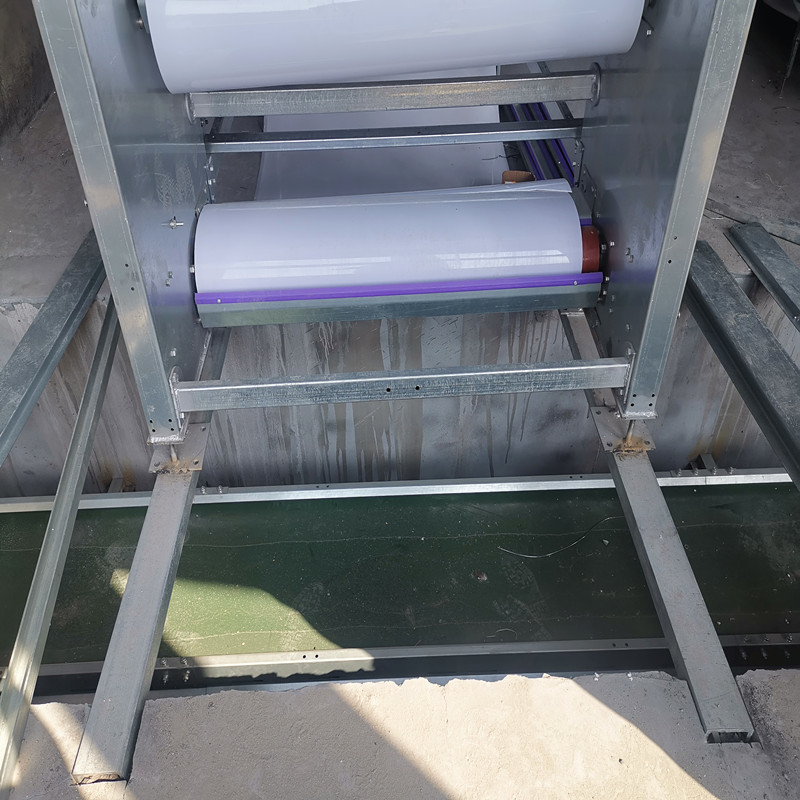

| Passive Roller | Spiral type cylinder,in the front. Anti deviation system is included. |

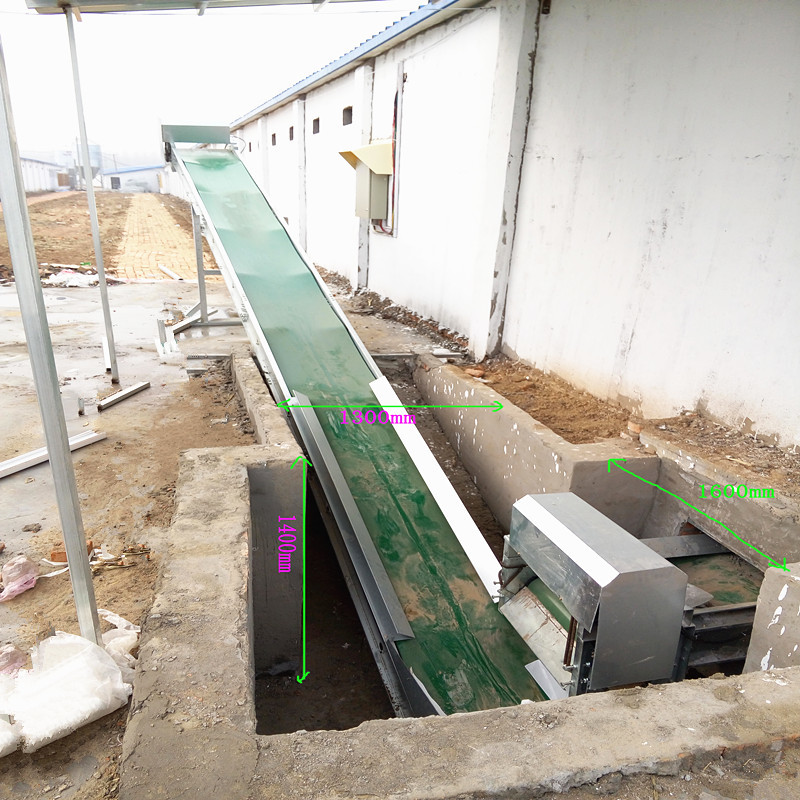

| Transversal manure conveying machine | Each chicken house is with 1 set, transverse and slope conveying is separate, the material is hot dipped galvanized; Manure belt: green rubber belt with 8mm thickness. Power:3kw, The transverse manure conveying system adopts rubber conveying belt. There is no leak of manure during transportation. |
