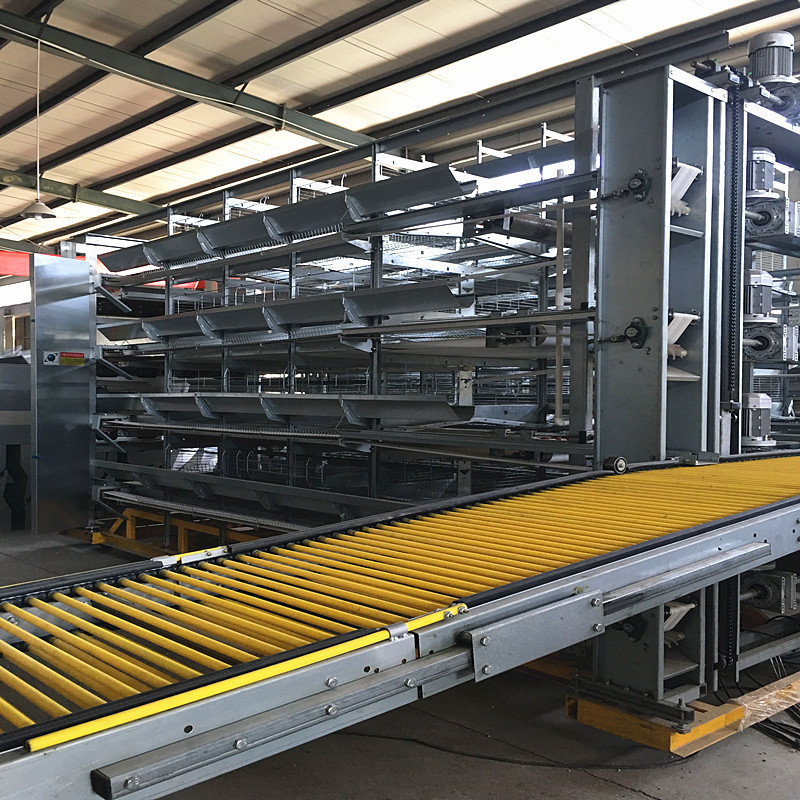

3PH 1mm Hot Galvanized Steel Poultry Egg Collection System SGS Approval
| Place of Origin | China |
|---|---|
| Brand Name | Silver Star |
| Certification | ISO9001:2015; SGS |
| Model Number | YXPEC8 |
| Minimum Order Quantity | 1 Set |
| Price | 1100-2500USD/ Set |
| Packaging Details | Standard exporting packaging |
| Delivery Time | 7-15 working days after advanced payment |
| Payment Terms | T/T, Western Union, D/A, D/P, L/C |
| Supply Ability | 50000 sets/ month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Egg Belt Conveyor Automatic Egg Collecting Machine For Layer Battery Cage System | Egg Collecting Machine Material | Hot Dipped Galvanized Or Zinc-aluminum Side Plate |
|---|---|---|---|
| Egg Belt Color | White Or Gray Color, With Red, Yellow, Blue, And Green Lines | Egg Guider | 1mm Hot Galvanized Steel |
| Characteristics | Simple Operation, Labor Cost Saved | Local Service | Indonesia, Ecuador, Panama, Chile, Paraguay, Uzbekistan, Philippine, Qatar, UAE, Kenya, Algeria, Nigerai, Ghana, Nigeria, Uzbekistan, Bangladesh |
| Apply For | Layer Battery Cage System Poultry Farm | Driving Motor | 1.5kw, AC, 3PH, 380V/220V |
| Marketing Type | New Product 2021 | HS Code | 84362900 |
Product Description

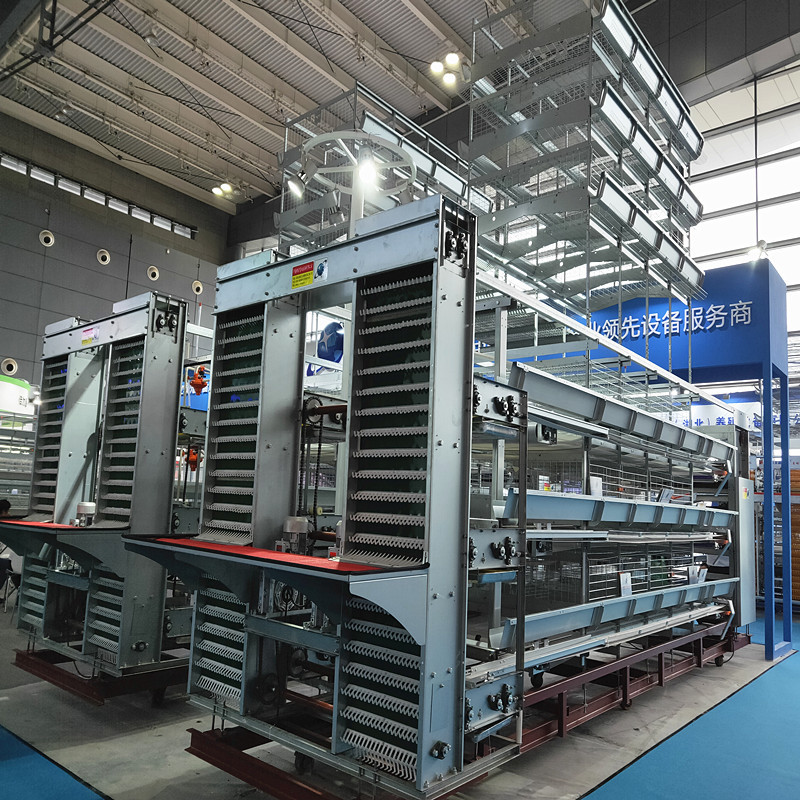

Egg Belt Conveyor Automatic Egg Collecting Machine
For Layer Battery Cage System
Egg Belt Conveyor Automatic Egg Collecting Machine Information
Automatic egg collecting machine is widely used for layer battery cage system, the collecting egg belt conveyor is made of high tenacity polypropylene material, white or gray color, with red, yellow, blue, and green lines on it ,10cm width and 2mm thickness.
The automatic egg collector for chicken raising is a kind of battery cage raising machinery and equipment with high technology content and relatively high degree of electro mechanical integration, which is suitable for large-scale layer breeding chicken farms.
Egg Belt Conveyor Automatic Egg Collecting Machine Feature

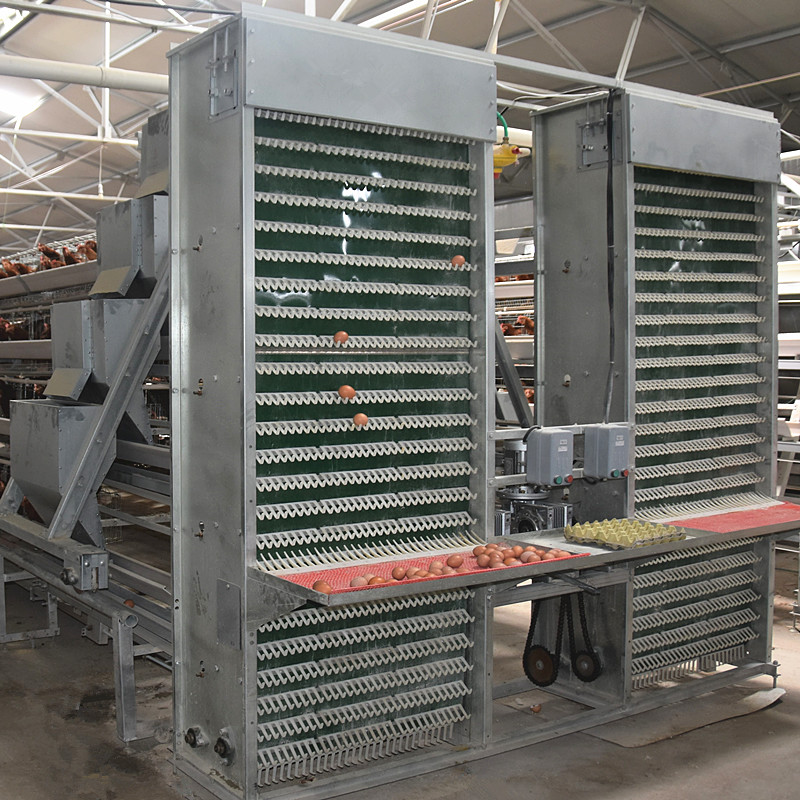

1. Egg collecting for a double-layer full ladder cage is equipped with an independent egg collection belt and an automatic egg picker. It requires manual egg packing on two egg collection platforms.
2. Egg collection for single-layer flat cages is difficult to compare the egg collection techniques of flat and high-bed flat cages. Therefore, longitudinal egg collection belts, horizontal egg collection belts and automatic egg pickers are adopted; together they form an egg collection system to collect eggs. For eggs, every two rows of chicken cages share a vertical egg collection belt, and the automatic egg picker should be installed according to the operators in the chicken house;

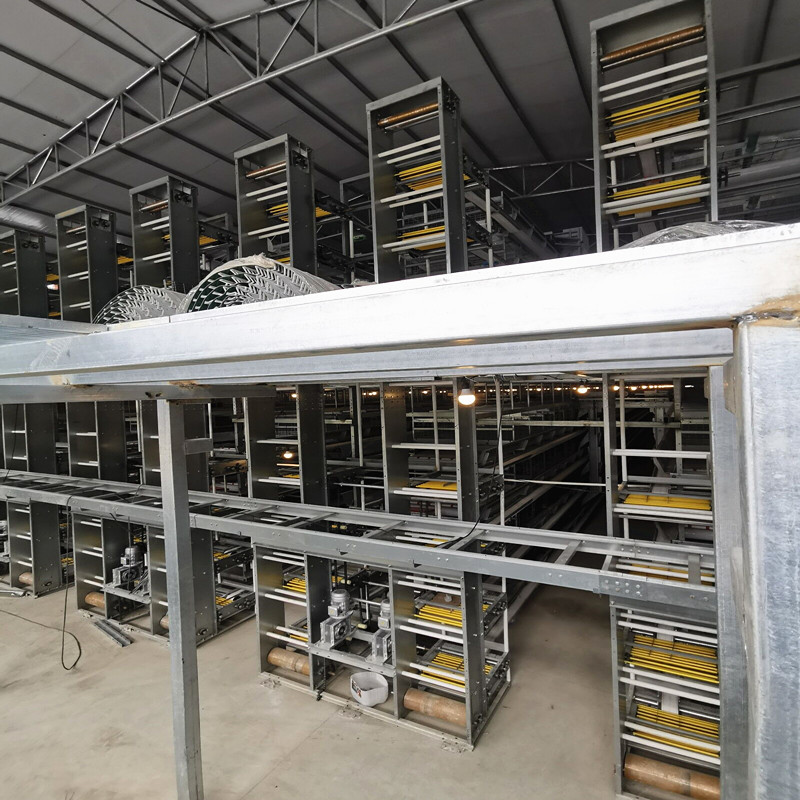

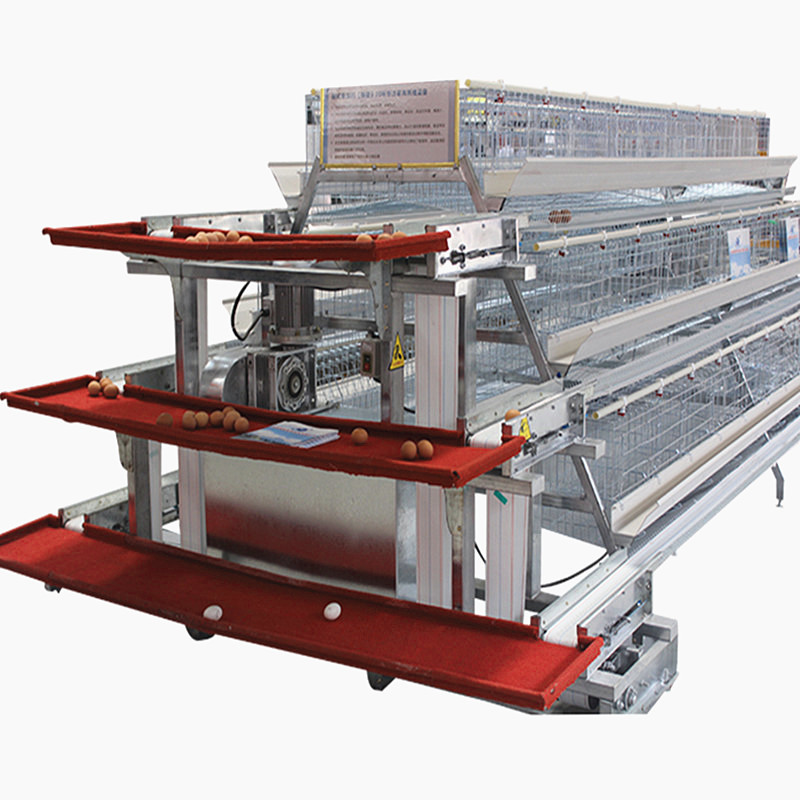

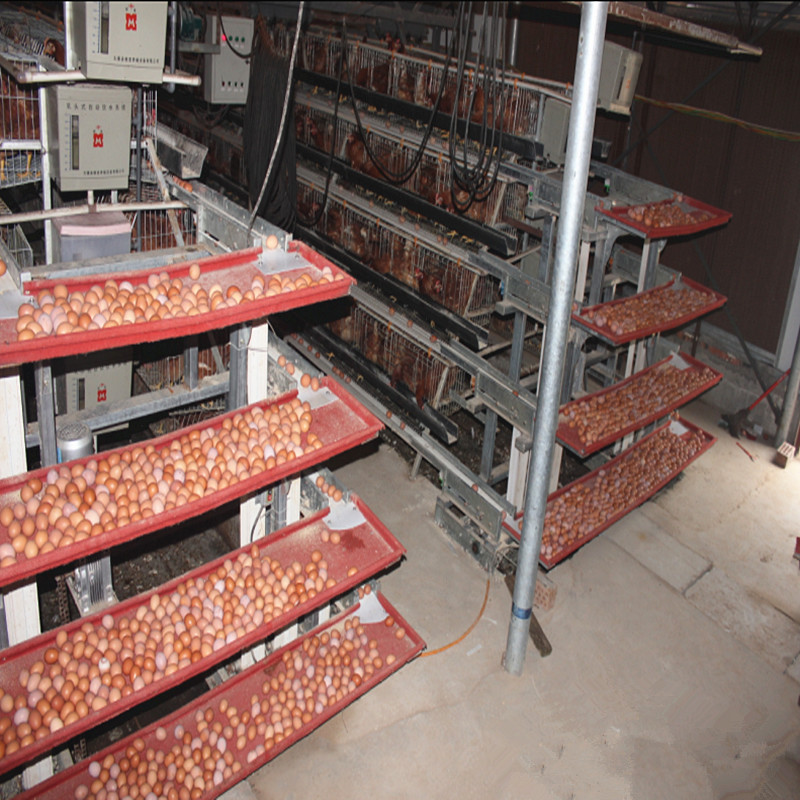

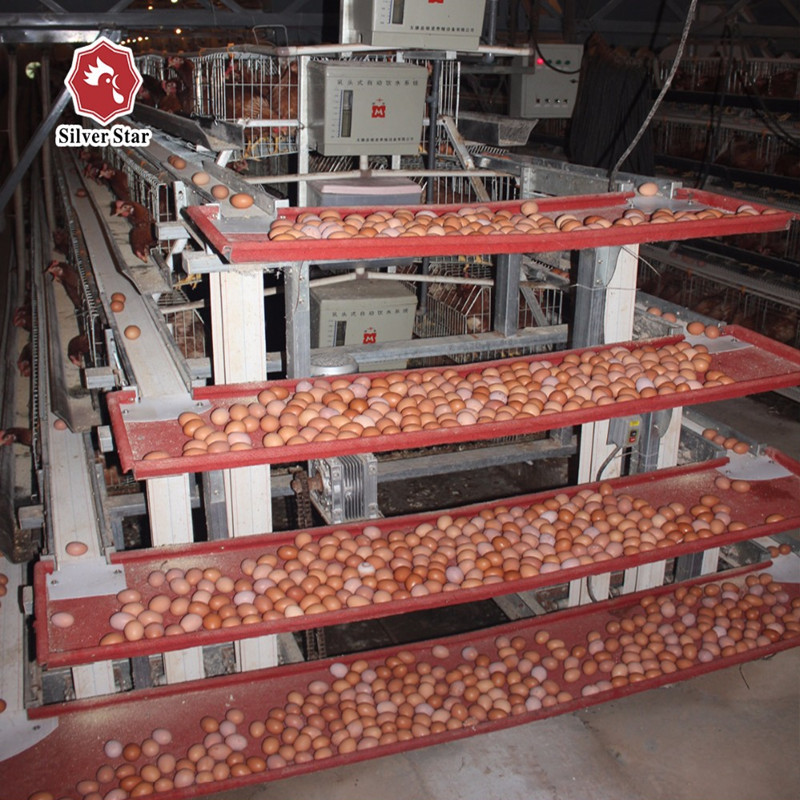

3. Multi-layer chicken cage egg collecting is composed of longitudinal egg collection, eggs uploading collecting for lateral conveyor, and automatic egg picking machine. Longitudinal egg transfer belt transports each layer of eggs to the end of the chicken house, which transports the eggs up or down. These eggs are transported to the horizontal egg collecting conveyor and sent to the egg collecting table for final manual loading to the processing room in trays. Each row and layer of the conveyor belt constitutes a loop motor and a gear box to work together to ensure that the eggs can be moved on the conveyor belt at a uniform speed. The above rolling automatic egg collection equipment greatly improves work efficiency, also its egg breaking rate is reduced. The egg breaking rate of the automatic automatic egg picker is affected by the egg picking time and the number of times. The more eggs are collected, the lower egg breaking rate.
Description Of Automatic Egg Collecting Machine For Layer Battery Cage System
| Automatic Egg Collecting Machine Composition |
Egg collecting main machine, egg collection uploading system, soft broken egg filtration system, egg collection conveyor belt and egg belt drive system, front side egg collecting system , and electricity distribution system |
| Egg picking machine | Hot-dip galvanized or zinc-aluminum 1.5mm side plate,speed 4m/min. |
| Egg conveyor belt | Belt is used for conveeying the eggs to egg collection machine; Imported from Italy; Material is PP woven belt,thickness 2mm,Width 100mm. |
| Clips for egg collection belt | Material:PVC,4pcs/set,to fix the egg belt firmly |
| Egg guider | Hot galvanized,1mm thickness,configuration with stretching device. |
| Horizontal /Transversal Egg Conveyor | Transfer the eggs from poultry house to egg storgae |
