Zn-Al Poultry Farm Cleaning Machine , 380V 3Phase Commercial Poultry Equipment
| Place of Origin | China |
|---|---|
| Brand Name | Silver Star |
| Certification | ISO9001, SONCAP |
| Model Number | YXPM5 |
| Minimum Order Quantity | 1 Set |
| Price | 650-2500USD/Set |
| Packaging Details | Standard Exporting Packaging Or As Customers' Request |
| Delivery Time | 7-15 working days after advanced payment |
| Payment Terms | T/T, Western Union, D/A, D/P, L/C |
| Supply Ability | 50000sets/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Poultry Manure Removal System Of Battery Cage | Type | Belt Type Cleaning, Scrapper Type Cleaning |
|---|---|---|---|
| Material | Hot Dipped Galvanized Board/ Zn-Al Plate | Motor | 380V, 3Phase, 50HZ Or As Clients' Request |
| Motor Warranty | One Year Since Machine Running | Use | H Type & A Type Chicken Cages For Egg Layer, Broilers, Brooders |
| Application | Poultry Farm Chicken Equipments | Other Description | Manure/ Dung/ Waste Cleaning Machine |
Product Description
Full Set Chicken House Cleaning Machine Use Automatic Poultry Manure Removal System
Silver Star's automatic poultry manure removal machine (also named dung/ waste cleaning machine) is to improve the utilization of chicken manure. Our manure removal system includes belt type manure removal system and scrapper manure removal system for battery chicken cages. Belt type manure removal machine is suit for both H type and A Type chicken cages, scrapper manure removal machine is matched with A type battery cages.

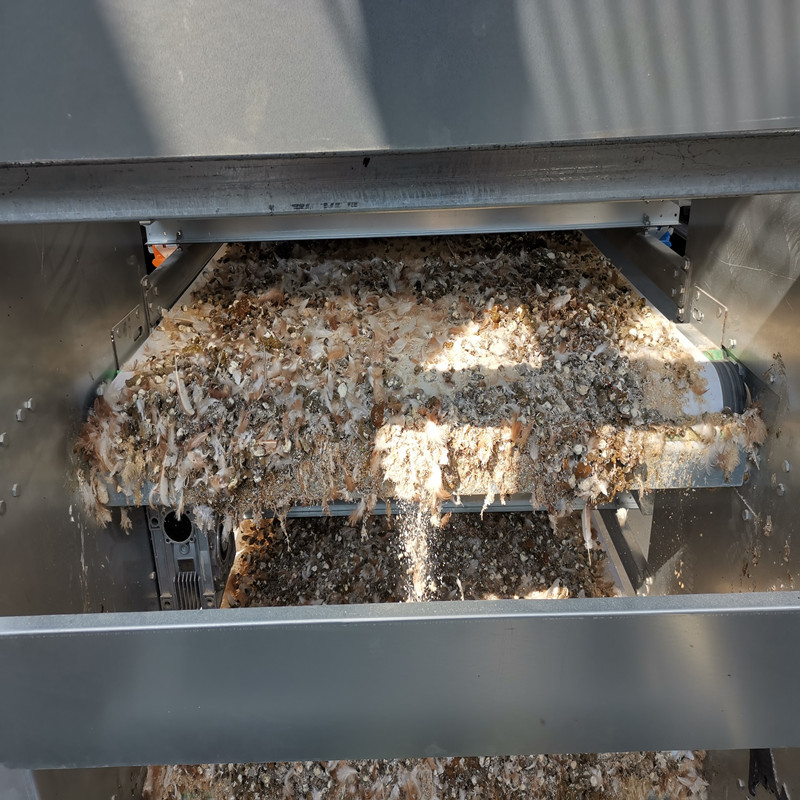

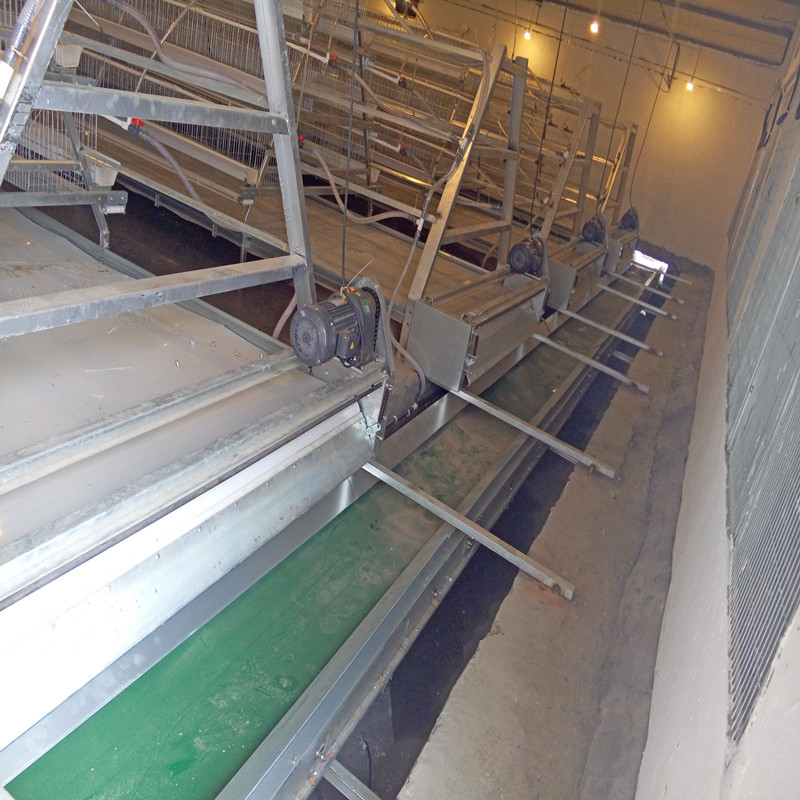

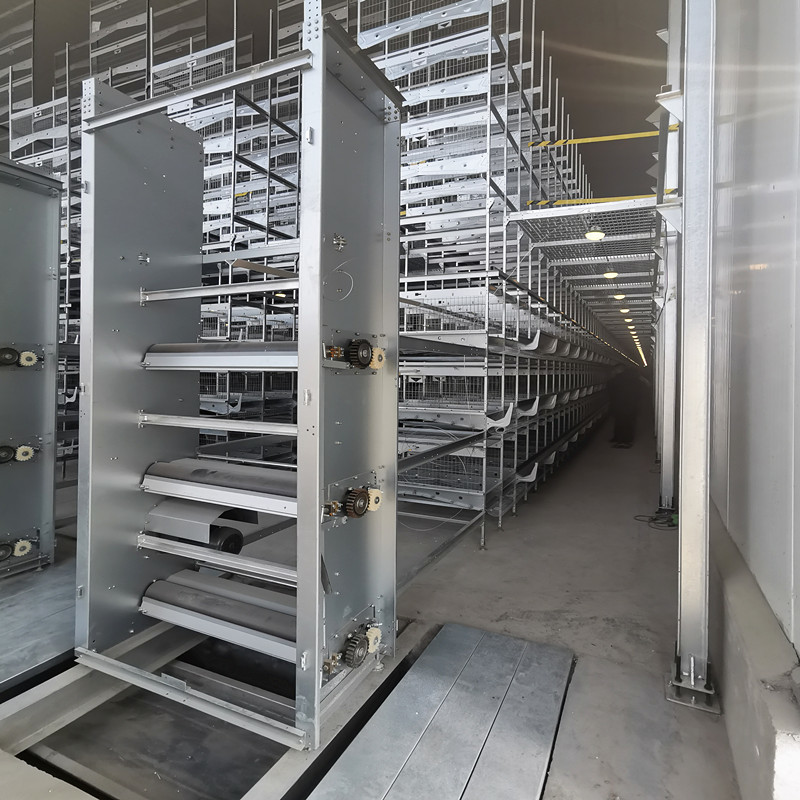

Belt Type Manure Removal System
Belt manure remover is a fully automatic manure cleaning system, which can reduce the labor intensity and labor cost, make it more convenient to clean up manure timely, keep the environment of chicken house clean and improve the manure utilization. The transverse manure transport system can transport the manure from chicken house directly to the outside of chicken house.
| Belt Type Manure Cleaning Machine | Hot-dip galvanized 3mm side board, chain safety door with 1mm hot-dip galvanized steel, running speed 3m/min.Motor:1.5kw |
| Manure Cleaning Belt | PP manure belt, which has high tensile strength to ensure a long service life.Thickness is 1.2mm. Width:1m,1.2m ,1.25m, 1.4m, 1.5m, 1.75m, 1.8m, 2.1m |
| Bracket For Manure Cleaning Belt | Hot dipped galvanized, 1.5mm thickness |
| Passive Roller | Spiral type cylinder,in the front. Anti deviation system is included. |

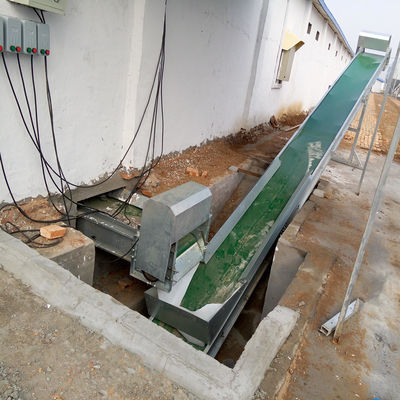

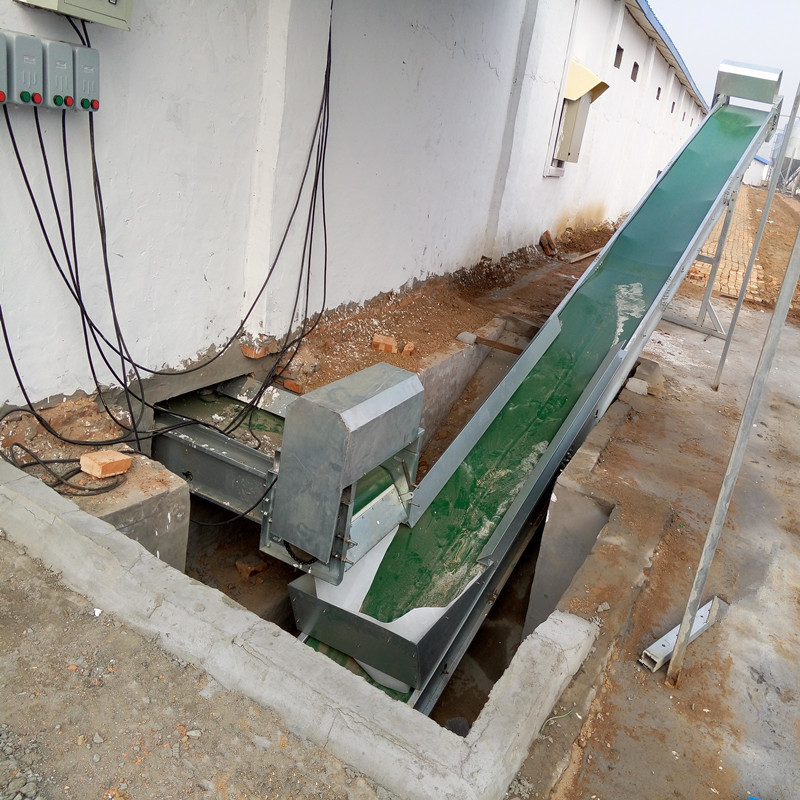

| Transverse manure conveying machine | Each house is with 1 set, transverse and slope conveying is separate, the material is hot dipped galvanized; Manure belt: green rubber belt with 8mm thickness. Power:3kw, The transverse manure conveying system adopts rubber conveying belt. There is no leak of manure during transportation. |
Belt Cleaning Machine Advantages:
1. The entire manure removal system has high cleanliness, which can effectively reduce the concentration of harmful gases in the house, relatively reduce the ventilation in the house, reduce energy consumption, and extend the service life of the fan.
2. The temperature of the chicken house can also be increased to reduce the energy consumption of the chickens and improve the production performance of the chickens; compared with drying, chicken manure is easier to handle and deep-process, and work efficiency is improved.
3. The cleaning belt is welded with an ultrasonic welding machine, which has certain strength and toughness, no water absorption and no deformation.
4. Each row or floor of chicken cages is equipped with a set of vertical manure removal belt, and each chicken house is equipped with horizontal and oblique belt; the longitudinal belt transfer the chicken manure to the horizontal end belt of the chicken house, and then transport it to the outside of the house directly onto the truck. The manure removal power and control system are located at the end of the chicken house for easy operation and maintenance.
5. The belt cleaning method greatly improves the air quality in the chicken house, relatively reduces the occurrence of some diseases, and has high safety.
Scrapper Manure Removal System

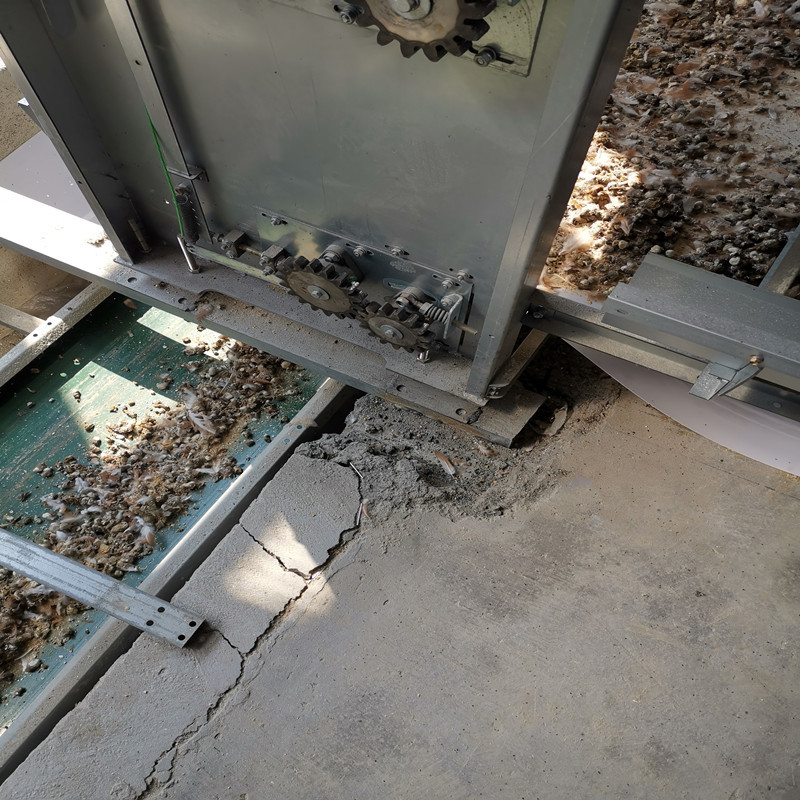

Scrapper manure cleaning machine is mainly composed of a main frame, a corner wheel, a traction rope, a manure scraper, etc. The operation of the motor drives the reducer to work, and the manure removal working is completed by the rotation of the sprocket to pull the manure scraper. It has a fixed and movable head. The movable head can use one head at the same time for multiple chicken houses, which shortens installation time, saves costs, and improves work efficiency.
Scrapper manure cleaning machine is mainly designed for A type chicken cage system. Each machine is used for 2 to 3 rows of chicken cages manure pit. The width of the manure scraper is designed according to the customers’ manure pit size.
Scrapper Manure Cleaning Machine Features:
| 1 | It can realize unmanned management, automatic timing cleaning, time can be set arbitrarily |
| 2 | manual temporary cleaning, simple and quick operation, automatic manual arbitrary conversion |
| 3 | multi-level power transmission, increased friction, strong power |
| 4 |
automatic retractable scraper, board position Adjustable, low friction, clean manure
|
