4 Layers 2mm Battery Cage Poultry Egg Collection System ISO9001 Certificated

Place of Origin China
Brand Name Silver Star
Certification ISO9001, SONCAP
Model Number YXPEC8
Minimum Order Quantity 1 Set
Price 1100-2750USD/ Set
Packaging Details Standard exporting packaging
Delivery Time 7-10 working days after advanced payment
Payment Terms T/T, Western Union, D/A, D/P, L/C
Supply Ability 5000 sets/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Name Automatic Egg Collection System Of Battery Cage Material Hot Dipped Galvanized Steel Plate
Egg Belt Thickness 2mm Power 380V/ 200V, Or As Clinets' Request
Type Suit For Both H&A Type Layer Chicken Cage Local Service Ecuador, Panama, Chile, Paraguay, Uzbekistan, Philippine, Qatar, UAE, Kenya, Ghana, Nigeria, Bangladesh
Application Poultry Farm Egg Laying Hens Chicken Cage Equipment
Leave a Message
Product Description

                           4 Layers Battery Chicken Farm Automatic

              Poultry Egg Collection System For H Type Laying Hens Cage


Layer Farming Equipment Use Automatic Egg Collection Machine


Automatic egg collector machine is an important part of the complete set of automatic laying hen breeding equipment, which realizes the automation of egg collection and transmission. It is suitable for large-scale layer breeding on large farms. The system structure design is simple and reasonable, easy to operate, and effectively saves human resources. It is used in conjunction with automatic drinking water system, automatic manure removal system, automatic feeding system, light control system and automatic temperature control system to greatly improve the degree of automation of profitable layer breeding.

Egg collection machine Hot-dip galvanized 1.5mm side plate,speed 4m/min.
Egg conveying belt Belt is used for conveeying the eggs to egg collection machine; Imported from Italy; Material is PP woven belt,thickness 2mm,Width 100mm.
Clip for egg collecting belt Material:PVC,4pcs/set,to fasten the egg belt
Egg guider Hot galvanized,1mm thickness,configuration with stretching device.

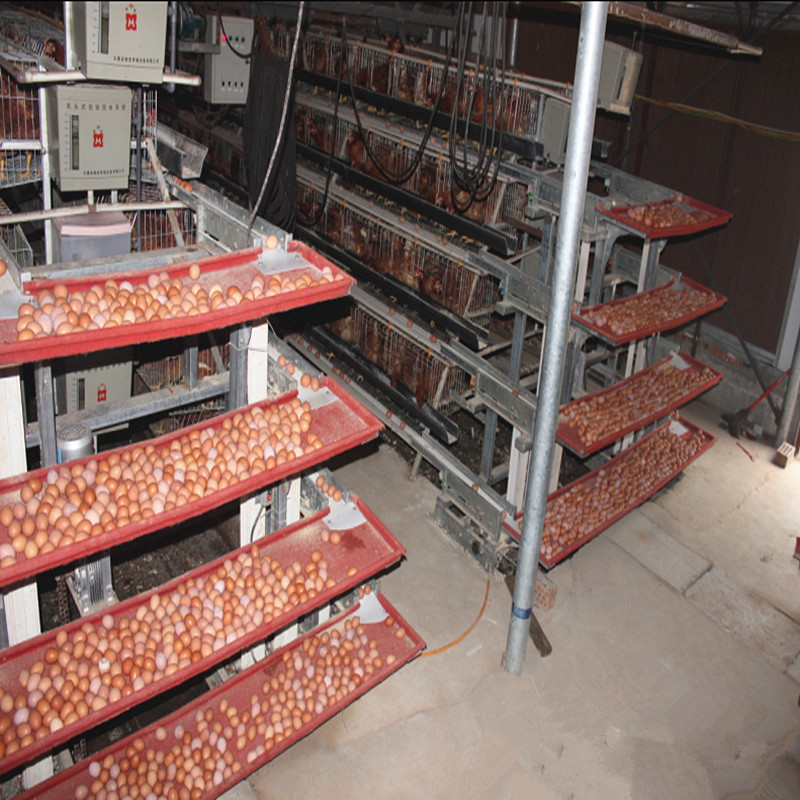

4 Layers 2mm Battery Cage Poultry Egg Collection System ISO9001 Certificated 0

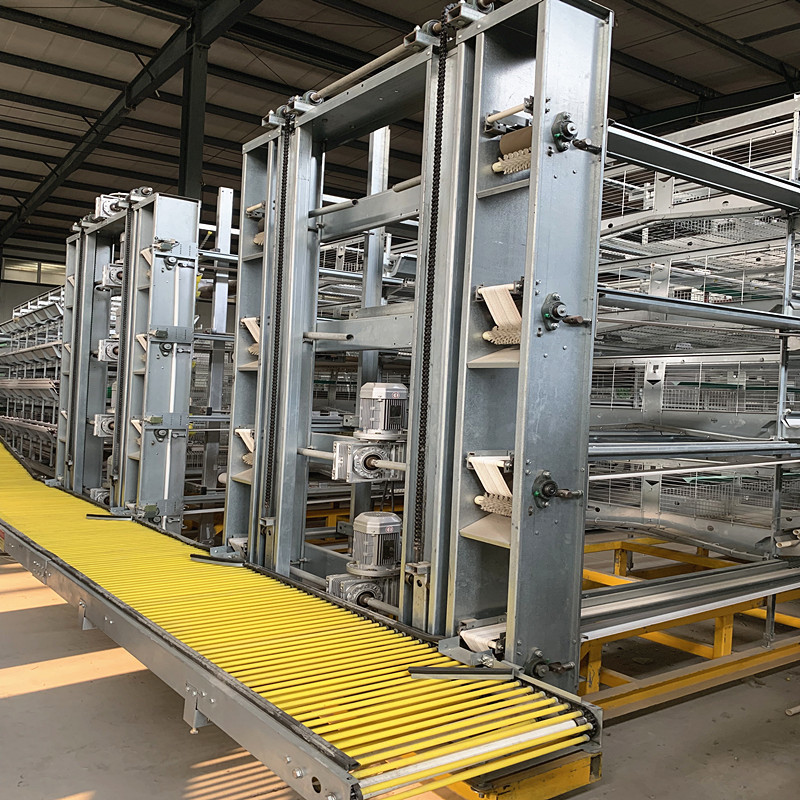

4 Layers 2mm Battery Cage Poultry Egg Collection System ISO9001 Certificated 1


Automatic Egg Collecting Machine Advantanges:


1. Automatic egg collecting machine is composed of a base, egg uploading system, a soft broken egg filtration system, egg collecting belt and  egg collection belt drive system,  front-end collection system, and a power distribution system.

2. Egg collecting machine is assembled with high-strength hot-dip galvanized steel plate, which is designed strictly and has the advantages of large load-bearing capacity and non-deformation of the structure.

3. The composition of the egg conveying system is driven by a Taiwan geared motor with high transmission efficiency, which achieves low loss, high output, low failure rate, long life, and low noise, reducing the impact of noise on chickens and improving egg production.

4. Soft broken egg filtering system: The transmission mechanism of the soft broken egg filtering system adopts chain and sprocket transmission, and the transmission is stable. This system is mainly installed according to the needs of customers, and the soft eggs are leaked into the soft egg tray below. Prevent the egg mucus that is broken during the transportation of soft eggs from sticking to the upload system and contaminate the finished eggs.

5. The egg collection belt drive system is driven by a hollow worm gear reducer with high transmission efficiency, thus ensuring the smooth operation of the egg conveyor belt. The driving roller is made of high-quality rubber, which increases the friction with the conveyor belt and prevents the conveyor belt from slipping and deviation.



Simple Plan Egg Collecting Machine


This simple way of egg collector is our company's patent products, which is suitable for small and medium-sized layer farming, and used for A type 3-tier and 4-tier battery layer chicken cages system.This type of egg collector has the advantages of cheaper price, easy to asemble and operate, labor cost saved.

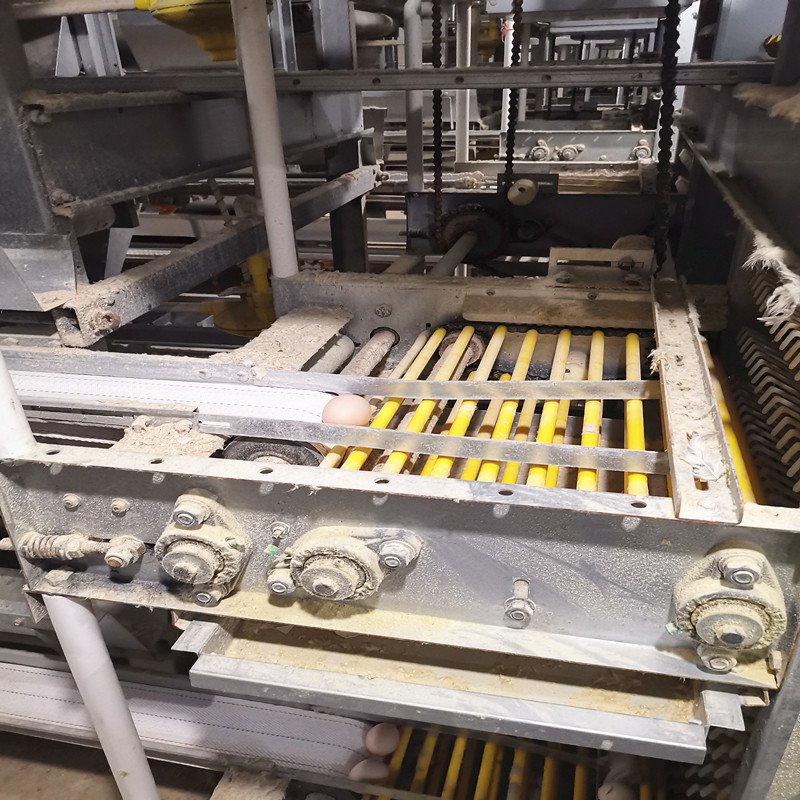

4 Layers 2mm Battery Cage Poultry Egg Collection System ISO9001 Certificated 2



Egg Grading Machine (Egg Sorter)


Small&Medium Poultry Farm Using Egg Grader :


Item Material Size (mm) Grade Power (KW)
4000pcs/hour grader Carbon Steel/ Stainless Steel 1700X1450X1000 7 0.2
5400pcs/hour grader Carbon Steel/ Stainless Steel 2750X1600X1050 5 0.32

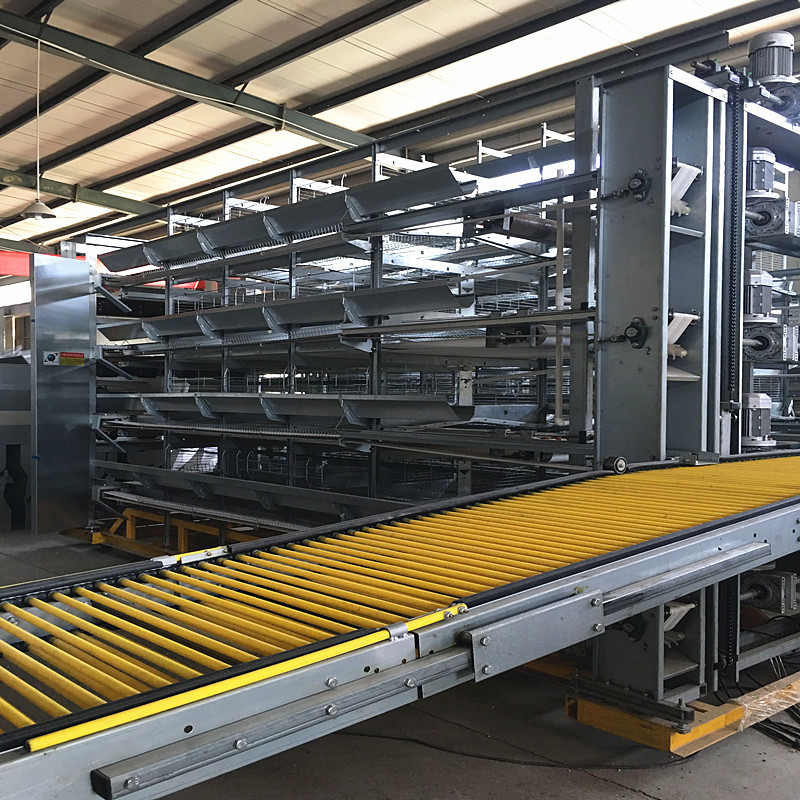

4 Layers 2mm Battery Cage Poultry Egg Collection System ISO9001 Certificated 3


Large Scale Egg Grader:


Item Material Size (mm) Grade Power (KW)
10000pcs/hour grader Stainless Steel 5800X1800X1500 3-6 1.7
20000pcs/hour Stainless Steel 9200X2550X1200 3-6 1.8

4 Layers 2mm Battery Cage Poultry Egg Collection System ISO9001 Certificated 4
