4 Layers 2mm Battery Cage Poultry Egg Collection System ISO9001 Certificated
| Place of Origin | China |
|---|---|
| Brand Name | Silver Star |
| Certification | ISO9001, SONCAP |
| Model Number | YXPEC8 |
| Minimum Order Quantity | 1 Set |
| Price | 1100-2750USD/ Set |
| Packaging Details | Standard exporting packaging |
| Delivery Time | 7-10 working days after advanced payment |
| Payment Terms | T/T, Western Union, D/A, D/P, L/C |
| Supply Ability | 5000 sets/ month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Automatic Egg Collection System Of Battery Cage | Material | Hot Dipped Galvanized Steel Plate |
|---|---|---|---|
| Egg Belt Thickness | 2mm | Power | 380V/ 200V, Or As Clinets' Request |
| Type | Suit For Both H&A Type Layer Chicken Cage | Local Service | Ecuador, Panama, Chile, Paraguay, Uzbekistan, Philippine, Qatar, UAE, Kenya, Ghana, Nigeria, Bangladesh |
| Application | Poultry Farm Egg Laying Hens Chicken Cage Equipment |
Product Description

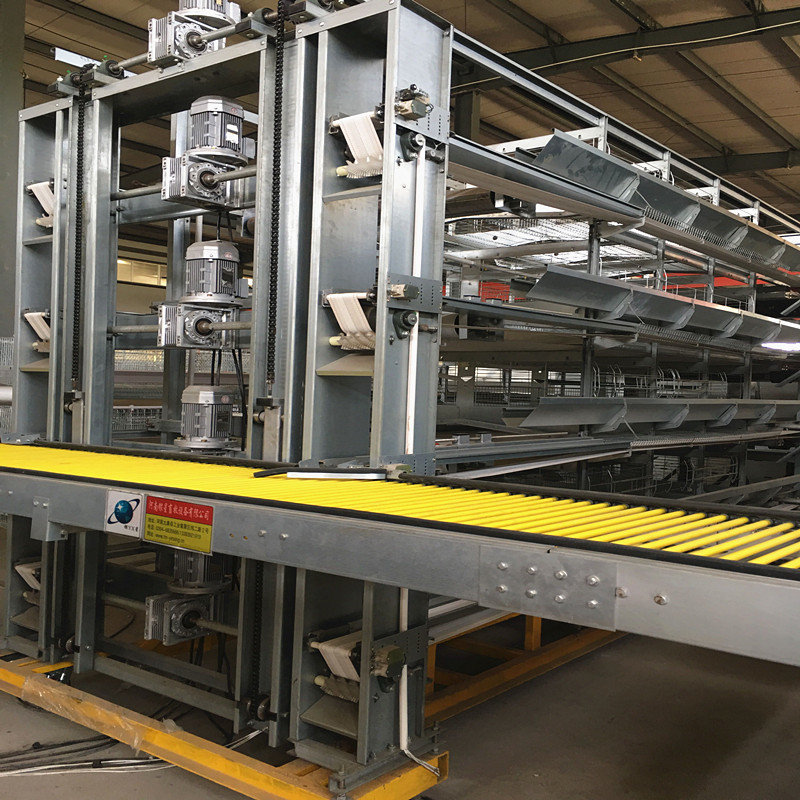

4 Layers Battery Chicken Farm Automatic
Poultry Egg Collection System For H Type Laying Hens Cage
Layer Farming Equipment Use Automatic Egg Collection Machine
Automatic egg collector machine is an important part of the complete set of automatic laying hen breeding equipment, which realizes the automation of egg collection and transmission. It is suitable for large-scale layer breeding on large farms. The system structure design is simple and reasonable, easy to operate, and effectively saves human resources. It is used in conjunction with automatic drinking water system, automatic manure removal system, automatic feeding system, light control system and automatic temperature control system to greatly improve the degree of automation of profitable layer breeding.
| Egg collection machine | Hot-dip galvanized 1.5mm side plate,speed 4m/min. |
| Egg conveying belt | Belt is used for conveeying the eggs to egg collection machine; Imported from Italy; Material is PP woven belt,thickness 2mm,Width 100mm. |
| Clip for egg collecting belt | Material:PVC,4pcs/set,to fasten the egg belt |
| Egg guider | Hot galvanized,1mm thickness,configuration with stretching device. |
Automatic Egg Collecting Machine Advantanges:
1. Automatic egg collecting machine is composed of a base, egg uploading system, a soft broken egg filtration system, egg collecting belt and egg collection belt drive system, front-end collection system, and a power distribution system.
2. Egg collecting machine is assembled with high-strength hot-dip galvanized steel plate, which is designed strictly and has the advantages of large load-bearing capacity and non-deformation of the structure.
3. The composition of the egg conveying system is driven by a Taiwan geared motor with high transmission efficiency, which achieves low loss, high output, low failure rate, long life, and low noise, reducing the impact of noise on chickens and improving egg production.
4. Soft broken egg filtering system: The transmission mechanism of the soft broken egg filtering system adopts chain and sprocket transmission, and the transmission is stable. This system is mainly installed according to the needs of customers, and the soft eggs are leaked into the soft egg tray below. Prevent the egg mucus that is broken during the transportation of soft eggs from sticking to the upload system and contaminate the finished eggs.
5. The egg collection belt drive system is driven by a hollow worm gear reducer with high transmission efficiency, thus ensuring the smooth operation of the egg conveyor belt. The driving roller is made of high-quality rubber, which increases the friction with the conveyor belt and prevents the conveyor belt from slipping and deviation.
Simple Plan Egg Collecting Machine
This simple way of egg collector is our company's patent products, which is suitable for small and medium-sized layer farming, and used for A type 3-tier and 4-tier battery layer chicken cages system.This type of egg collector has the advantages of cheaper price, easy to asemble and operate, labor cost saved.
Egg Grading Machine (Egg Sorter)
Small&Medium Poultry Farm Using Egg Grader :
| Item | Material | Size (mm) | Grade | Power (KW) |
| 4000pcs/hour grader | Carbon Steel/ Stainless Steel | 1700X1450X1000 | 7 | 0.2 |
| 5400pcs/hour grader | Carbon Steel/ Stainless Steel | 2750X1600X1050 | 5 | 0.32 |
Large Scale Egg Grader:
| Item | Material | Size (mm) | Grade | Power (KW) |
| 10000pcs/hour grader | Stainless Steel | 5800X1800X1500 | 3-6 | 1.7 |
| 20000pcs/hour | Stainless Steel | 9200X2550X1200 | 3-6 | 1.8 |
