54-384 Birds/Set Layer Bird Cage , SONCAP Battery System Of Poultry Farming

Place of Origin China
Brand Name Silver Star
Certification SONCAP, ISO9001, SGS
Model Number YXHD4-192
Minimum Order Quantity 50 Units
Price 140-235USD/Unit
Packaging Details exporting standard or as client's request
Delivery Time In 35 days after advanced payment
Payment Terms T/T, Western Union, D/P, D/A, L/C
Supply Ability 25000units/week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Other Name Battery Cage Poultry Farm, Egg Layer Chicken Coop, Layer Battery Cage Type Battery Chicken Cage, H Type, A Type
Material Hot Dip Galvanized, Double Cold Galvanized Usage Poultry Farm Egg Layer Chicken Cage
Characteristic Automatic Feeding System, Automatic Egg Collecting System, Manure Cleaning System, Ventilation System Marketing Type New Product 2021
Application Egg Production Layer Farming Equipment Warranty One Year Guarantee After Installation
Leave a Message
Product Description

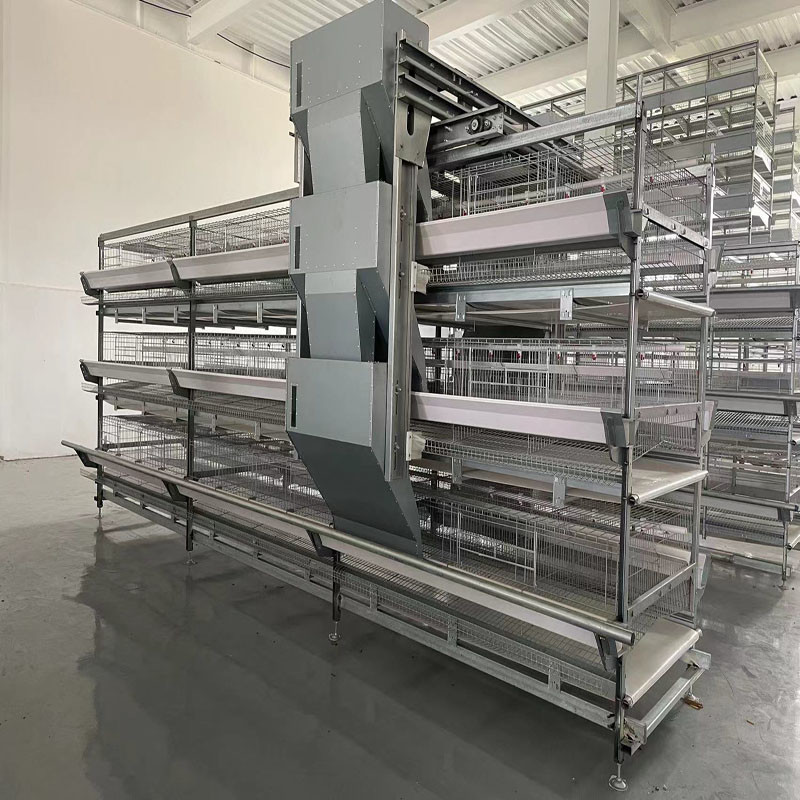

Automatic Layer Egg Chicken Battery Cage Poultry Farm House Design Equipment For Coop Chicken



With more than 30 years’ continuous improvement of equipment and 20 years’ chicken raising experience, Silver Star not only has been the supplier of each cooperative partner, but also their farming consultant. Our experienced team can offer one-site serice, including project design, quality control, installation, after-sales service and farming guidance.



Layer Egg Chicken Battery Cage Product Description



Cage Body

1. Size: 650x625x500mm, 430x500x410mm;

2. Material: Hot dipped galvanized;

3. Feed trough:Zn-Al material. Thickness: 1.0mm.

4. Can be designed into 3, 4, 5, 6, 8, 9, 10 Tiers;

5. Capacity:54-384 birds/set

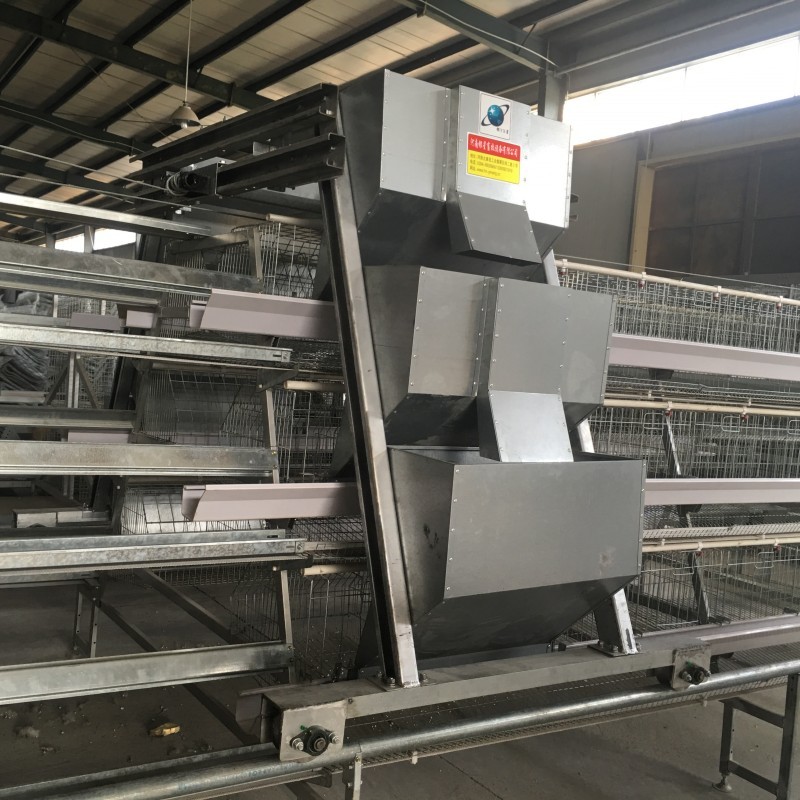

Automatic Feeding Equipment

1. Hopper:Each tier with two hoppers, thickness is 1.2mm, material is hot-dip galvanized steel

2. Traction Device :Power of motor:0.75kw,tow rope: pp rope with 14mm,speed:8.67m/minute.

3. Track of Trolley:Hot-dip galvanized steel with 48mm*2.75mm.

4. Head and end frame:Hot-dip galvanized steel with 40mm*60mm*3mm.

  • Silos
Automatic Drinking Lines

1. Nipple Drinkers

2. Water Pipes

3. Water Pressure regulator

4. Filter

5. Medical pump

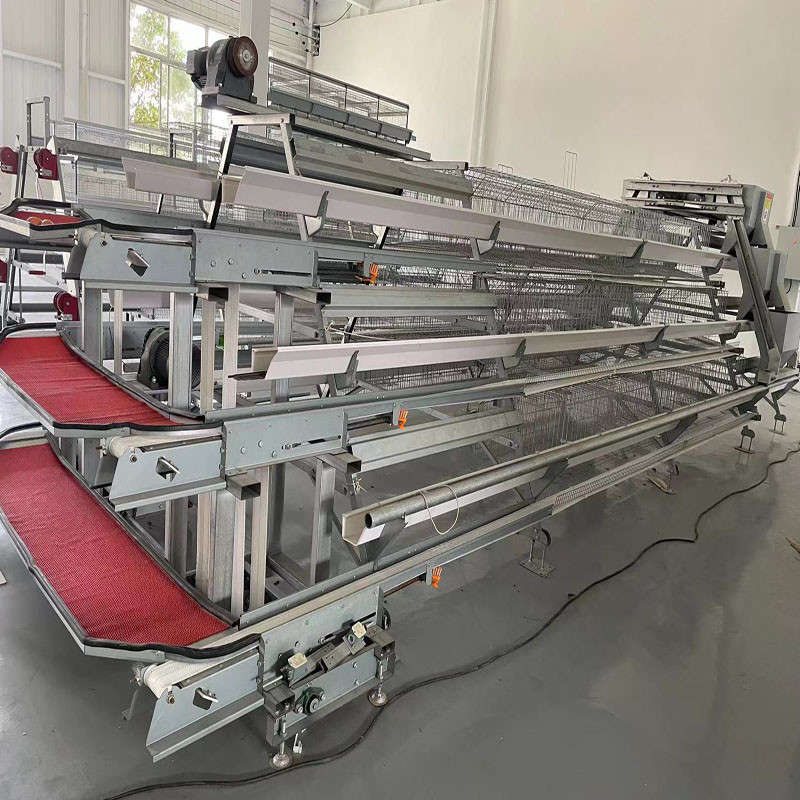

Automatic Egg Collecting System

1. Hot-dip galvanized 1.5mm side plate,speed 4m/min.

2. Egg guider:Hot-dip galvanized with thickness 1mm,configuration with stretching device.

3. Egg belt:100mm width

4. Crosswise egg conveyor

Automatic Manure Remove Machine

1. Belt type manure cleaning machine:Hot-dip galvanized

2. Manure cleaning belt:Material is PP, Thickness is 1.2mm.Width is 1.2m/ 1.25m.

3. Bracket for manure cleaning belt:hot-dip galvanized steel, 1.5mm thickness.

4. Transverse manure conveying



Environmental Controller Fans, cooling pad, air inlets, intelligent controller





Battery Egg Layer Chicken Cage Feature



No. Battery Hens Cage Feature
1 Comfortable and safe feeding environment
2 Higher egg production rate
3 Eggs damaging rate as low as 0.3%
4 Mortality in the whole raising process is only 5%
5 Reasonable area per bird







Battery Layer Egg Chicken Cage Advantages:



1 High land utilization
  • Reasonable high density raising;
  • 3-10 Tiers battery cage.



2

Comfortable and safe feeding environment



  • Uniform trolley feeding system;
  • Deep 'V' Feed trough with inner rim;
  • The stainless steel nipple pipe has two lines;

        Timely and effective manure remove methods.



3 Efficiently Chicken Raising Equipment
  • Hot-dip galvanized material ensures the service life of 25 Years;
  • Lower egg broken rate bottom wire mesh;
  • 50kg/m2 load-bearing bottom wire mesh.







Automatic Egg Layer Chicken Battery Cage Including:



NO. Automatic System
1 Automatic Feeding System
2 Automatic Drinking System
3 Automatic Manure Cleaning System
4 Automatic Egg Collecting System
6 Environmental Control System
7 Prefab Steel Structure



54-384 Birds/Set Layer Bird Cage , SONCAP Battery System Of Poultry Farming 054-384 Birds/Set Layer Bird Cage , SONCAP Battery System Of Poultry Farming 1

54-384 Birds/Set Layer Bird Cage , SONCAP Battery System Of Poultry Farming 2

54-384 Birds/Set Layer Bird Cage , SONCAP Battery System Of Poultry Farming 3



Our Service



1 Get free quote 24 hours design Professional design team to provide you with design solutions with 24 hours.
2 15-30 days production Produces layer egg chicken battery cage only 15-30 days
3 45 Days installation Our engineers did the work include construction and installation,site testing and instructing.
4 365 Days first-class service

We are always happy to support you with technical,farming and emergencies questions.
