Galvanized 3-10Tiers H Type Layer Cage , 384 Chicken Egg Laying Cages

Place of Origin China
Brand Name Silver Star
Certification ISO9001, SGS
Model Number HNYXD5-240
Minimum Order Quantity 50 Sets
Price 140-245USD/SET
Packaging Details LCL: Wooden Box Packaging Way; FCL: Standard exporting packages
Delivery Time 15-35 working days after advanced payment
Payment Terms T/T, Western Union, D/A, D/P, L/C
Supply Ability 80000sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Name Battery Chicken Cage, Layer Poultry Cage Floors 3, 4, 5, 6, 8, 9, 10 Tiers
Type H Type Battery Cage System Material Q235 Bridge Steel
Surface Process Hot Dipped Galvanizing Usage Layer Farming Equipment
Function Automatic Feeding Machine, Automatic Egg Collecting Machine, Automatic Manure Cleaning System Guarantee One Year After Installation
Application Hens Cage, Egg Layer Chicken Cage, Battery Cage For Layers, Poultry Cage
Leave a Message
Product Description

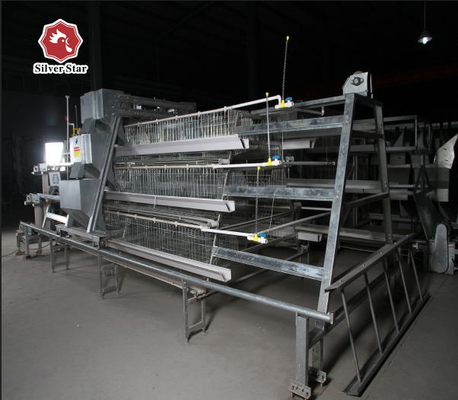

Full Automatic H Type Chicken Battery Layer Poultry Cage For Laying Hen Farming Equipment


H Type Chicken Battery Layer Poultry Cage Quick Details:


1. Full automated design;

2. Hot Dipped Galvanized After Welding Processing, Zinc thickness: 275g/㎡

3. Apply for over 20000 hens capacity for one house of H type battery cage;

4. 4-Tier and 5-tier of h type chicken cage is more popular .



H Type Battery Chicken Cage Advantages:


1. The environment of chicken house is controllable, which is conducive to the physiological and production needs of chicken.

2. Automatic drinking, feeding, manure cleaning, eggs collecting, saving manpower, reducing raising cost, multi-layer cage saves more space than floor raising, high land utilization rate, saving chicken house construction and land cost.

3. Due to the good isolation between the close chicken house and the outside , the chance of cross contamination of chickens will be greatly reduced, which is conducive to the prevention and control of epidemic diseases, and save the cost of epidemic prevention.



H Type Chicken Layer Poultry Cage Technical Parameters:


Cage Body

1. Size: 650x625x500mm, 430x500x410mm;

2. Material: Hot dipped galvanized;

3. Feed trough:Zn-Al material. Thickness: 1.0mm.

4. Can be designed into 3, 4, 5, 6, 8, 9, 10 Tiers;

5. Capacity:54-384 birds/set

Automatic Hopper Feeding Machine Equipment

1. Hopper:Each tier with two hoppers, thickness is 1.2mm, material is hot-dip galvanized steel

2. Traction Device :Power of motor:0.75kw,tow rope: pp rope with 14mm,speed:8.67m/minute.

3. Track of Trolley:Hot-dip galvanized steel with 48mm*2.75mm.

4. Head and end frame:Hot-dip galvanized steel with 40mm*60mm*3mm.

  • Silos
Automatic Drinking System

1. Nipple Drinkers

2. Water Pipes

3. Water Pressure regulator

4. Filter

5. Medical pump

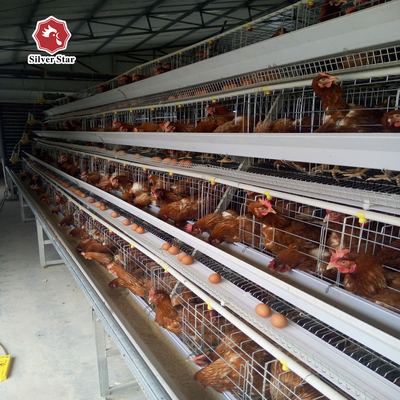

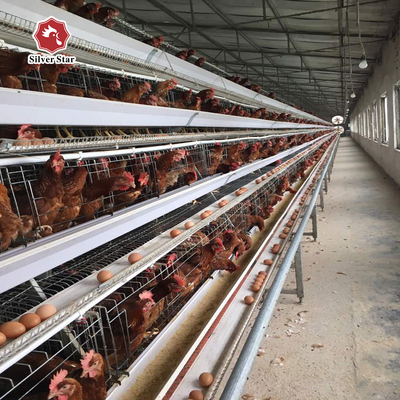

Automatic Egg Collecting Machine

1. Hot-dip galvanized 1.5mm side plate,speed 4m/min.

2. Egg guider:Hot-dip galvanized with thickness 1mm,configuration with stretching device.

3. Egg belt:100mm width

4. Crosswise egg conveyor

Automatic Poultry Manure Removal Machine

1. Belt type manure cleaning machine:Hot-dip galvanized

2. Manure cleaning belt:Material is PP, Thickness is 1.2mm.Width is 1.2m/ 1.25m.

3. Bracket for manure cleaning belt:hot-dip galvanized steel, 1.5mm thickness.

4. Transverse manure conveying


Environmental Controller Fans, cooling pad, air inlets, intelligent controller

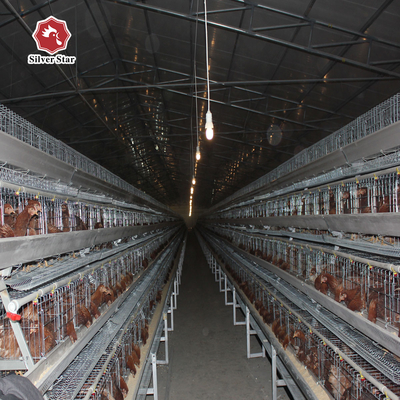

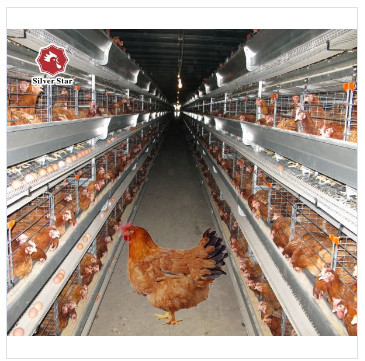

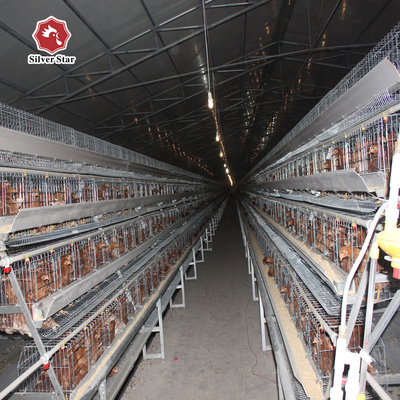

H Type Battery Chicken Layer Poultry Cage Application:

Silver Star H type battery chicken cage is one of layer farming equipments widely used for chicken eggs production.

For example the follwing cases:

House Size/m Cage Plans Birds Qty/House
100X6.5X4 4-Tier, 2Lines 20016 Birds
100X9.5X4 4-Tier, 3Lines 30024 Birds
100X12X4 4-Tier, 4 Lines 40032 Birds
100X12X4.5 5-Tier, 4 Lines 50040 Birds
100X15X4.5 5-Tier, 5Lines 62550 Birds
