Layer Chicken Egg Cage Battery Cages For Farm 3 Tiers 4 Tiers
Product Details
3 Tiers Battery Chicken Cage
,Farm Battery Chicken Cage
3 Tiers 4 Tiers Layer Chicken Egg Cage Battery Cages For Chicken Farm
Product Description
1. A type battery layer chicken cage
2. 3tiers, 4tiers,5 tiers
3:Q235 double hot galvanized anti-corrosion
4:Q235 national standard double hot galvanized bridge steel cage,hot galvanized steel feed trough,ball type automatic water equipment ,white PVC pipe ,3MM U type galvanized steel shelves,closed-end pressure-reducer;Al-Zn material feeding system,AL-Zn material manure cleaning system,ventilation system,lighting system,environment controlling system and so on.
A Type Layer Chicken Cage Including
1: Cage with drinking system (Basic configuration, manual)

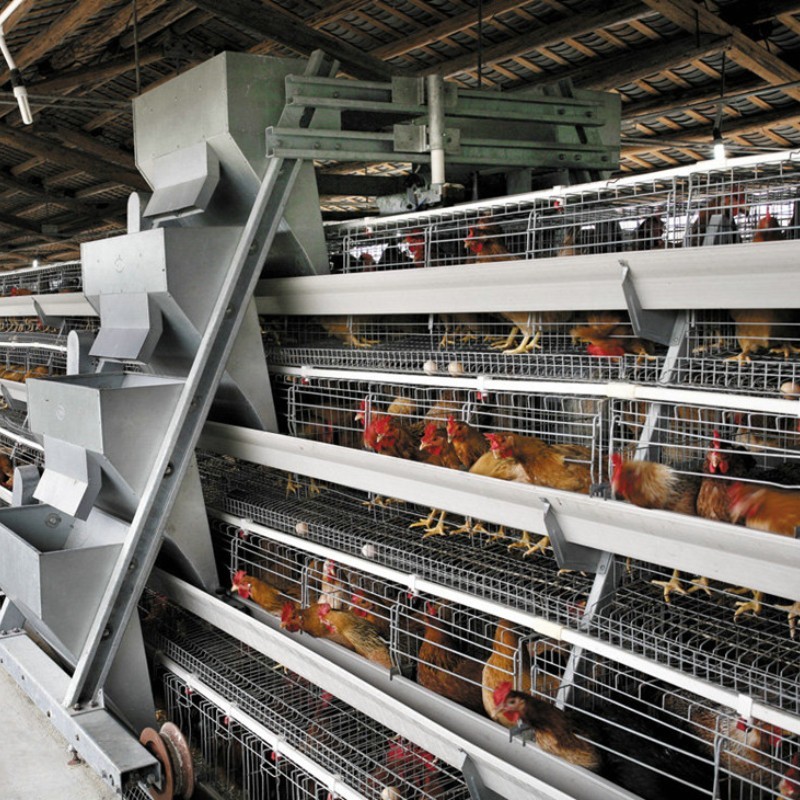

2: Automatic feeding system (Not mandatory option)
3: Automatic drinking system (Not mandatory option)
4: Automatic manure cleaning system (we have two types, Belt type and scraper type ) (Not mandatory option)
5: Automatic ventilation cooling system (Close house need it, Open house don't need it)
A Type Layer Chicken Cage Advantage
1.A Type Layer Chicken Cage can be designed both open and close house all over the world.
2.It is more suitable to be used in tropical zone such as Africa,Southeast Asia and South Asia Countries.
3.Ventilation performance is better than H type.
4.Economical and practical
A Type Layer Chicken Cage Size
| A Type 3 Tiers Layer Cage | ||||||
| Model | Capacity | Cage Size | Cell Size | Cell Capacity | Door | Qty/20ft container |
| 1 | 90birds | 195x230x150cm | 39x38x38cm | 3birds/cell | 5doors | 110sets |
| 2 | 96birds | 195x230x150cm | 48.7x38x38cm | 4birds/cell | 4doors | 110sets |
| 3 | 96birds | 172x230x160cm | 43x41x41cm | 4birds/cell | 4doors | 105sets |
| 4 | 120 birds | 195x230x160cm | 39x41x41cm | 4birds/cell | 5doors | 105sets |
| 5 | 120 birds | 195x236x160cm | 39x45x41cm | 4birds/cell | 5cells | 85sets |
| 6 | 120birds | 215x230x160cm | 43x41x41cm | 4birds/cell | 5cells | 100sets |
| A Type 4 Tiers Layer Cage | ||||||
| Model | Capacity | Cage Size | Cell Size | Cell Capacity | Door | Qty/20ft container |
| 1 | 120birds | 195x230x190cm | 39x38x38cm | 3birds/cell | 5doors | 80sets |
| 2 | 128birds | 195x230x190cm | 48.7x38x38cm | 4birds/cell | 4doors | 80sets |
| 3 | 128birds | 172x230x200cm | 43x41x41cm | 4birds/cell | 4doors | 78sets |
| 4 | 160 birds | 195x230x200cm | 39x41x41cm | 4birds/cell | 5doors | 78sets |
| 5 | 160 birds | 195x236x200cm | 39x45x41cm | 4birds/cell | 5cells | 65sets |
| 6 | 160birds | 215x230x200cm | 43x41x41cm | 4birds/cell | 5cells | 75sets |
-
