4 Tiers Battery Poultry Layer Chicken Cage Q235A H Frame Style Fully Auto
Product Details
Q235A Battery Chicken Cage
,H Frame Battery Chicken Cage

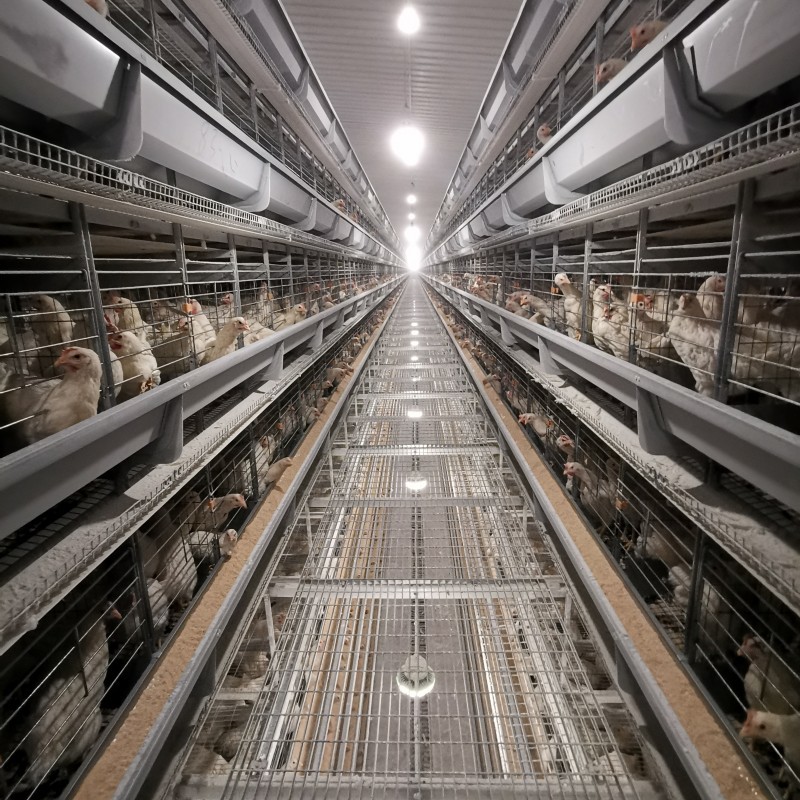

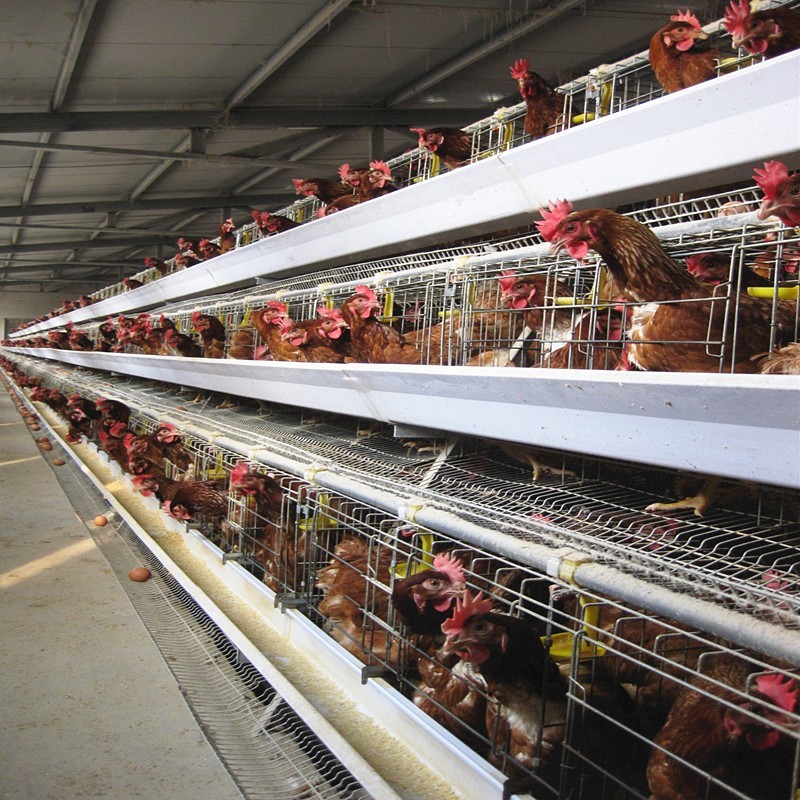

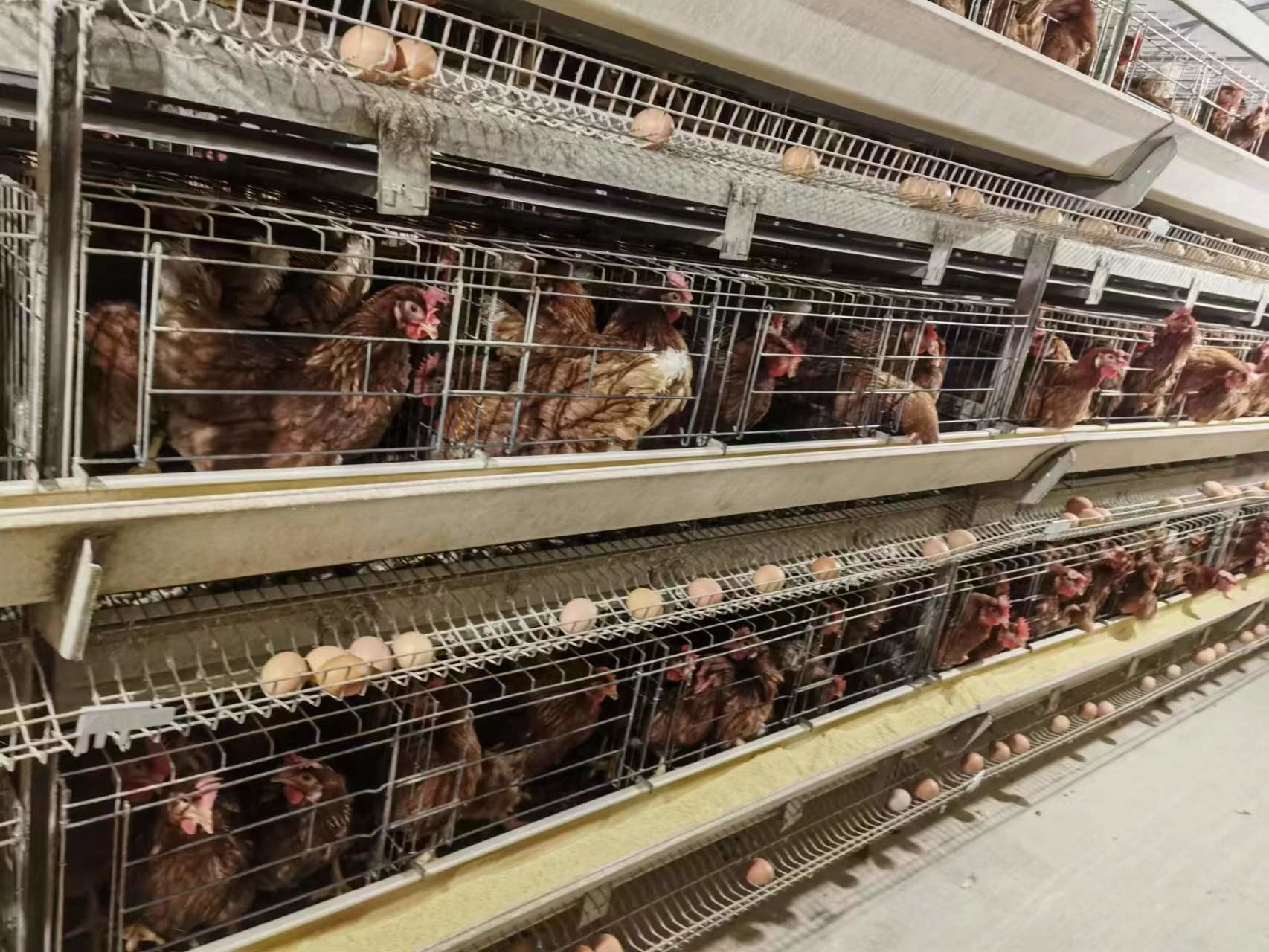

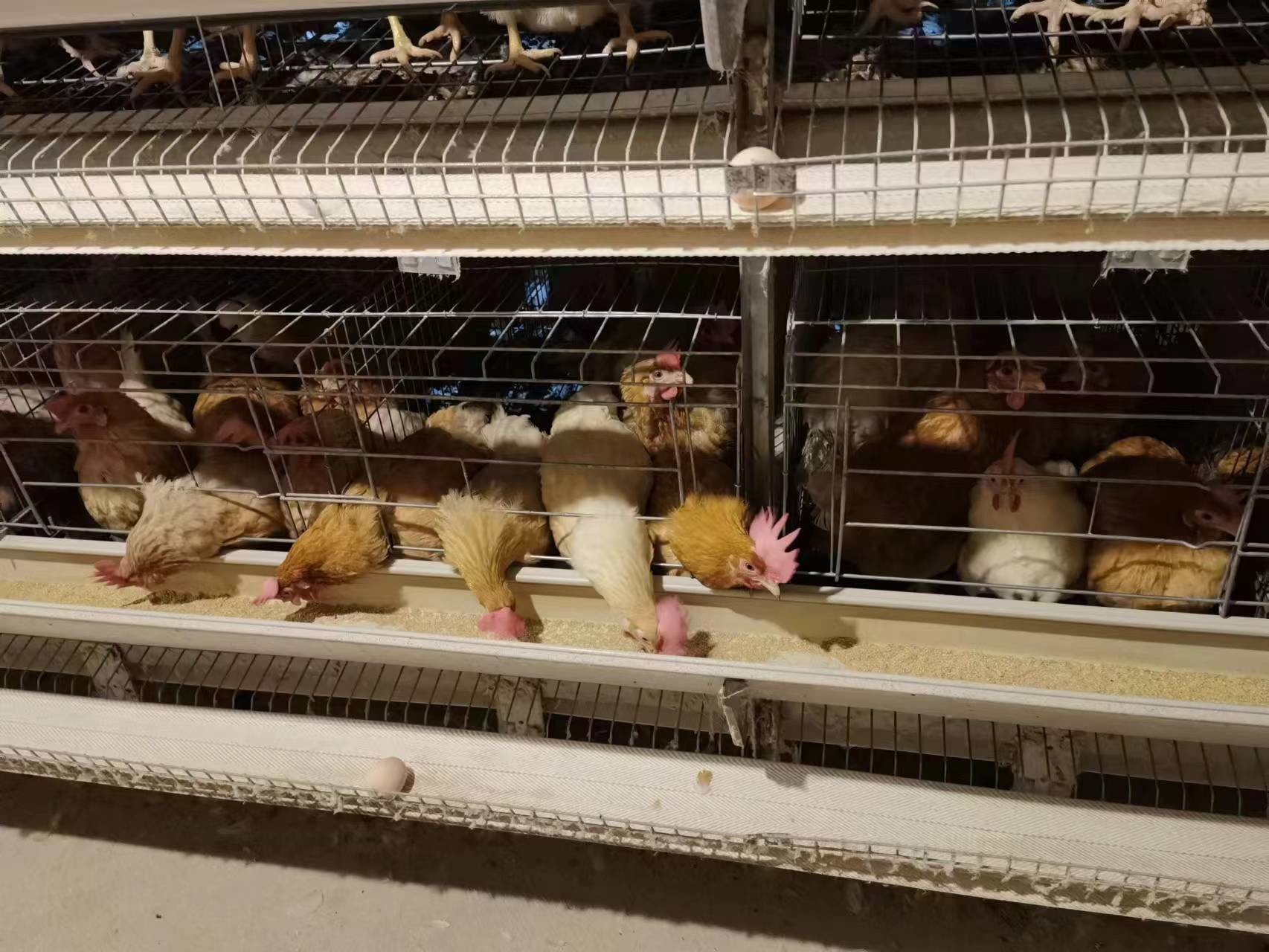

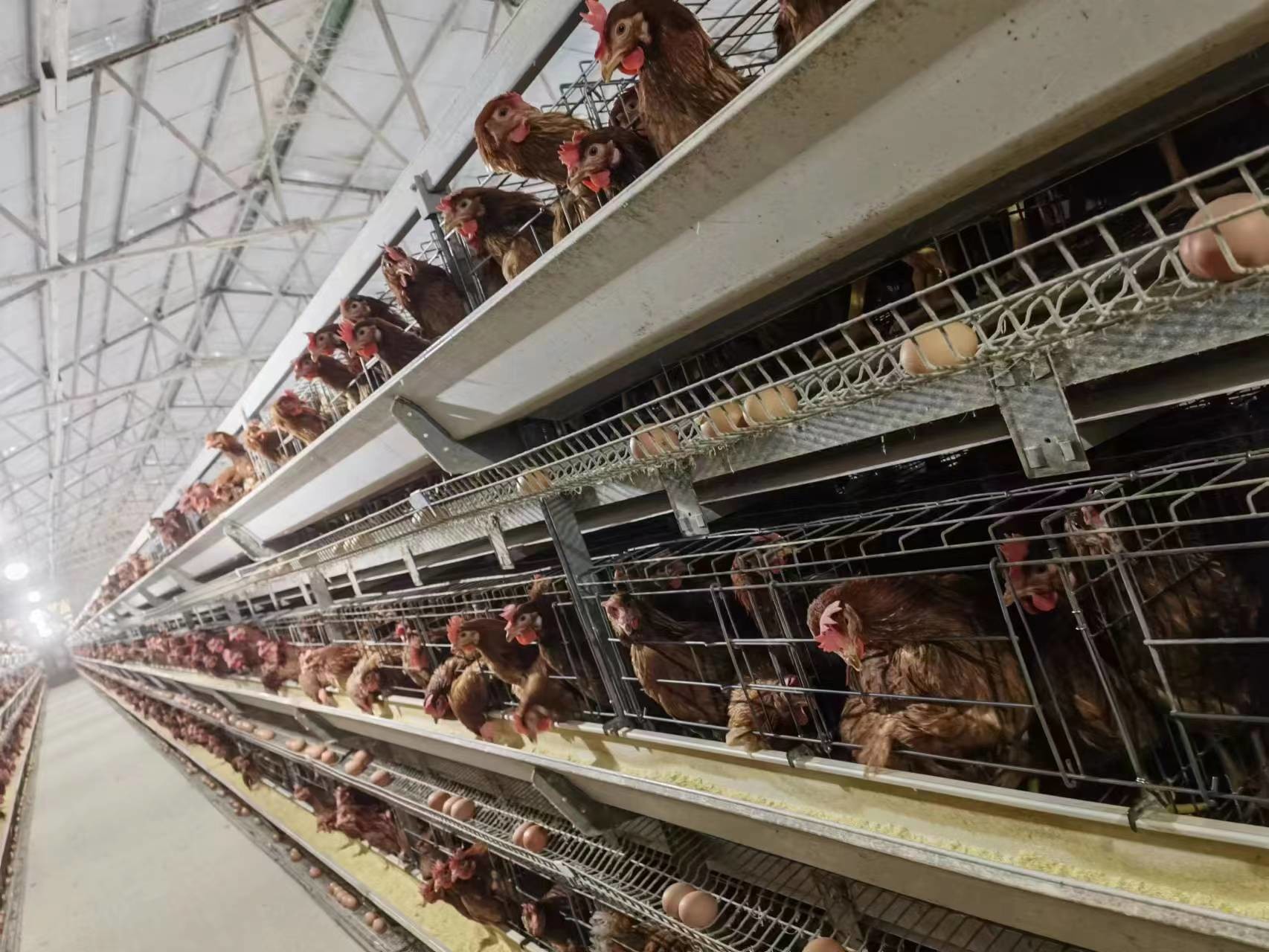

4 Tiers H Frame Style Fully Auto Battery Poultry Layer Chicken Cage
Product Description

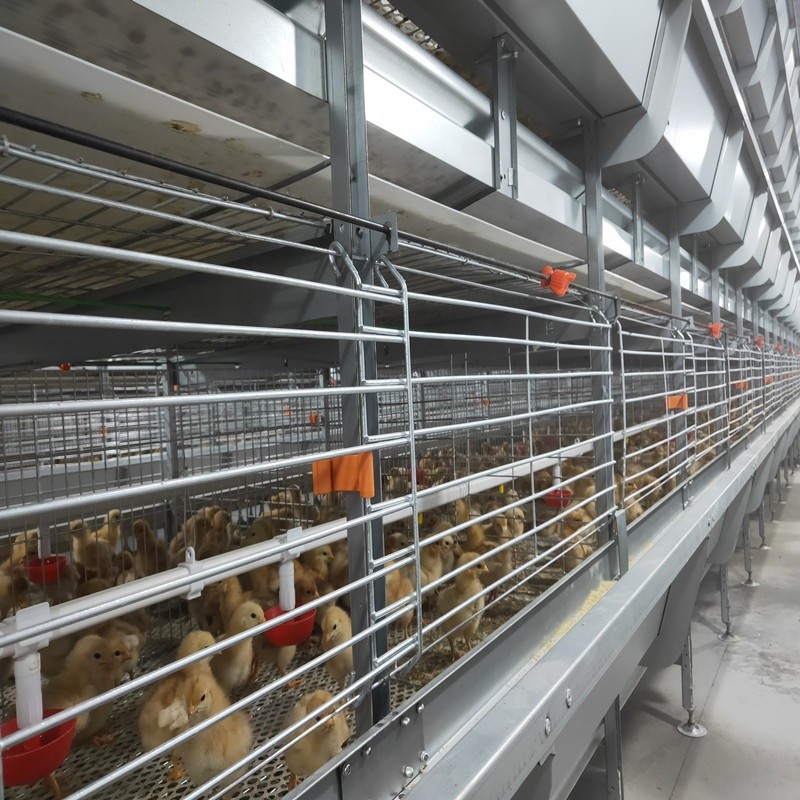

1. H type battery pullet/ cage
2. 3tiers, 4tiers,5 tiers, 6tiers, 8tiers
3:Q235 double hot galvanized anti-corrosion
4:Q235 national standard double hot galvanized bridge steel cage,hot galvanized steel feed trough,ball type automatic water equipment ,white PVC pipe ,3MM U type galvanized steel shelves,closed-end pressure-reducer;Al-Zn material feeding system,AL-Zn material manure cleaning system,ventilation system,lighting system,environment controlling system and so on.
H Type Laying Hens Cage Size
| H Type Laying Hens Cage | |||||||
| Cage size | Door No. /cage | Chicken No. /door | No. of tiers | Birds qty/set | Area per bird (cm2/bird) | Each door Size(mm) | Unit Cage Size(mm) |
| 1800*500*430 | 4 | 5 | 3 | 120 | 450 | 450x500x430 | 1800x1000x2140 |
| 1800*500*430 | 4 | 5 | 4 | 160 | 450 | 450x500x430 | 1800x1000x2790 |
| 1800*600*430 | 4 | 6 | 3 | 144 | 450 | 450x600x430 | 1800x1200x2140 |
| 1800*600*430 | 4 | 6 | 4 | 192 | 450 | 450x600x430 | 1800x1200x2790 |
| 1800*600*430 | 4 | 6 | 5 | 240 | 450 | 450x600x430 | 1800x1200x3440 |
| 1800*600*430 | 4 | 6 | 6 | 288 | 450 | 450x600x430 | 1800x1200x4090 |
| 1800*600*430 | 4 | 6 | 8 | 384 | 450 | 450x600x430 | 1800x1200x5390 |
| 650*625*500 | 1 | 9 | 3 | 54 | 450 | 650x625x500 | 650x1250x2220 |
| 650*625*500 | 1 | 9 | 4 | 72 | 450 | 650x625x500 | 650x1250x2870 |
| 650*625*500 | 1 | 9 | 5 | 90 | 450 | 650x625x500 | 650x1250x3520 |
| 650*625*500 | 1 | 9 | 6 | 108 | 450 | 650x625x500 | 650x1250x4170 |
| 650*625*500 | 1 | 9 | 8 | 144 | 450 | 650x625x500 | 650x1250x5470 |

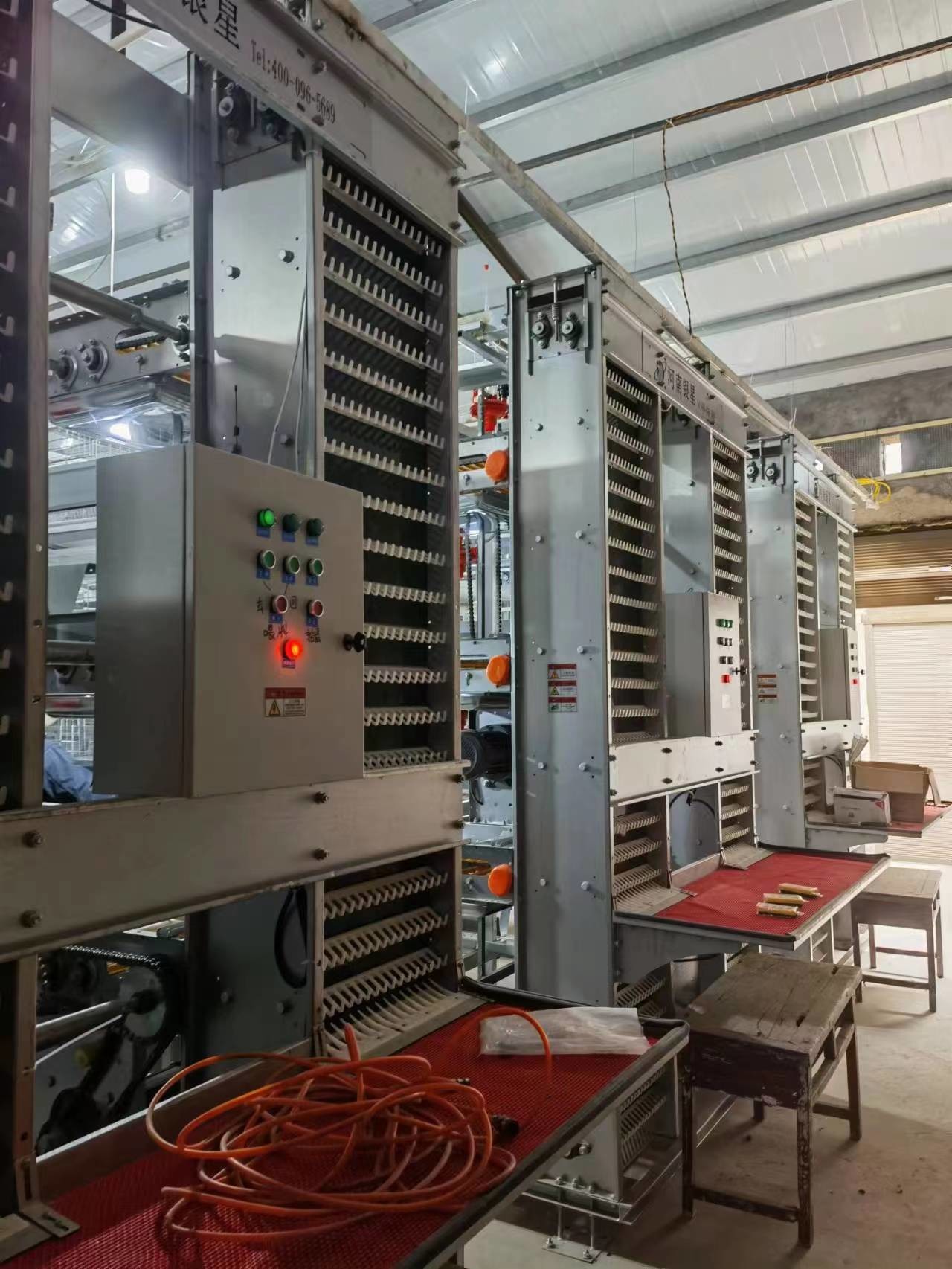

| Full sets including laying chicken hens cage body, automatic hopper feeding system, automatic drinking system, automatic manure removal system, automatic egg collecting system, ventilation system, lighting system, environmental control system | |||||||
Service
Professional after-sales team
1.We have 30 years of experience in professional design drawing team, and we are committed to product development and upgrading all year round. We can provide design drawings for free, and can design the scheme according to the requirements of different customers.
2.We have professional installation team with many years of foreign installation experience, After you ordered chicken poultry equipment, we can go to your country to provide guidance for installation until your equipment is in normal operation. We will visit our customers every year, which can better solve the problems encountered by customers in use
-
