5000 Birds Broiler Poultry Cage Farm Hot Dip Galvanized Battery H Frame Farm Chicken
Product Details
5000 Birds Broiler Poultry Cage
,Farm Chicken Broiler Poultry Cage
5000 Birds Broiler Poultry Farm Hot Dip Galvanized Automatic Battery H Frame Poultry Farm Chicken Cage
Product Features
1. Broiler cage adopts high quality 275g/m2 zinc layer hot-dip galvanized steel or Zn-Al steel, which is corrosion-resistant and high product precision. Battery cage net is welded with hot-dip galvanized wire with 275g/m2 coating, smooth surface, long life service;
2. Chicken manure is completely separated from the chickens to ensure that they are clean and tidy, reduce the incidence of diseases, and increase the survival rate of the chickens;
3. Feeding on one side and catching birds on both sides. Large cage door design is adopted facilitate the implementation of immunization and reduce the stress response of broiler. Catching birds on both sides is easy to harvest chickens;
4. Compared with flat or floor system rearing, the unit area can increase the feeding amount by more than 50%;

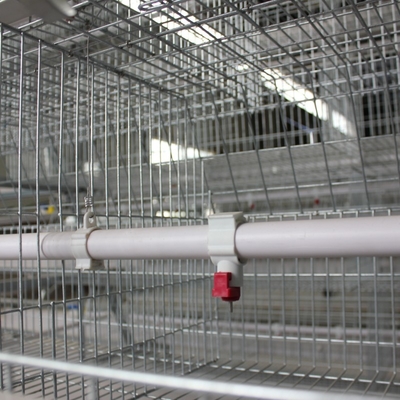

5. The nipple drinking line makes water drinking more convenient, clean and hygienic,which is suitable for drinking water epidemic prevention, with a dosing pump and a pressure reducing valve at the front end;
6. High production efficiency
Product Description

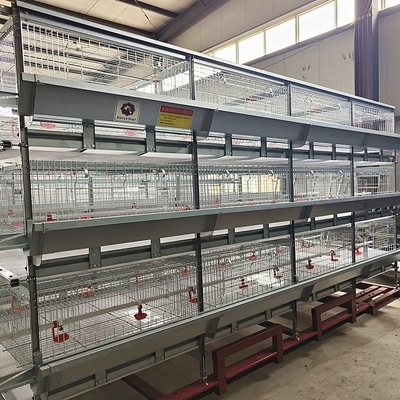

1. H type battery pullet/broiler cage
2. 3tiers, 4tiers,5 tiers, 6tiers, 8tiers
3:Q235 double hot galvanized anti-corrosion

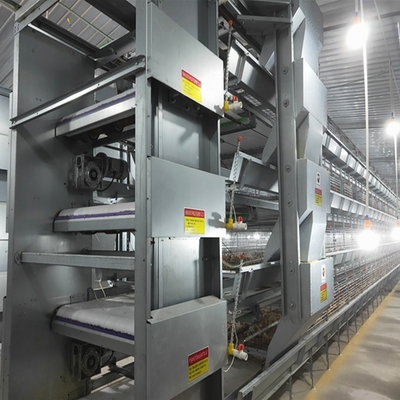

4:Q235 national standard double hot galvanized bridge steel cage,hot galvanized steel feed trough,ball type automatic water equipment ,white PVC pipe ,3MM U type galvanized steel shelves,closed-end pressure-reducer;Al-Zn material feeding system,AL-Zn material manure cleaning system,ventilation system,lighting system,environment controlling system and so on.
H Type Broiler Battery Cage Size
| H Type Broiler Battery Cage | |||
| Tier/ Floors | Cell Size/ cm | Cage Size/ cm | Birds Qty |
| 3 | 100x100x44 | 100x100x220 | 60 |
| 4 | 100x100x44 | 100x100x285 | 80 |
| 3 | 100x150x44 | 100x150x220 | 90 |
| 4 | 100x150x44 | 100x150x285 | 120 |
| 3 | 148x175x44 | 148x175x280 | 144 |
| 4 | 148x175x44 | 148x175x360 | 192 |
-
