H Frame Layer Poultry Battery Cage With Belt Or Scraper Manure Removal System
| Place of Origin | China |
|---|---|
| Brand Name | Silver Star |
| Certification | ISO9001:2008, SONCAP |
| Model Number | YXA4L160 |
| Minimum Order Quantity | 50 Sets |
| Price | 105-245USD/Set |
| Packaging Details | standard exporting or as client's request |
| Delivery Time | In 15 days after advanced payment |
| Payment Terms | T/T, Western Union, D/P, D/A, L/C |
| Supply Ability | 80000sets/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Battery Poultry Layer Chicken Cage With Belt Or Scraper Manure Removal System | Cage Type | A Or H Frame Battery Layer Cage |
|---|---|---|---|
| Material | Q235 Bridge Steel, No Deformation | Wire Mesh Process | Hot-dip Galvanizing After Welding Process |
| Manure Removal | Belt Or Scraper Manure Cleaning System | Cage Size | 1950x38x38cm, 1950x41x41cm |
| Feeders | PVC Or Hot Galvanized Steel Sheet | Accessories | Feed Trough, Nipple Drinkers, Water Tubes, Filter, Dosarton, Regulator |
| Feature | Automatic Feeding, Automatic Egg Collection, Automated Manure Removal | Application | Poultry Layer Chicken Farming Breeding Equipment |
| High Light | H Frame Layer Poultry Battery Cage,Layer Poultry Battery Cage With Belt |
||
Product Description

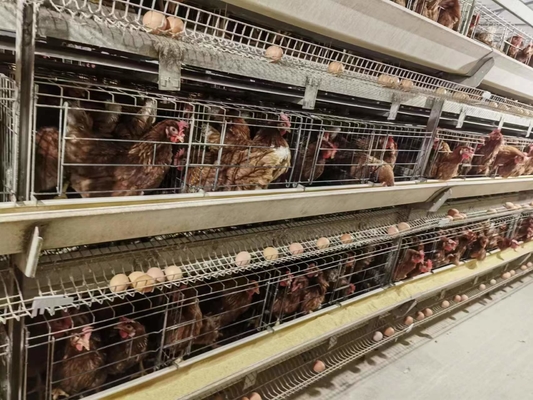

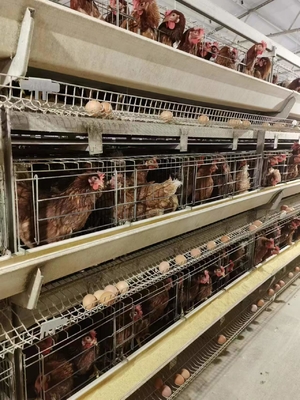

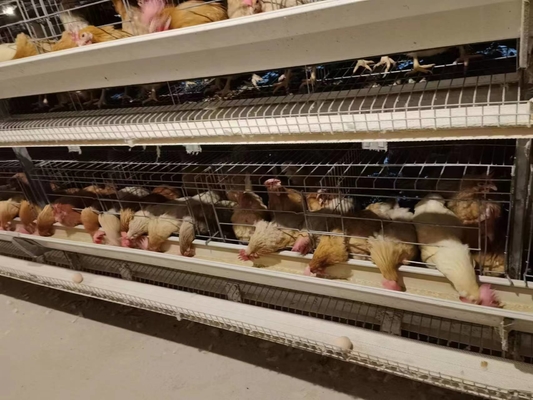

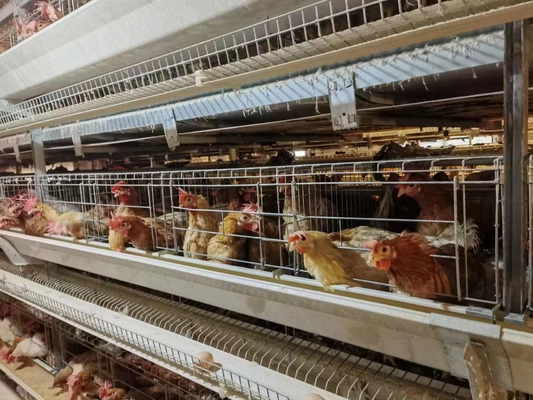

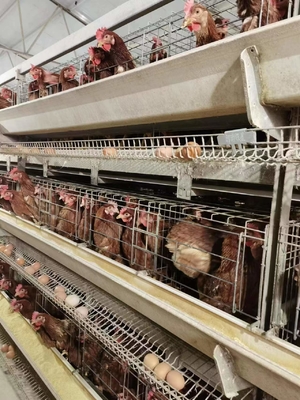

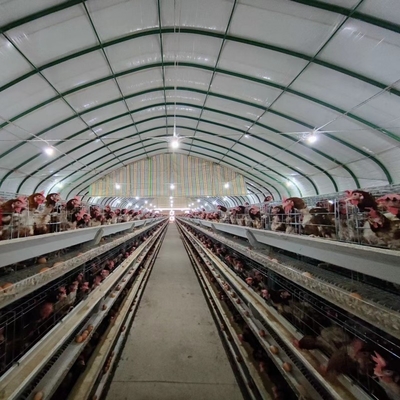

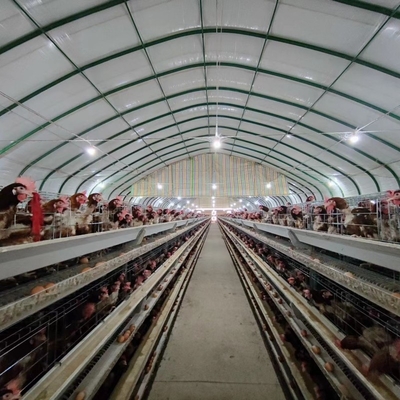

Battery Poultry Layer Chicken Cage
With Belt Or Scraper Manure Removal System
A type/frame battery poultry layer chicken cage has two ways of manure cleaning system:one is belt manure removal system, which can transfer the waste directly onto the truck; another one is scraper manure removal system with one drive one scraper, one drive two scraper, and one drive three scraper three modes.
Both ways have their own advantages: belt manure cleaner makes the house not bad smell; scraper remover much cheaper cost and easy operation.
Layer Chicken Poultry Battery Cage Dimension
| A Frame Poultry Layer Chicken Cage | |||||||
| Model | Each Door Length(mm) | Each Door Depth(mm) | Each Door Height(mm) | Unit Cage Dimension(mm) | Doors/Set | Birds/Door | Birds Qty/Set |
| A3L90 | 430 | 380 | 380 | 1950x2080x1500 | 5 | 3 | 90 |
| A4L120 | 430 | 380 | 380 | 1950x2180x1980 | 5 | 3 | 120 |
| A3L96 | 487.5 | 380 | 380 | 1950x2080x1500 | 4 | 4 | 96 |
| A4L128 | 487.5 | 380 | 380 | 1950x2180x1980 | 4 | 4 | 128 |
| A3L96 | 430 | 410 | 410 | 1950x2080x1600 | 4 | 4 | 96 |
| A4L128 | 430 | 410 | 410 | 1950x2180x2030 | 4 | 4 | 128 |
| A3L120 | 430 | 410 | 410 | 2150x2080x1600 | 5 | 4 | 120 |
| A4L160 | 430 | 410 | 410 | 2150x2180x2030 | 5 | 4 | 160 |
| A3L120 | 390 | 450 | 410 | 1950x2230x1600 | 5 | 4 | 120 |
| A4L160 | 390 | 450 | 410 | 1950x2300x2080 | 5 | 4 | 160 |
Poultry Layer Battery Cage Advantages:
1. Greater number of birds is reared per unit of area.
2. Facilities correct maintenance of records.
3. It helps in identifying poor producers and prompt cullings.
4. Automatic system can save work labor.
5. Control of poultry cannibalism and egg eating.
6. It helps in production of clean eggs because the Egg conveyor system can deliver all eggs from different houses to egg storage room.
7. Removal of stress factors.
8. Prompt walking steps to control feed wastage.
9. The cage method is ideal for the area of moderated climate conditions where the day temperature in summer is not high
Why Choose Chicken Layer Cages In Poultry Eggs Production:
1. Reduce feed wastage and maximize productivity in laying eggs production
2. Increased production
3. Better overall management of flock
4. Save on labour costs
5. Zero accidental mortalities
6. More effective management of poultry waste
7. Battery layer chicken cages are reusable
Our Service
| 1 | Get free quote 24 hours design | Professional design team to provide you with design solutions with 24 hours. |
| 2 | 15-30 days production | Produces layer egg chicken battery cage only 15-30 days |
| 3 | 45 Days installation | Our engineers did the work include construction and installation,site testing and instructing. |
| 4 | 365 Days first-class service |
We are always happy to support you with technical,farming and emergencies questions.
|
