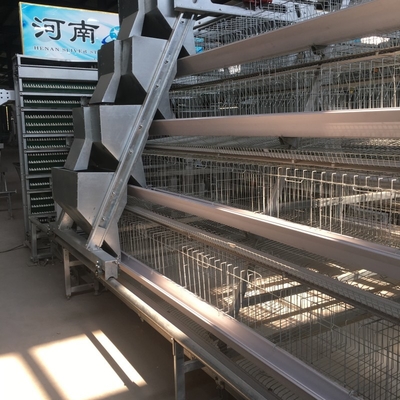

Full Automatic Battery Chicken Cage Hot Dip Galvanized Wire 3-4 Layers

Place of Origin Henan City
Brand Name Henan Silver Star
Certification ISO9001,SGS, SONCAP
Model Number A3L-120, A4L-160
Minimum Order Quantity 10 Set
Price $140
Packaging Details Wooden Case or Load in container
Delivery Time 15-30days
Payment Terms T/T, L/C, Western Union, Cash
Supply Ability 5000 Set/ Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Anti-corrosion Treatment Yes Capacity 90-160 Chickens
Number Of Doors 3-4 Number Of Layers 3-4
Size Standard Number Of Drinker 1-2
Name Battery Chicken Cage Automatic Egg Collecting System Yes
High Light

Full Automatic poultry layer cage


Galvanized Wire 4Layers battery chicken cage


Hot Dip Galvanized poultry layer cage

Leave a Message
Product Description

Product Description:

Battery Chicken Cages are designed to provide maximum comfort and convenience for chickens, while ensuring their safety and wellbeing. Our Battery Chicken Cage is equipped with an Automatic Feeding System that ensures timely and sufficient food supply for the poultry. The cage is designed with a Standard Size that is suitable for many chicken breeds. It further features 3-4 Doors, allowing easy access for poultry. The cage has a Capacity of up to 90-160 Chickens, making it an ideal choice for medium and large farms. Moreover, the Battery Chicken Cage is equipped with a Ventilation System to maintain a healthy and comfortable environment for the birds.



1. The mesh is smooth to prevent foot infections from injured chickens.

2. Encryption of the partition net and the bottom net can effectively prevent the fatigue syndrome of pecking feathers and anus and laying hens.

3. The mesh is galvanized to increase the service life. (Currently galvanizing is divided into cold galvanized, hot-dip galvanized wire, and hot galvanizing )

4. High-density breeding saves land, is conducive to epidemic prevention and reduces the incidence of poultry diseases.

5. The unique large door reinforcement design effectively prevents the chickens from shaking their heads and wasting feed when they eat. The space of the cage door is enlarged, which is convenient for various operations of the chicken.

6. Expansibility: It can be adjusted appropriately according to the size of the venue, and automatic drinking water system can be matched;

7. The chicken manure conveyor belt is installed at the bottom, which effectively solves the pollution in the chicken house, and directly transports the manure to the outdoors, reducing manual input.

Technical Parameters:

(1)A type automatic broiler battery chicken cage
(3)Q235 double cold galvanized anti-corrosion
(4)Q235 national standard double cold galvanized bridge steel cage,

(5)white PVC feed trough,

(6)ball type automatic water equipment ,

(7)white PVC pipe ,

(8)3MM U type galvanized steel shelves,

(9)closed-end pressure-reducer;

(10)Al-Zn material feeding system,

(11)AL-Zn material manure cleaning system,

(12)ventilation system,lighting system,
(13)environment contronlling system.


A Type Layer Chicken Cage
Cage size/cm Door No. /cage Chicken No. /door No. of tier Birds Qty/set Area per bird (cm2/bird) Each door size(cm) Unit cage size(cm)
195*38*38 5 3 3 90 494 39x38x38 195x230x150
195*38*38 5 3 4 120 494 39x38x38 195x230x190
195*41*41 5 4 3 90 533 39x41x41 195x230x160
195*41*41 5 4 4 120 533 39x41x41 195x230x200
195*41*41 4 4 3 96 499 48.7x41x41 195x230x160
195*41*41 4 4 4 128 499 48.7x41x41 195x230x200
195*45*41 5 4 3 120 438 39x45x41 195x236x160
195*45*41 5 4 4 160 438 39x45x41 195x236x200
172x41x41 4 4 3 96 440 43x41x41 172x230x160
172x41x41 4 4 4 128 440 43x41x41 172x230x200
215x41x41 5 4 3 120 440 43x41x41 215x230x160
215x41x41 5 4 4 160 440 43x41x41 215x230x200
215x45x41 5 4 3 120 484 43x45x41 215x236x160
215x45x41 5 4 4 160 484 43x45x41 215x236x200
Full equipment Layer chicken cage body, Automatic feeding machine, automatic drinking system, automatic egg collection and automatic manure cleaning system


Support and Services:

Battery Chicken Cage Technical Support and Service

Our technical support team is available to provide support and troubleshooting for Battery Chicken Cage. We can provide help with setup, advice on maintenance, and answer any questions you may have.

Installation and Maintenance

We can provide installation and maintenance services for your Battery Chicken Cage. Our team can help you set up the cage and ensure it is operating correctly, as well as provide ongoing maintenance and repairs.

Consultation and Advice

Our team can provide advice and consultation on how to get the most out of your Battery Chicken Cage. We can help you with advice on the best practices for housing and feeding your chickens, as well as answer any questions you may have about the cage.
