Poultry Farming Automatic Layer Chicken Cage With Feeder And Drinker System

Place of Origin China
Brand Name Silverstar
Certification SGS, ISO9001, CE, SONCAP
Model Number H3L144,H4L192,H5L240, H8L384
Minimum Order Quantity 30 Set
Price $140/ Set
Packaging Details FCL: Standard Export Sea Worthy Packaging LCL: Wooden Case Package
Delivery Time 15-30 days
Payment Terms L/C, Western Union, T/T, MoneyGram
Supply Ability 2000 Set / Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Product Name Poultry Farming Automatic Layer Egg Chicken Cage With Automatic Feeder And Drinker System Condition New
Material Q235A Hot Dipped Galvanized Steel Wire Cage Size 1800x1200x2140mm, 1800x1200x2790mm
Capacity 54 To 384 Birds/ Set Warranty 1 Year
Life Span More Than 20 Years Application Chicken Farm
High Light

384 birds/ Set poultry battery cage


Poultry Farming Automatic Layer Chicken Cage


Layer Chicken Cage With Automatic Feeder

Leave a Message
Product Description

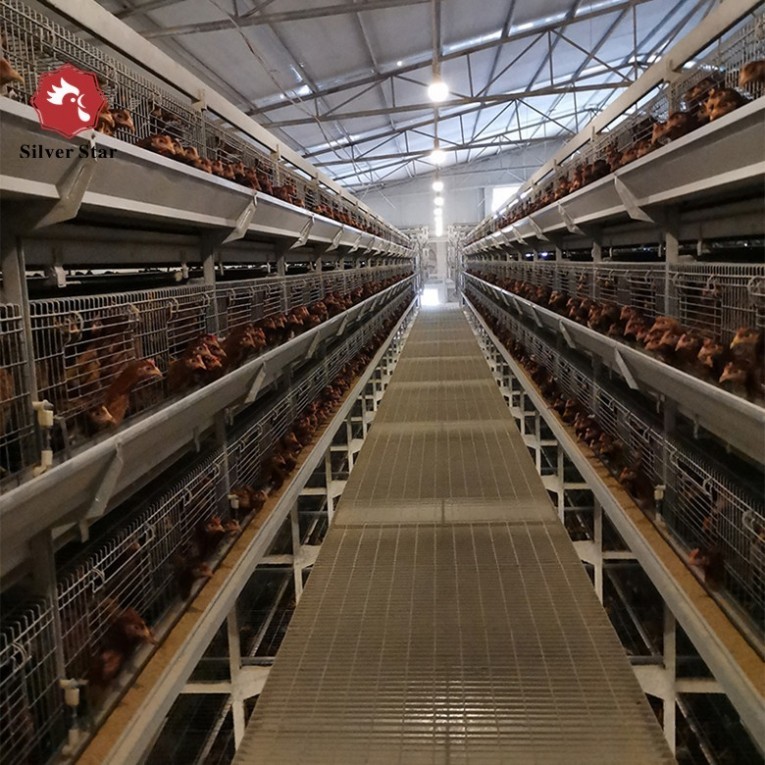

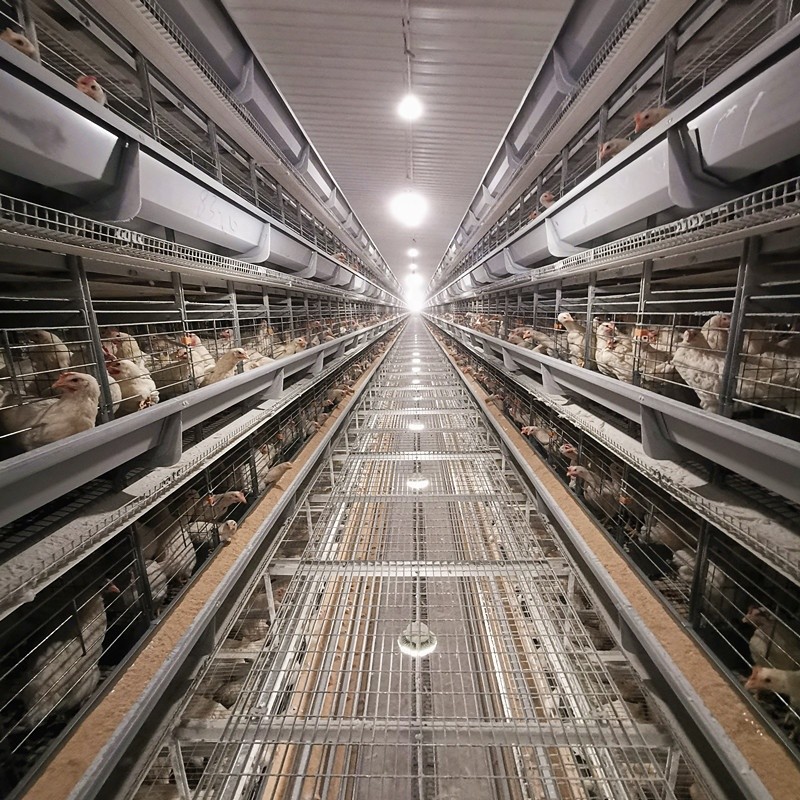

Poultry Farming Automatic Layer Egg Chicken Cage System




1. Compared with A frame cage system, H frame cage system occupies a small area and has a large number of floors, generally four floors, up to 10 floors.

2. H type stacked layer cages can obtain more breeding area, increase the laying rate of layer hens, and have higher benefits.

3. It is convenient for maintenance and repair, and the cage system can be controlled according to the prompt steps.

4. The automatic egg conveying system can improve the cleaning rate of eggs.

5. Convenient disinfection, easy to control coccidiosis and other parasitic diseases and worm infections;

6. The automatic drinking water system can ensure equal water pressure in the nipple and ensure the drinking of the laying hens.

7. The design of lengthening the edge of feed trough reduces the waste of feed and improves the effective conversion rate of feed.

8. The ventilation effect is good to ensure that the laying hens in the cage system will not suffocate due to high temperature.

9. Equipped with the manure removal belt to ensure the cleanliness of the cage system, reduce the breeding of germs, reduce the disease rate and mortality of laying hens.


H Type Layer Chicken Cage Size


H Type Laying Hens Cage
Cage size Door No. /cage Chicken No. /door No. of tiers Birds qty/set Area per bird (cm2/bird) Each door Size(mm) Unit Cage Size(mm)
1800*500*430 4 5 3 120 450 450x500x430 1800x1000x2140
1800*500*430 4 5 4 160 450 450x500x430 1800x1000x2790
1800*600*430 4 6 3 144 450 450x600x430 1800x1200x2140
1800*600*430 4 6 4 192 450 450x600x430 1800x1200x2790
1800*600*430 4 6 5 240 450 450x600x430 1800x1200x3440
1800*600*430 4 6 6 288 450 450x600x430 1800x1200x4090
1800*600*430 4 6 8 384 450 450x600x430 1800x1200x5390
650*625*500 1 9 3 54 450 650x625x500 650x1250x2220
650*625*500 1 9 4 72 450 650x625x500 650x1250x2870
650*625*500 1 9 5 90 450 650x625x500 650x1250x3520
650*625*500 1 9 6 108 450 650x625x500 650x1250x4170




Q: I need a complete equipment system, and also need a best price, what should I do?

A: 1. Chicken house size (length x width x height).

    2. If for broiler chicken, quantity and final weight to sell in market.

    3. If for breeder or layer, rearing density or target breeder/layer quantity.

    4. Maximum and minimum temperature of farm location.

    5. House type: close type of two side bricks building wall with 50'' fans and air inlets, or open type of using curtain in two         sides.


Q: How many years it can use?

A: More than 15-20 years.


Q: How is your payment term?

A: Generally, our payment term is T/T 30% in advance and the balance 70% against the copy of B/L. Other payment term we can also discuss.


Q: How is your delivery time?

A: We always prepare enough stock material for your urgent requirement, the delivery time is 7-30 days for all the stock material. We'll check with our production department or the non-stock items to offer you the exact delivery time and producing schedule.


Q: What kind of products do you have?

A: We provide all kinds of equipment for chicken farms, such as Chicken Cages, Automatic Drinking and Feeding System, Automatic Egg-collection System, Automatic Egg-collection System, Temperature Controlling System, etc.


Q: How many days will you deliver the products if I place the order?

A: Depends on the quantity you request, in 7 working days or 30 working days.


Q: How to install the cages when I get them?

A: If you want install the cage yourself, we will provide the Installation Manual. If you need the professional engineer, we will send our engineer who can speak English Fluently.


Q: Could you please tell me the detailed information of cages? and how to get the cages?

A: Contact me , you will get the detailed answers from me. Our Aim is to make your Farm Raising more Convenient and Efficiency. Welcome to Visit Our Factory anytime.
