1.2mm Automatic Poultry Feeding System Q235 Hot Dipped Galvanized Sheet
Product Details
1.2mm Automatic Poultry Feeding System
,Galvanized Poultry Feeding System
,Q235 Poultry Feeding System
Q235 Hot Dipped Galvanized sheet 1.2mm Thickness Automatic Poultry Feeding System
Automatic Poultry Feeding System Quick Information

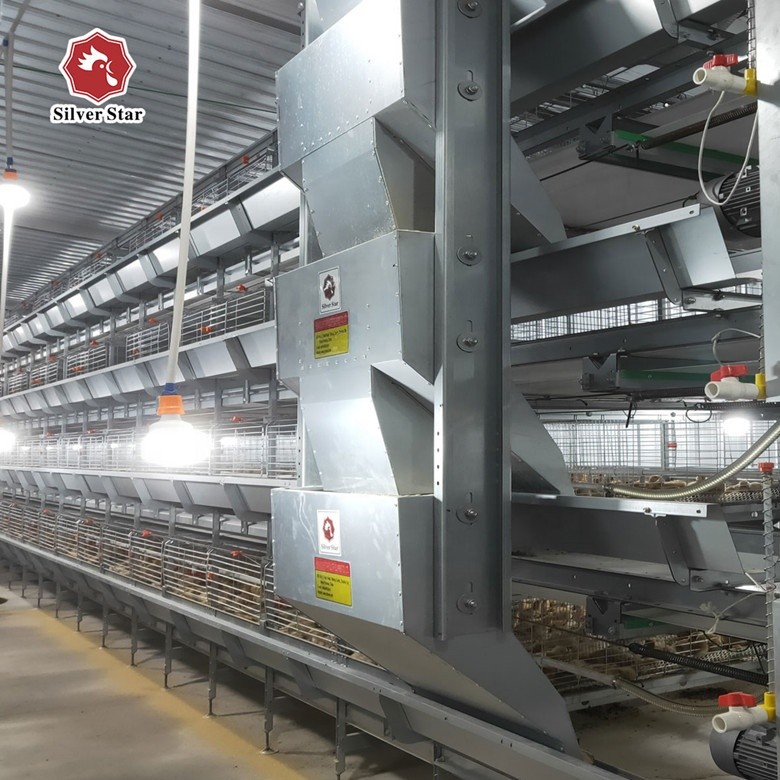

A and H shaped structure layer chicken cage and broiler chicken cage both use automatic poultry feeding system with hopper trolley feeding carts for livestock farming equipment. The working method for feeding carts is to firstly transport the feed from the silo outside of poultry house to the front hopper of each line of chicken cage through the spring auger, and then evenly transport the feed to the feed trough of each layer cage through the moving carts. The feed capacity supply in the feed trough can be adjusted by the leveler.
Automatic Poultry Feeding System Description
1. Poultry Chicken Cage Feed Hopper: Each layer of chicken cage with two hoppers, thickness is 1.2mm, material is hot-dip galvanized steel
2. Traction Device: Power of motor:0.75kw,tow rope: pp rope with 14mm, speed: 8.67m/minute.
3. Track of Trolley: Hot dip galvanized steel with 48mm*2.75mm.
4. Head and End Frame: Hot-dip galvanized steel with 40mm*60mm*3mm.
5. Operation: Each line of feeding machine can be operated seperately.
6. Auger Transverse: The feeding trolley carts is conneted with the silo by the transverse feeding auger.
7. Application: Suit for both A and H type poultry layer chicken cage, poultry broiler chicken cage, poultry pullet chicken cage etc.
-
