Large Spiral Screw Pre Chiller Machine For Poultry Processing Plant Machinery

Basic Properties
Place of Origin: China
Brand Name: Silver Star
Certification: ISO9001, SONCAP
Model Number: YXL12000
Trading Properties
Minimum Order Quantity: 1 sets
Price: 3000-10000USD/Set
Standard Packaging: Export standard packaging way
Delivery Time: 10-15 working days after advanced payment
Payment Terms: T/T, Western Union, D/A, D/P
Supply Ability: 100sets/ month
Product Summary
Large Spiral Screw Chiller Pre-Chiller Machine For Poultry Processing Plant Machinery Poultry Chicken Slaughter Plant Large Spiral Screw Chiller Machinery Working Principle The spiral screw chiller including two model, one is single-driver, the other is dual driver. The overall equipment including ...

Product Details

Highlight:

Screw Pre Chiller Machine

,

Spiral Pre Chiller Machine

,

Spiral poultry chiller machine

Product Name: Large Screw Chiller Pre-Chiller Machine
Material: Full 304 Stainless Steel
Use For: Poultry Chicken, Duck, Goose, Quail, Birds, Turkey
Capacity: 2000,3000,5000, 10000, 12000BPH Chicken Processing Line
Warranty: 3 Years After Equipments Installation
Electricity: 110V-380v , Can Be Customized
Processing: Complete Poultry Chicken Slaughter Plant
Application: Chicken Slaughtering Machine
After Sales Service: Field Installation, Comissioning And Training, Video Techinical Support
Size: 12000x2100x2500mm
Keywords: Poultry Processing Plant Machinery
Product Description

                       Large Spiral Screw Chiller Pre-Chiller Machine

                                    For Poultry Processing Plant

                             Machinery Poultry Chicken Slaughter Plant





Large Spiral Screw Chiller Machinery Working Principle



The spiral screw chiller including two model, one is single-driver, the other is dual driver. The overall equipment including two section which one for washing, the other for chilling. It composed by semi-circular cylinder, screw blade, main shaft, dumper, and driving unit. The working process follow the principle of bird and water fowl reverse, which is after the water filled, the overflow exit is in front to best washing birds.





Screw Chilling Machine Dimension



Tank Dia(mm) Tank Dimension(mm) Qty of Driver

Power(kw)

Shaft        Dampler

Fan Power(kw) Water Loading Capacity(Ton)
1600 4000x1600x1900 2 0.55 0.55 3.0 6
1600 6000x1600x1900 2 0.55 0.55 4.0 9
1600 8000x1600x1900 2 0.75 0.75 5.5 12
1600 10000x1600x1900 2 0.75 0.75 4.0*2 15
1600 12000x1600x1900 2 0.75 0.75 5.5*2 18
2100 6000x2100x2400 2 0.75 0.75 5.5 16
2100 8000x2100x2400 2 0.75 0.75 5.5 21
2100 10000x2100x2400 2 0.75 0.75 4.0*2 26
2100 12000x2100x2400 2 0.75 0.75 5.5*2 31




Spiral Screw Pre-Chilling Machine Function




Screw chiller is used for pre-chilling carcass or its by-products during the poultry process. In earlier years, we first exclusively manufactured this machine after investigate many countries equipment. It win the highly evaluation by users after promotion in China. It have the following special feathers and benefits according to the traditional water tank pre-chilling.



1. Small space needed.



2. Saving energy by small amount of energy loss.



3. Good pre-cooling effect; The traditional water tank pre-chilling which chicken just pass by the tank which hanging on the shackles with the conveyor line, the blood water and blood which in chest and skin is hard to remove out. But the chicken in screw chiller forward by screw blade pushing, and at the same time with the air blow up which by fans to make chicken turns around in the water, which make the blood move out from chest.



4. All build by stainless steel, aesthetic, health, entirely up to international standards.



5.The shaft rotating speed is regulated by converter, which effect control the chilling time.

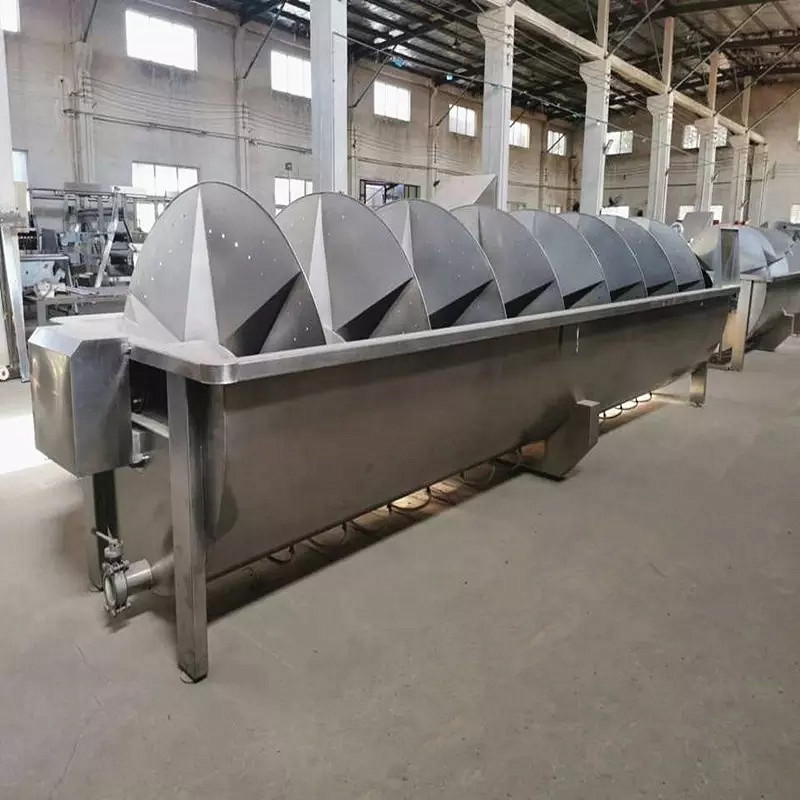

Large Spiral Screw Pre Chiller Machine For Poultry Processing Plant Machinery

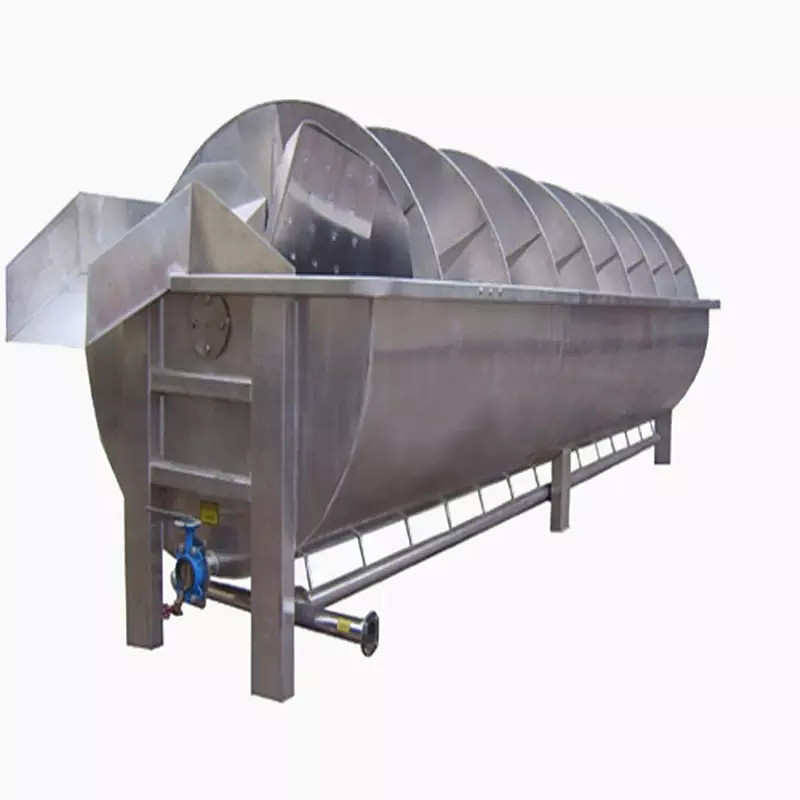

Large Spiral Screw Pre Chiller Machine For Poultry Processing Plant Machinery

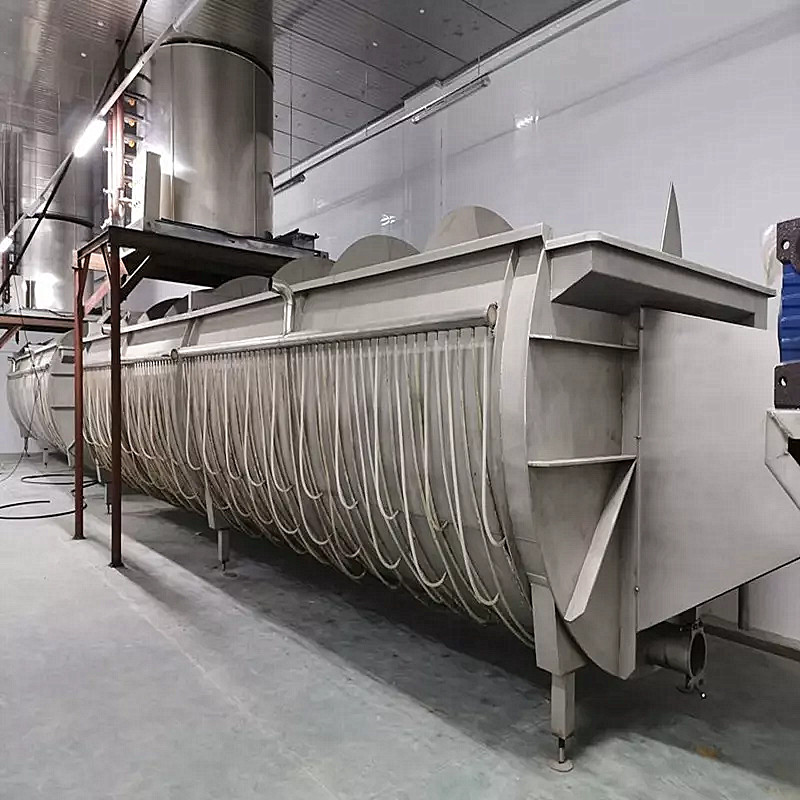

Large Spiral Screw Pre Chiller Machine For Poultry Processing Plant Machinery

Large Spiral Screw Pre Chiller Machine For Poultry Processing Plant Machinery
