Silver Color Broiler Baby Chick Cage For Chicken Farm

Basic Properties
Place of Origin: China
Brand Name: Silver Star
Certification: ISO 9001
Model Number: H type cage
Trading Properties
Minimum Order Quantity: 10
Price: 100 USD
Standard Packaging: container, wooden case
Delivery Time: 20-40 days
Payment Terms: T/T
Supply Ability: 100 set 30 days
Product Summary
PRODUCT DESCRIPTION PRODUCT DESCRIPTION Silver Color Broiler Chicken Cage For Chicken Farm Feature of broiler chicken cage: V-shape bottom trough. The feed is distributed even and can be eat up so that no waste and no residual always keep fresh. Plug-in connecting structure make trough solid ...

Product Details

Highlight:

Silver Color Baby Chick Cage

,

Baby Chick Cage For Chicken Farm

,

Silver Color broiler cage system

Name: Chicken Feeder Cages For Layers
Product Name: Cages For Layers
Application: Poultry Field Cages For Layers
Material: Hot Dip Galvanized Cages For Layers
Color: Silver Cages For Layers
Usage: Chicken Raising Cages For Layers
Feature: Durable Cages For Layers
Advantage: Long Time Used Cages For Layers
Size: 650*1250*2300(cm) Cages For Layers
Capacity: 200-300 Chickens/set Cages For Layers
Product Description
PRODUCT DESCRIPTION
PRODUCT DESCRIPTION

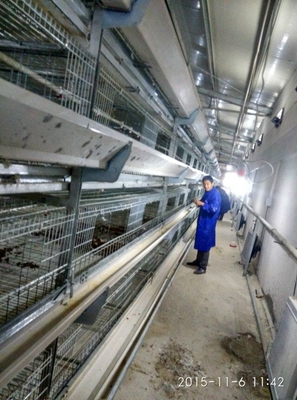

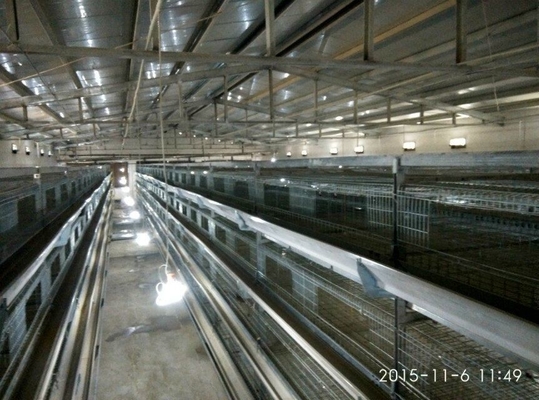

Silver Color Broiler Chicken Cage For Chicken Farm



Feature of broiler chicken cage:


V-shape bottom trough. The feed is distributed even and can be eat up so that no waste and no residual always keep fresh.

Plug-in connecting structure make trough solid smoothand precision, mainwhile the cage frame is more reliable.

Harvesting birds by hands The trough is so strong that can be stepped directly steped onto.



Full automatic system of broiler chicken cage:

1: H type battery pullet/broiler cage
2: 3tiers, 4tiers,5 tiers, 6tiers, 8tiers
3: Q235 double hot galvanized anti-corrosion
4: Q235 national standard double hot galvanized bridge steel cage,hot galvanized steel feed trough,ball type automatic water equipment ,white PVC pipe ,3MM U type galvanized steel shelves,closed-end pressure-reducer;Al-Zn material feeding system,AL-Zn material manure cleaning system,ventilation system,lighting system,environment controlling system and so on.


Accessories of broiler chicken cage :
1). The new white PVC material trough, compression, heat, deformation, not broken. Life span 15 years more. 100kg load-bearing.
2). 3MM U-type galvanized steel frame leg: National standard 3MM thick steel plate, U shape design.
350kg load-bearing. With double-DIP galvanizing, life span 15 years more.
3). Automatic water nipple drinker: 360-degree rotating design, ball type or spring type. Stainless steel and plastic.
4). White PVC water pipe: New PVC material, deformation, high temperature, difficult to damage. Impurities in the water will not produce a chemical reaction, thus ensuring the chickens can drink clean and healthy water. Useful life of 15 years more.
5). Regulator: Fully enclosed design, voltage regulator and with filter.


Broiler chicken cage specification :



Tier
Cell size
Whole size
Capacity/set
Average area/bird
3-tiers
85*62.5*50 cm
85*220*260 cm
102 birds(1.5 kgs)
312.5 cm2
4-tiers
85*62.5*50 cm
85*220*325 cm
136 birds(1.5 kgs)
312.5 cm2
5-tiers
85*62.5*50 cm
85*220*390 cm
170 birds(1.5 kgs)
312.5 cm2
6-tiers
85*62.5*50 cm
85*220*455 cm
204 birds(1.5 kgs)
312.5 cm2
8-tiers
85*62.5*50 cm
85*220*585 cm
272 birds(1.5 kgs)
312.5 cm2
