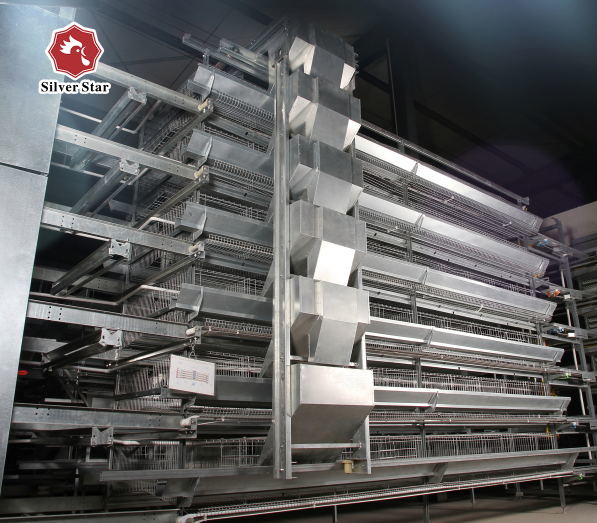

5 Layer Q235 Battery Egg Layer Cages Poultry Field Chicken Cage
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Chicken Feeder Cages For Broiler | Product Name | Cages For Broiler |
|---|---|---|---|
| Application | Poultry Field Cages For Broiler | Material | Hot Dip Galvanized Cages For Broiler |
| Color | Silver Cages For Broiler | Usage | Chicken Raising Cages For Broiler |
| Feature | Durable Cages For Broiler | Advantage | Long Time Used Cages For Broiler |
| Size | 650*1250*2300(cm) Cages For Broiler | Capacity | 200-300 Chickens/set Cages For Broiler |
| High Light | Q235 Battery Egg Layer Cages,5 Layer Battery Egg Layer Cages,Q235 Poultry Field Chicken Cage |
||
Product Description
Yin Xing Poultry Equipment Customized Multi-Style Multi-broiler Chicken Cage
Professional Breeding Equipment Layer Chicken Cage
The advantage of belt type manure cleaning machine of layer chicken cage
The chicken manure and the chickens are completely isolated, the automatic manure cleaning system can clean the chicken feces in time, making the chicken house environment more hygienic and clean, and reducing the incidence rate and mortality of chickens.
Detailed information of Chicken layer chicken cage:
Material: Q235 national standard bridge steel cages, white PVC trough, Ball-type automatic water equipment, white PVC pipe, 3MM U-type galvanized Steel shelves, closed-end regulator.
The nipple drinker: Automatic water valve device: 360-degree rotating design, traffic, water Enough. Watertight. Chicken is easy to meet drinking water needs. Imports of stainless steel Sphere. Useful life of 15-20 years. 3 years of damage or leakage, free replacement. (Except Artificial damage)
Trough: The new white PVC trough, compression heat and deformation, not broken.
Service life of 15 -20 years. Ability to withstand compression: Any adult can walk on it.
The pipe: White PVC pipe: New PVC material, deformation, high temperature, difficult To damage. Impurities in the water will not produce a chemical reaction, thus ensuring The chickens can drink clean and healthy water. Useful life of 15 years.
The pressure reducer: Closed regulator: Fully enclosed design, voltage regulator and Filter with one, you can adjust the length of the sheds any water pressure. Every chicken Cage line need three pressure reducers. If you have two lines, you need six Leg support: 3MM U-type galvanized steel shelf, national standard 3MM thick steel Plate, U shape design. Can withstand pressure of 350 kg. With double-dip galvanizing, The age of 15 -20 years.
Automatic Feeding Machine Structure
1. Layer Poultry Farming Cage Feed Hopper: Each layer of cage with two hoppers, thickness is 1.2mm, material is hot-dip galvanized steel
2. Traction Device: Power of motor:0.75kw,tow rope: pp rope with 14mm, speed: 8.67m/minute.
3. Track of Trolley: Hot dip galvanized steel with 48mm*2.75mm.
4. Head and End Frame: Hot-dip galvanized steel with 40mm*60mm*3mm.
5. Operation: Each line of feeding machine can be operated seperately.
6. Auger Transverse: The feeding trolley carts is conneted with the silo by the transverse feeding auger.
7. Application: Suit for both A and H type battery cage poultry layers, broiler chicken poultry cage, battery brooder cage etc.
Layer Poultry Farming Cage Size
| H Type Layer Poultry Farming Cage | |||||
| Model | Length(mm) | Width(mm) | Heigh(mm) | Cells Qty | Birds Qty/Set |
| 3 Tiers | 1950 | 1200 | 2140 | 4 | 144 |
| 4 Tiers | 1800 | 1200 | 2790 | 4 | 192 |
| 5 Tiers | 1800 | 1200 | 3440 | 4 | 240 |
| 6 Tiers | 1800 | 1200 | 4090 | 4 | 288 |
| 8 Tiers | 1800 | 1200 | 5390 | 4 | 384 |
| 3 Tiers | 650 | 1250 | 2220 | 1 | 54 |
| 4 Tiers | 650 | 1250 | 2870 | 1 | 72 |
| 5 Tiers | 650 | 1250 | 3520 | 1 | 90 |
| 6 Tiers | 650 | 1250 | 4170 | 1 | 108 |
| 8 Tiers | 650 | 1250 | 5470 | 1 | 144 |
Why To Choose Layer Poultry Farming Cage Raising Chicken ?
1. The environment of poultry chicken house is controllable, which is conducive to the physiological and production needs of chicken.
2. Automatic drinking, feeding, manure cleaning, eggs collecting, saving labors, reducing breeding cost, multi-layer battery cage saves more space than floor raising, high land utilization rate, saving chicken house construction and land cost.
3. Due to the good isolation between the close chicken house and the outside , the chance of cross contamination of chickens will be greatly reduced, which is conducive to the prevention and control of epidemic diseases, and save the cost of epidemic prevention.
Battery Broiler Chicken Cage Dimension
| Modle | Unit Size | Rearing Cage Size | Rearing Area | Birds Capacity/Unit |
| 1000X1000: 3-Tier | 1000X1000X2200 | 1000X1000X440 | 1㎡ | 60 |
| 890X1250: 3-Tier | 890X1250X2000 | 890X1250X440 | 1.113m3 | 66 |
| 1500X1000: 3-Tier | 1500X1000X2200 | 1500X1000X440 | 1.5㎡ | 90 |
| 1480X1750: 3-Tier | 1480X1750X2800 | 1480X1750X440 | 2.59㎡ | 150 |
| 1000X1000: 4-Tier | 1000X1000X2850 | 1000X1000X440 | 1㎡ | 80 |
| 890X1250: 4-Tier | 890X1250X2650 | 890X1250X440 | 1.113m3 | 88 |
| 1500X1000: 4-Tier | 1500X1000X2850 | 1500X1000X440 | 1.5㎡ | 120 |
| 1480X1750: 4-Tier | 1480X1750X3600 | 1480X1750X440 | 2.59㎡ | 200 |
