9 Tiers Q235 Layer Chicken Cage Poultry Field Chicken Cage
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Name||Chicken Feeder Cages For Layers||Product Name||Cages For Layers|
|Application||Poultry Field Cages For Layers||Material||Hot Dip Galvanized Cages For Layers|
|Color||Silver Cages For Layers||Usage||Chicken Raising Cages For Layers|
|Feature||Durable Cages For Layers||Advantage||Long Time Used Cages For Layers|
|Size||650*1250*2300(cm) Cages For Layers||Capacity||200-300 Chickens/set Cages For Layers|
Q235 Layer Chicken Cage,
9 Tiers Layer Chicken Cage,
9 Tiers Poultry Field Chicken Cage
H type layer cage.
Comfortable and Safe Feeding Environment for layer chicken cage
>Uniform Trolley Feeding System — it transports the feed to birds smoothly and without separation. easy maintenance.
>Deep ‘V’ Feed Trough with Inner Rim — will not allow the feeds to be thrown away when chickens eat, thereby saving feed cost.
>Timely and Effective Manure Remove Methods — dust-free removal without spillage.this contributes to improved hygiene and increases the health and well-being of the birds.
>Distance Between Two Sides Cage — producing better ventilation effect and preventing the vent pecking.
>Automatic Ventilation and Temperature Control System — our control keeps precise and stable
temperature.meet the requirement of the birds.

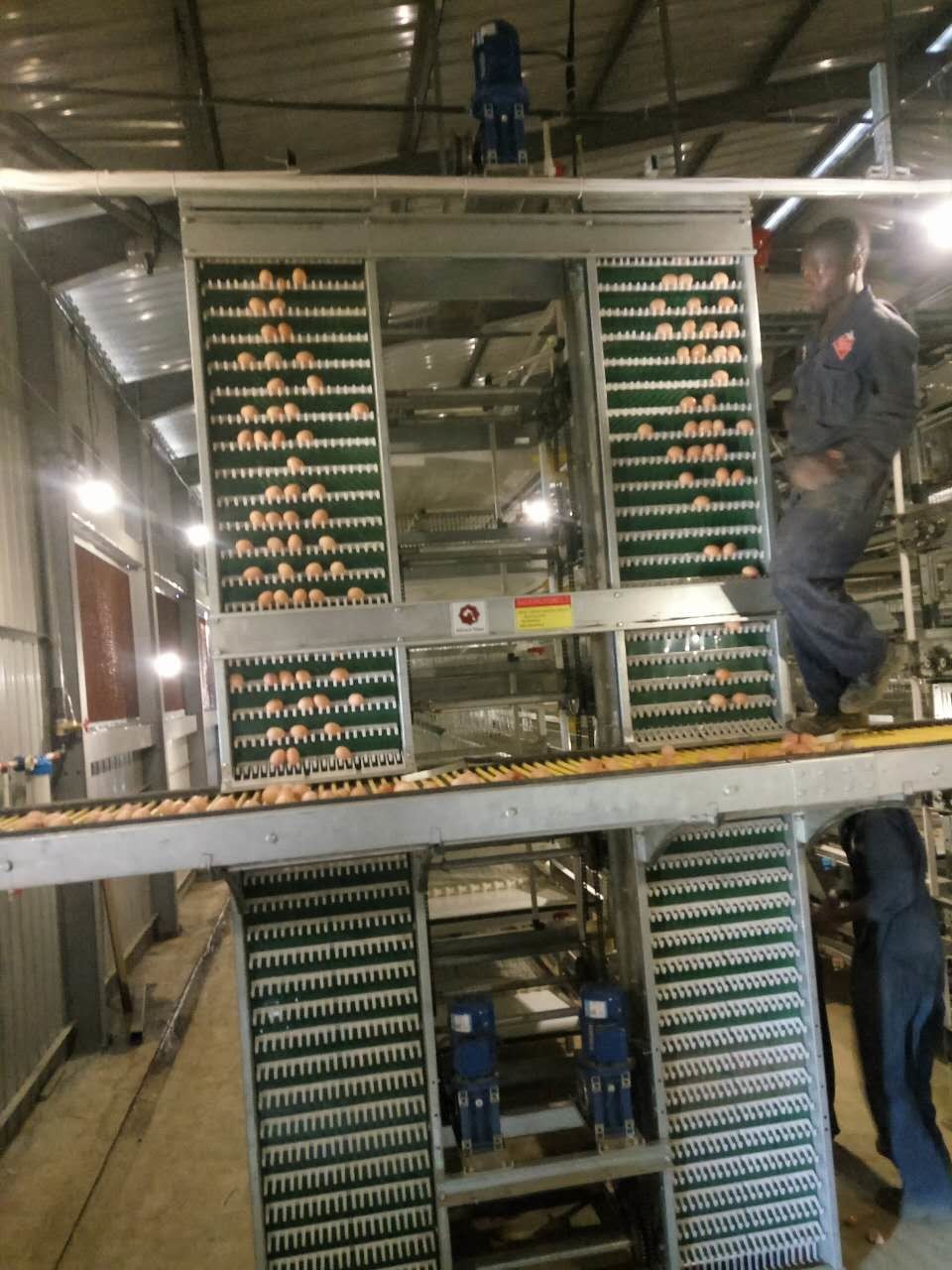

>Automatic Egg Collecting System—it raises the working efficiency and reduces the labor cost and percentage of egg broken.
Detailed information of Chicken layer chicken cage:
Material: Q235 national standard bridge steel cages, white PVC trough, Ball-type automatic water equipment, white PVC pipe, 3MM U-type galvanized Steel shelves, closed-end regulator.
The nipple drinker: Automatic water valve device: 360-degree rotating design, traffic, water Enough. Watertight. Chicken is easy to meet drinking water needs. Imports of stainless steel Sphere. Useful life of 15-20 years. 3 years of damage or leakage, free replacement. (Except Artificial damage)
Trough: The new white PVC trough, compression heat and deformation, not broken.
Service life of 15 -20 years. Ability to withstand compression: Any adult can walk on it.
The pipe: White PVC pipe: New PVC material, deformation, high temperature, difficult To damage. Impurities in the water will not produce a chemical reaction, thus ensuring The chickens can drink clean and healthy water. Useful life of 15 years.
The pressure reducer: Closed regulator: Fully enclosed design, voltage regulator and Filter with one, you can adjust the length of the sheds any water pressure. Every chicken Cage line need three pressure reducers. If you have two lines, you need six Leg support: 3MM U-type galvanized steel shelf, national standard 3MM thick steel Plate, U shape design. Can withstand pressure of 350 kg. With double-dip galvanizing, The age of 15 -20 years.
Layer chicken cage specification :
|H type 3/4tiers layer chicken cage|
|Model||Type||Capacity||Cage size||Cell size||Cell capacity||Door||Avergae area|
|1||H type 3 tiers||54 birds/set||65*218*265cm||65*62.5*50cm||9birds/cell||1door||451.38cm2|
|2||H type 4 tiers||72 birds/set||65*218*330cm||65*62.5*50cm||9birds/cell||1door||451.38cm2|
|3||H type 5 tiers||90 birds/set||65*218*395cm||65*62.5*50cm||9birds/cell||1door||451.38cm2|
|4||H type 6 tiers||108 birds/set||65*218*460cm||65*62.5*50cm||9birds/cell||1door||451.38cm2|
|5||H type 7 tiers||126 birds/set||65*218*595cm||65*62.5*50cm||9birds/cell||1door||451.38cm2|
|6||H type 8 tiers||144 birds/set||65*218*660cm||65*62.5*50cm||9birds/cell||1door||451.38cm2|
