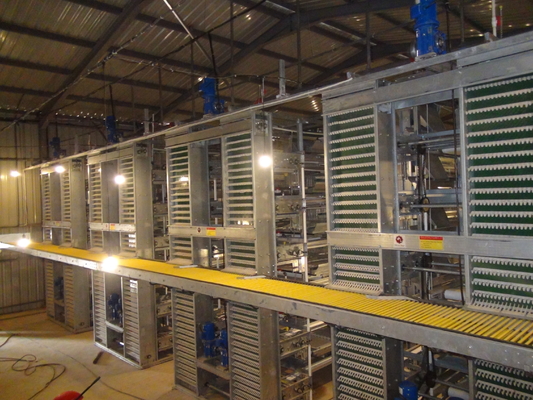

6 Tiers 144 Birds H Type Chicken Cage , Q235A HDG Chicken Laying Eggs Cage

European Standard H Type Layer Chicken Cage Large Size Good Ventilation For Poultry House

Europe Large Size H Type Layer Chicken Cage Description:

H Type Layer Chicken Cage Body

1. Size: 65x62.5x50cm;

2. Material: Hot dipped galvanized;

3. Feed trough:Zn-Al material. Thickness: 1.0mm.

4. Can be designed into 3, 4, 5, 6, 8, 9, 10 Tiers;

5. Capacity:54-180 birds/set

Silver Star h type layer chicken cage structure is designed as a single cage laying hens battery , the size of each cage is 65*62.5*50 cm, short distance between two cage frames make the cages not easy to be deformed, also available to adjust the rearing density according to customer's request;

The layer space is 65 cm, and the increase in height is in favour of ventilation and cooling. The maximum layers/floors of equipment can be up to 10 tiers, to provide strong support for future large-scaled breeding;

All cage meshes are Q235 bridge steel wire, the surface adopt hot-dip galvanizing treatment, strong anti-rust;
The material of cage frame is 275g hot galvanized steel sheet, more durable and not easy to deformation.

Automatic Hopper Feeding Machine Equipment

1. Hopper:Each tier with two hoppers, thickness is 1.2mm, material is hot-dip galvanized steel

2. Traction Device :Power of motor:0.75kw,tow rope: pp rope with 14mm,speed:8.67m/minute.

3. Track of Trolley:Hot-dip galvanized steel with 48mm*2.75mm.

4. Head and end frame:Hot-dip galvanized steel with 40mm*60mm*3mm.

5. Feed silos&feed uploading machine

Automatic Drinking System

1. Nipple Drinkers

2. Water Pipes

3. Water Pressure regulator

4. Filter

5. Medical pump

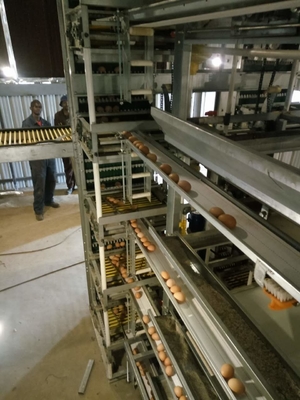

Automatic Egg Collecting Machine

1. Hot-dip galvanized 1.5mm side plate,speed 4m/min.

2. Egg guider:Hot-dip galvanized with thickness 1mm,configuration with stretching device.

3. Egg belt:100mm width

4. Crosswise egg conveyor
