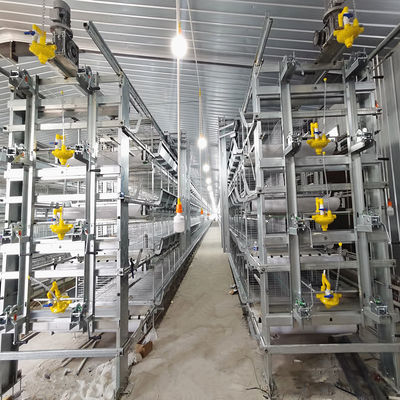

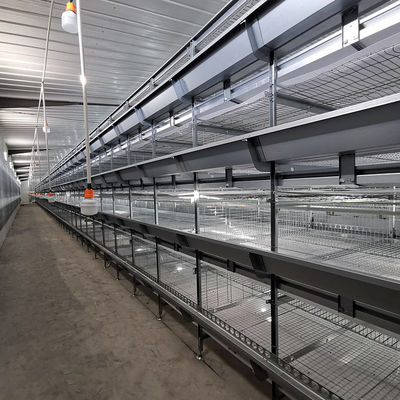

H Type Meat Chicken4Rows 50000 Hen Layer Chicken Cage Battery System 240 Birds / Cage H Frame
Product Details
4Rows Hen Layer Chicken Cage
,50000 Hen Layer Chicken Cage
,240 Birds Chicken Cage
Yin Xing Poultry Equipment Customized Multi-Style Multi-broiler Chicken Cage
H Type Meat Broiler Chicken Coop Cage Battery Poultry Farm Equipment
| Model NO.: H4L192, H5L240 | Product Name: Laying Hens Cage Battery |
| Usage: Animal Cage For Chicken | Tiers: 3 to 8 floors |
| Surface Treatment: Hot Dip Galvanizing | Size: 1800x600x430mm |
| Cage System: Full Automatic | Origin: Henan Province, China |
| Application: Laying Chicken Cage | Transport Package: Standard Exporting Shipment |
| Condition: New | Capacity:144, 192, 240, 288, 384 Birds |
| Material: Q235A Bridge Steel | Life Span: Over 25 Years |
| Brand Name: Silver Star | HS Code:8436290000 |
Laying Hens Cage Specification:
| H Type Laying Hens Cage | |||||||
| Cage size | Door No. /cage | Chicken No. /door | No. of tiers | Birds qty/set | Area per bird (cm2/bird) | Each door Size(mm) | Unit Cage Size(mm) |
| 1800*600*430 | 4 | 6 | 3 | 144 | 450 | 450x600x430 | 1800x1200x2140 |
| 1800*600*430 | 4 | 6 | 4 | 192 | 450 | 450x600x430 | 1800x1200x2790 |
| 1800*600*430 | 4 | 6 | 5 | 240 | 450 | 450x600x430 | 1800x1200x3440 |
| 1800*600*430 | 4 | 6 | 6 | 288 | 450 | 450x600x430 | 1800x1200x4090 |
| 1800*600*430 | 4 | 6 | 8 | 384 | 450 | 450x600x430 | 1800x1200x5390 |
| Full sets including laying chicken hens cage body, automatic hopper feeding system, automatic drinking system, automatic manure removal system, automatic egg collecting system, ventilation system, lighting system, environmental control system |
|||||||
H Type Layer Chicken Coop Cage Size:
| Tiers/Foors | Each Door Size(mm) | Unit Cage Size(mm) | Birds Qty |
| 3 | 650x600x500 | 650x2100x2700 | 54 |
| 4 | 650x600x500 | 650x2100x3200 | 72 |
| 5 | 650x600x500 | 650x2100x3900 | 90 |
| 6 | 650x600x500 | 650x2100x4600 | 108 |
| 8 | 650x600x500 | 650x2100x5300 | 144 |
| 3 | 430x600x410 | 1800x2100x2700 | 144 |
| 4 | 430x600x410 | 1800x2100x3200 | 192 |
| 5 | 430x600x410 | 1800x2100x3900 | 240 |
| 6 | 430x600x410 | 1800x2100x4600 | 288 |
| 8 | 430x600x410 | 1800x2100x5300 | 384 |
| Equipment | H Type Layer Chicken Coop Battery Cage System Hens, Frame, Feed Trough, Auto Drinking Lines,Automatic Feeding System, Automatic Egg Collection System, Automatic Manure Removal System, Automatic Ventilation System, Environmental Controller |
||
Features Of H Frame Battery Cage For Broilers
1. Compared with flat or floor system rearing, the unit area can increase the feeding amount by more than 50%
2. Chicken manure is completely separated from the chickens to ensure that they are clean and tidy, reduce the incidence of diseases, and increase the survival rate of the chickens
3. Broilers have limited range of motion, low energy consumption, and save feed
4. Convenient for the observation, grouping, selection and isolation of broiler birds
5. Centralized management, saving energy and resources, adopting advanced ventilation system, lighting system and automatic control system, fully saving energy consumption and improving labor productivity;
6. H frame battery cage for broilers is full of hot dipped galvanized process, which is corrosion resistant and has a lifespan of more than 25 years.
How to increase the growth rate of broilers through cage system?
1. In the fully automatic equipment, put some birds in each broiler battery cage, then install the feeding trough and water pipes in the position of the broiler cage. Through the automatic feeding machine and the water drinking system, take good care of poultry's diet, so that all the birds in the breeding process can get enough food and water, and meanwhile get a lot of growth nutrients;
2. Battery broiler cages are made of high-quality and smooth galvanized materials, which can well control the occurrence of foot injuries and infections of poultry during exercise. At the same time, when feces are produced, they can easily enter the feces collection device from the bottom of the cage, which can be more convenient to deal with chicken manure to ensure a hygienic environment in the breeding environment.
-
