Full Automatic Broiler Cage With Poultry Drinking System

Basic Properties
Place of Origin: China
Brand Name: Silver star
Certification: ISO9001,SGS
Model Number: H3L90/H4L120
Trading Properties
Minimum Order Quantity: 50 sets
Price: 108-135$/ set
Standard Packaging: FCL: Standard exporting packaging type; LCL: In wooden cage packaging
Delivery Time: 10-20 days
Payment Terms: T/T, Western Union
Supply Ability: 2000 sets/week
Product Summary
Full Automatic Broiler Cage With Poultry Drinking System Advantage of broiler cage: The newly designed H-type broiler cage has a large rear cage door, which is convenient to observe the growth of chickens and improve the quality of broilers. The channel on the side of the trough is a management ...

Product Details

Highlight:

Broiler Chicken Cages with Drinking System

,

H Type Battery Broiler Cage System

,

Drinking System Battery Cage For Broilers

Product Name: Poultry Drinking System
Color: Silver
Material: Hot Galvanized Steel Wire Mesh
Size: 100*150*49cm
Capacity: 30 Chicks/cell
Lifespan: More Than 20 Years
Model: H Type Broiler Chicken Cage
Automatic: Yes
Use: Chicken Farm
Keywords: Poultry Drinking System
Product Description

Full Automatic Broiler Cage With Poultry Drinking System



Advantage of broiler cage:

The newly designed H-type broiler cage has a large rear cage door, which is convenient to observe the growth of chickens and improve the quality of broilers. The channel on the side of the trough is a management channel through which managers manage the whole equipment and observe broilers from the front; The channel set at the back of the broiler cage is a chicken exit channel, which is at least 1m wide. When the broiler is out of the market, the broiler is transported out of the market through the channel.
The chicken outlet channel is wider than the management channel, which is for daily management. The increase of chicken outlet channel is conducive to the management of ventilation, increases the ventilation volume, significantly improves the ventilation effect, and solves the problem of poor ventilation quality under high density. The broiler's slaughter depends on the large skylight rear door on the back of the cage, which effectively increases the grasping space and reduces the damage to the chicken.



Full automatic system of broiler chicken cage:


1:H type battery pullet/broiler cage
2:3tiers, 4tiers
3:Q235 double hot galvanized anti-corrosion
4:Q235 national standard double hot galvanized bridge steel cage,hot galvanized steel feed trough/ pcv feed trough,ball type automatic water equipment ,white PVC pipe ,3MM U type galvanized steel shelves,closed-end pressure-reducer;Al-Zn material feeding system,AL-Zn material manure cleaning system,ventilation system,lighting system,environment controlling system and so on.


 Accessories of broiler chicken cage :
1). The new white PVC material trough, compression, heat, deformation, not broken. Life span 15 years more. 100kg load-bearing.
2). 3MM U-type galvanized steel frame leg: National standard 3MM thick steel plate, U shape design.
350kg load-bearing. With double-DIP galvanizing, life span 15 years more.
3). Automatic water nipple drinker: 360-degree rotating design, ball type or spring type. Stainless steel and plastic.
4). White PVC water pipe: New PVC material, deformation, high temperature, difficult to damage. Impurities in the water will not produce a chemical reaction, thus ensuring the chickens can drink clean and healthy water. Useful life of 15 years more.
5). Regulator: Fully enclosed design, voltage regulator and with filter.

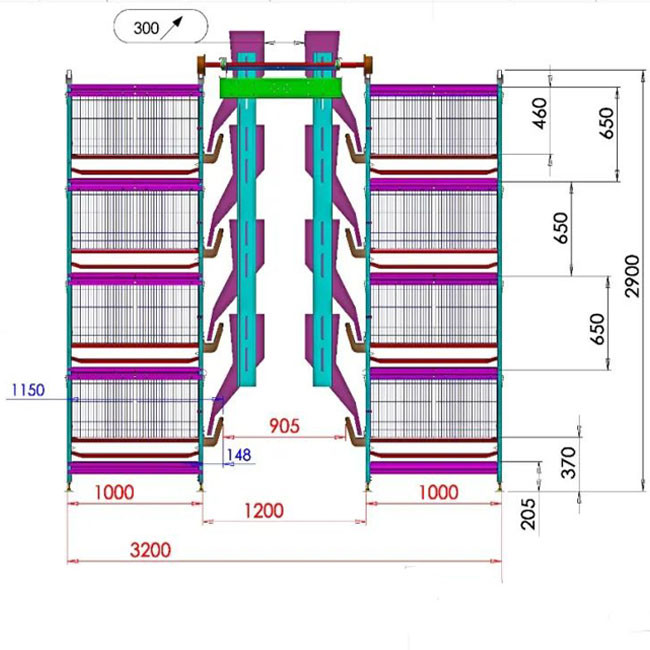

Broiler chicken cage specification :



Tier
Cell size
Whole size
Capacity/set
Average area/bird
3-tiers
100*150*49 cm
100*150*225 cm
90 birds(2-2.5 kgs)
500 cm2
4-tiers
100*150*49 cm
100*150*290 cm
120 birds(2-2.5kgs)
500 cm2

Full Automatic Broiler Cage With Poultry Drinking SystemFull Automatic Broiler Cage With Poultry Drinking SystemFull Automatic Broiler Cage With Poultry Drinking SystemFull Automatic Broiler Cage With Poultry Drinking System
