Automatic Broiler Cage With Poultry Drinking System
Basic Properties
Place of Origin:
China
Brand Name:
Silver star
Certification:
ISO9001,SGS
Model Number:
H3L90/H4L120
Trading Properties
Minimum Order Quantity:
50 sets
Price:
108-135$/ set
Standard Packaging:
FCL: Standard exporting packaging type; LCL: In wooden cage packaging
Delivery Time:
10-20 days
Payment Terms:
T/T, Western Union
Supply Ability:
2000 sets/week
Product Summary
Automatic Broiler Cage With Poultry Drinking System Advantage of broiler cage: The newly designed H-type broiler cage greatly reduces the injury of broilers when they are out of the market, reduces the mortality during transportation and improves the economic benefits; At the same time, due to the ...
Product Details
Highlight:
30 chicks/cell Automatic Broiler Cage
,H Type Cage System For Broiler Chicken
,Automatic Drinking Poultry Cage For Broilers
Product Name:
Poultry Drinking System
Color:
Silver
Material:
Hot Galvanized Steel Wire Mesh
Size:
100*150*49cm
Capacity:
30 Chicks/cell
Lifespan:
More Than 20 Years
Model:
H Type Broiler Chicken Cage
Automatic:
Yes
Use:
Chicken Farm
Keywords:
Poultry Drinking System
Product Description

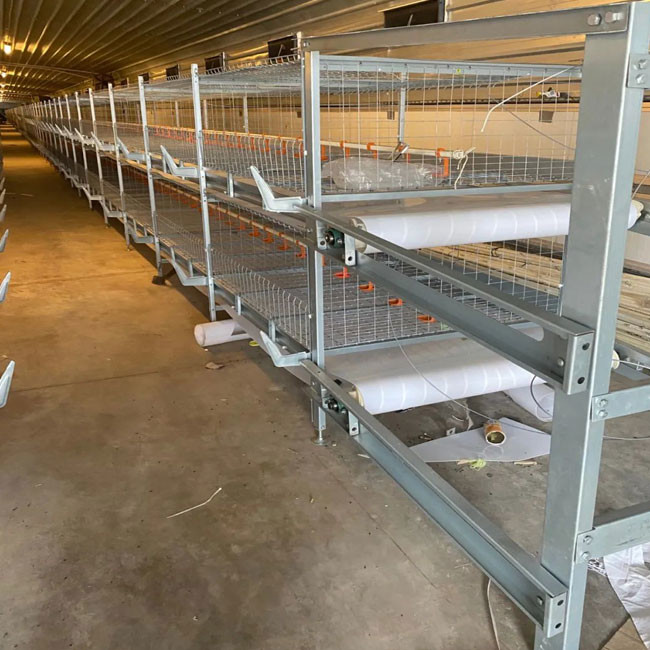

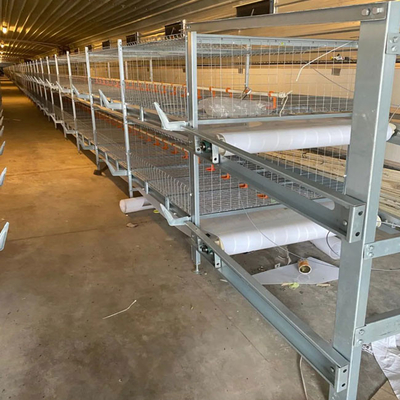

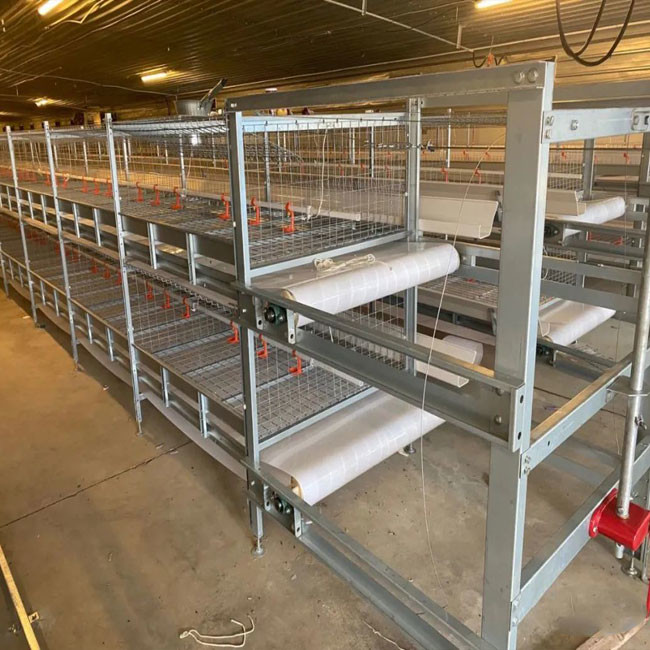

Automatic Broiler Cage With Poultry Drinking System
Advantage of broiler cage:
The newly designed H-type broiler cage greatly reduces the injury of broilers when they are out of the market, reduces the mortality during transportation and improves the economic benefits; At the same time, due to the management channel and chicken exit channel set on both sides of the cage unit, the ventilation condition of the whole chicken house has been improved and the outbreak rate of the epidemic has been reduced.
Full automatic system of broiler chicken cage:
1:H type battery pullet/broiler cage
2:3tiers, 4tiers
3:Q235 double hot galvanized anti-corrosion
4:Q235 national standard double hot galvanized bridge steel cage,hot galvanized steel feed trough/ pcv feed trough,ball type automatic water equipment ,white PVC pipe ,3MM U type galvanized steel shelves,closed-end pressure-reducer;Al-Zn material feeding system,AL-Zn material manure cleaning system,ventilation system,lighting system,environment controlling system and so on.
Accessories of broiler chicken cage :
1). The new white PVC material trough, compression, heat, deformation, not broken. Life span 15 years more. 100kg load-bearing.
2). 3MM U-type galvanized steel frame leg: National standard 3MM thick steel plate, U shape design.
350kg load-bearing. With double-DIP galvanizing, life span 15 years more.
3). Automatic water nipple drinker: 360-degree rotating design, ball type or spring type. Stainless steel and plastic.
4). White PVC water pipe: New PVC material, deformation, high temperature, difficult to damage. Impurities in the water will not produce a chemical reaction, thus ensuring the chickens can drink clean and healthy water. Useful life of 15 years more.
5). Regulator: Fully enclosed design, voltage regulator and with filter.
Broiler chicken cage specification :
|
Tier
|
Cell size
|
Whole size
|
Capacity/set
|
Average area/bird
|
|
3-tiers
|
100*150*49 cm
|
100*150*225 cm
|
90 birds(2-2.5 kgs)
|
500 cm2
|
|
4-tiers
|
100*150*49 cm
|
100*150*290 cm
|
120 birds(2-2.5kgs)
|
500 cm2
|
