A Type 90/96/120/128/160 Birds Layer Chicken Cage System Farming 3 Tiers

Place of Origin China
Brand Name Silver Star
Certification ISO 9001
Model Number A type cage
Minimum Order Quantity 10 set
Price 100 USD
Packaging Details container , wooden case
Delivery Time 30 days
Payment Terms T/T
Supply Ability 100 set 30 days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Usage Chicken Farm Stainless Steel Chicken Cage Use Chicken
Material Q235 Steel Wire Stainless Steel Chicken Cage Type Stainless Steel Chicken Cage
Lifespan 12 Or 20 Years Stainless Steel Chicken Cage Advantage Factory Sell Stainless Steel Chicken Cage
Size 183*230*150(CM) Stainless Steel Chicken Cage Capacity 90 Birds Stainless Steel Chicken Cage
Color Silver Color Stainless Steel Chicken Cage Weight 45 Kg Stainless Steel Chicken Cage
High Light

A Type Chicken Cage System


Chicken Laying Cages 3 Tiers


ISO 9001 Battery Cage Poultry Farming

Leave a Message
Product Description

A type Layer cage


The material of this cage


(1) A type automatic broiler battery chicken cage
(2) 3,4,Tiers
(3) Q235 double cold galvanized anti-corrosion
(4) Q235 national standard double cold galvanized bridge steel cage,
(5) white PVC feed trough,
(6) ball type automatic water equipment ,
(7) white PVC pipe ,
(8) 3MM U type galvanized steel shelves,
(9) closed-end pressure-reducer;
(10) Al-Zn material feeding system,
(11) AL-Zn material manure cleaning system,
(12) ventilation system,lighting system,
(13) environment contronlling system.


90/96/120/128/160 Birds Layer Chicken Cage System Farming

A Type 3 Or 4 Tiers Laying Poultry Battery Cage

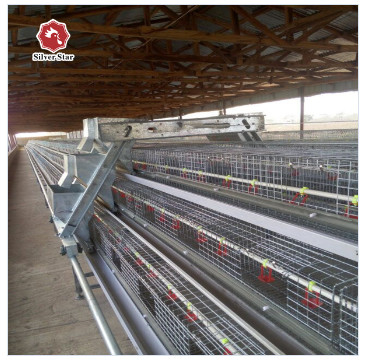

A type layer chicken cage has the following merits: The upper and lower poultry cages are completely staggered, and the common ones are 3 to 4 tiers/floors. There is no need to set up a manure board at the bottom of the cage, also no need to set up a manure cleaning system if it is a manure pit; the structure is simple; the ventilation and illumination of each layer of the cage are large. 3 tiers layer cage per set has the capacity of 90 birds, 96 birds, 120 birds, and 4 tiers layer battery cage per set has 96 birds, 128 birds and 160 birds capacity.



Layer Egg Chicken Battery Cage Product Description


Model Each Door Length(cm) Each Door Depth(cm) Each Door Height(cm) Unit Cage Dimension(cm) Doors/Set Birds/Door Birds Qty/Set
A3L90 43 38 38 195x208x150 5 3 90
A4L120 43 38 38 195x218x198 5 3 120
A3L96 48.75 38 38 195x208x150 4 4 96
A4L128 48.75 38 38 195x218x198 4 4 128
A3L96 43 41 41 195x208x160 4 4 96
A4L128 43 41 41 195x218x203 4 4 128
A3L120 43 41 41 215x208x160 5 4 120
A4L160 43 41 41 215x218x203 5 4 160
A3L120 39 45 41 195x223x160 5 4 120
A4L160 39 45 41 195x230x208 5 4 160



Poultry Laying Battery Layer Cage Characteristics:


1. A frame egg layer chicken cage, easy to operate, sturdy and durable;

2. The surface of the battery cage can be electroplated or hot-dip galvanized;

3. Good ventilation and lighting, which is conducive to chicken growth, high egg production rate and low egg broken rate;

4. Small investment, large breeding volume, and good economic benefits.

5. Compared with the H type stacked laying chicken cage system, the investment pg A frame poultry cage system can be reduced.

6. The laying hens can obtain more breeding area and increase the laying rate of the laying hens.

7. It is convenient for maintenance and repair, and the cage system can be controlled according to the prompt steps.

8. Automatic egg conveying system can improve the cleaning rate of eggs.

9. Convenient disinfection, easy to control coccidiosis and other parasitic diseases and worm infections;

10. Automatic drinking water system can ensure equal water pressure in the nipple and ensure the drinking of the layer chicken.
